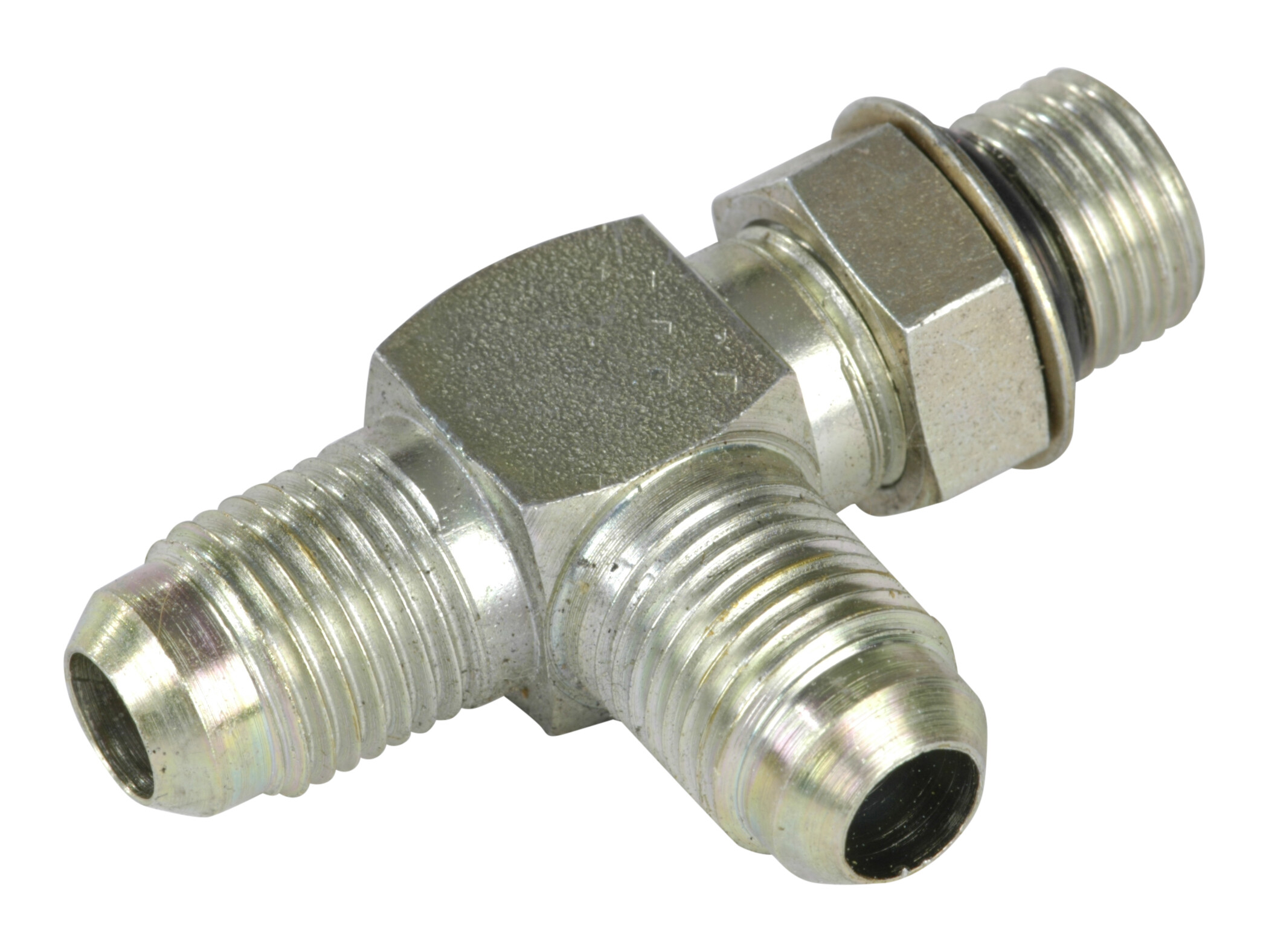

S580-10-14U barrel Tee UNF

Partnumber:

TOD-10-9/16

Package size:

0 pcs

Min. order quantity is:

1 pcs

Tilbehør (2)

Bushing Ø10

Partnumber: B-10

Omløber 9/16-18 JIC Nøglevidde 17mm

Partnumber: J-10

Specifications
Dimensions and shipping

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

10 mm

Dimension B

27 mm

Dimension B1

27 mm

Dimension C

31.5 mm

Dimension CH

17 mm

Dimension F

9/16-18 UNF

Dimension J

9/16-18 JIC

Dimension J1

9/16-18 JIC

Dimension T

10 mm

Dimension T1

10 mm

Material

Steel

Pressure max.

350 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

9/16-18 JIC

Thread outer

9/16-18 UNF

Package size

0 pcs

Barcode

5704334274797

Gross weight

0,07 Kg

Net weight

0,07 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S580-10-14U barrel Tee UNF

Note: Opening 3D files requires a program that supports the file format
