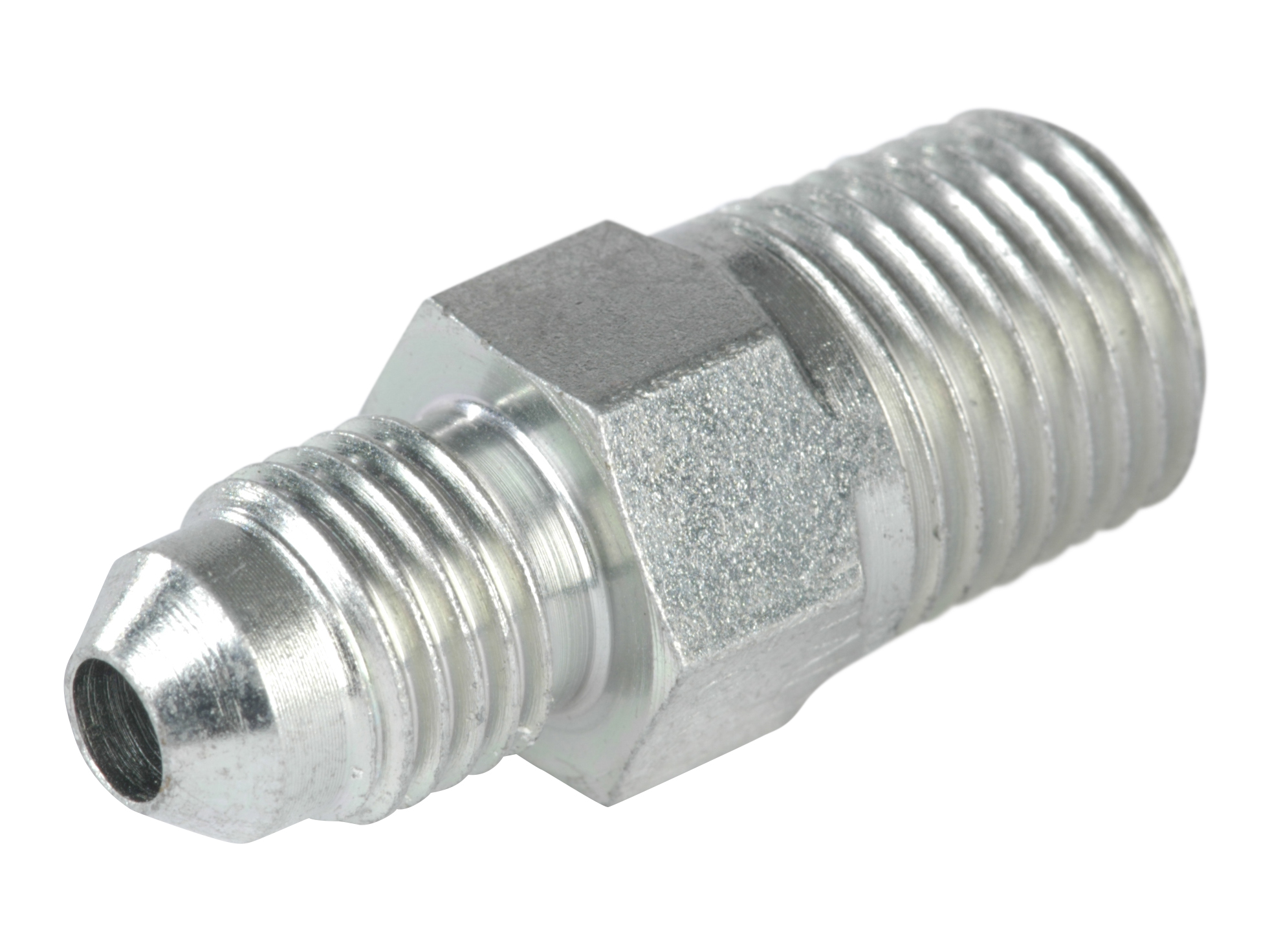

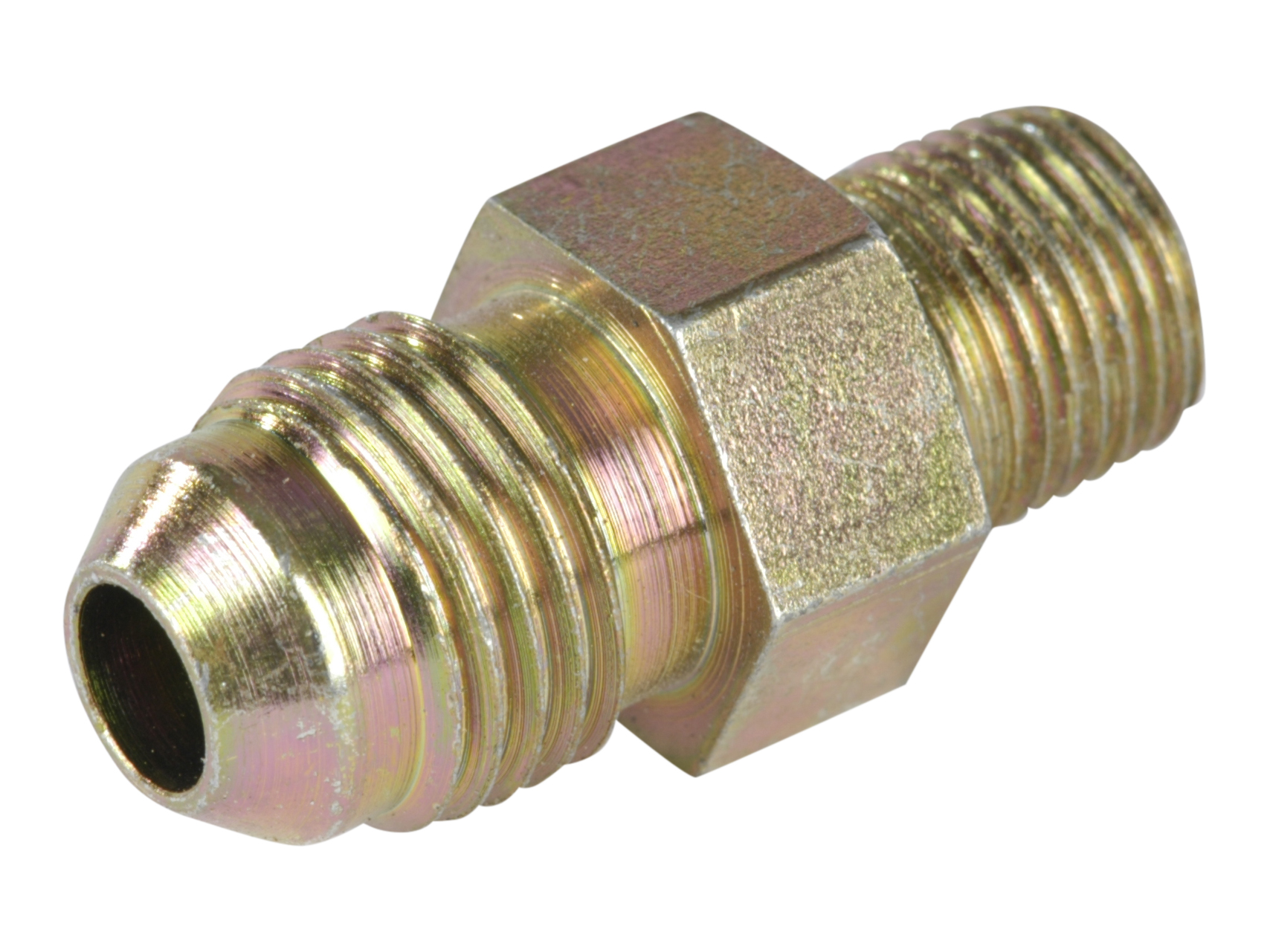

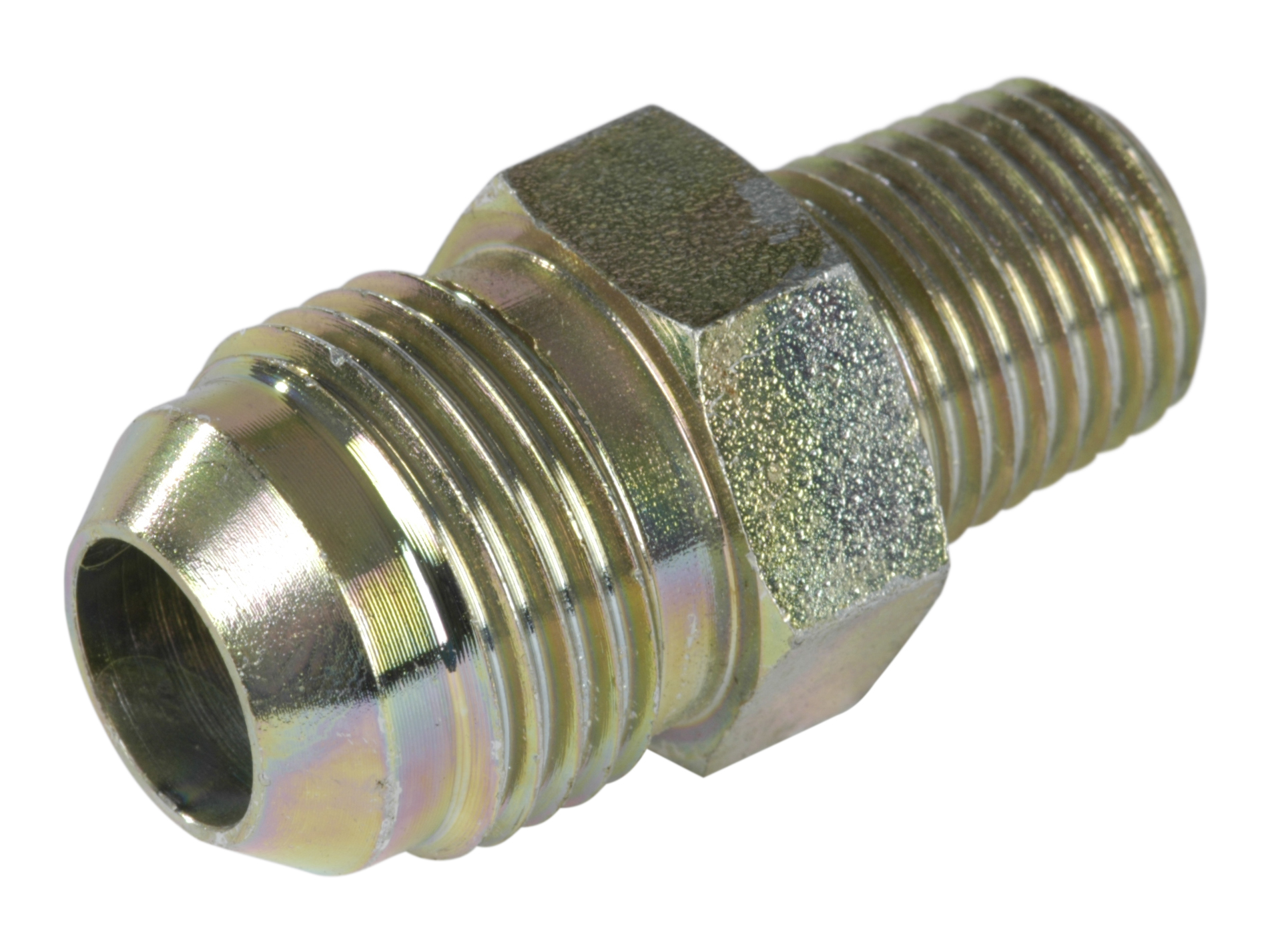

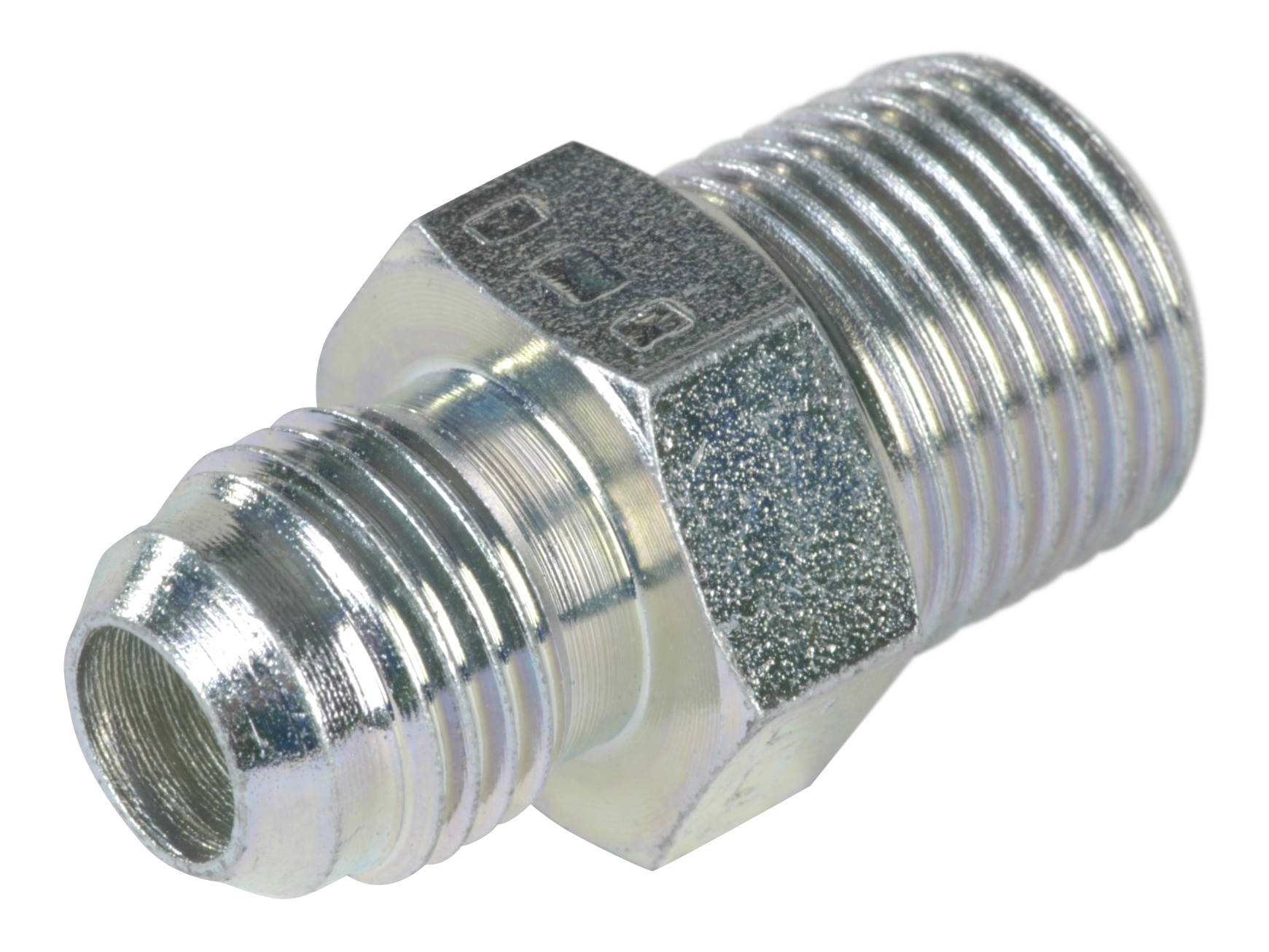

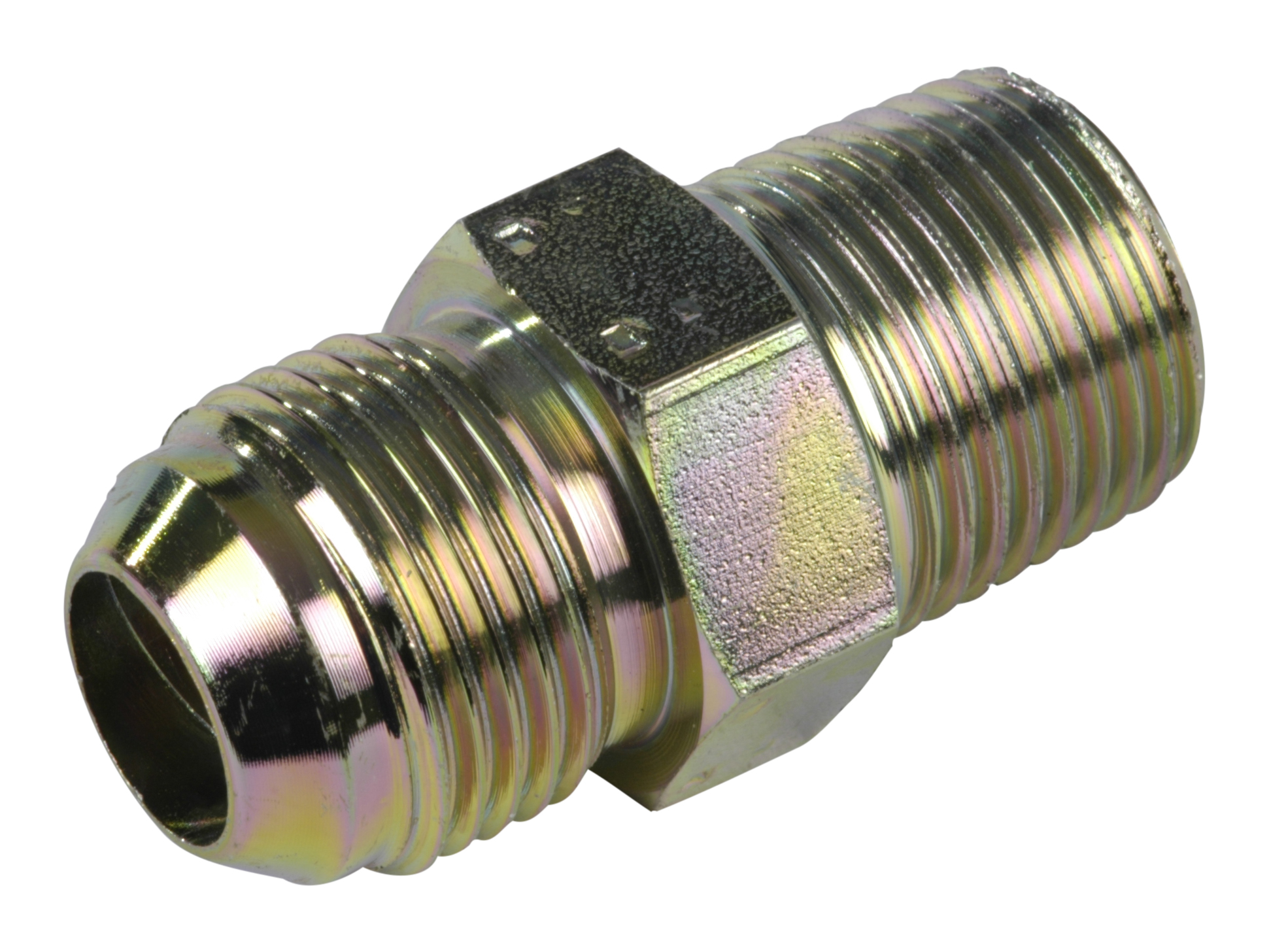

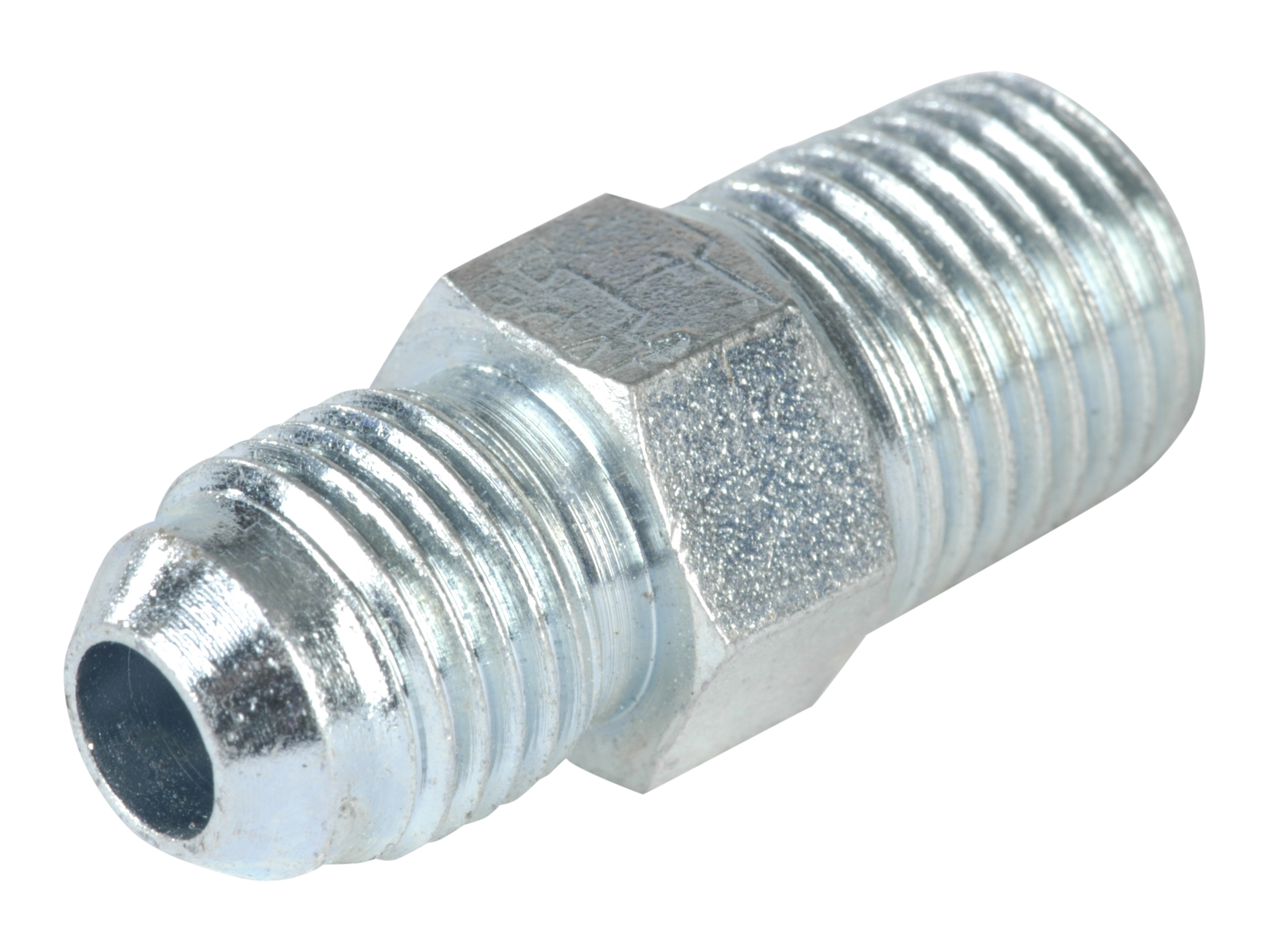

Adapter JIC male x NPT male - 03BK / M1 / JGEN

Adapter JIC male x NPT male - 03BK / M1 / JGEN

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Thread outer Pressure max.
M1-06-1/4 S200-06-13N adaptor NPT 6 mm 7/16-20 JIC 1/4 NPT 450 bar
M1-06-1/8 S200-06-10N adaptor NPT 6 mm 7/16-20 JIC 1/8 NPT 450 bar
M1-08-1/4 S200-08-13N adaptor NPT 8 mm 1/2-20 JIC 1/4 NPT 416 bar
M1-08-1/8 S200-08-10N adaptor NPT 8 mm 1/2-20 JIC 1/8 NPT 416 bar
M1-10-1/2 S200-10-21N adaptor NPT 10 mm 9/16-18 JIC 1/2 NPT 350 bar
M1-10-1/4 S200-10-13N adaptor NPT 03BK0406 10 mm 9/16-18 JIC 1/4 NPT 350 bar
M1-10-3/8 S200-10-17N adaptor NPT 10 mm 9/16-18 JIC 3/8 NPT 350 bar
M1-12-1/2 S200-12-21N adaptor NPT 03BK0808 12 mm 3/4-16 JIC 1/2 NPT 350 bar
M1-12-1/4 S200-12-13N adaptor NPT 12 mm 3/4-16 JIC 1/4 NPT 350 bar
M1-12-3/8 S200-12-17N adaptor NPT 12 mm 3/4-16 JIC 3/8 NPT 350 bar
M1-16-1/2 S200-16-21N adaptor NPT 16 mm 7/8-14 JIC 1/2 NPT 350 bar
Angle
0
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
