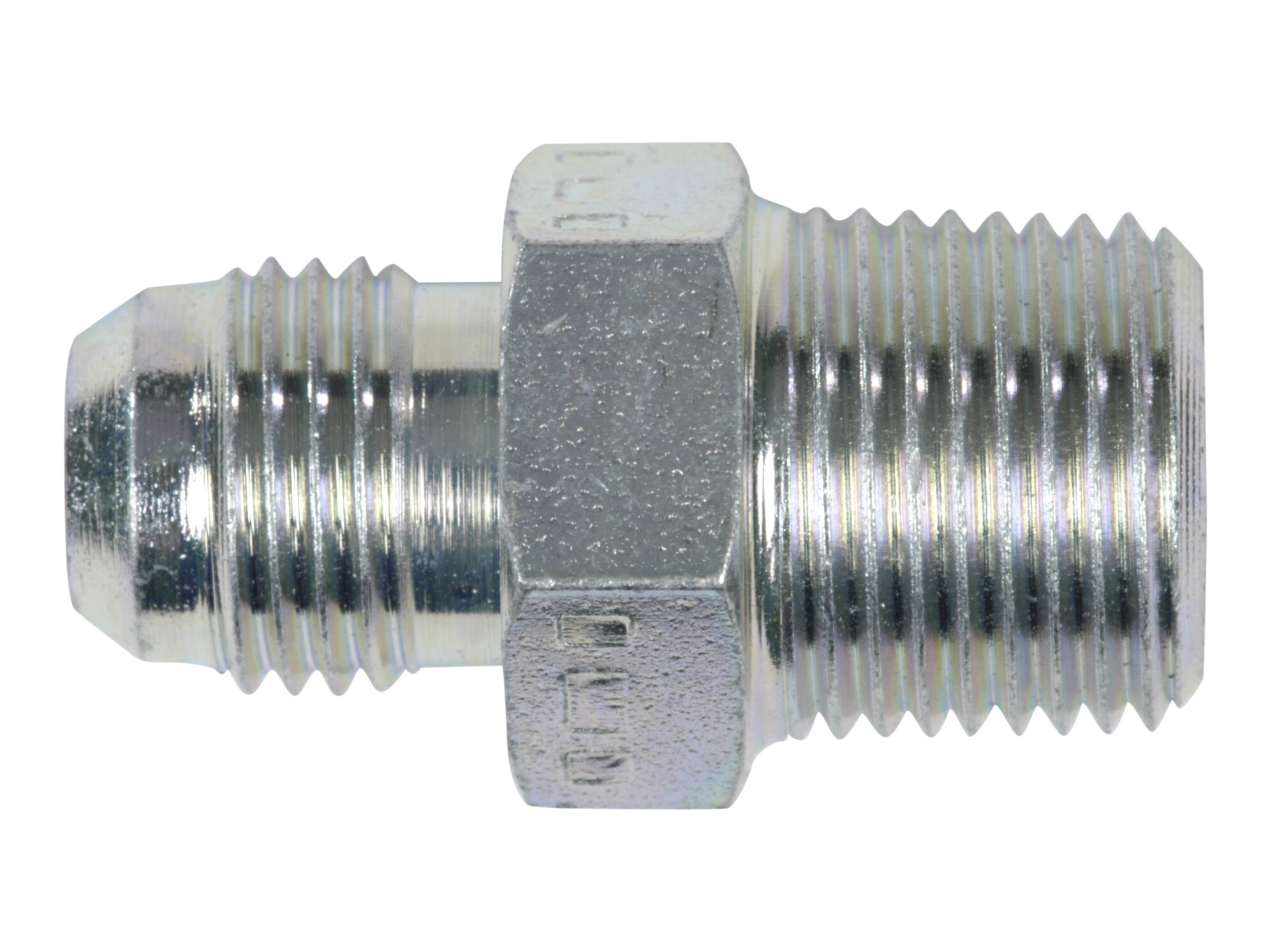

S200-10-17N adaptor NPT

Artikelnummer:

M1-10-3/8

Förpackningsstorlek:

0 pcs

Minsta beställningskvantitet:

1 pcs

Accessories (1)

Bushing Ø10

Partnumber: B-10

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

10 mm

Dimension A

36 mm

Dimension B

14 mm

Dimension C

14.5 mm

Dimension CH

19 mm

Dimension F

3/8 NPT

Dimension J

9/16-18 JIC

Dimension T

10 mm

Material

Steel

Pressure max.

350 bar

Surface treatment

Electro-galvanized / White chromatized

Thread outer

3/8 NPT

Thread outer

9/16-18 JIC

Package size

0 pcs

Barcode

5704295485560

Gross weight

0,04 Kg

Net weight

0,04 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

S200-10-17N adaptor NPT

Note: Opening 3D files requires a program that supports the file format
