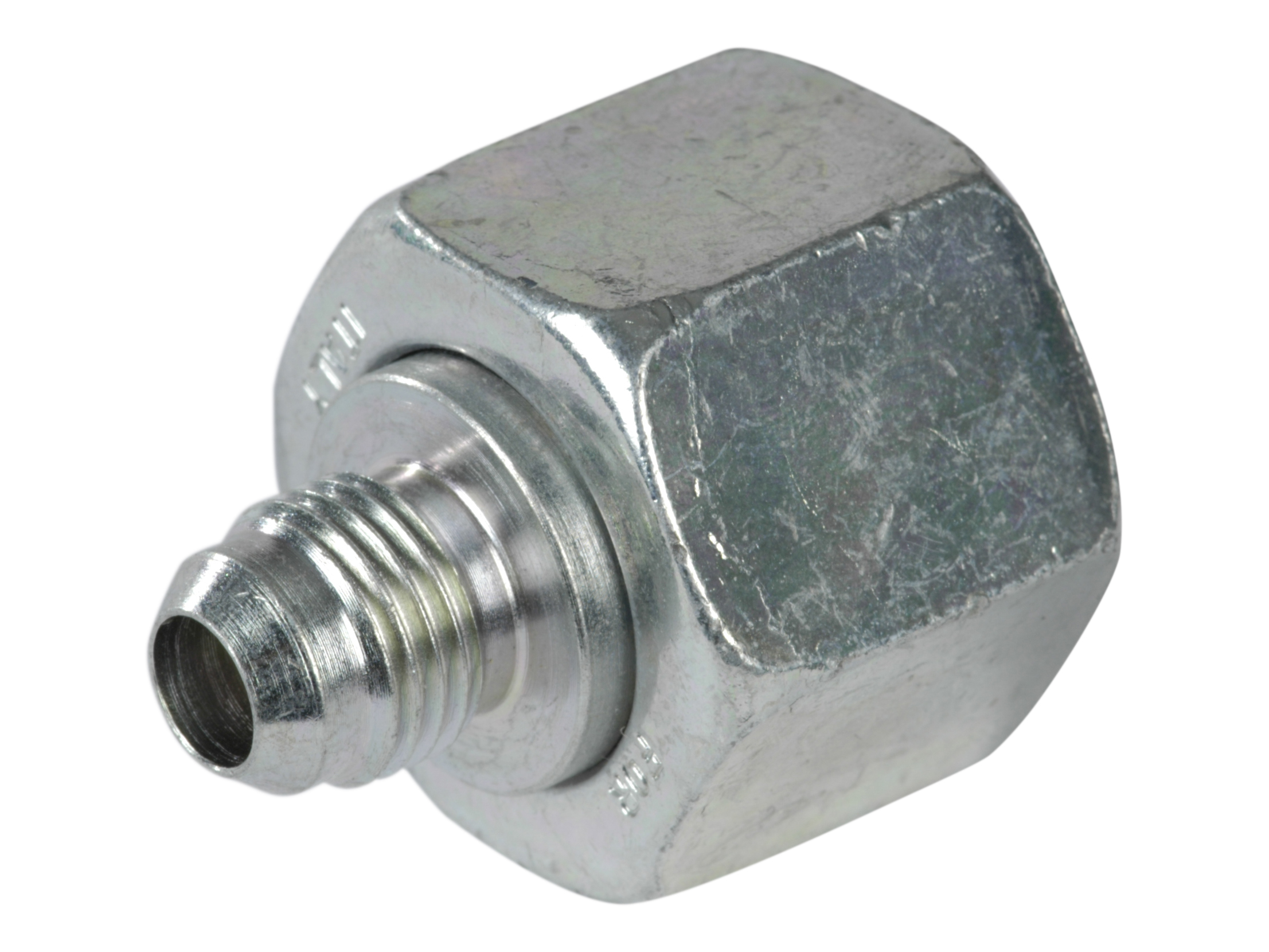

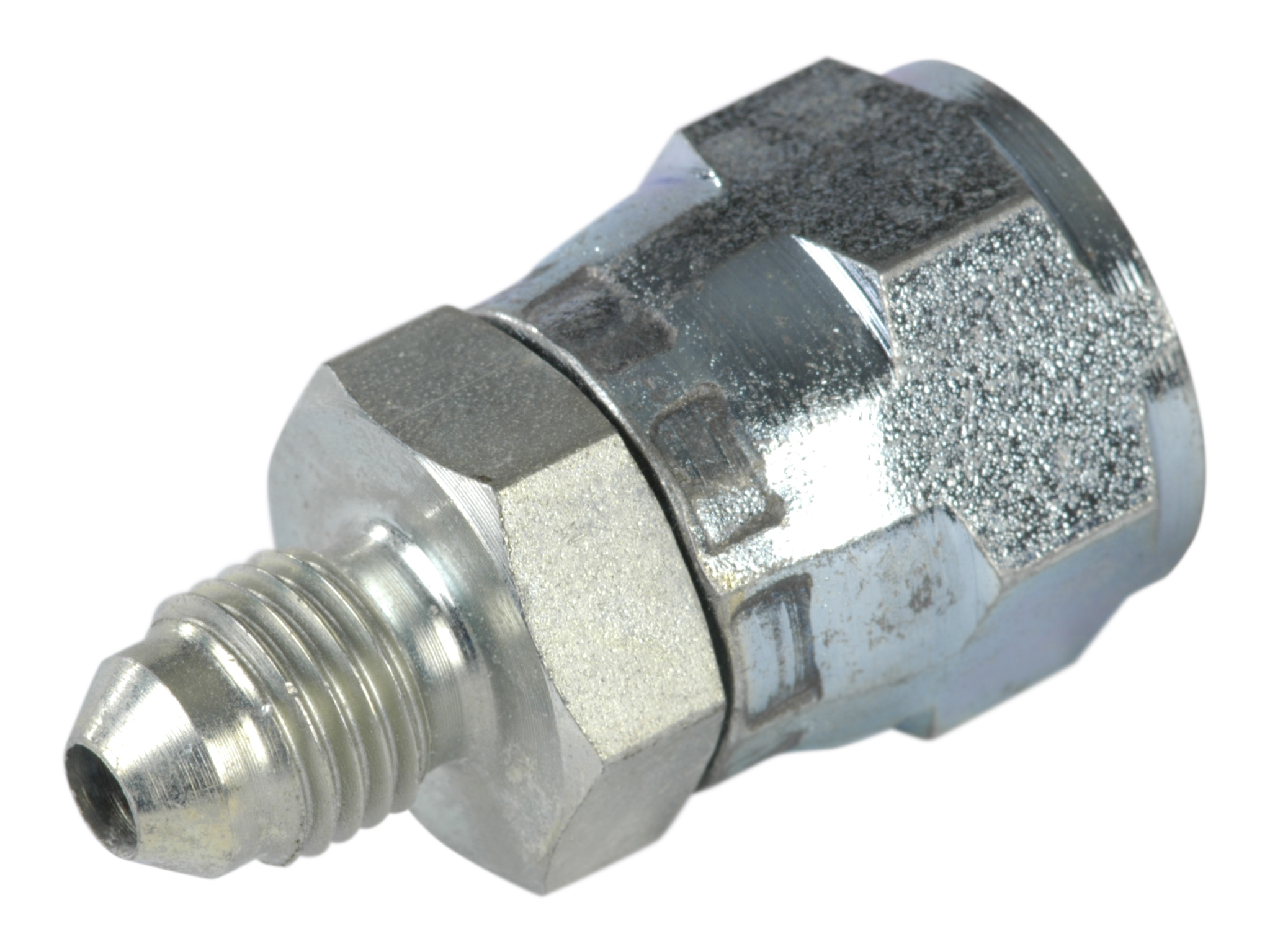

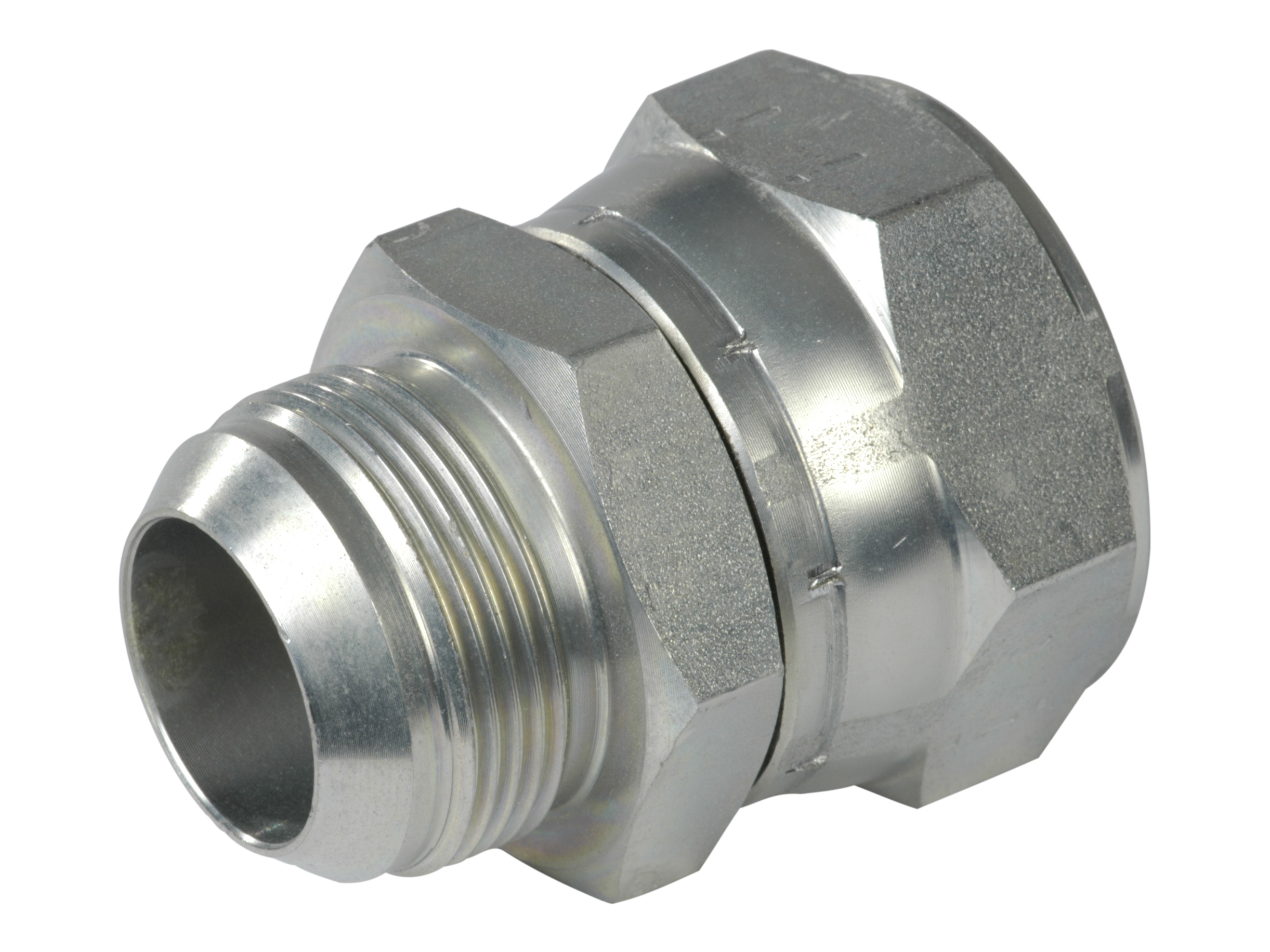

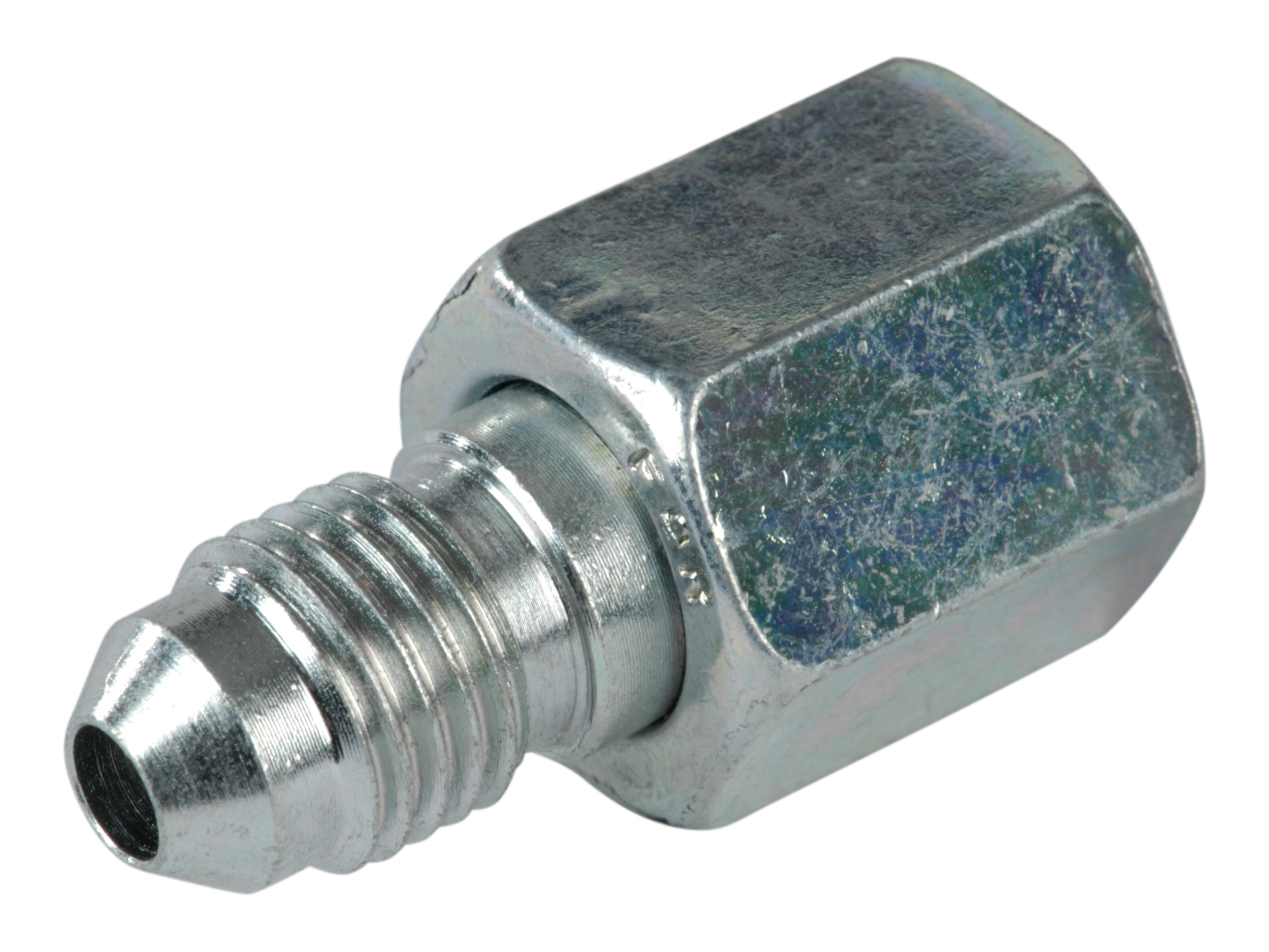

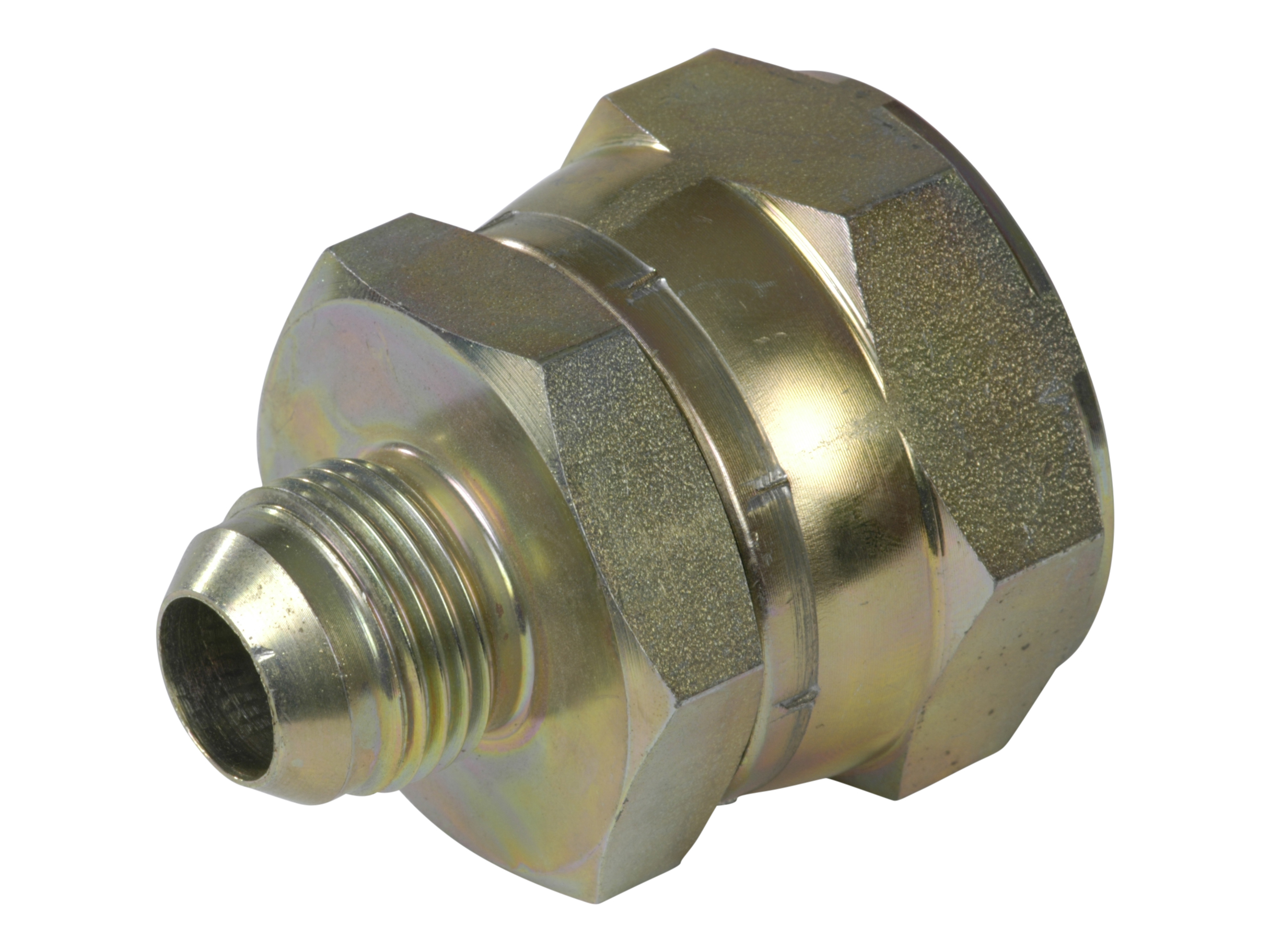

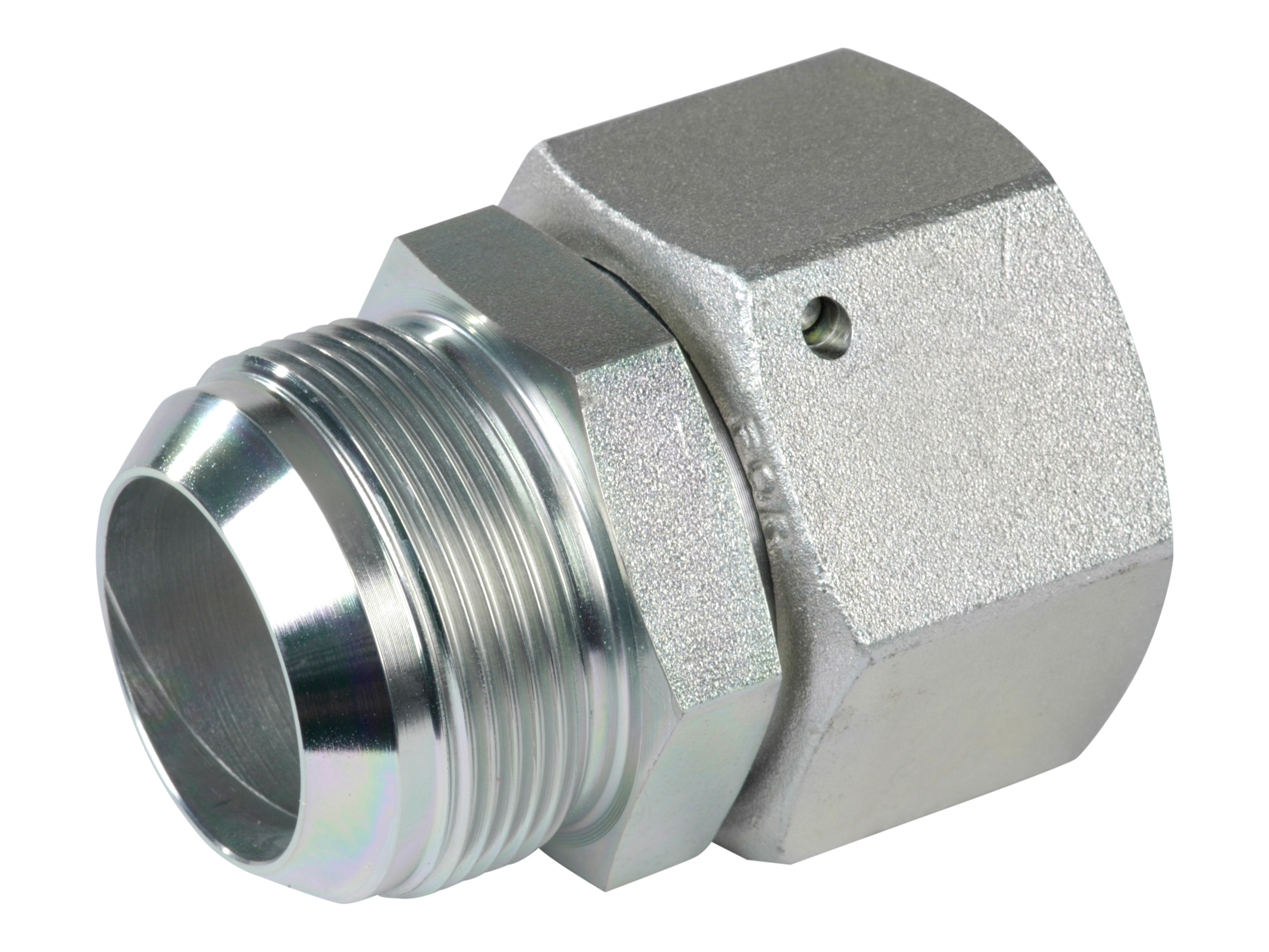

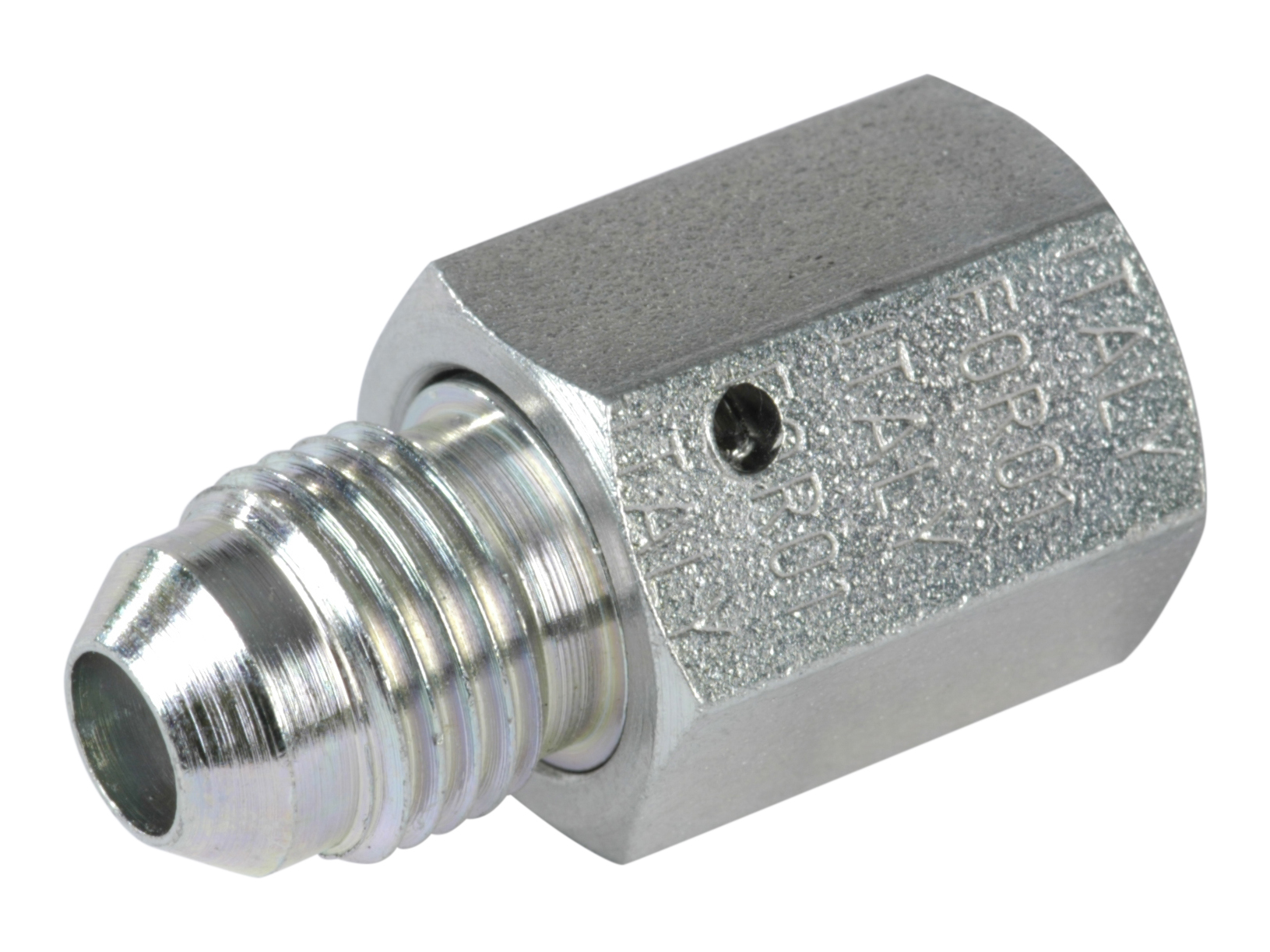

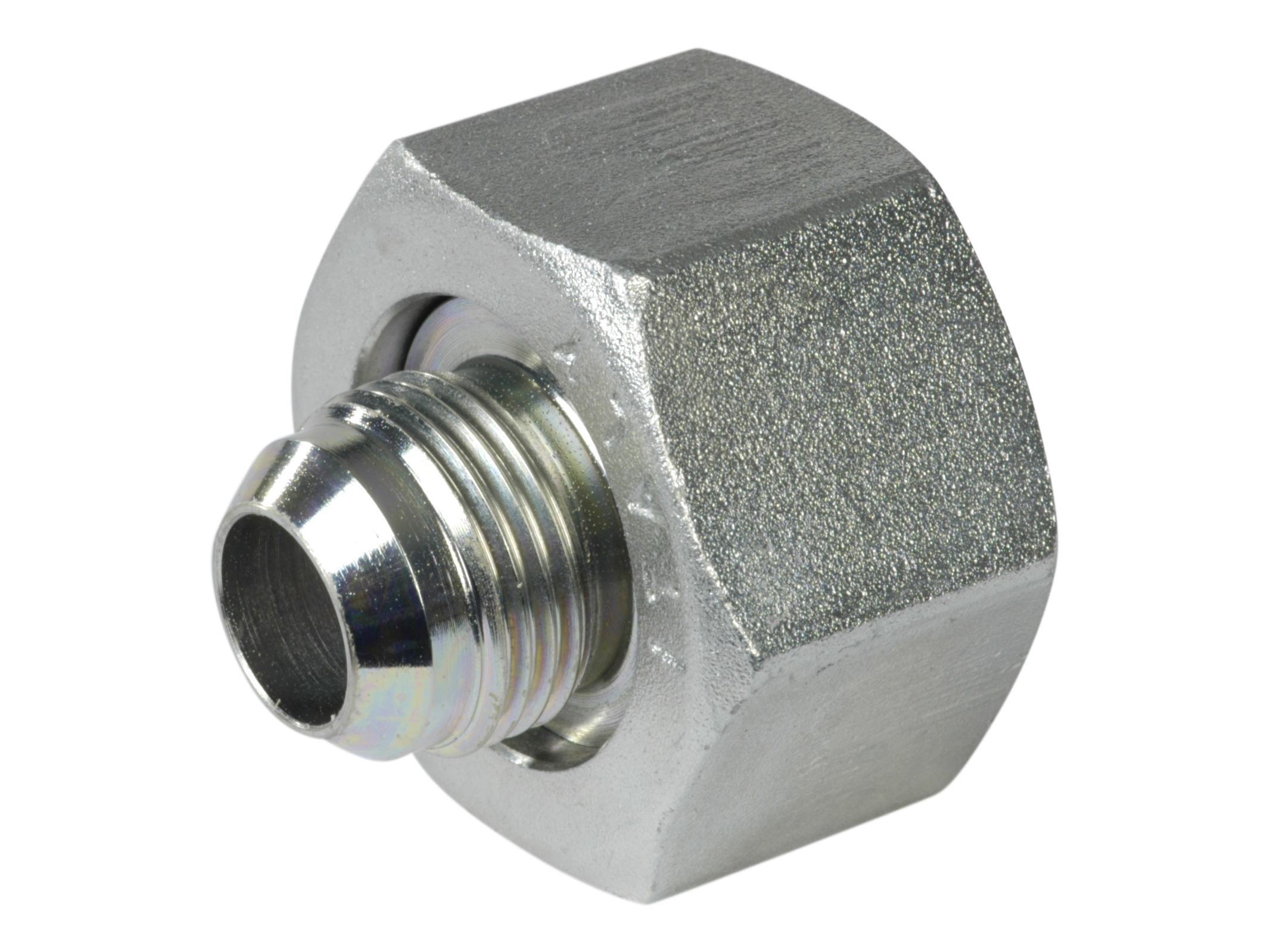

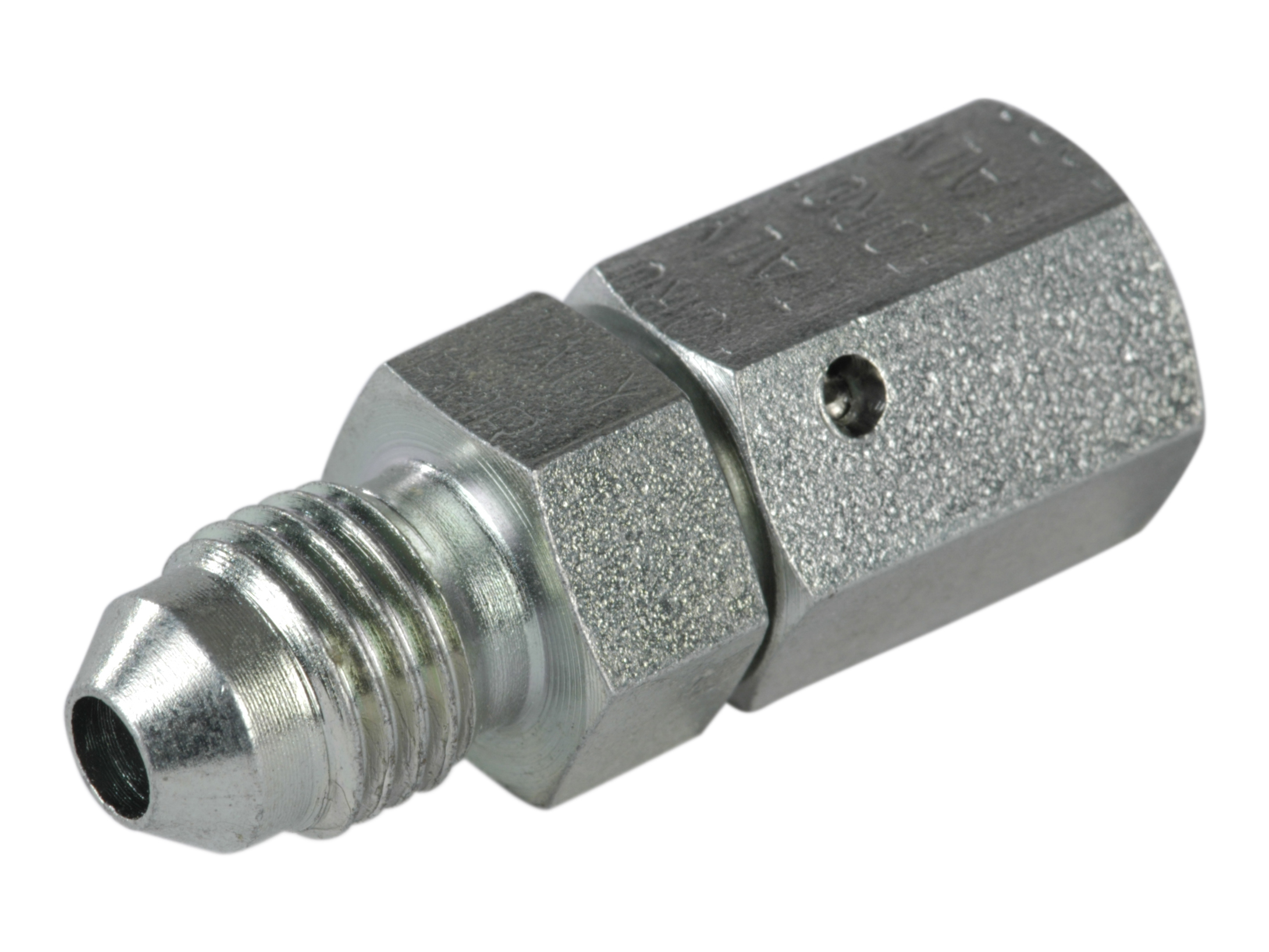

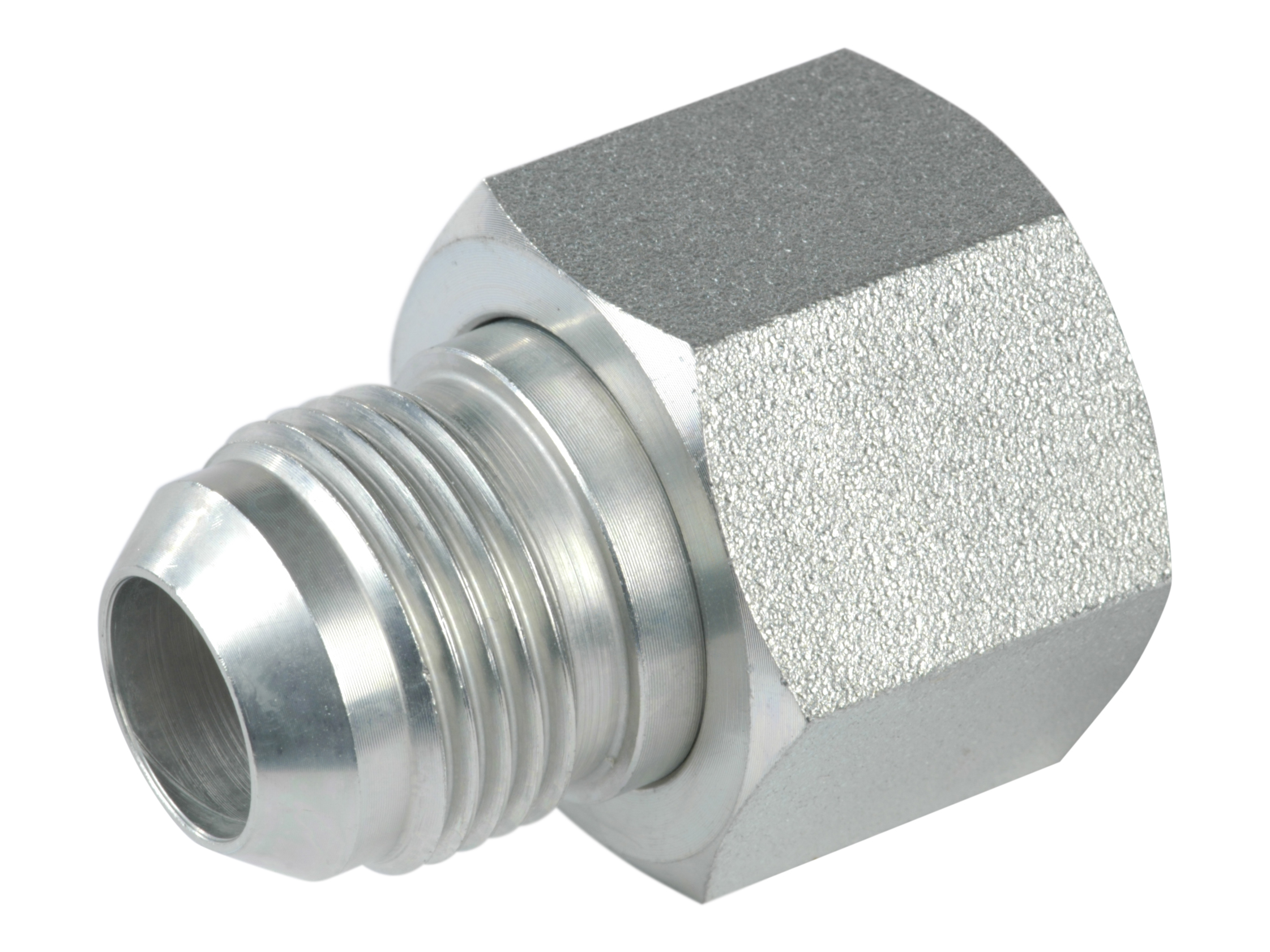

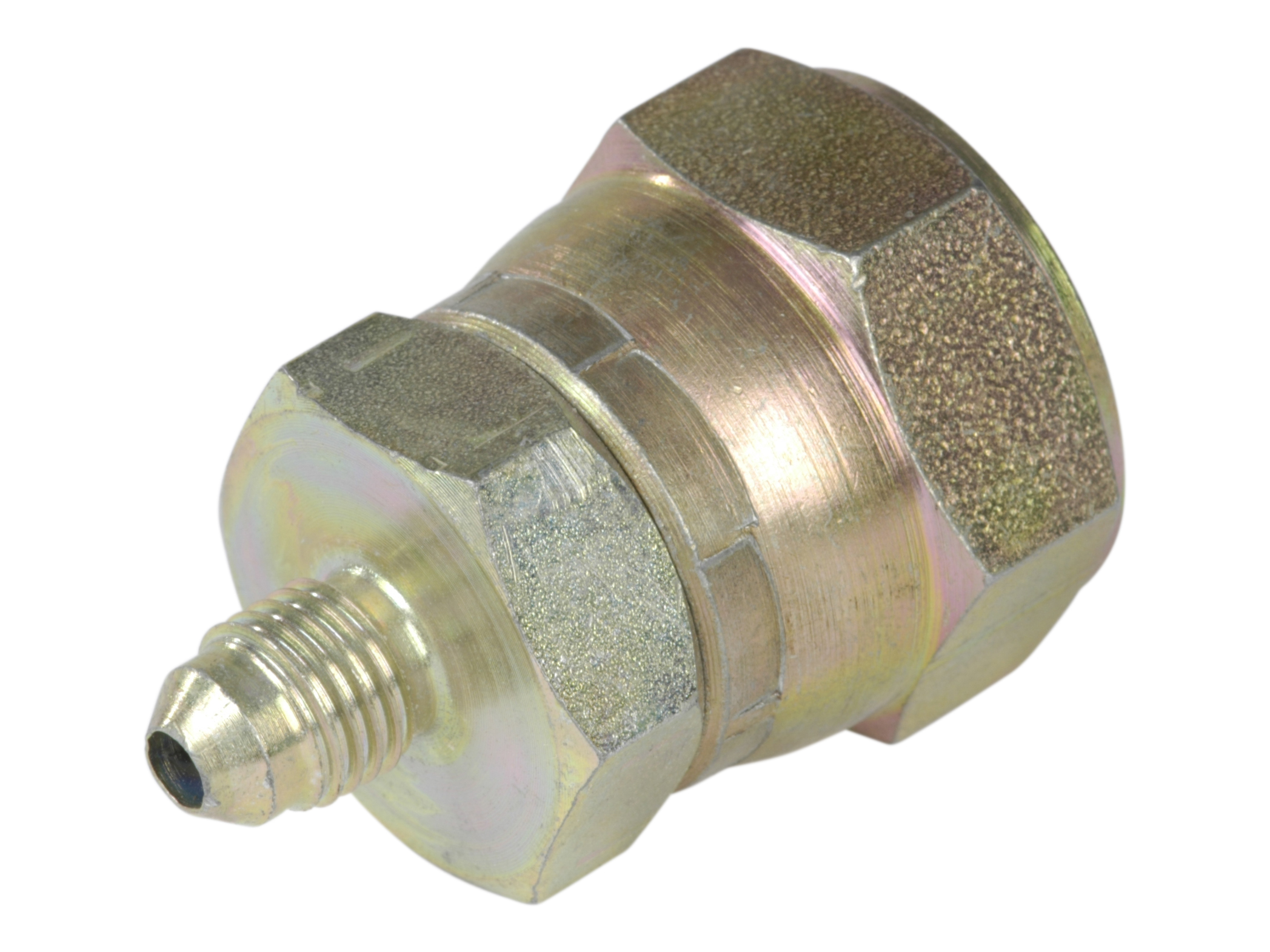

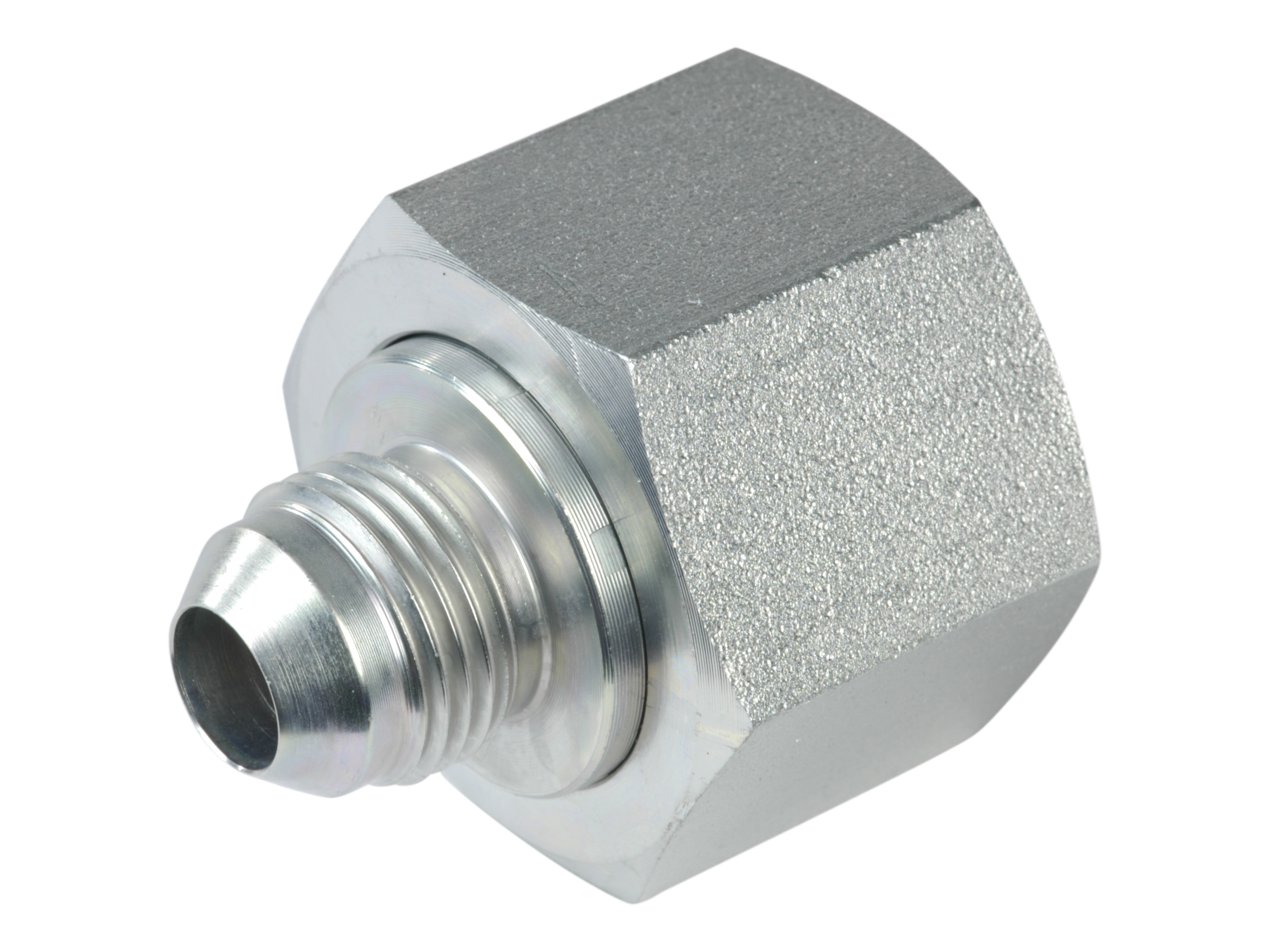

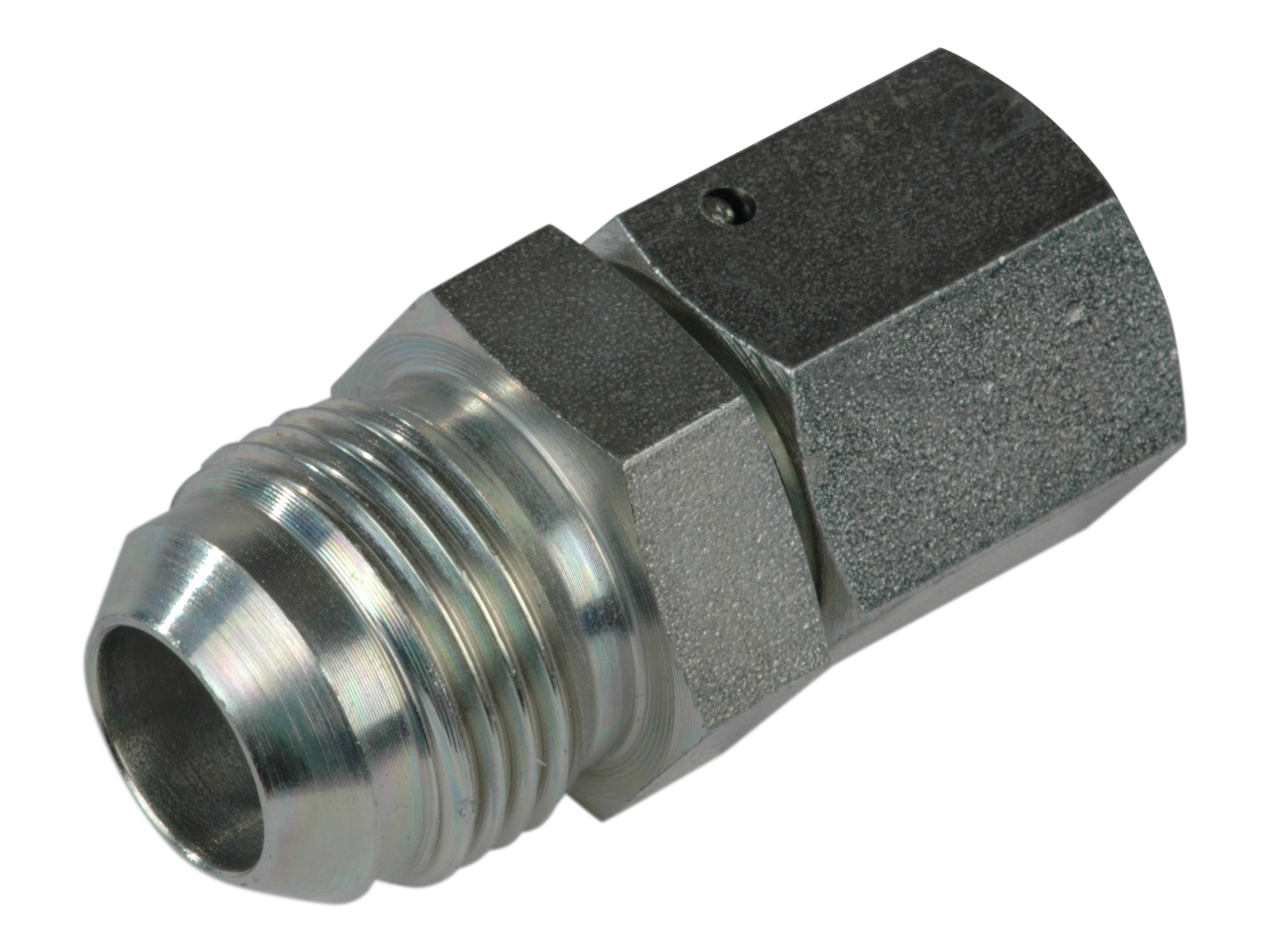

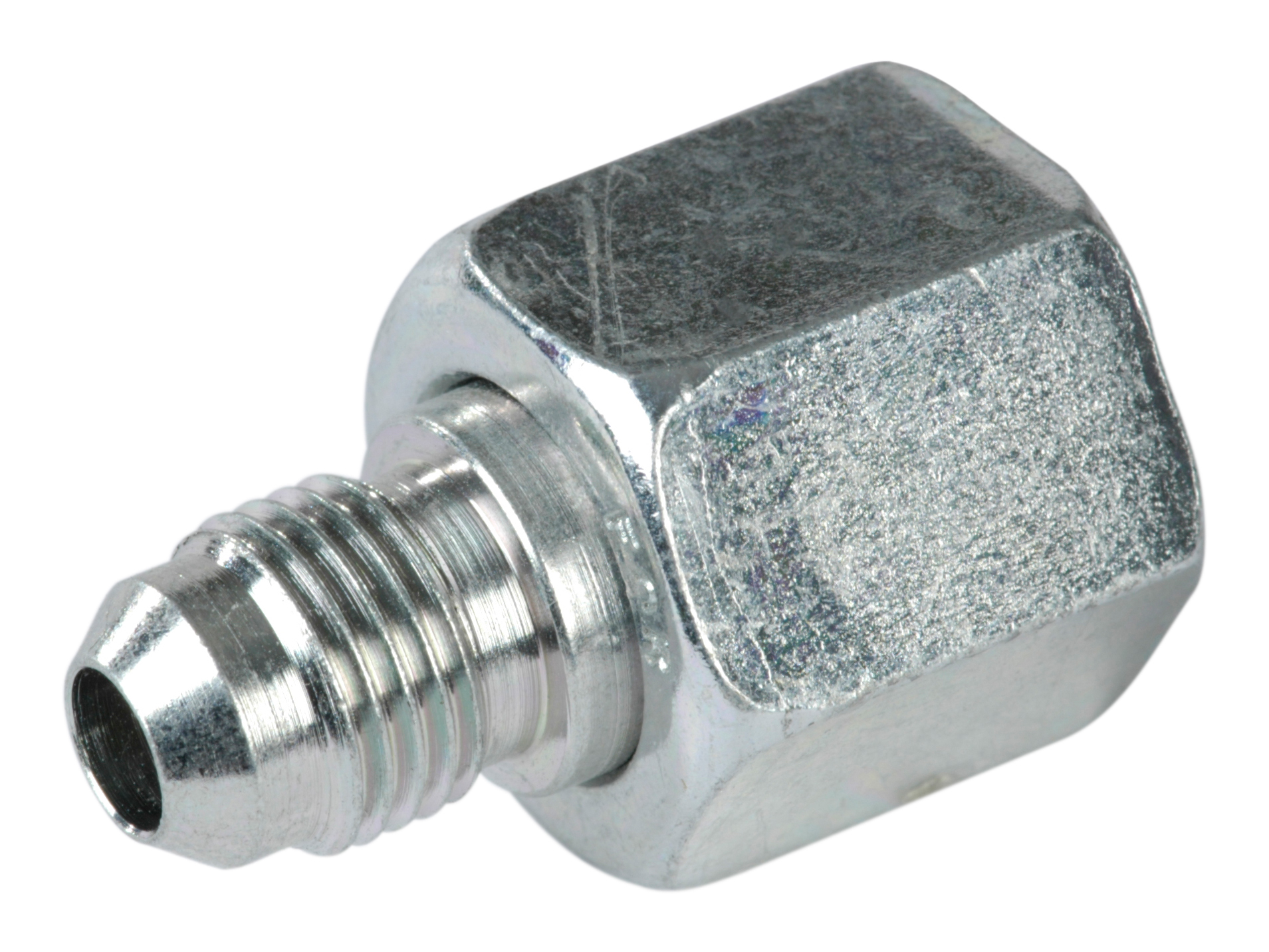

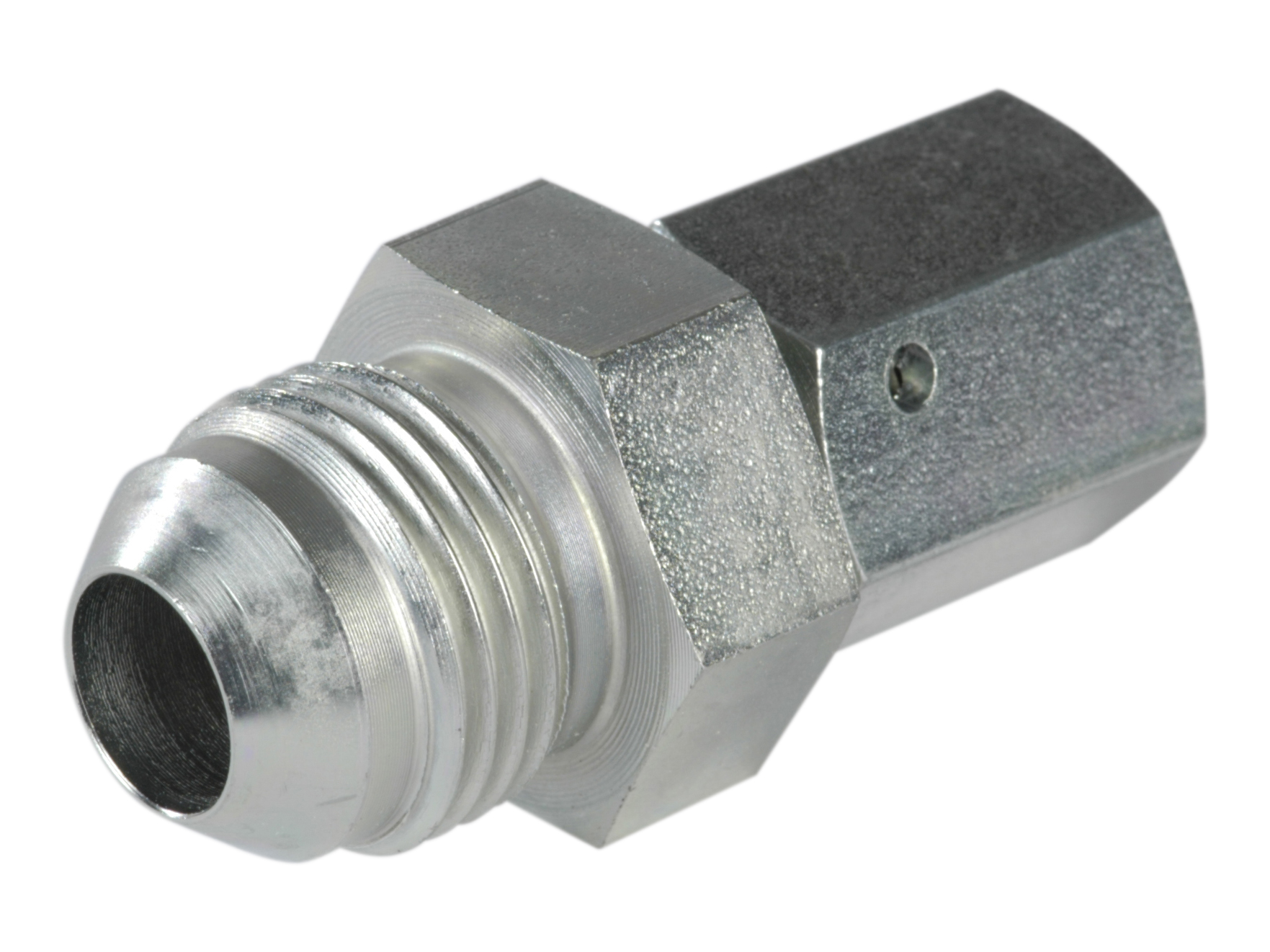

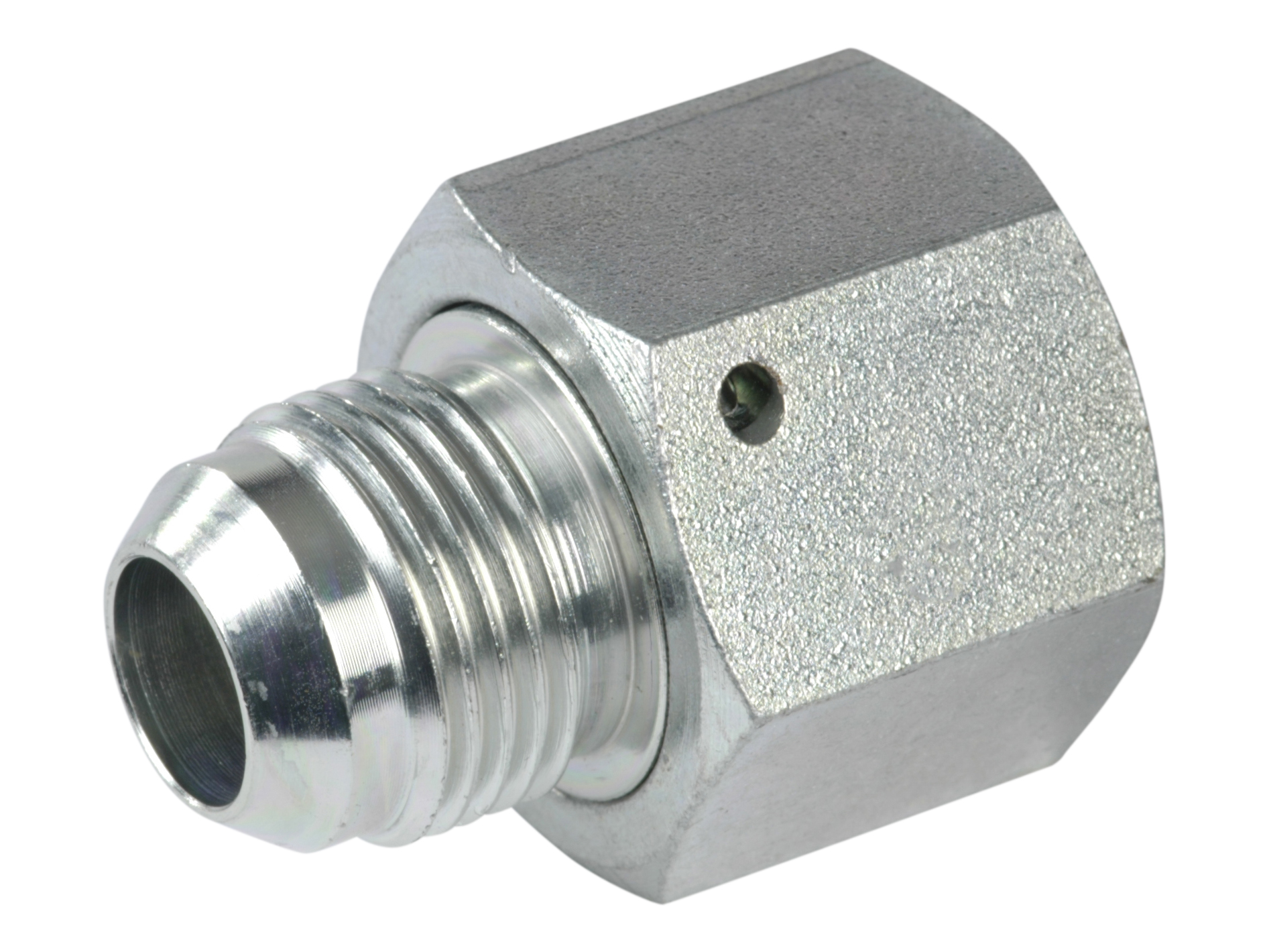

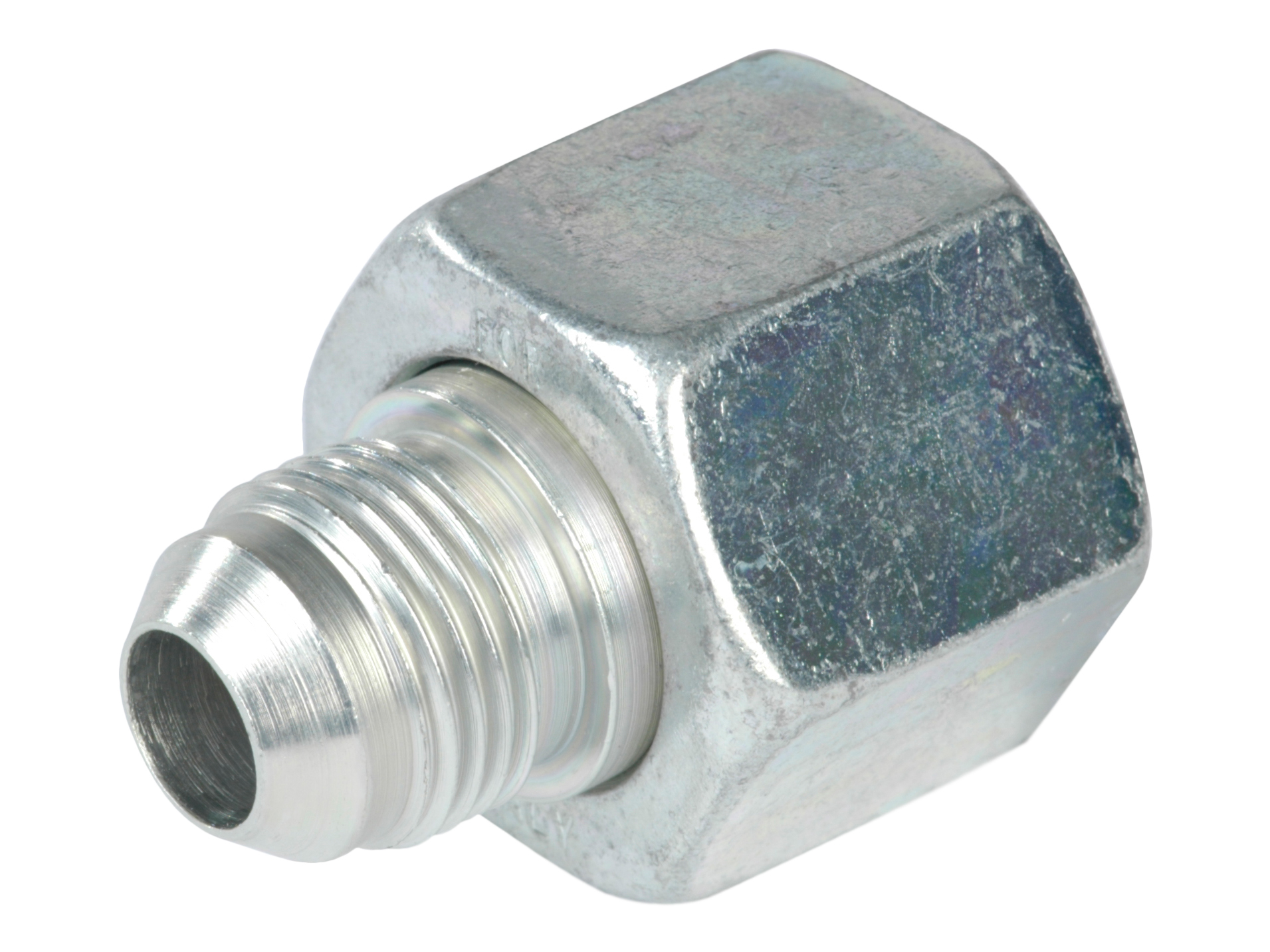

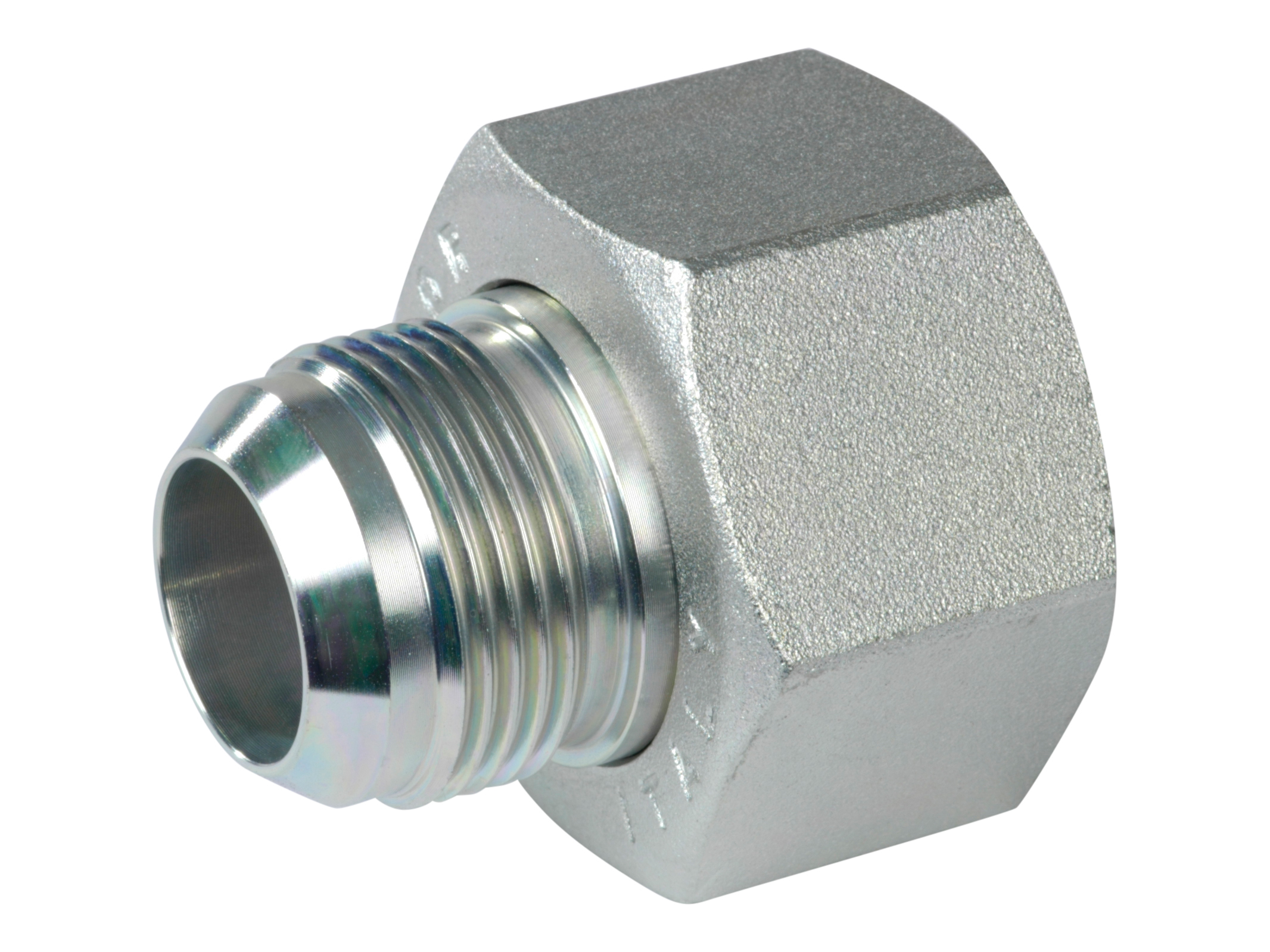

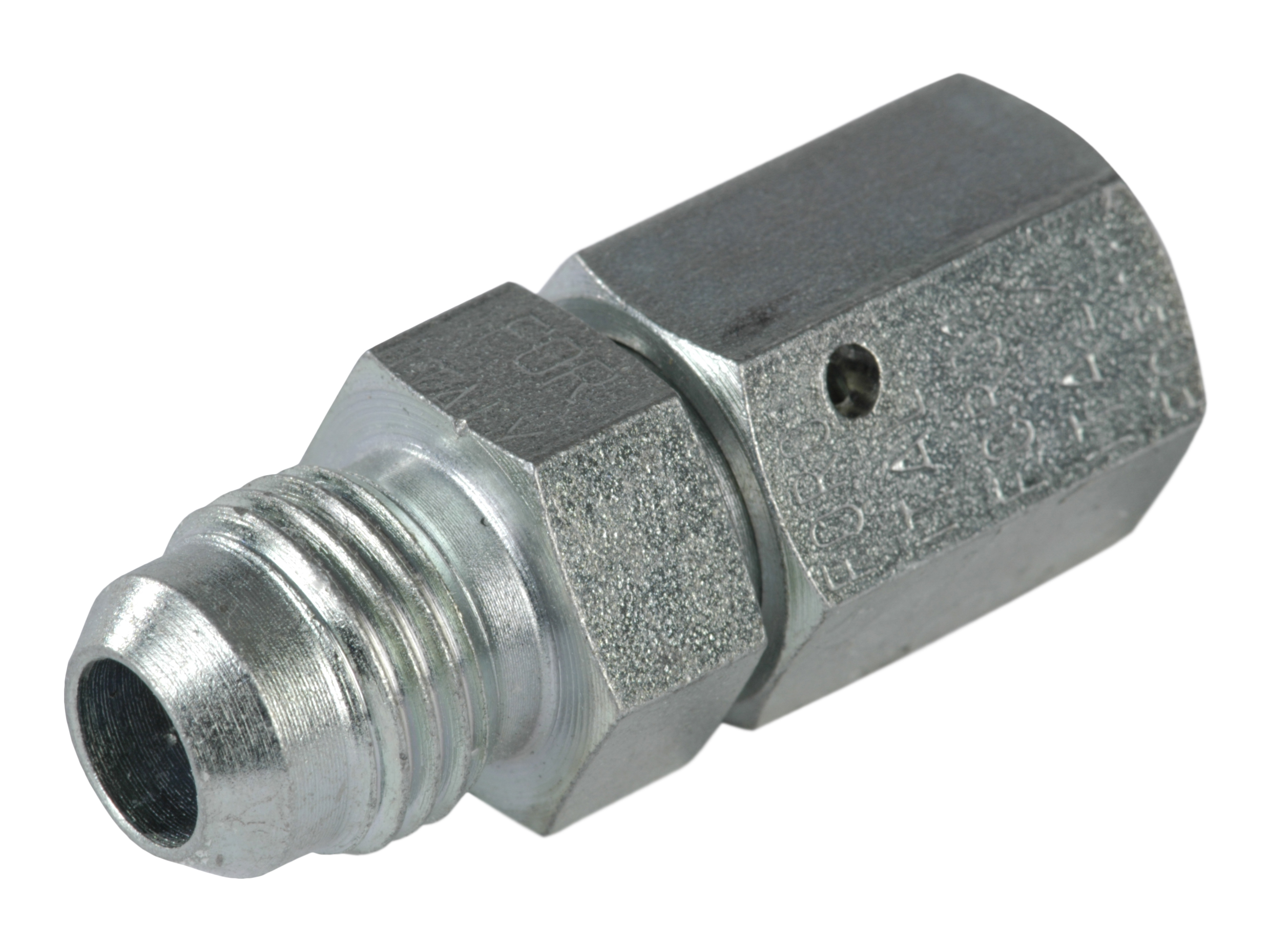

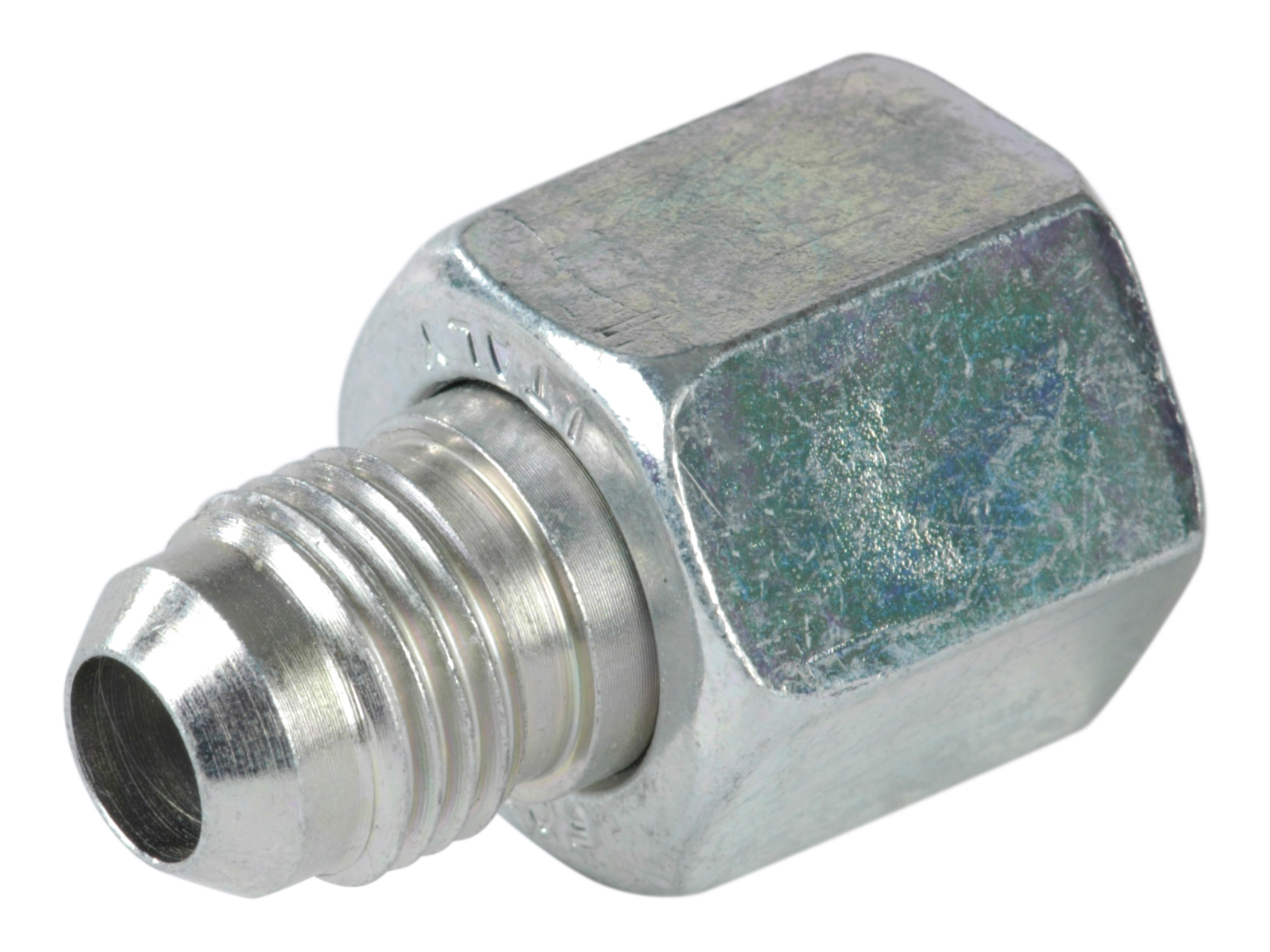

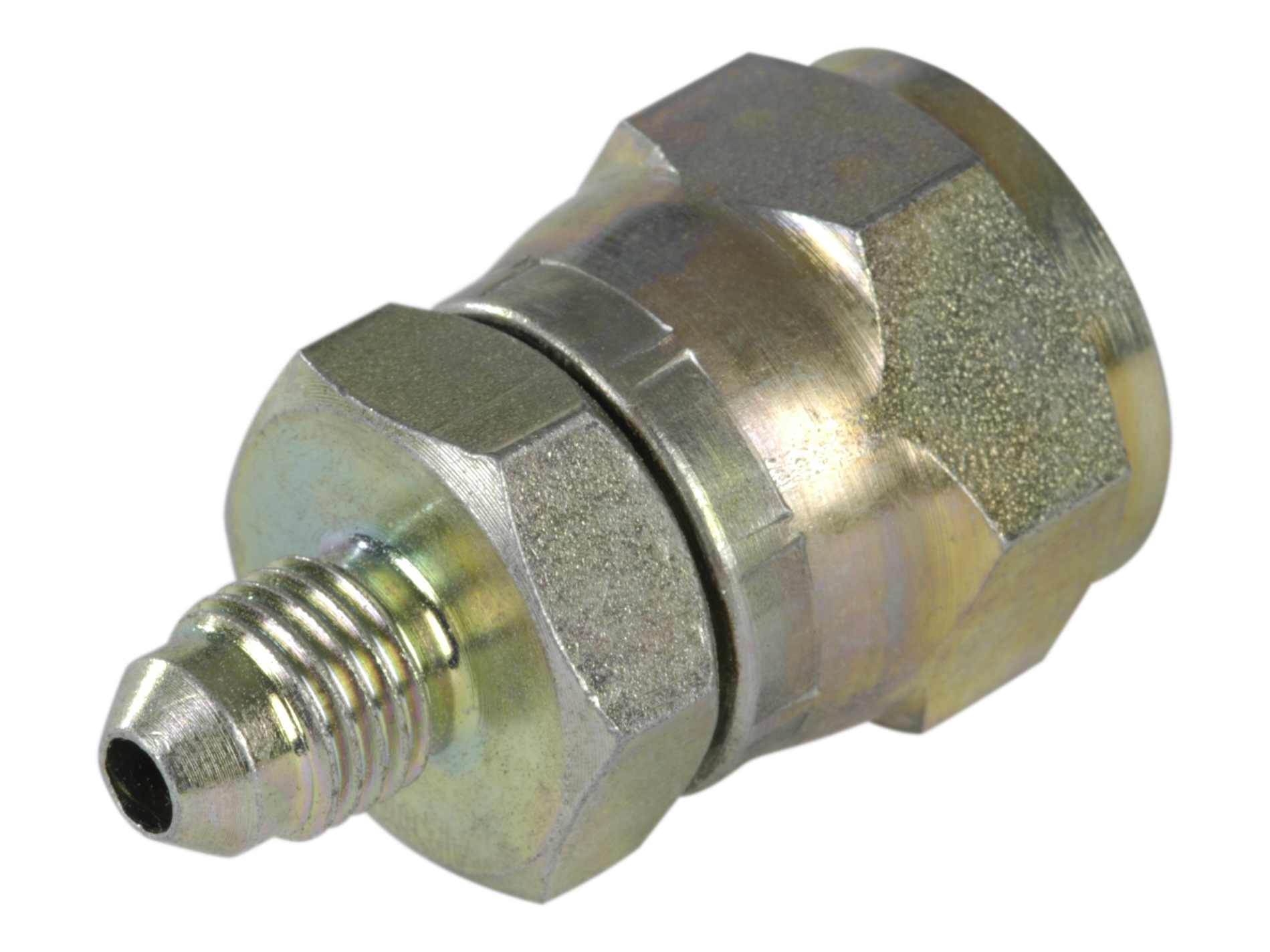

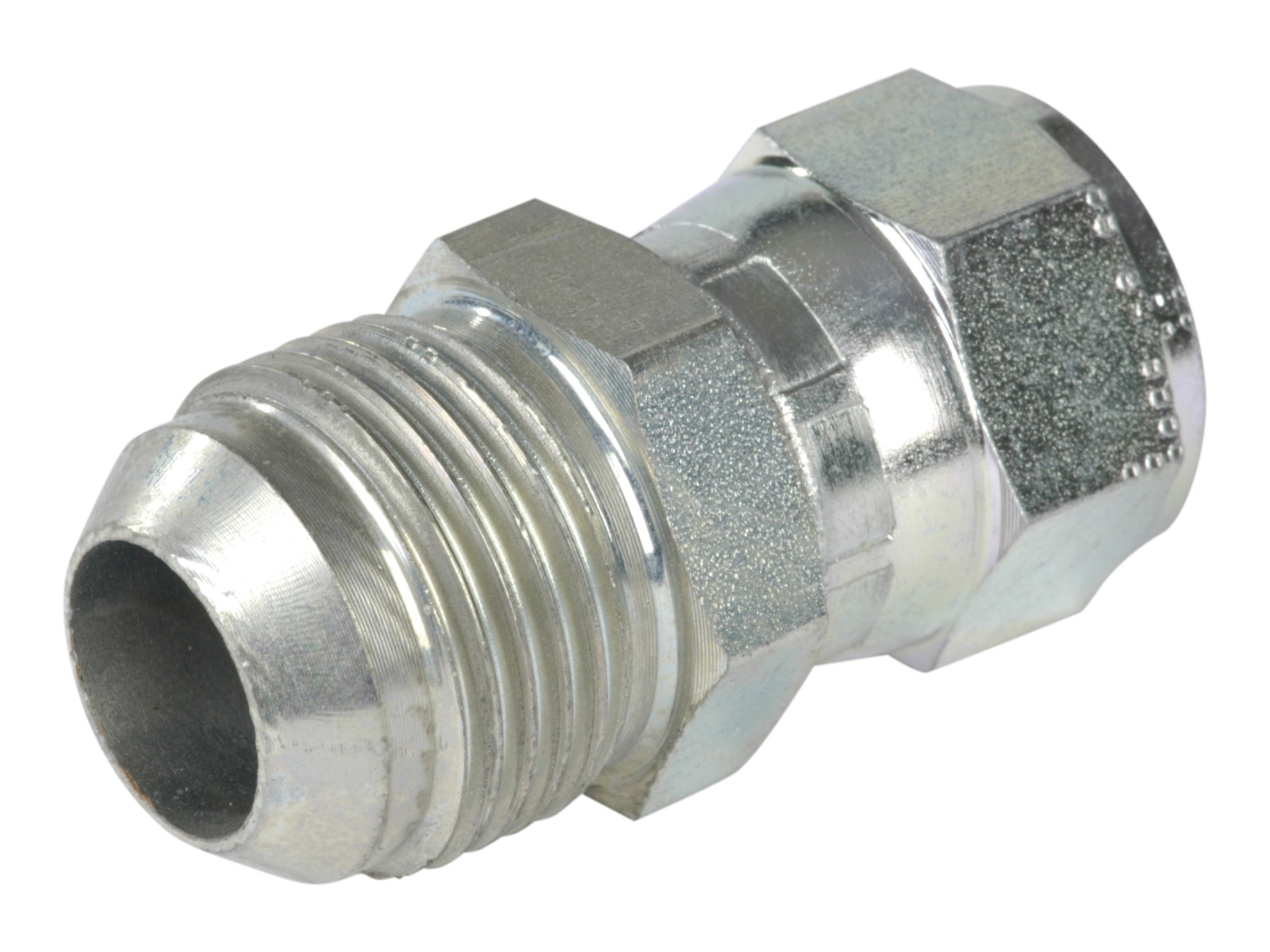

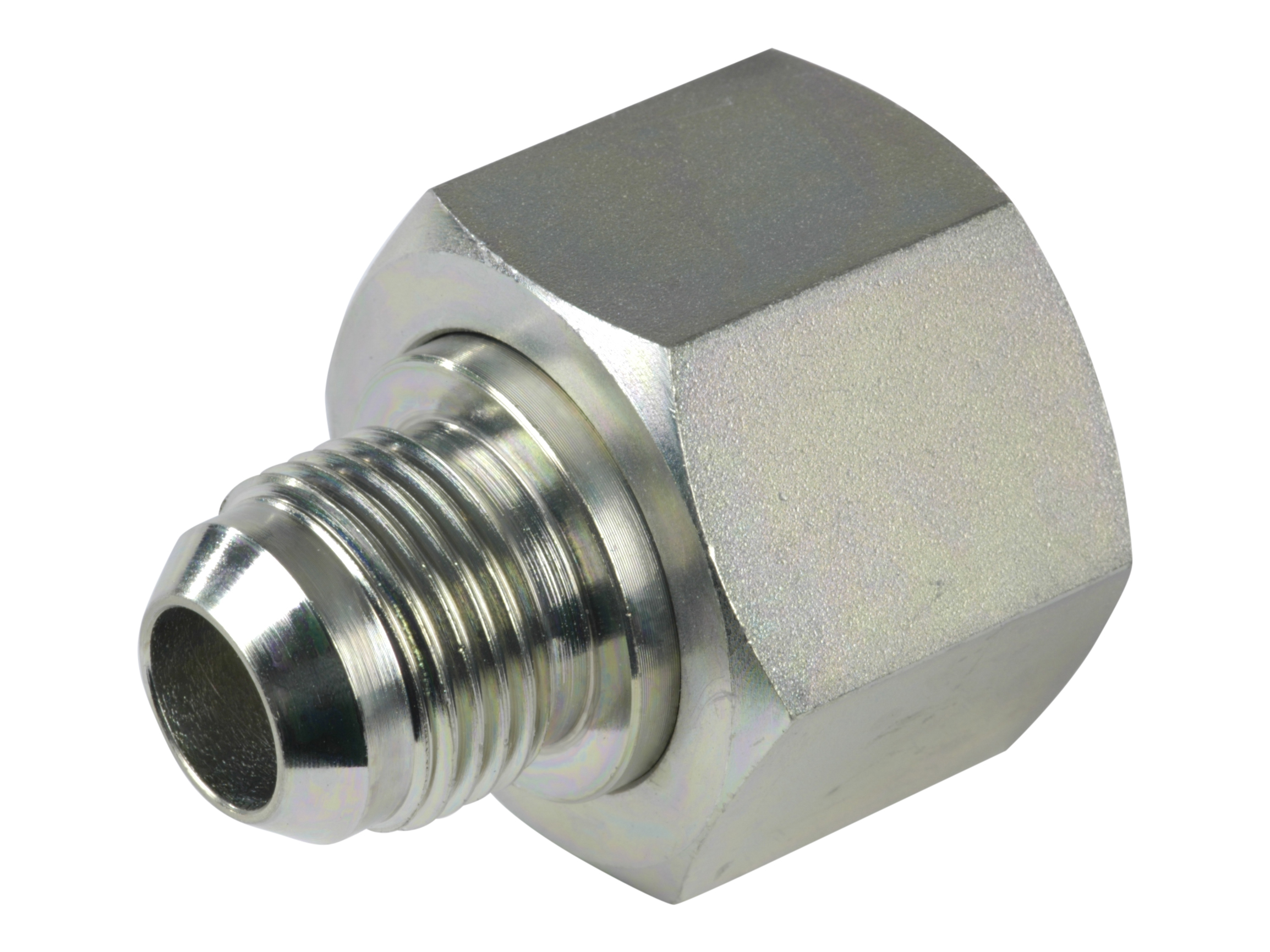

Adapter JIC male x JIC union nut RFM / JKOR

Adapter JIC male x JIC union nut RFM / JKOR

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Pressure max. Diameter pipe Thread inner Thread outer
RFM-06-06 Fitting ¤ 450 bar 6 mm 7/16-20 JIC 7/16-20 JIC
RFM-08-06 Reducering, Inv-JIC, Utv-JIC, Solid 6 mm 1/2-20 JIC 7/16-20 JIC
RFM-10-06 Fitting 350 bar 6 mm 9/16-18 JIC 7/16-20 JIC
RFM-10-08 Fitting 350 bar 8 mm 9/16-18 JIC 1/2-20 JIC
RFM-10-10 Fitting 350 bar 10 mm 9/16-18 JIC 9/16-18 JIC
RFM-10-12 Fitting 350 bar 10 mm 9/16-18 JIC 3/4-16 JIC
RFM-12-06 Fitting 350 bar 6 mm 3/4-16 JIC 7/16-20 JIC
RFM-12-08 Fitting 350 bar 8 mm 3/4-16 JIC 1/2-20 JIC
RFM-12-10 Fitting 350 bar 10 mm 3/4-16 JIC 9/16-18 JIC
RFM-12-16 Reduction 3/4-16 JIC nut x 7/8-14 JIC male 350 bar 12 mm 3/4-16 JIC 7/8-14 JIC
RFM-16-06 Fitting 350 bar 6 mm 7/8-14 JIC 7/16-20 JIC
RFM-16-10 Fitting 350 bar 10 mm 7/8-14 JIC 9/16-18 JIC
RFM-16-12 Fitting 350 bar 10 mm 7/8-14 JIC 3/4-16 JIC
RFM-16-20 Fitting 16 mm 7/8-14 JIC 1.1/16-12 JIC
RFM-20-06 Fitting 300 bar 20 mm 1.1/16-12 JIC 7/16-20 JIC
RFM-20-08 Reducering, Inv-JIC, Utv-JIC 8 mm 1.1/16-12 JIC 1/2-20 JIC
RFM-20-10 Fitting 300 bar 10 mm 1.1/16-12 JIC 9/16-18 JIC
RFM-20-12 Fitting 300 bar 12 mm 1.1/16-12 JIC 3/4-16 JIC
RFM-20-16 Fitting 300 bar 16 mm 1.1/16-12 JIC 7/8-14 JIC
RFM-25-12 Reducer male - female Jic 290 bar 12 mm 1.5/16-12 JIC 3/4-16 JIC
RFM-25-16 Reducer male - female Jic 290 bar 16 mm 1.5/16-12 JIC 7/8-14 JIC
RFM-25-20 Reducer male - female Jic 290 bar 20 mm 1.5/16-12 JIC 1.1/16-12 JIC
RFM-32-20 Reducer male - female Jic 240 bar 30-32 mm 1.5/8-12 JIC 1.1/16-12 JIC
RFM-32-25 Fitting 240 bar 30-32 mm 1.5/8-12 JIC 1.5/16-12 JIC
RFM-38-20 Fitting 250 bar 20 mm 1.7/8-12 JIC 1.1/16-12 JIC
RFM-38-25 Fitting 250 bar 38 mm 1.7/8-12 JIC 1.5/16-12 JIC
RFM-38-32 Fitting 250 bar 32 mm 1.7/8-12 JIC 1.5/8-12 JIC
RFM-38-38 Female x male 1.7/8-14 JIC 250 bar 38 mm 1.7/8-12 JIC 1.7/8-12 JIC
