Fitting
\ufeff
-

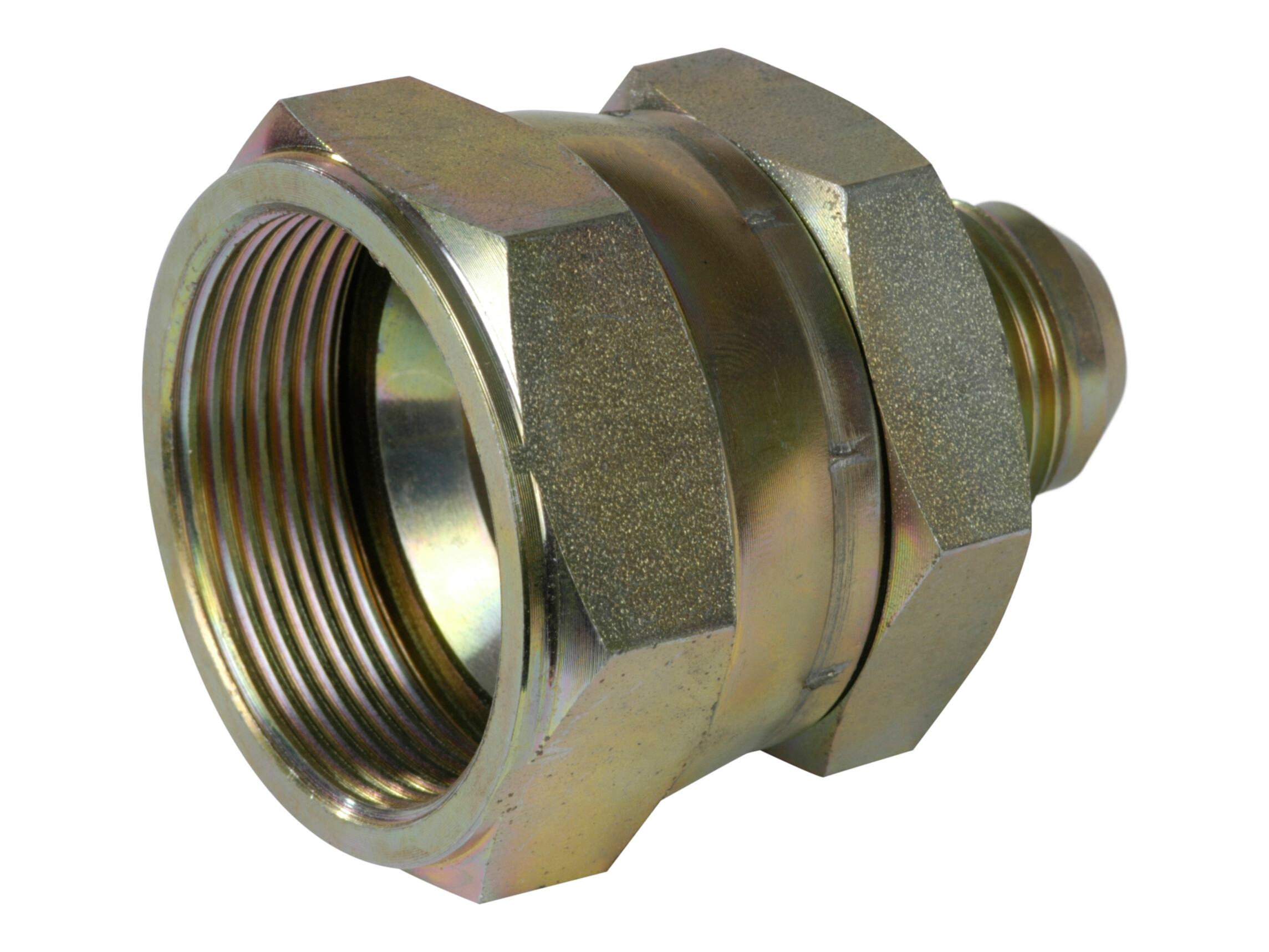

JIC 37° straight conversion connector
- One end JIC 37° external thread
- Other end JIC 37° internal thread
Partnumber:
RFM-38-20
Package size:
0 pcs
Min. order quantity is:
1 pcs
A1
41 mm
Angle
0 °
Brand Name
FOR
CH
57 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
20 mm
Dimension J1
1.1/16-12 JIC
Hexagon
57 mm
J
1.7/8-12 JIC
Material
Steel
Pressure max.
250 bar
Surface treatment
Electro-galvanized / White chromatized
T
38 mm
Thread inner
1.7/8-12 JIC
Thread outer
1.1/16-12 JIC
Package size
0 pcs
Barcode
5704334214496
Gross weight
0,45 Kg
Net weight
0,45 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
JIC 37° straight conversion connector
- One end JIC 37° external thread
- Other end JIC 37° internal thread
Note: Opening 3D files requires a program that supports the file format
