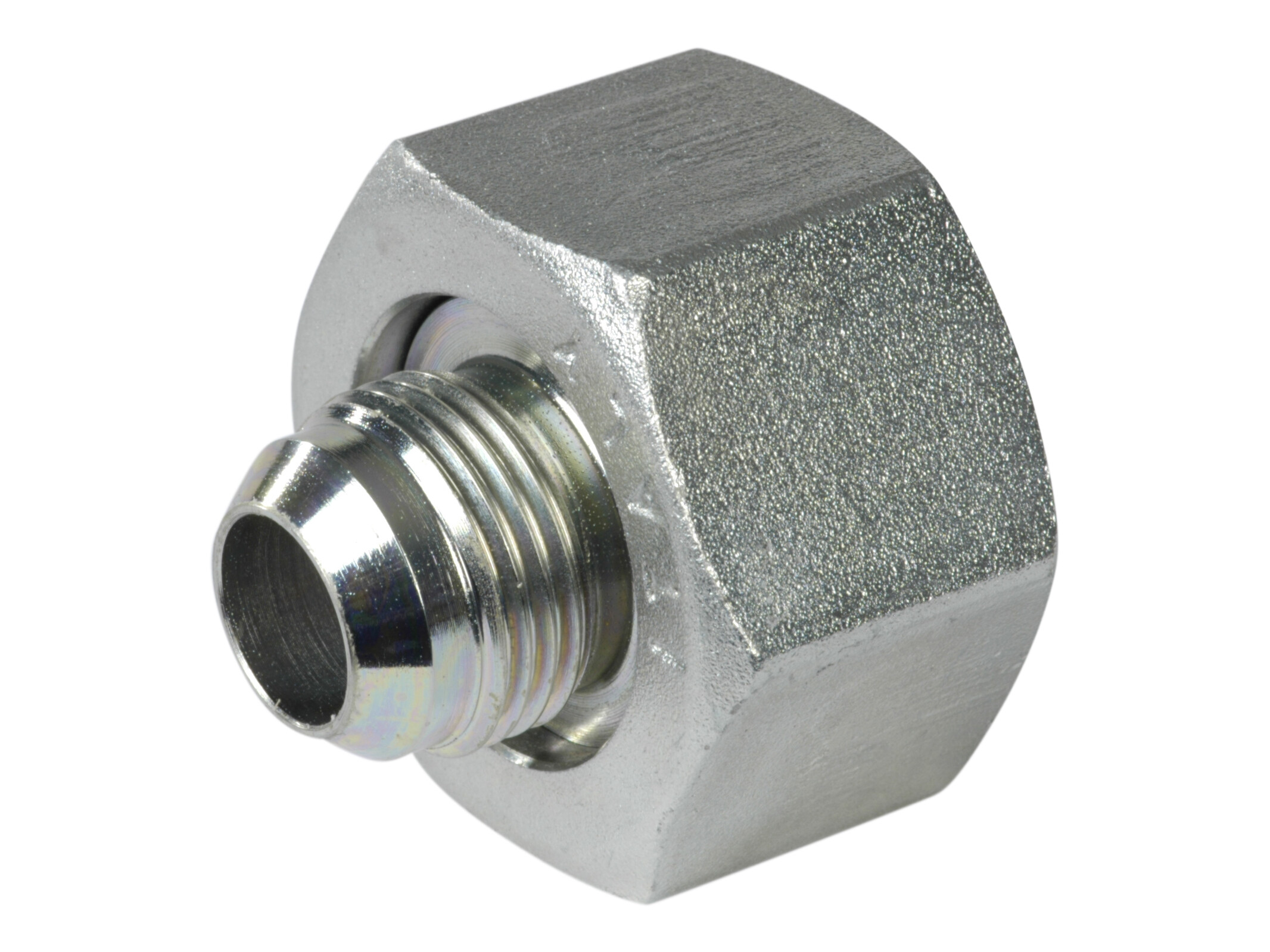

Reducer male - female Jic

\ufeff

JIC 37° straight conversion connector
- One end JIC 37° external thread
- Other end JIC 37° internal thread

Artikelnummer:

RFM-32-20

Förpackningsstorlek:

0 pcs

Minsta beställningskvantitet:

1 pcs

Accessories (1)

Nut 1.1/16-12 JIC ø20

Partnumber: JM-12-20

Specifications
Dimensions and shipping

39 mm

Angle

0 °

Brand Name

FOR

50 mm

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter pipe

30-32 mm

Dimension J1

1.1/16-12 JIC

Hexagon

50 mm

1.5/8-12 JIC

Material

Steel

Model code

A102265/3220

Pressure max.

240 bar

Surface treatment

Electro-galvanized / White chromatized

30-32 mm

Thread inner

1.5/8-12 JIC

Thread outer

1.1/16-12 JIC

Package size

0 pcs

Barcode

5704334145196

Gross weight

0,32 Kg

Net weight

0,32 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

\ufeff

JIC 37° straight conversion connector
- One end JIC 37° external thread
- Other end JIC 37° internal thread

Note: Opening 3D files requires a program that supports the file format
