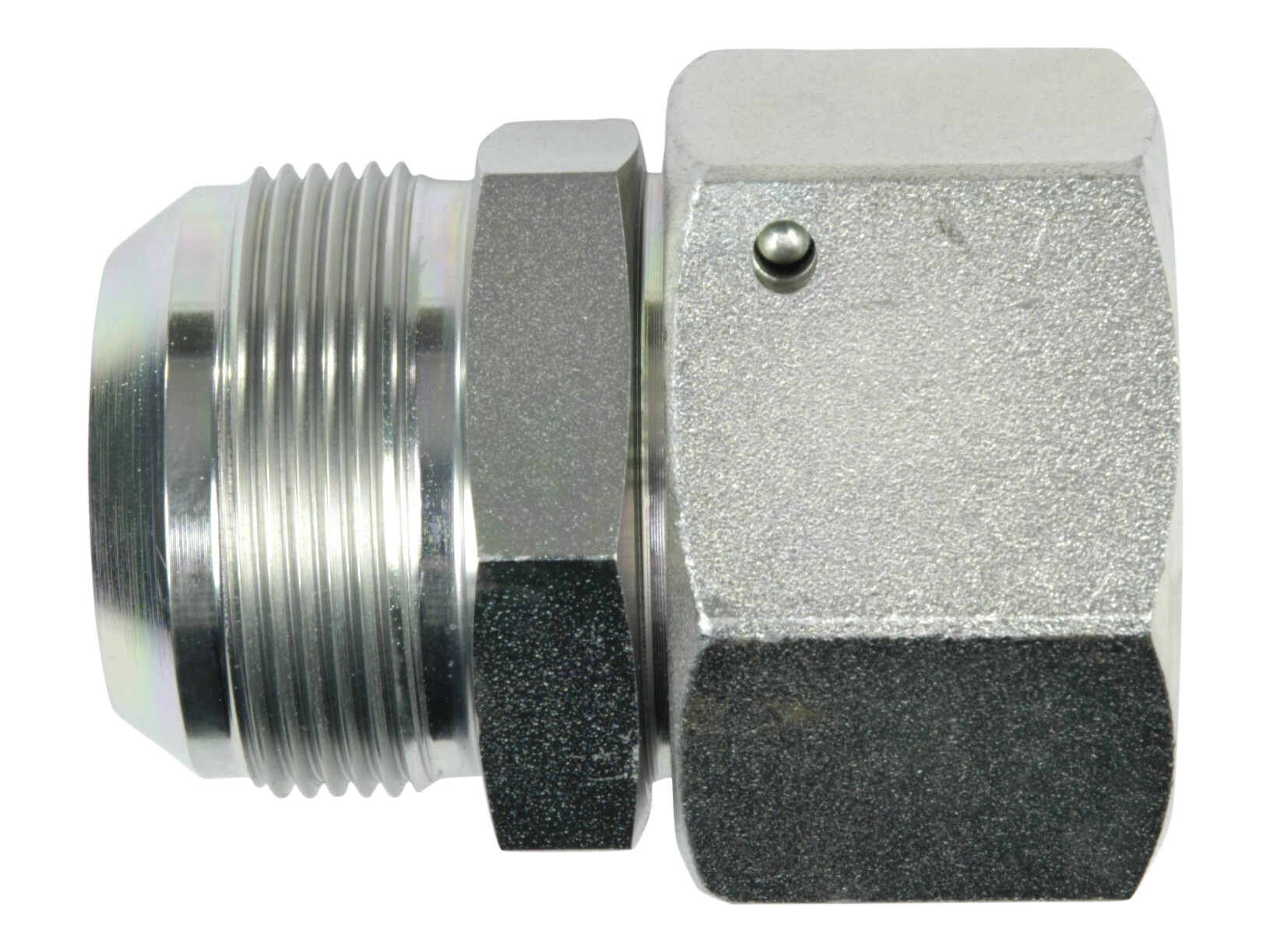

    • Female x male 1.7/8-14 JIC

    Female x male 1.7/8-14 JIC

    Female x male 1.7/8-14 JIC

    Artikelnummer:
    RFM-38-38
    Förpackningsstorlek:
    0 pcs
    Minsta beställningskvantitet:
    1 pcs
    Bushing
    Partnumber: B-38
    Angle
    0 °
    Brand Name
    FOR
    Corrosion resistance
    1400 hours salt spray DIN EN ISO 9227
    Diameter pipe
    38 mm
    Dimension A
    58.5 mm
    Dimension CH
    57 mm
    Dimension J
    1.7/8-12 JIC
    Dimension J1
    1.7/8-12 JIC
    Material
    Steel
    Pressure max.
    250 bar
    Surface treatment
    Electro-galvanized / White chromatized
    Thread inner
    1.7/8-12 JIC
    Thread outer
    1.7/8-12 JIC
    Package size
    0 pcs
    Barcode
    5704334234173
    Gross weight
    0,41 Kg
    Net weight
    0,41 Kg
    Country of origin
    ITA
    Intrastat code
    73071110

    Female x male 1.7/8-14 JIC

    Product datasheet
    3D-file

    Note: Opening 3D files requires a program that supports the file format
