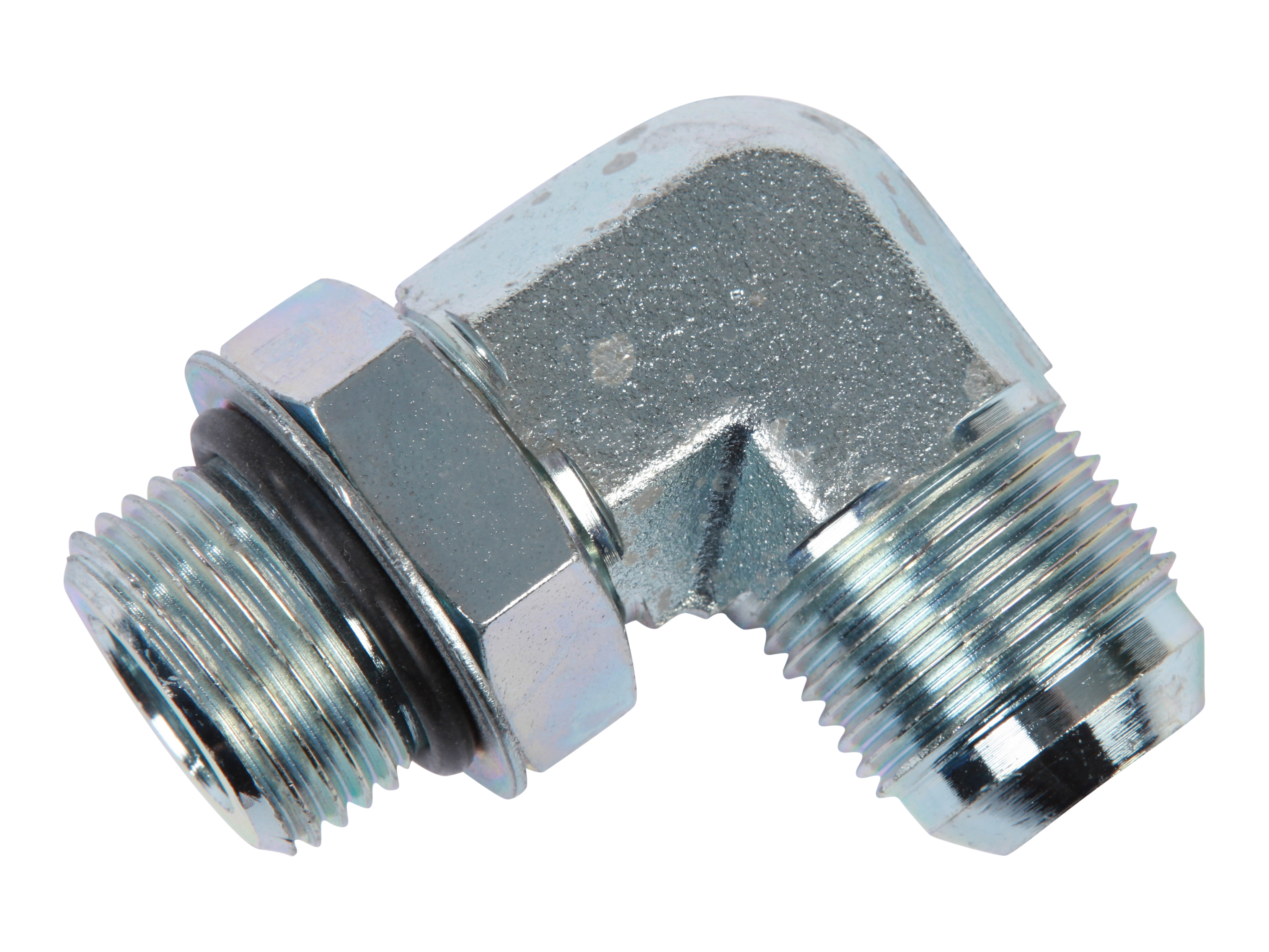

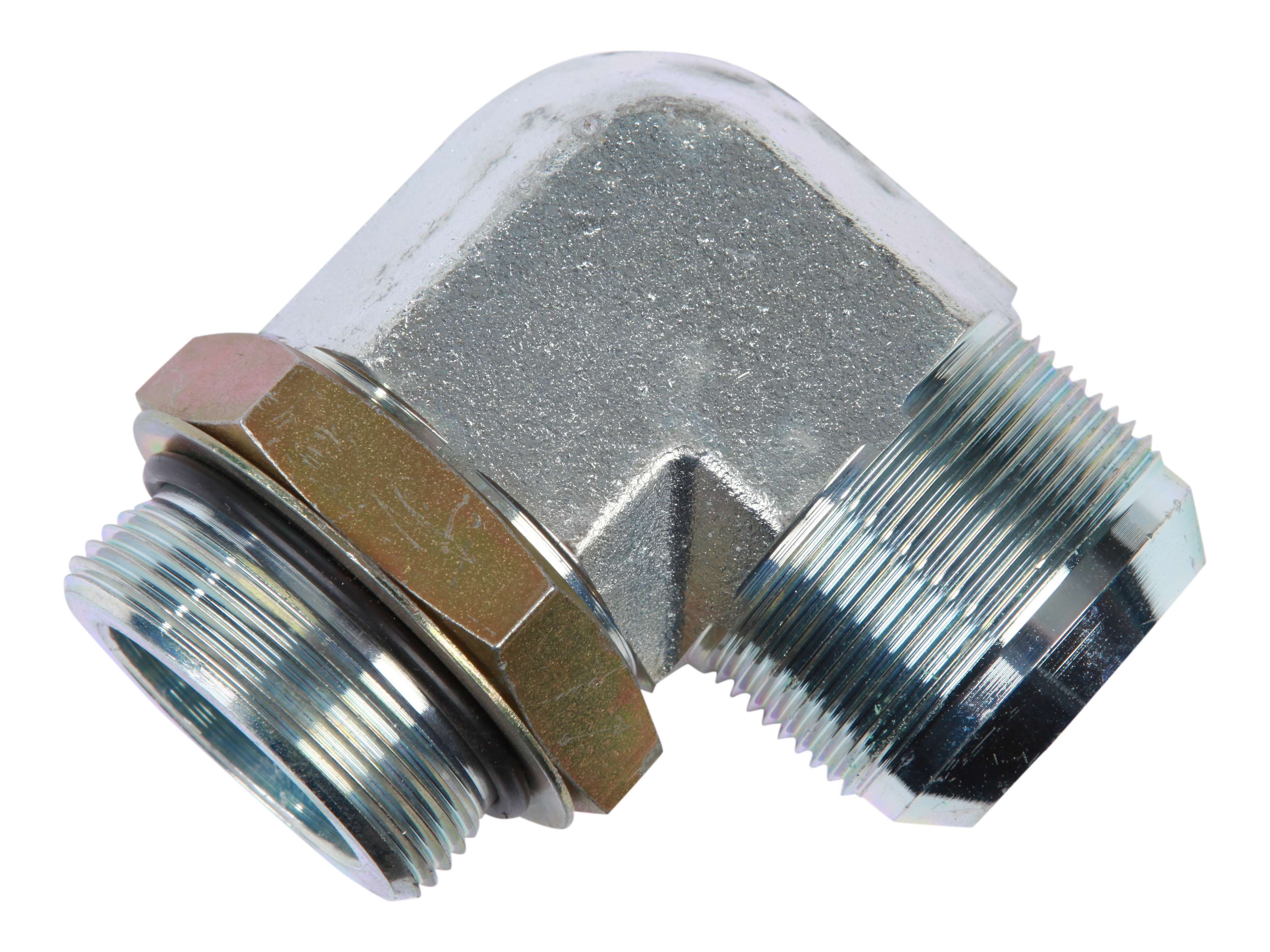

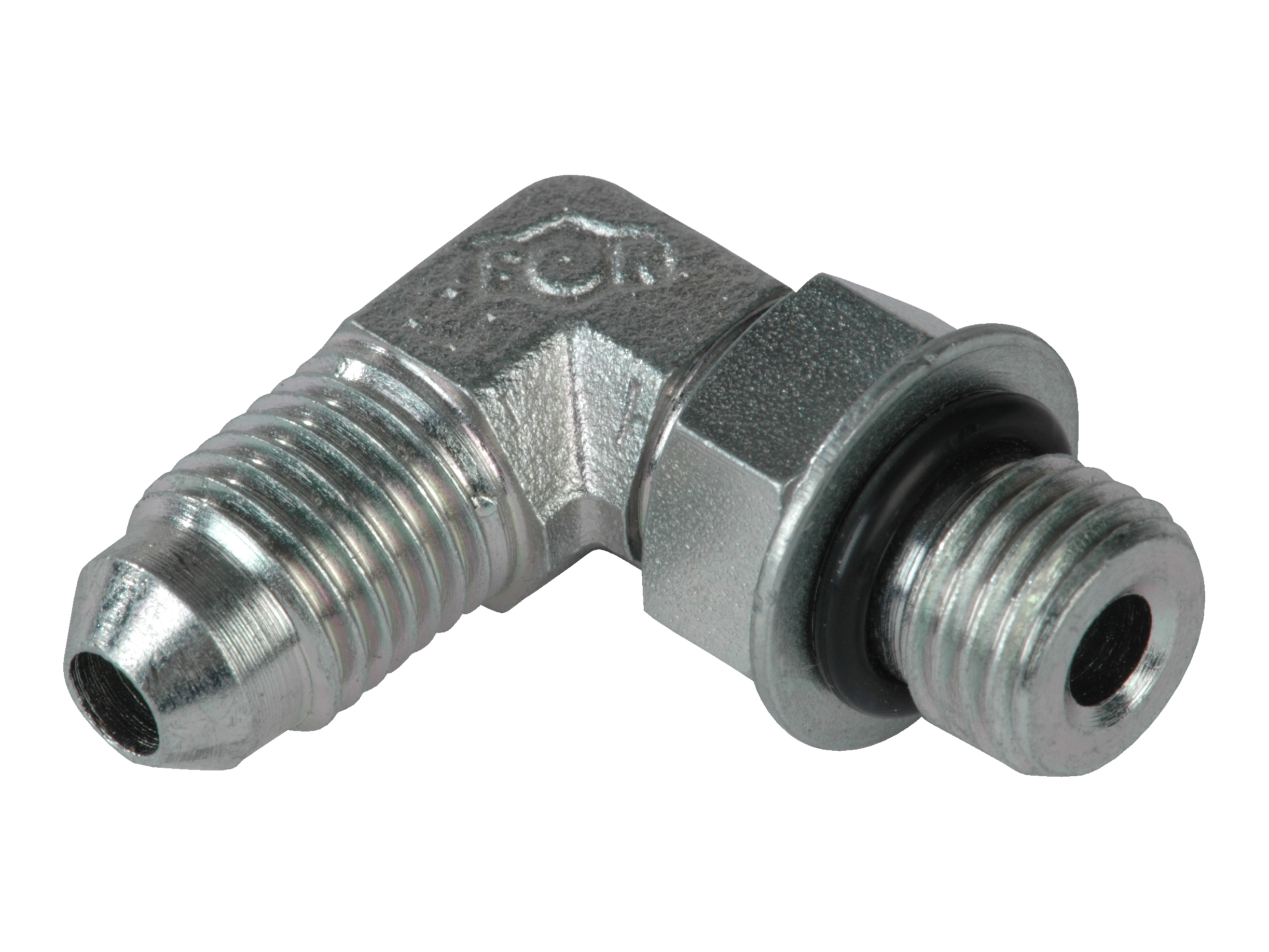

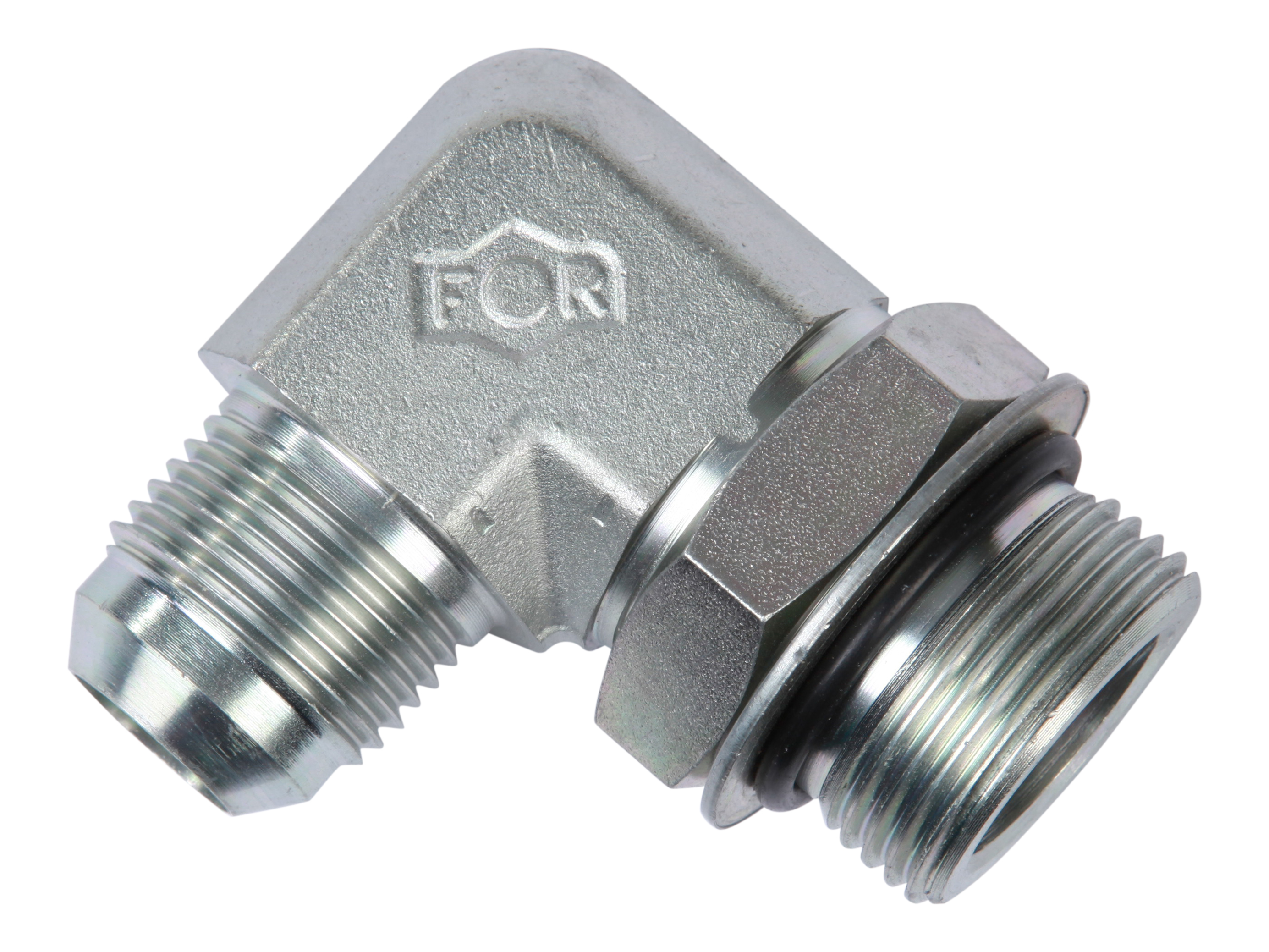

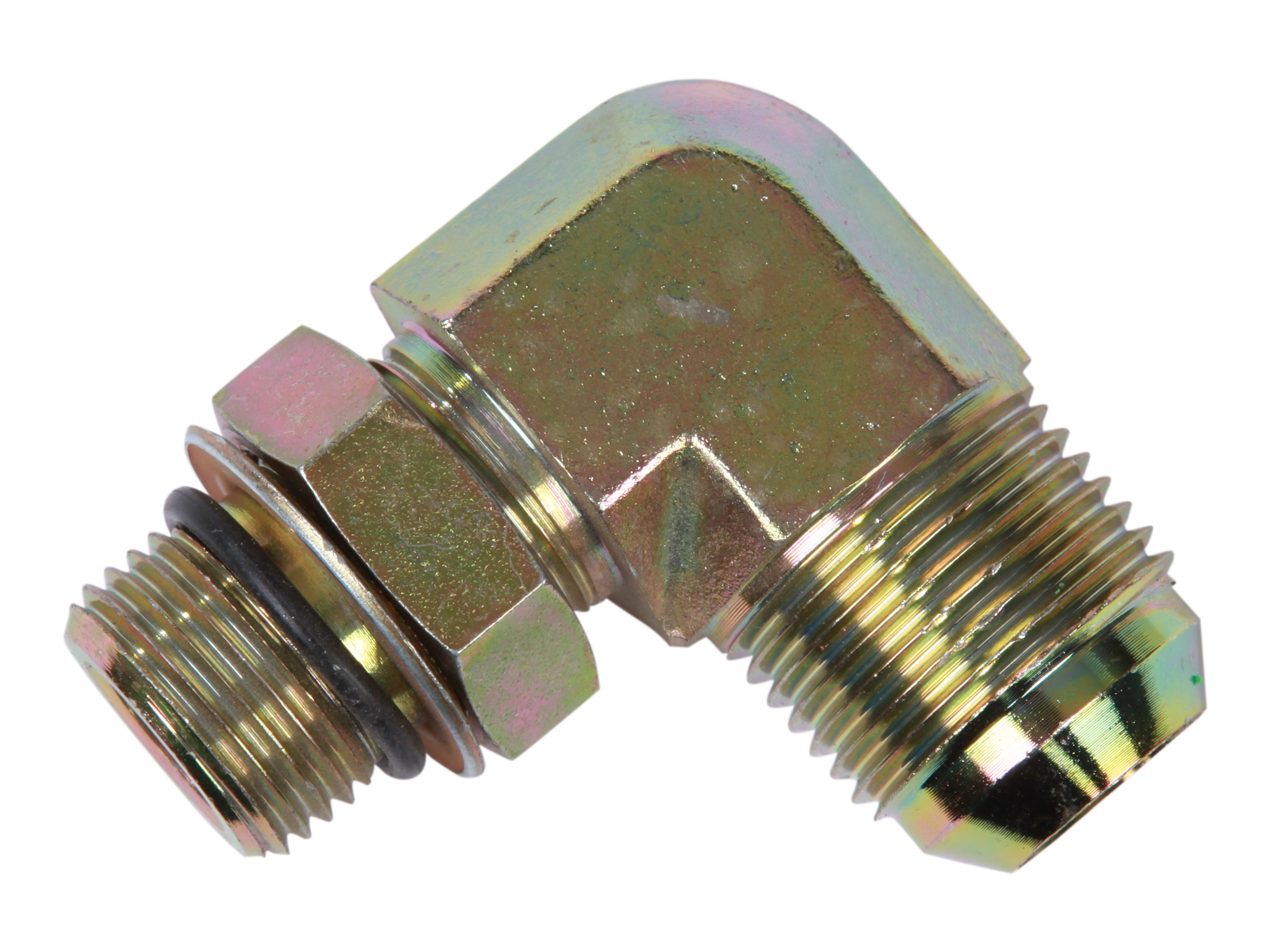

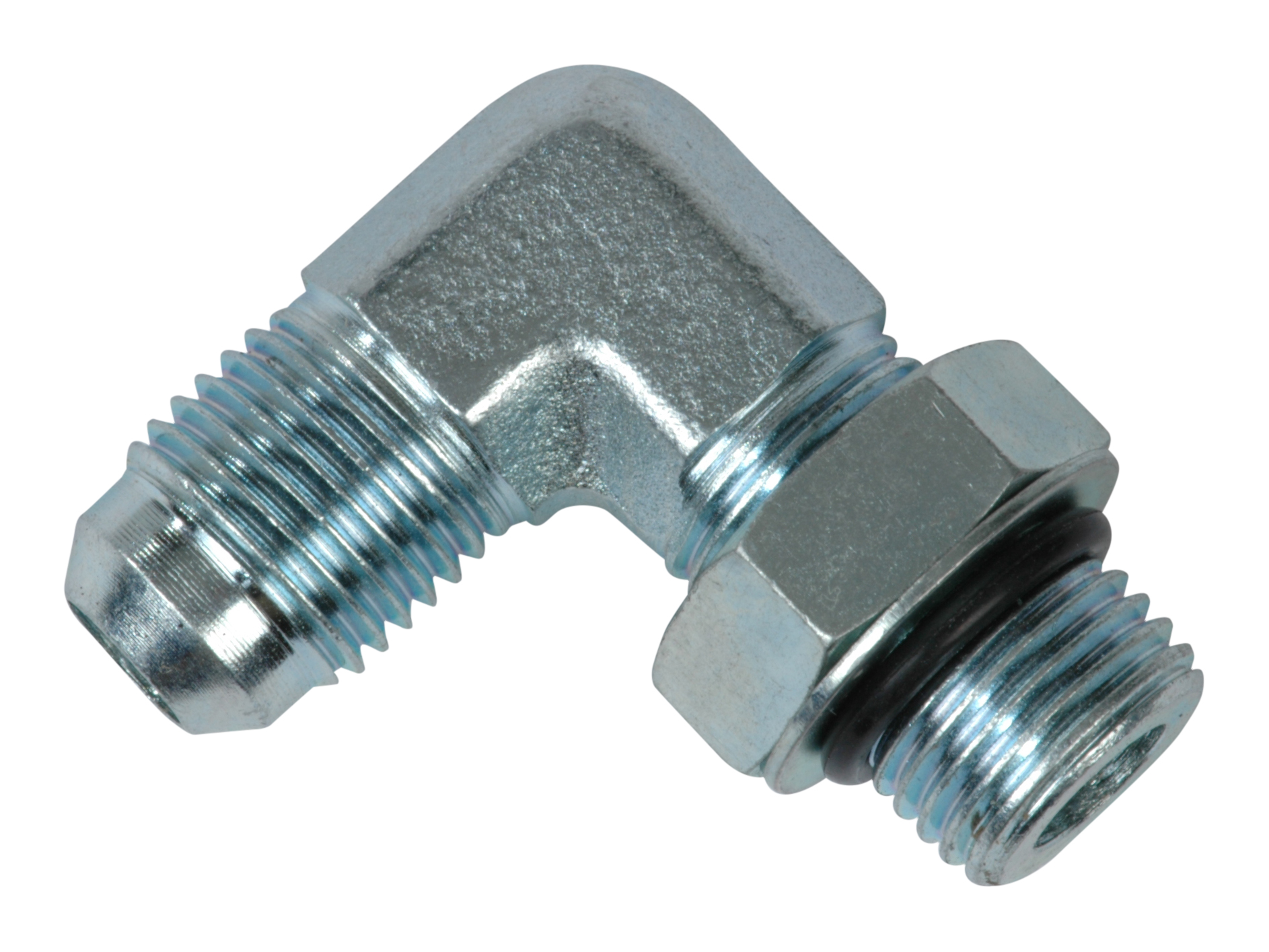

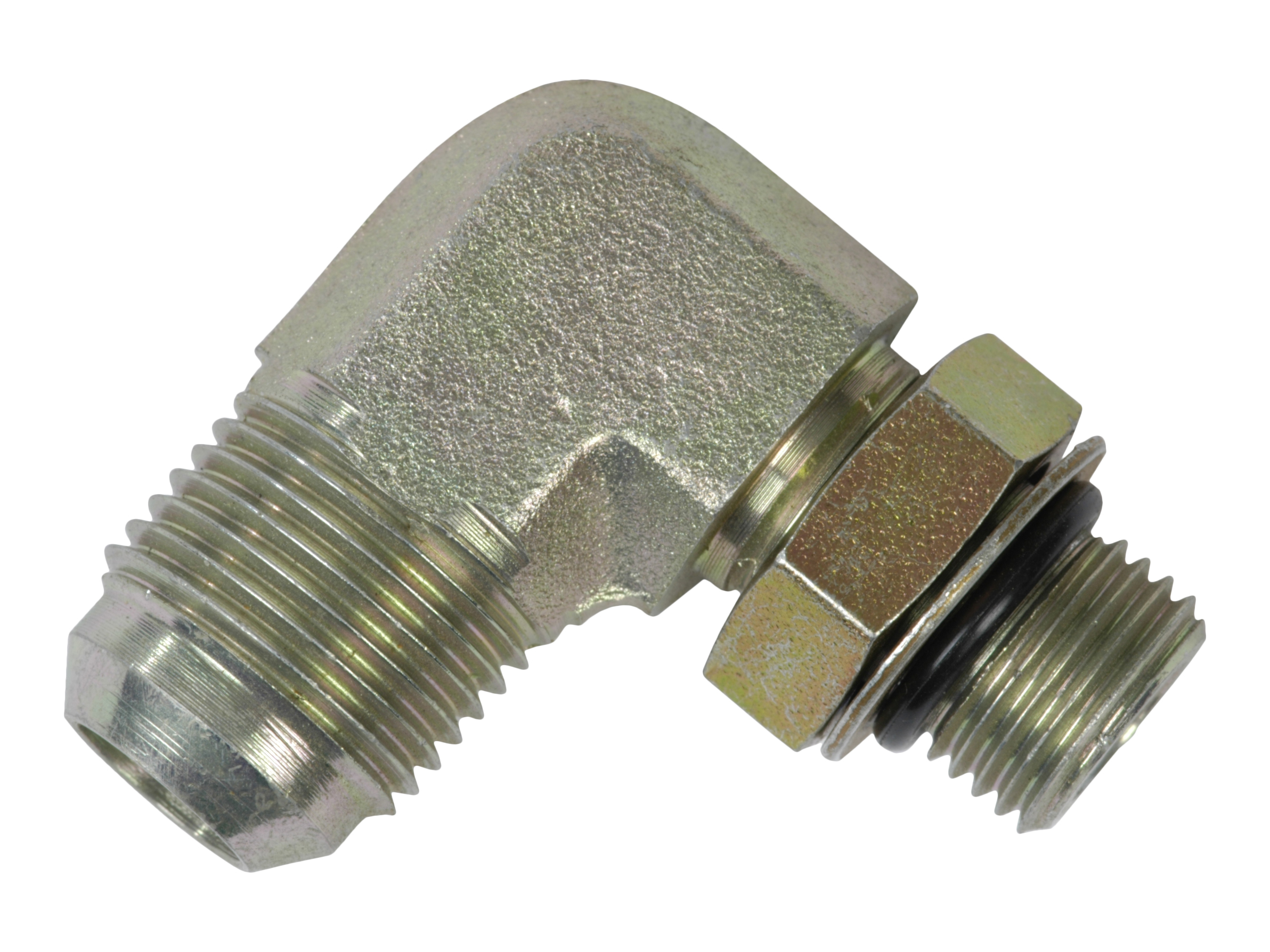

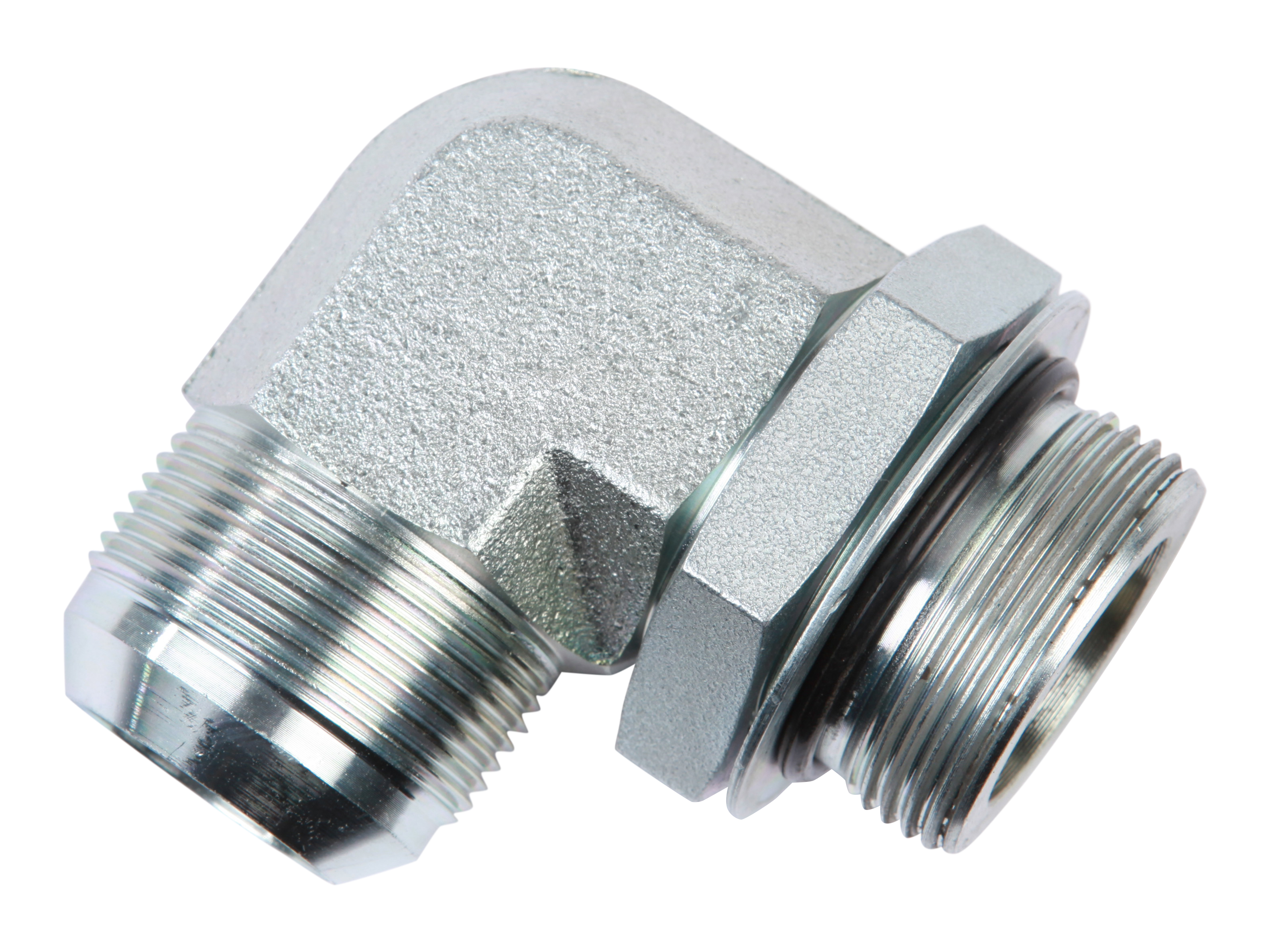

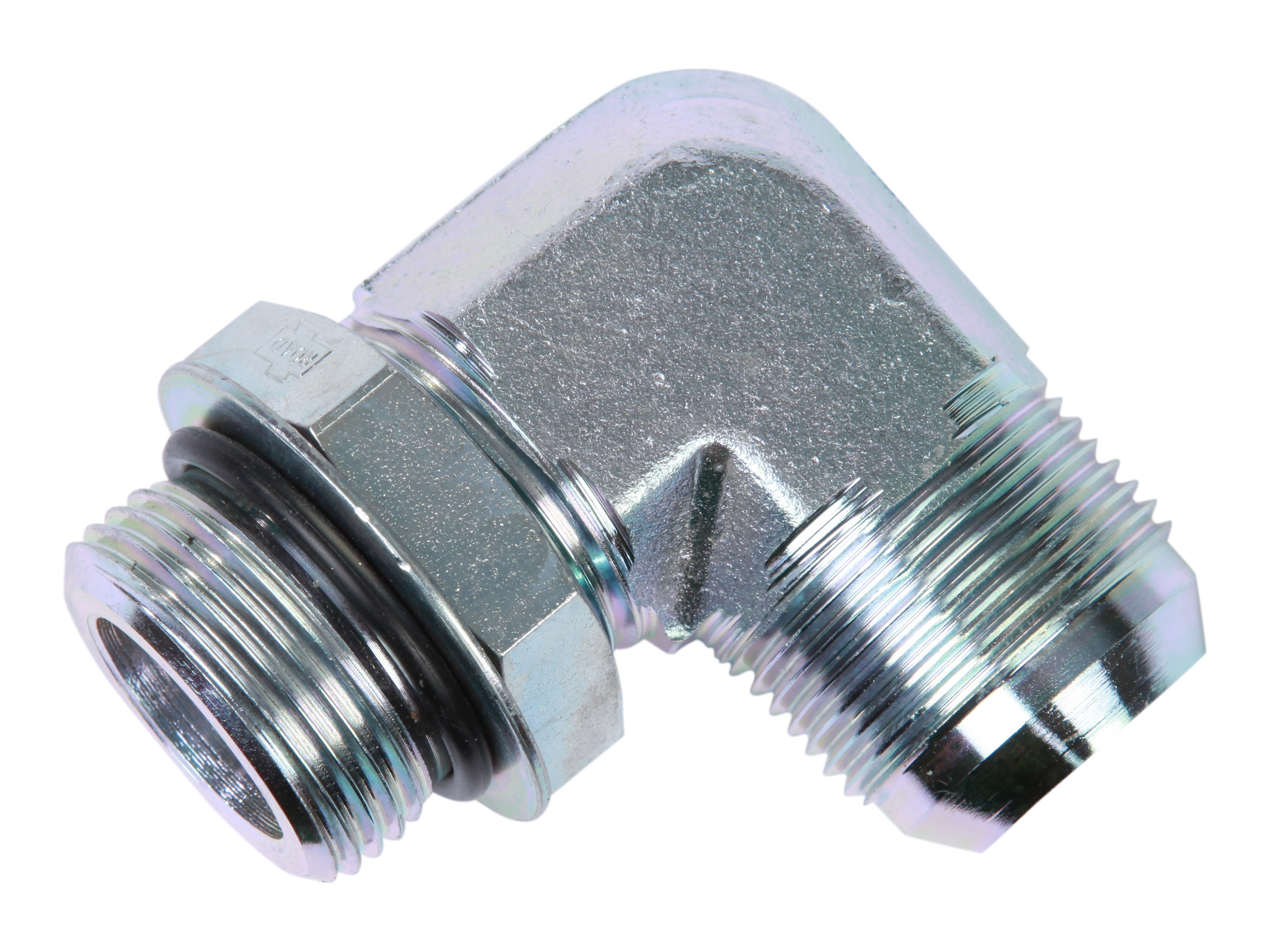

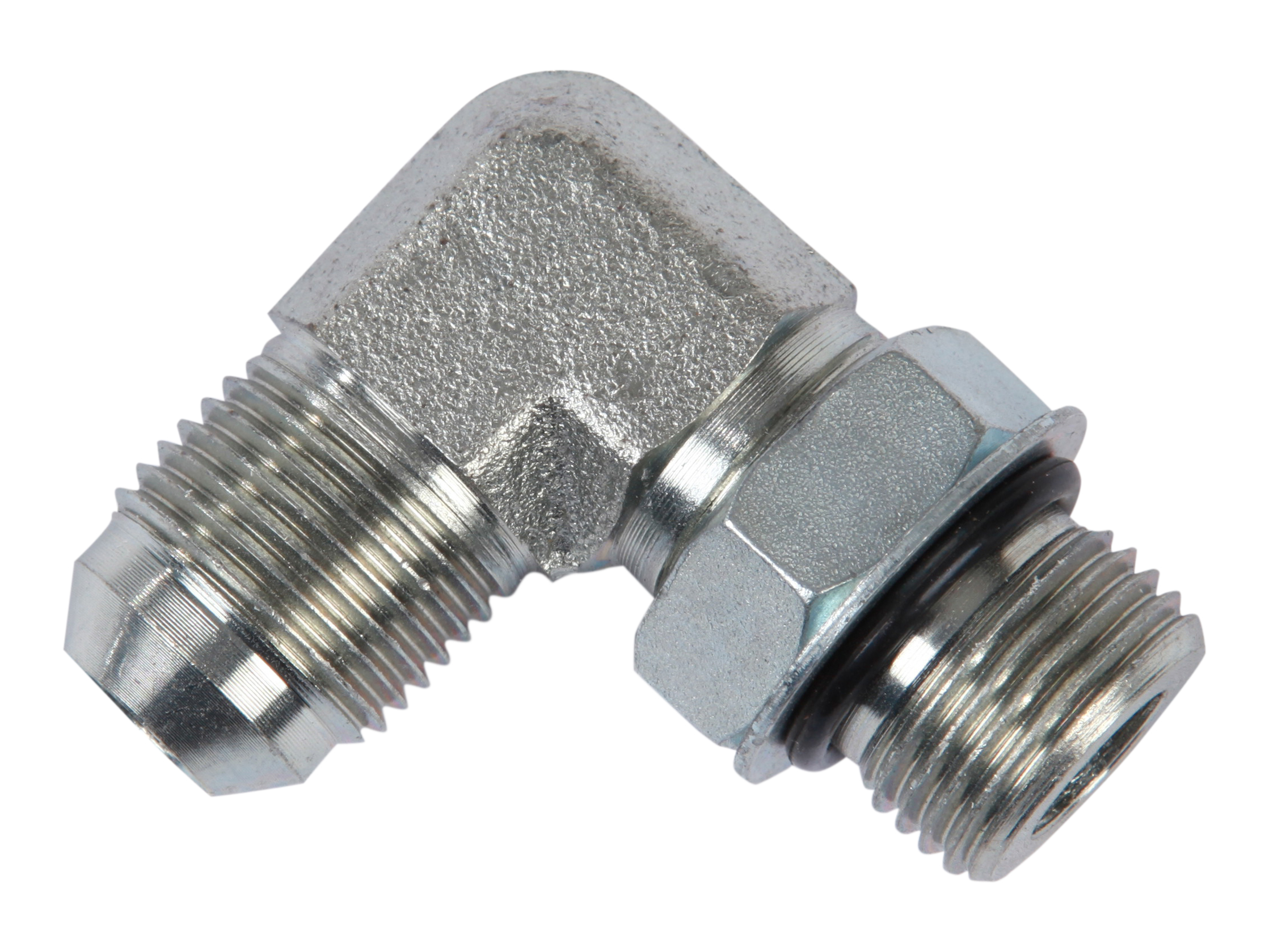

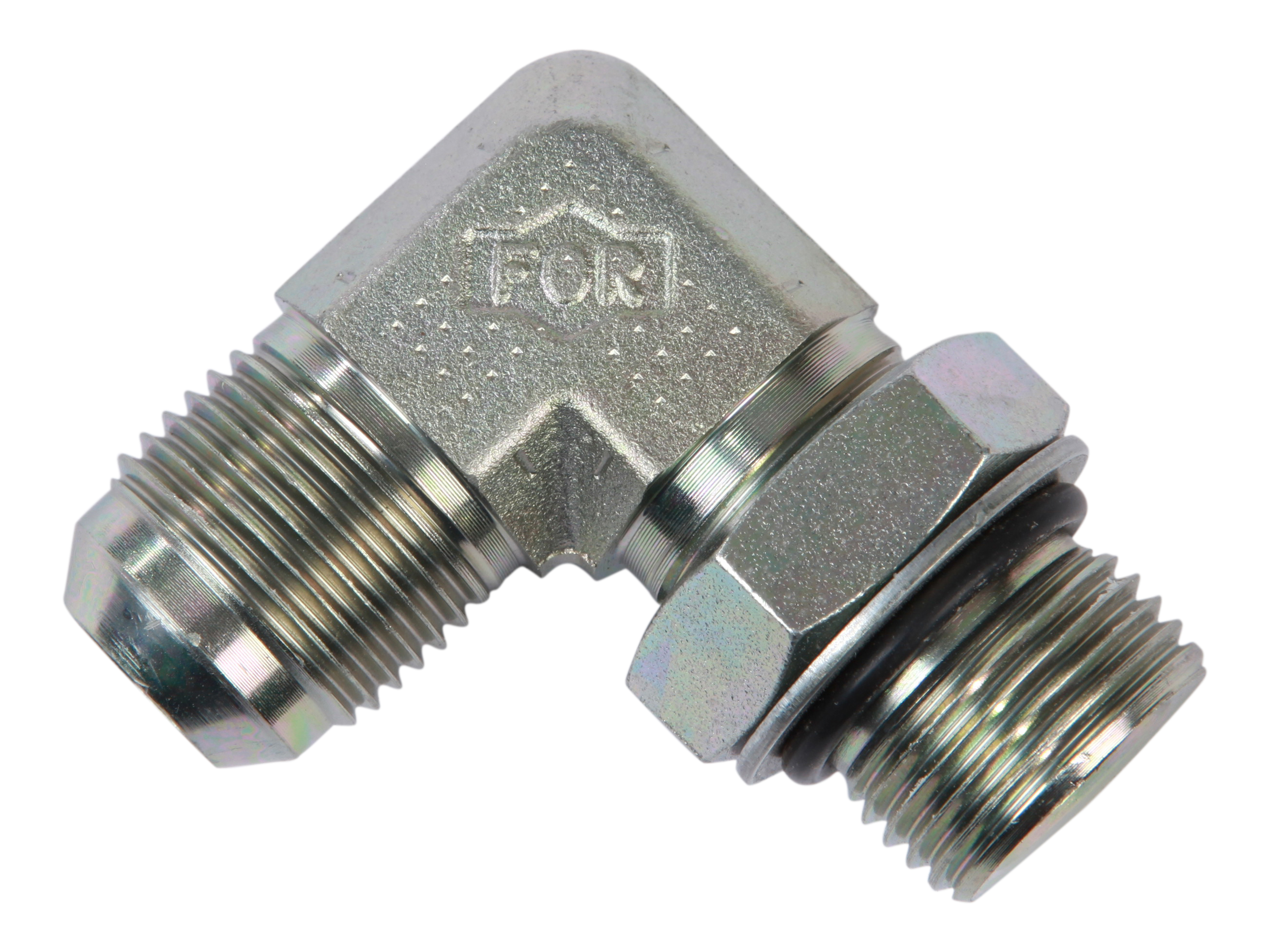

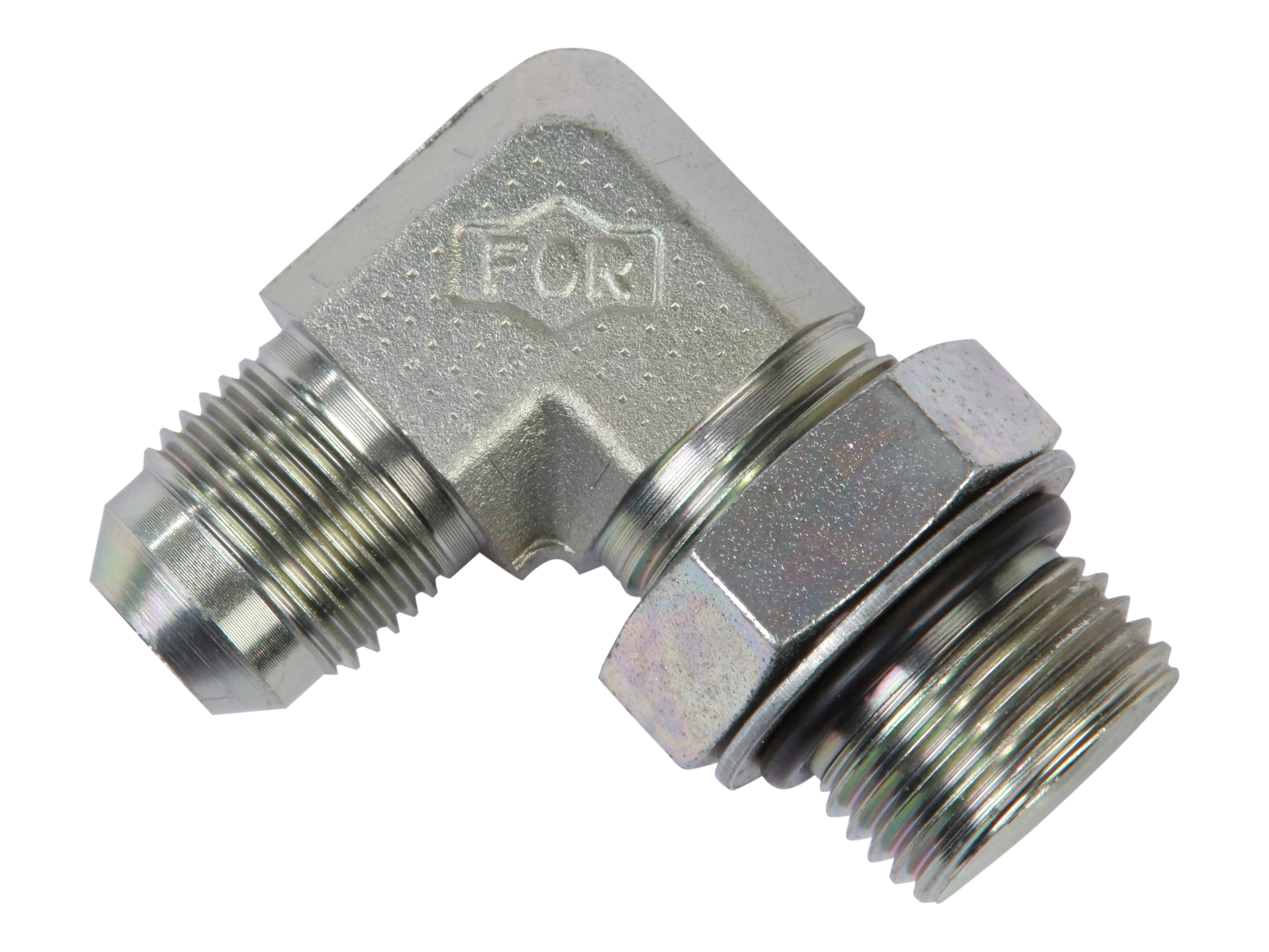

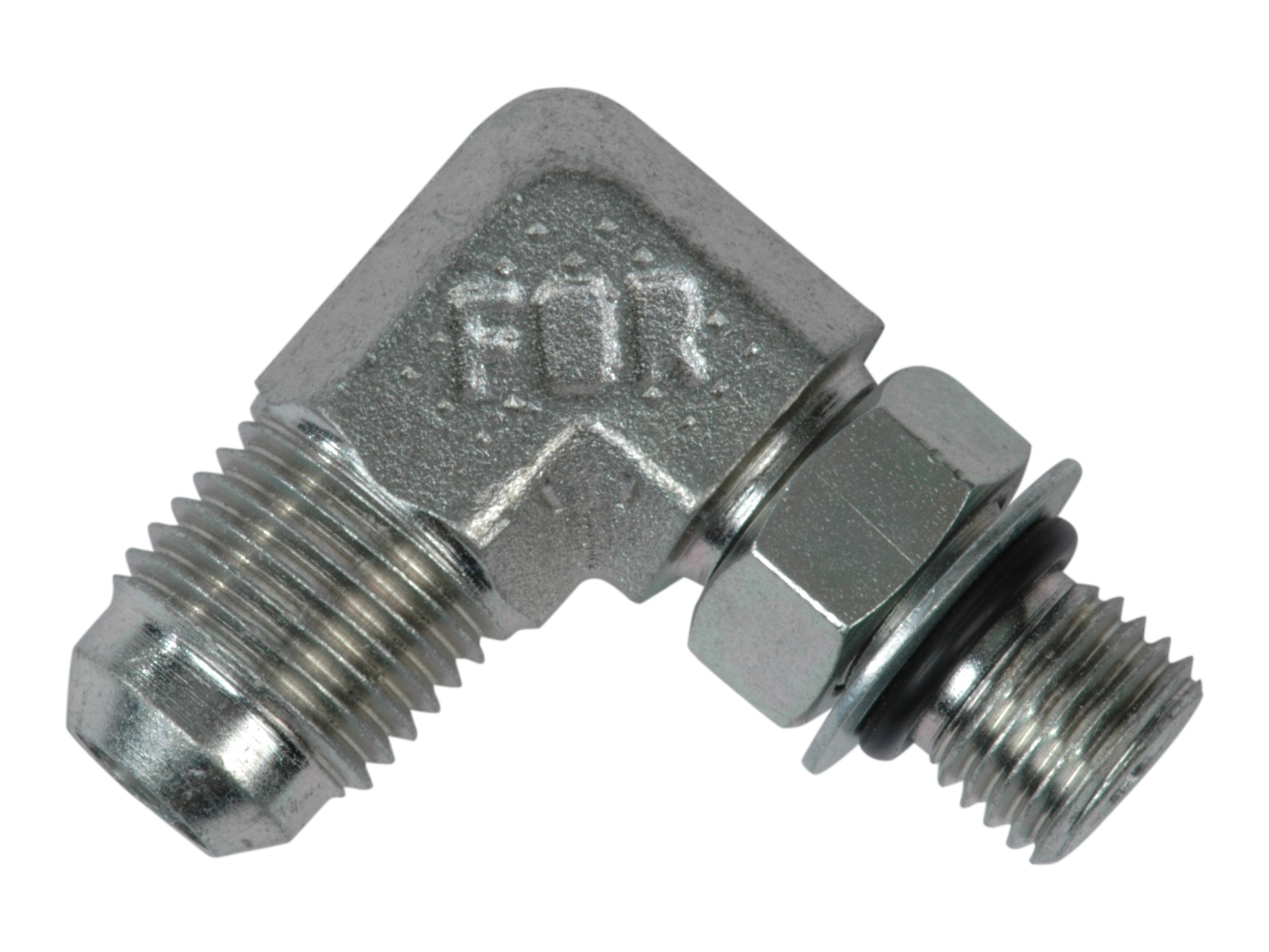

Elbow adapter 90° JIC male x UNF male adjustable - CO / JWEEU

Elbow adapter 90° JIC male x UNF male adjustable - CO / JWEEU

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Diameter pipe Thread outer Thread outer Brand Name
CO-06-7/16 S575-06-11U elbow 6 mm 7/16-20 UNF 7/16-20 JIC FOR
CO-10-3/4 S575-10-19U elbow 10 mm 3/4-16 UNF 9/16-18 JIC FOR
CO-10-7/16 S575-10-11U elbow 10 mm 7/16-20 UNF 9/16-18 JIC FOR
CO-10-9/16 S575-10-14U elbow 10 mm 9/16-18 UNF 9/16-18 JIC FOR
CO-12-3/4 S575-12-19U elbow NW22 12 mm 3/4-16 UNF 3/4-16 JIC FOR
CO-12-7/8 S575-12-22U elbow 12 mm 7/8-14 UNF 3/4-16 JIC FOR
CO-12-9/16 S575-12-14U elbow¤ 12 mm 9/16-18 UNF 3/4-16 JIC FOR
CO-16-3/4UNF S575-16-19U elbow 16 mm 3/4-16 UNF 7/8-14 JIC FOR
CO-16-7/8 S575-16-22U elbow 14-15-16 mm 7/8-14 UNF 7/8-14 JIC FOR
CO-20-1.1/16 S575-20-27U elbow 18-20 mm 1.1/16-12 UNF 1.1/16-12 JIC FOR
CO-20-1.5/16 S575-20-33U elbow 20 mm 1.5/16-12 UNF 1.1/16-12 JIC FOR
CO-20-7/8 S575-20-22U elbow 20 mm 7/8-14 UNF 1.1/16-12 JIC FOR
CO-25-1.1/16 S575-25-27U elbow 25 mm 1.1/16-12 UNF 1.5/16-12 JIC FOR
CO-25-1.5/16 S575-25-33U elbow 25 mm 1.5/16-12 UNF 1.5/16-12 JIC FOR
CO-32-1.5/8 S575-30-41U elbow 30-32 mm 1.5/8-12 UNF 1.5/8-12 JIC FOR
CO-38-1.7/8 S575-38-48U elbow 38 mm 1.7/8-12 UNF 1.7/8-12 JIC FOR
Angle
90
Brand Name
FOR
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Material
Steel
Surface treatment
Electro-galvanized / White chromatized
