WJU1714
-

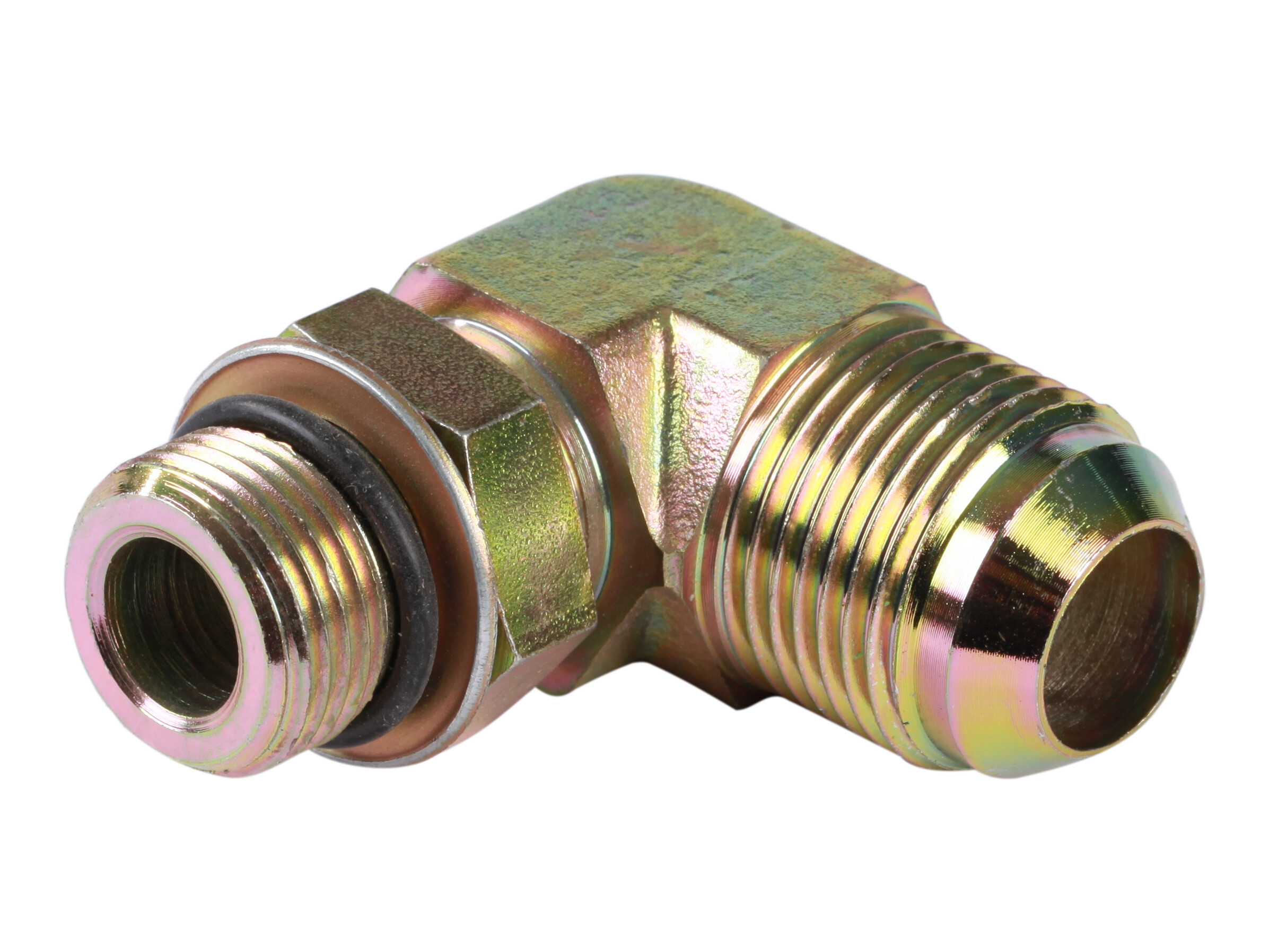

JIC 37° 90° directional basic connector
- External thread UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
Artikelnummer:
CO-20-7/8
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Angle
90 °
B
42 mm
Brand Name
FOR
C
45,5 mm
CH
27 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
Diameter pipe
18-20 mm
F
7/8-14 UNF
J
1.1/16-12 JIC
Material
Steel
Pressure max.
320 bar
Sealing material
NBR
Standard ISO
ISO 11926
Surface treatment
Electro zinc plated
T
18-20 mm
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread outer
1.1/16-12 JIC
Thread outer
7/8-14 UNF
Förpackningsstorlek
0 pcs
Streckkod
5704334308881
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
ita
-
JIC 37° 90° directional basic connector
- External thread UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
Obs: För att öppna 3D-filer krävs ett program som stöder filformatet
