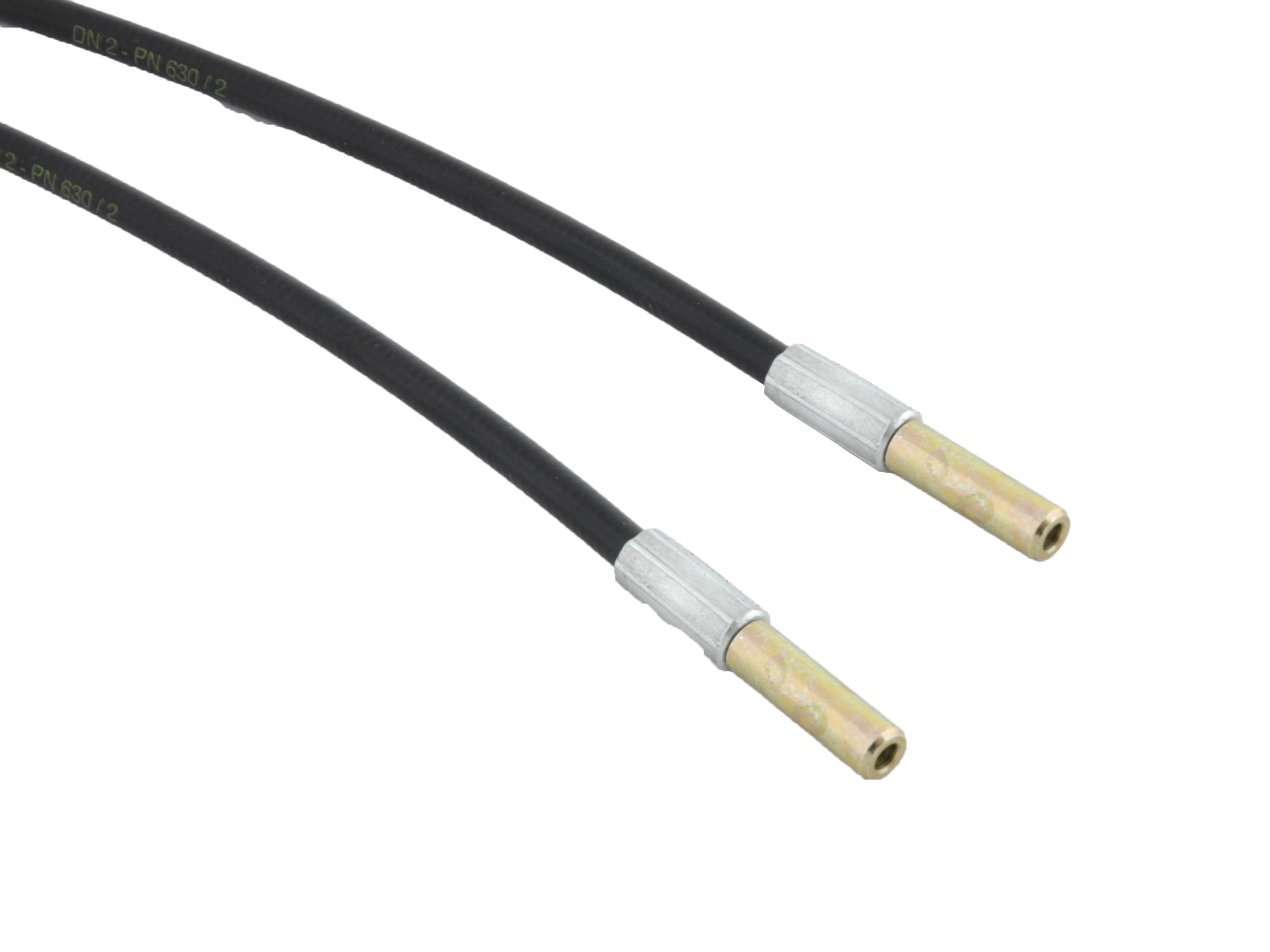

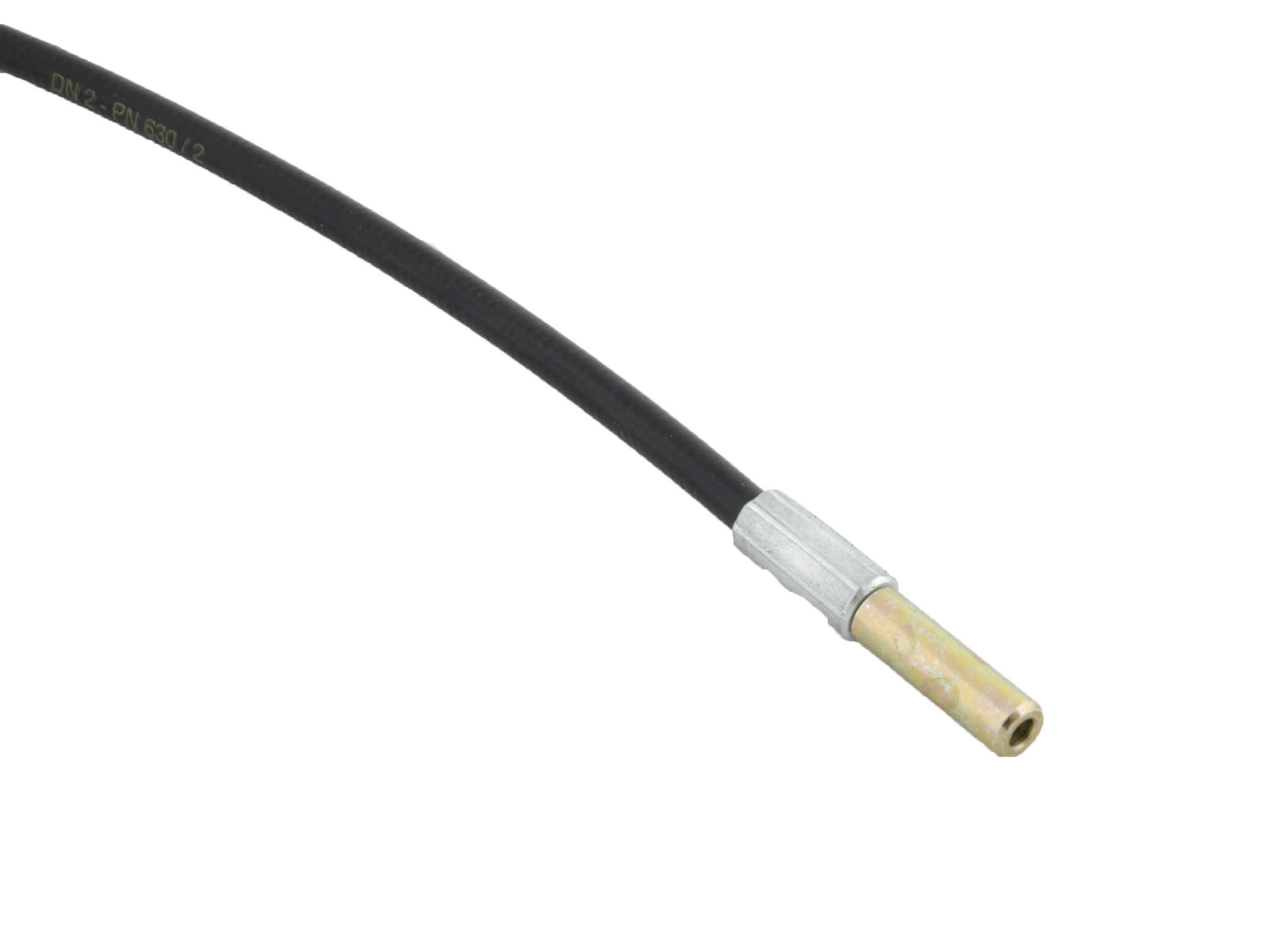

High pressure test hose, Standpipe x Standpipe

SELECT VARIANT
Partnumber Description Pressure max. Length
MT15-0500 Test hose assy., ø6xø6 630 bar 500 mm
MT15-1000 Test hose assy., ø6xø6 1 630 bar 1000 mm
MT15-2000 Test hose assy., ø6xø6 2 630 bar 2000 mm
MT16-0250 Test hose ø08 x ø08 x 250mm 630 bar 250 mm
MT16-0500 Test hose assy., ø8xø8 630 bar 500 mm
MT16-0650 Test hose assy., ø8xø8 630 bar 650 mm
MT16-0750 Test hose, ø8 x ø8 750mm 630 bar 750 mm
MT16-1000 Test hose assy., ø8xø8 1 630 bar 1000 mm
MT16-1300 Test hose assy., ø8xø8 1 630 bar 1300 mm
MT16-1400 Test hose assy., ø8xø8 1 630 bar 1400 mm
MT16-1800 Test hose assy., ø8xø8 1 630 bar 1800 mm
MT16-2000 Test hose assy., ø8xø8 2 630 bar 2000 mm
Bend radius
35

Diameter inner
2

Diameter outer
5

Pressure max.
630

Temperature max.
+100

Temperature min.
-35
