1/2" Pilot operated check valve
1/2" Pilotstyret kontraventil 3 bar fjedre, 45LPM, max 300 bar P1:4,6
Varenummer:
VBPSL-12
Pakke str.:
1 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
OM Oleodinamica Marchesini
Contamination level max.
19/17/14 - ISO 4406

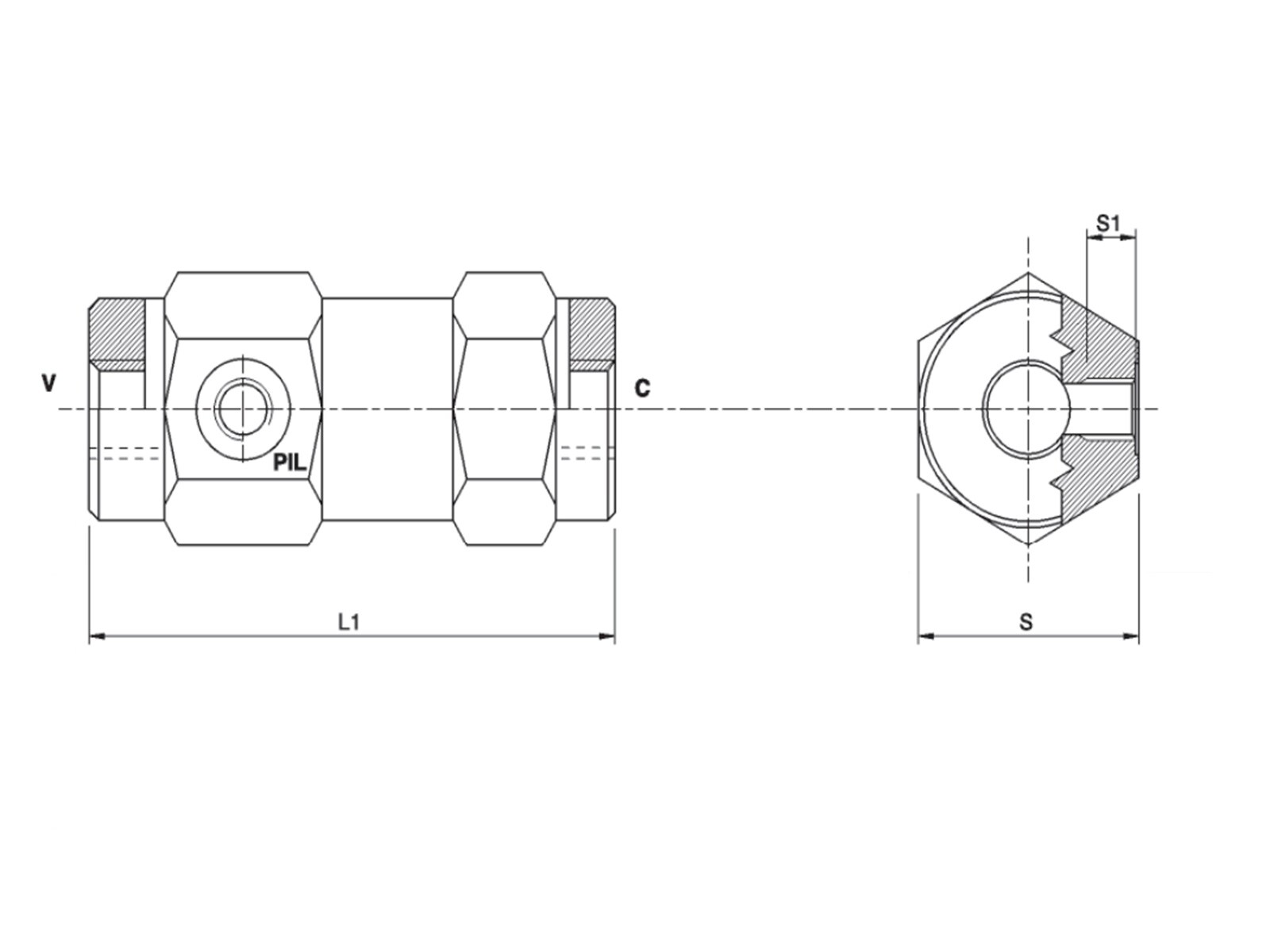

Dimension C
G 1/2 BSP
Dimension L1
120 mm
Dimension PIL
G 1/4 BSP
Dimension S
42 mm
Dimension S1
11 mm
Dimension V
G 1/2 BSP
Flow max.
45 lpm
Flow rate nominal LMin
45 lpm
Length
120 mm
Material
Steel
Oil viscocity recommended
5 - 800 cSt
Pilot connection
G 1/4 BSP
Pilot ratio
4,6:1
Pressure max.
350 bar
Pressure opening
3 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-20 °C
Thread
G 1/2 BSP
Type
Single

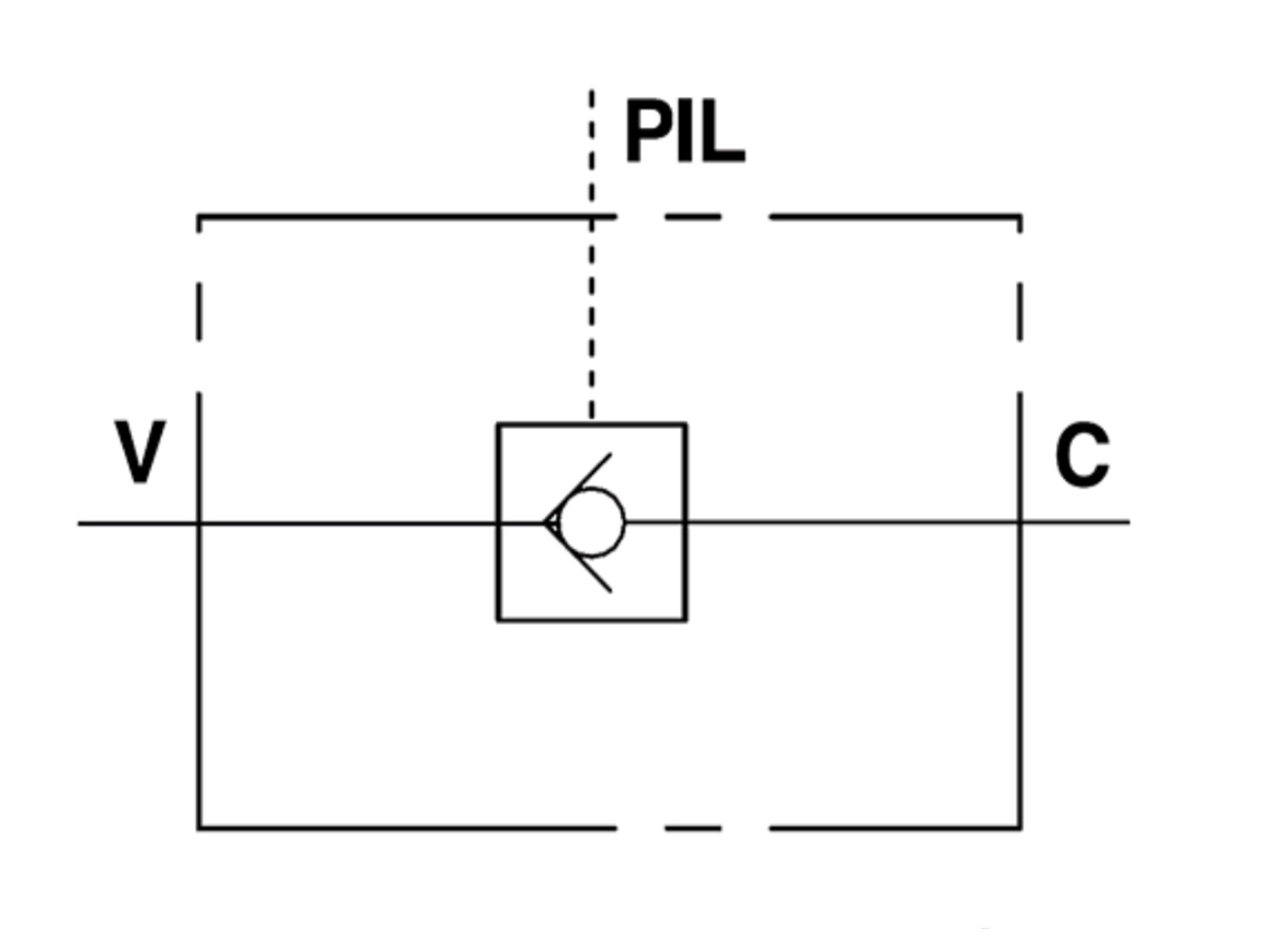

Valve type
Pilot to open checkvalve
Pakke str.
1 pcs
Stregkode
5704334776543
Brutto vægt
Kg
Netto vægt
Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
1/2" Pilotstyret kontraventil 3 bar fjedre, 45LPM, max 300 bar P1:4,6
