Atos flow control valve 2-way pressure compensated 0-24 lpm

Atos flow control valve 2-way pressure compensated 0-24 lpm

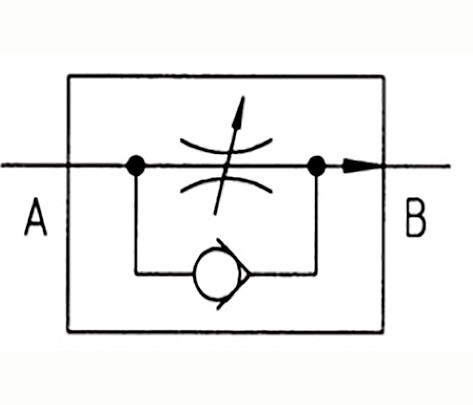

Atos QV pressure compensated flowcontrol valves. Are supplied with or without check-valve for free flow reverse.

Flowregulation is done by turning the graduated micrometer knob. Clockwise rotation increases the throttling (passage reduced). Optional version with locking key on the adjustment knob are available).

Fastening bolts: QV6: M5 x 70 mm (4 pcs).

Partnumber:

QV06/24

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifikationer
Dimensioner og forsendelse

Brand Name

Atos

Comment

CETOP3 / DN6

Contamination level max.

-/19/16 - ISO 4406

Flow max. regulated

24 lpm

Flow min. regulated

50 cm3

Inlet flow max.

24 lpm

Lock

Model code

QV-06/24

Number of ways

Oil viscocity recommended

15 - 100 cSt

Pressure compensated

Yes

Pressure max.

250 bar

Temperature max.

+60 °C

Temperature min.

-20 °C

Valve type

Throttle/checkvalve

Pakke str.

0 pcs

Stregkode

5704295211268

Brutto vægt

1,27 Kg

Netto vægt

1,27 Kg

Oprindelsesland

ITA

Intrastat varekode

84812010

Produkt information

Atos QV pressure compensated flowcontrol valves. Are supplied with or without check-valve for free flow reverse.

Fastening bolts: QV6: M5 x 70 mm (4 pcs).

Product datasheet
