216-M8
Selfcentering sealing ring in steel with inner rubber seal. Often these rings are also called: Usit ring, Dowty ring etc.
Artikelnummer:
PP45M-08
Förpackningsstorlek:
100 pcs
Minsta beställningskvantitet:
1 pcs
Diameter inner
8.7 mm

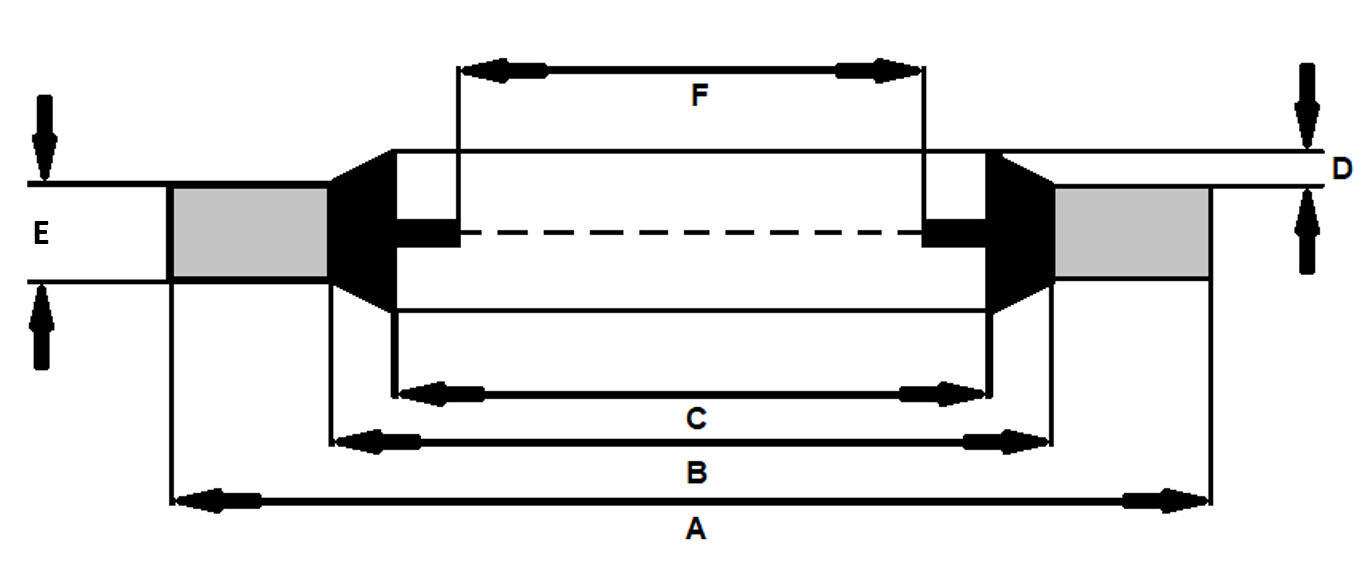

Dimension A
14 mm
Dimension B
10.4 mm
Dimension C
8.7 mm
Dimension D
0.3 mm
Dimension E
1 mm
Dimension F
6.4 mm
Fits on metric thread
M8
FitsTo UNF thread
5/16-24
Material
Steel
Nominell Shaft Diameter MM
8 mm
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-30 °C
Package size
100 pcs
Barcode
5704334652823
Gross weight
0,01 Kg
Net weight
0,01 Kg
Country of origin
swe
Intrastat code
40070000
Selfcentering sealing ring in steel with inner rubber seal. Often these rings are also called: Usit ring, Dowty ring etc.
Note: Opening 3D files requires a program that supports the file format
