Insert 3/8" - 1/2" BSP nut 90S

Insert with nut and BSP female thread. Short version elbow.

Connection: BSP female thread in nut, with 60° cone face.

Sealing: Metal against metal (cone).

Partnumber:

P0608NU90S

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (1)

Plug 1/2" BSP. REPLACED BY PLUG04M

Partnumber: PLUG04M

Specifications
Dimensions and shipping

Angle

90 °

Brand Name

I.M.M Hydraulics

Dimension C

28 mm

Dimension E

27 mm

Dimension H

26 mm

Dimension T

G 1/2 BSP

Hose coupling type

For separate ferrule

Hose size

3/8 "

Material

Steel

Model code

2321-06-08

Surface treatment

Electro-galvanized / White chromatized

Thread

G 1/2 BSP

Torque tightening

59 Nm

Package size

0 pcs

Barcode

5704295691190

Gross weight

0,14 Kg

Net weight

0,14 Kg

Country of origin

ITA

Intrastat code

73269098

Product information

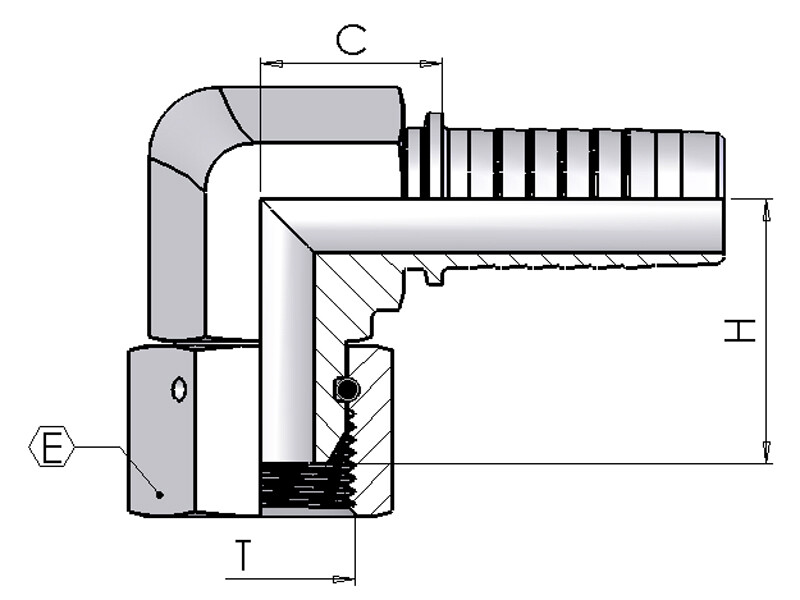

Measure sketch

Insert with nut and BSP female thread. Short version elbow.

Connection: BSP female thread in nut, with 60° cone face.

Sealing: Metal against metal (cone).
