Insert 3/8" - 3/8" BSP nut 45°

Insert 3/8" - 3/8" BSP nut 45°

Insert 3/8" - 3/8" BSP nut 45°

Insert 3/8" - 3/8" BSP approx. 45°

Varenummer:

P0606NU45

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tillbehör (1)

Plug M16x1,5. REPLACED BY PLUG03M

Partnumber: PLUG03M

Specifications
Dimensions and shipping

Angle

45 °

Brand Name

I.M.M Hydraulics

Diameter

63 mm

Dimension C

47 mm

Dimension E

22 mm

Dimension H

17 mm

Dimension T

G 3/8 BSP

Hose coupling type

For separate ferrule

Hose size

3/8 "

Material

Steel

Model code

0252-06-06

Surface treatment

Electro-galvanized / White chromatized

Thread

G 3/8 BSP

Torque tightening

34 Nm

Package size

0 pcs

Barcode

5704295690919

Gross weight

0,05 Kg

Net weight

0,05 Kg

Country of origin

ITA

Intrastat code

73269098

Product information

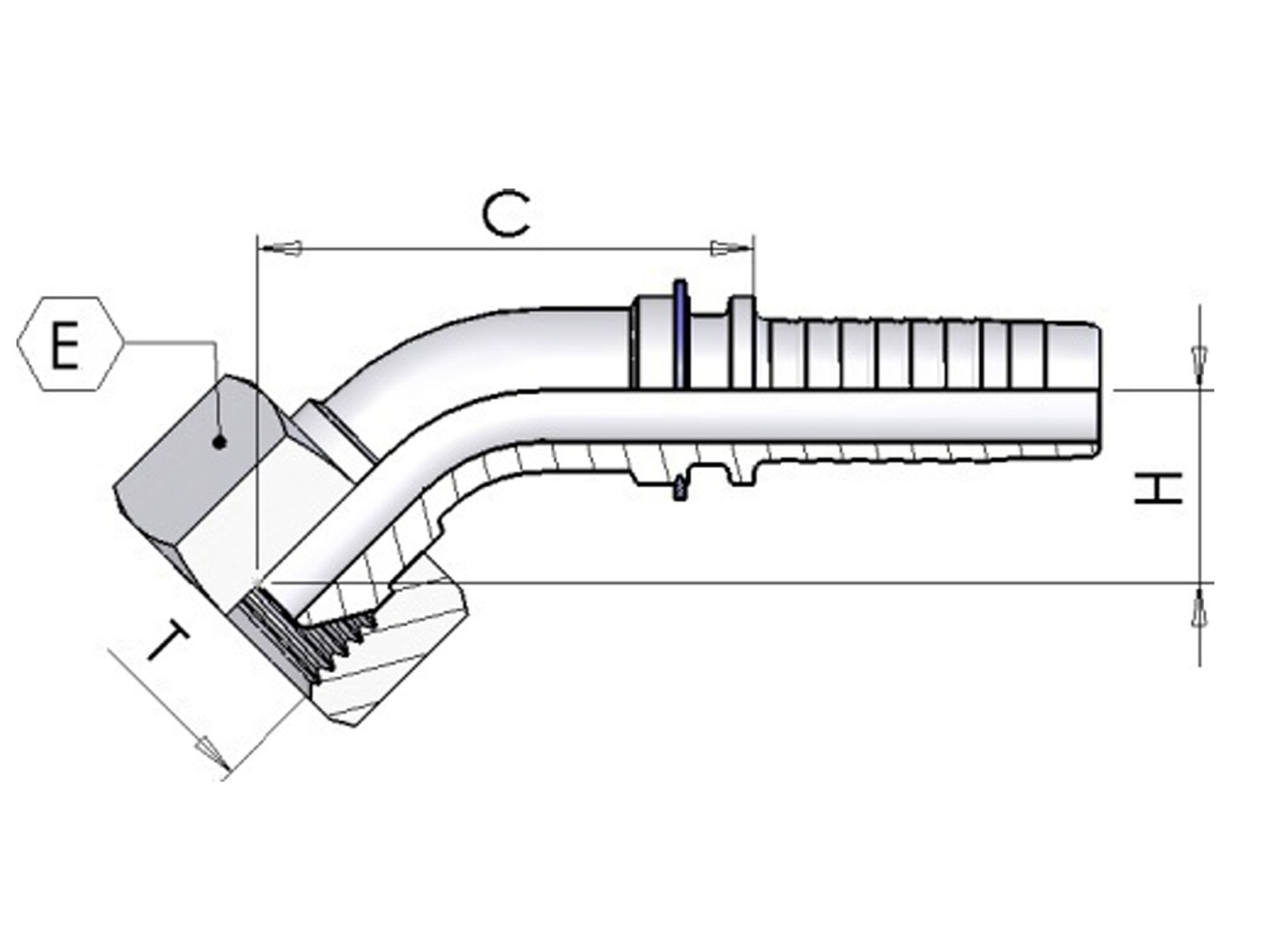

Measure sketch

Insert 3/8" - 3/8" BSP approx. 45°

Insert 3/8" - 3/8" BSP nut 45°
