Insert 1/2" - 1/2" BSP nut w. cap O-ring

Insert 1/2" - 1/2" BSP nut w. cap O-ring

Insert 1/2" - 1/2" BSP nut w. cap O-ring

Insert with nut and BSP female thread.

Connection: BSP female thread in nut, with 60° cone face and o-ring.

Sealing: O-ring against metal (cone).

Partnumber:

P0808NO

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

I.M.M Hydraulics

Dimension C

21 mm

Dimension E

27 mm

Dimension T

G 1/2 BSP

Hose coupling type

For separate ferrule

Hose size

1/2 "

Material

Steel

Model code

0041-08-08

Sealing material

NBR

Surface treatment

Electro-galvanized / White chromatized

Temperature max.

+100 °C

Temperature min.

-30 °C

Thread

G 1/2 BSP

Torque tightening

47 Nm

Package size

0 pcs

Barcode

5704295723112

Gross weight

0,08 Kg

Net weight

0,08 Kg

Country of origin

ITA

Intrastat code

73269098

Product information

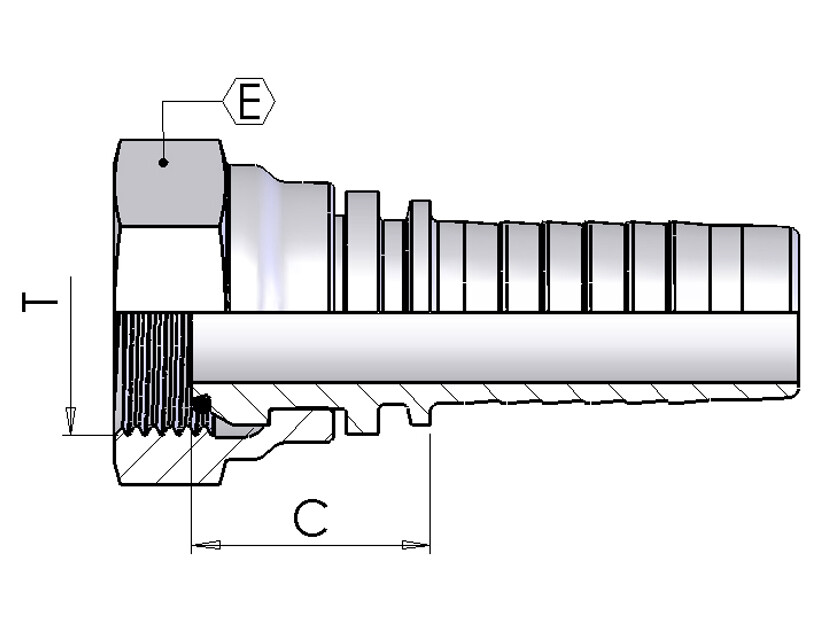

Measure sketch

Insert with nut and BSP female thread.

Connection: BSP female thread in nut, with 60° cone face and o-ring.

Sealing: O-ring against metal (cone).

Insert 1/2" - 1/2" BSP nut w. cap O-ring
