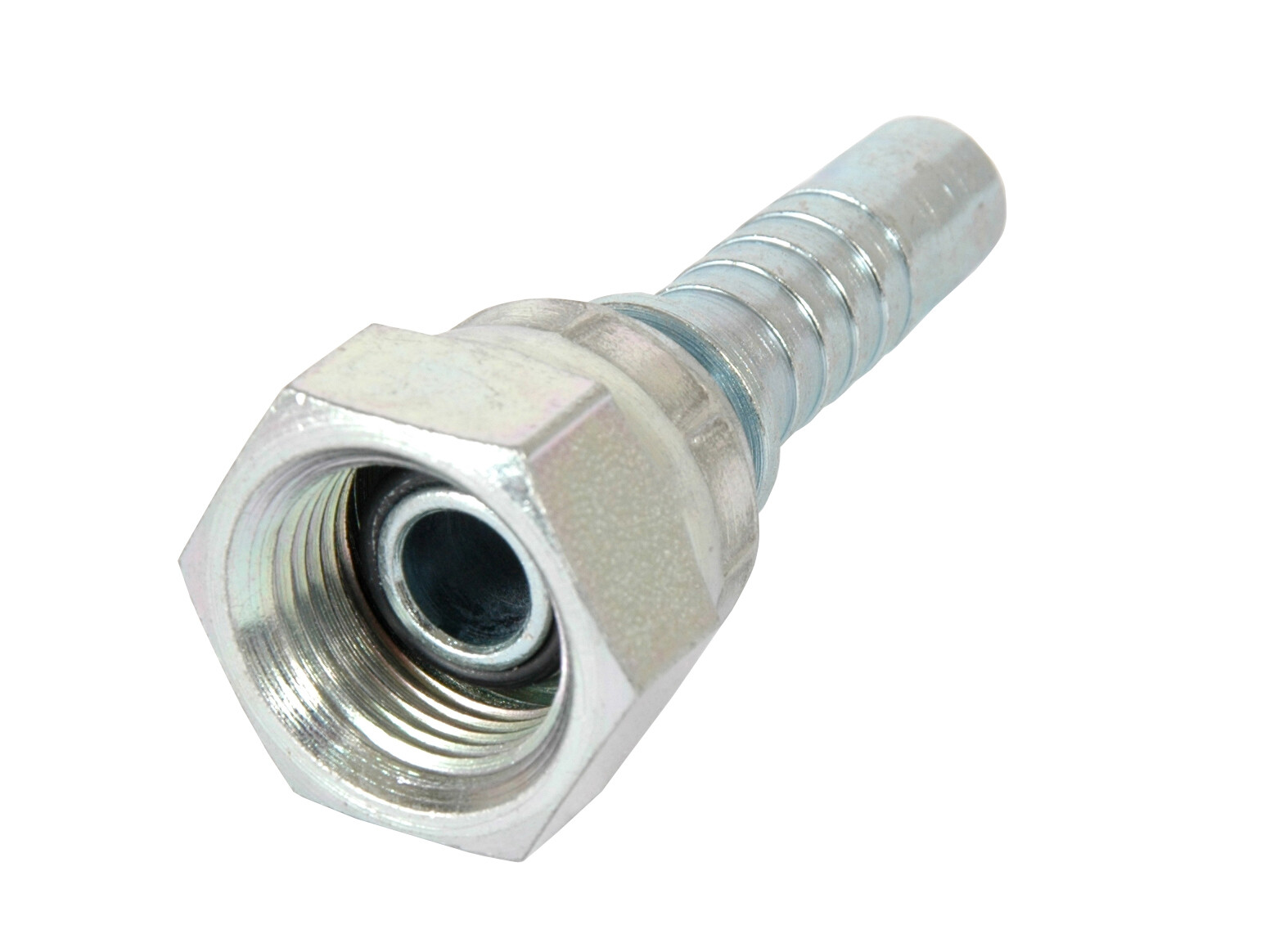

Insert 3/8" - 3/8" BSP nut w. cap O-ring
Insert with nut and BSP female thread.
Connection: BSP female thread in nut, with 60° cone face and o-ring.
Sealing: O-ring against metal (cone).
Artikelnummer:
P0606NO
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Angle
0 °
Brand Name
I.M.M Hydraulics

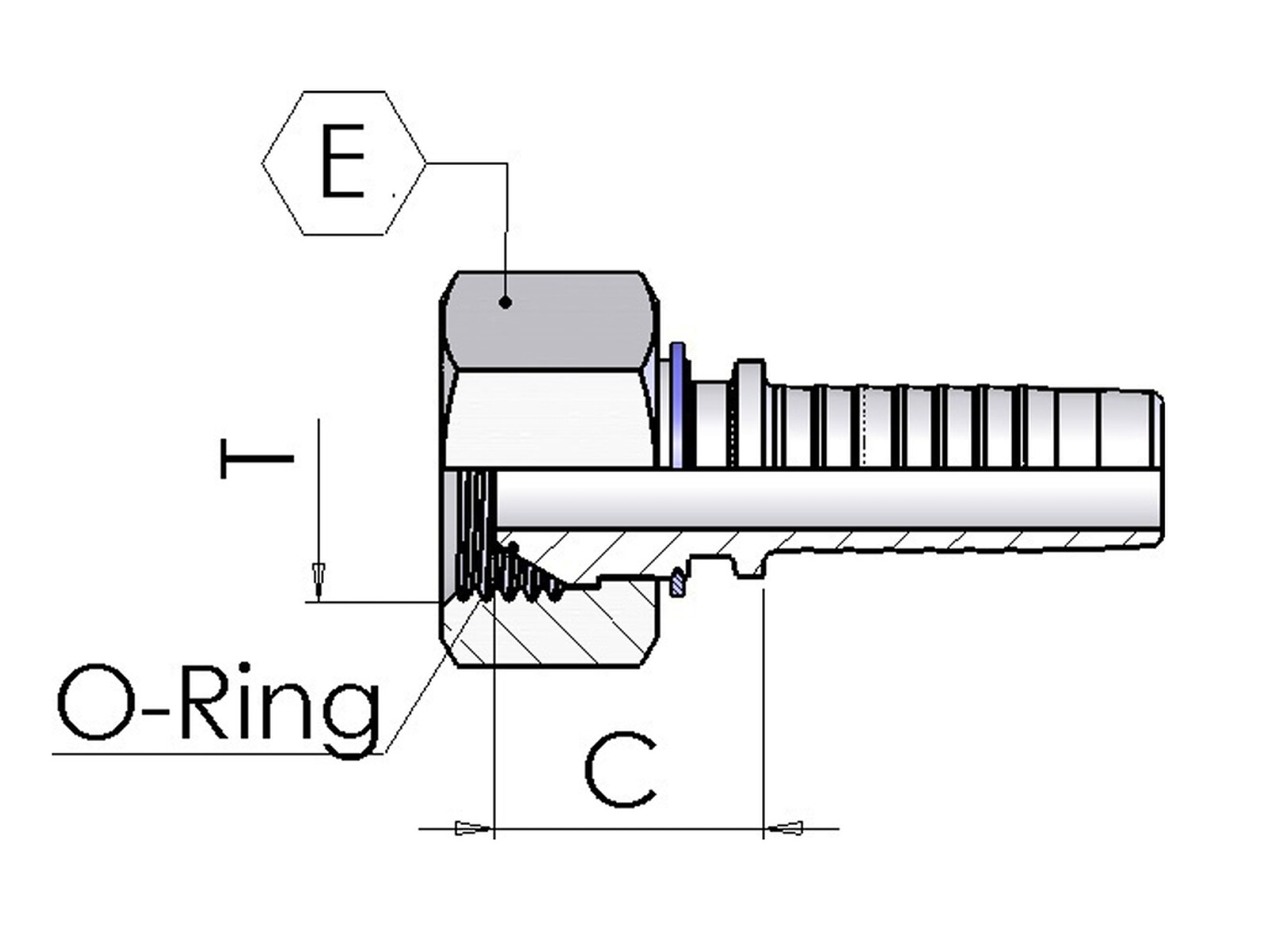

Dimension C
19 mm
Dimension E
22 mm
Dimension T
G 3/8 BSP
Hose coupling type
For separate ferrule
Hose size
3/8 "
Material
Steel
Model code
0041-06-06
Sealing material
NBR
Surface treatment
Electro-galvanized / White chromatized
Temperature max.
+100 °C
Temperature min.
-30 °C
Thread
G 3/8 BSP
Torque tightening
27 Nm
Förpackningsstorlek
0 pcs
Streckkod
5704295723082
Bruttovikt
0,05 Kg
Nettovikt
0,05 Kg
Ursprungsland
ITA
Intrastat artikelkod
73269098
Insert with nut and BSP female thread.
Connection: BSP female thread in nut, with 60° cone face and o-ring.
Sealing: O-ring against metal (cone).
