OVERC.V S-H 68-1 3:1

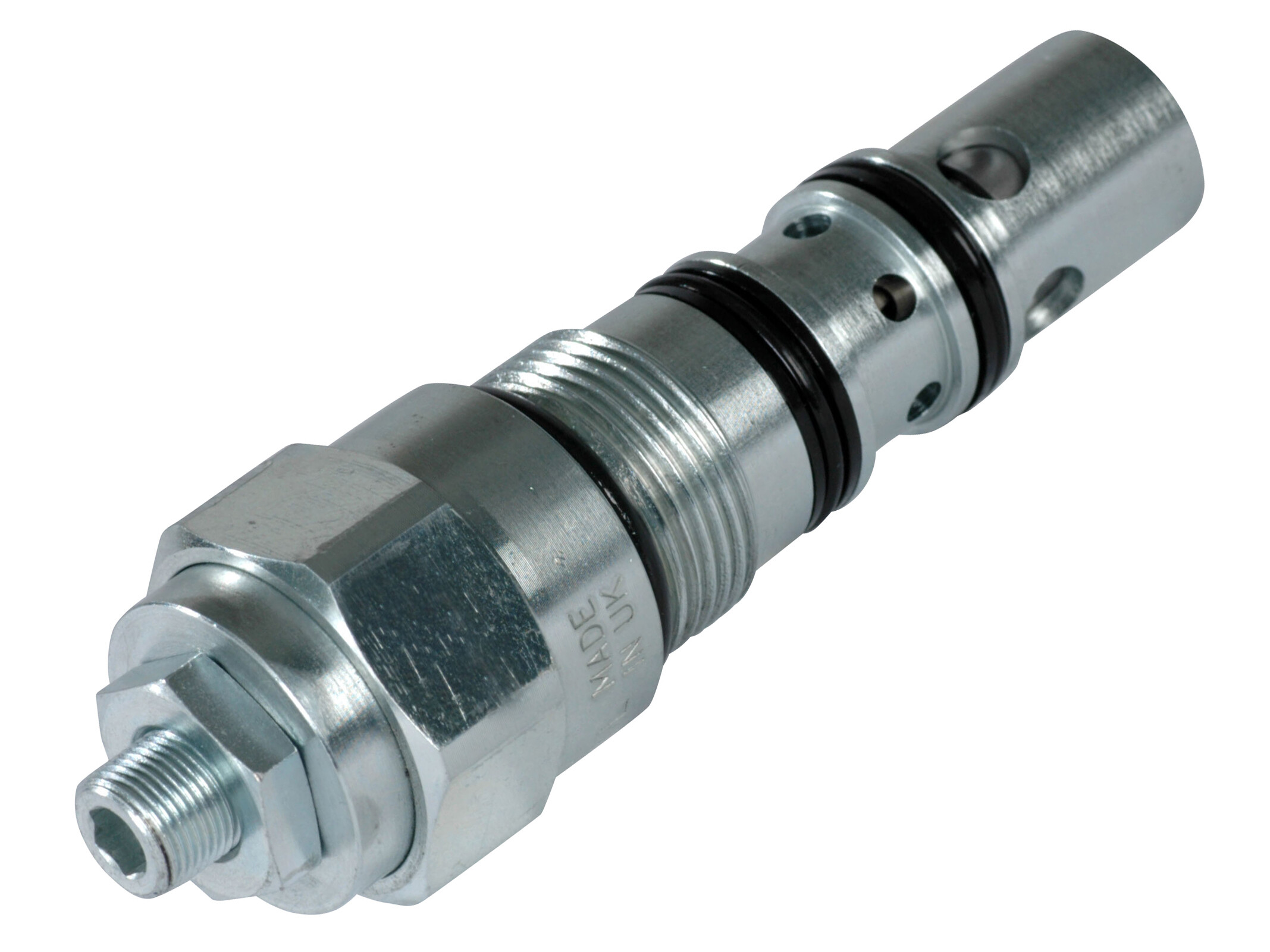

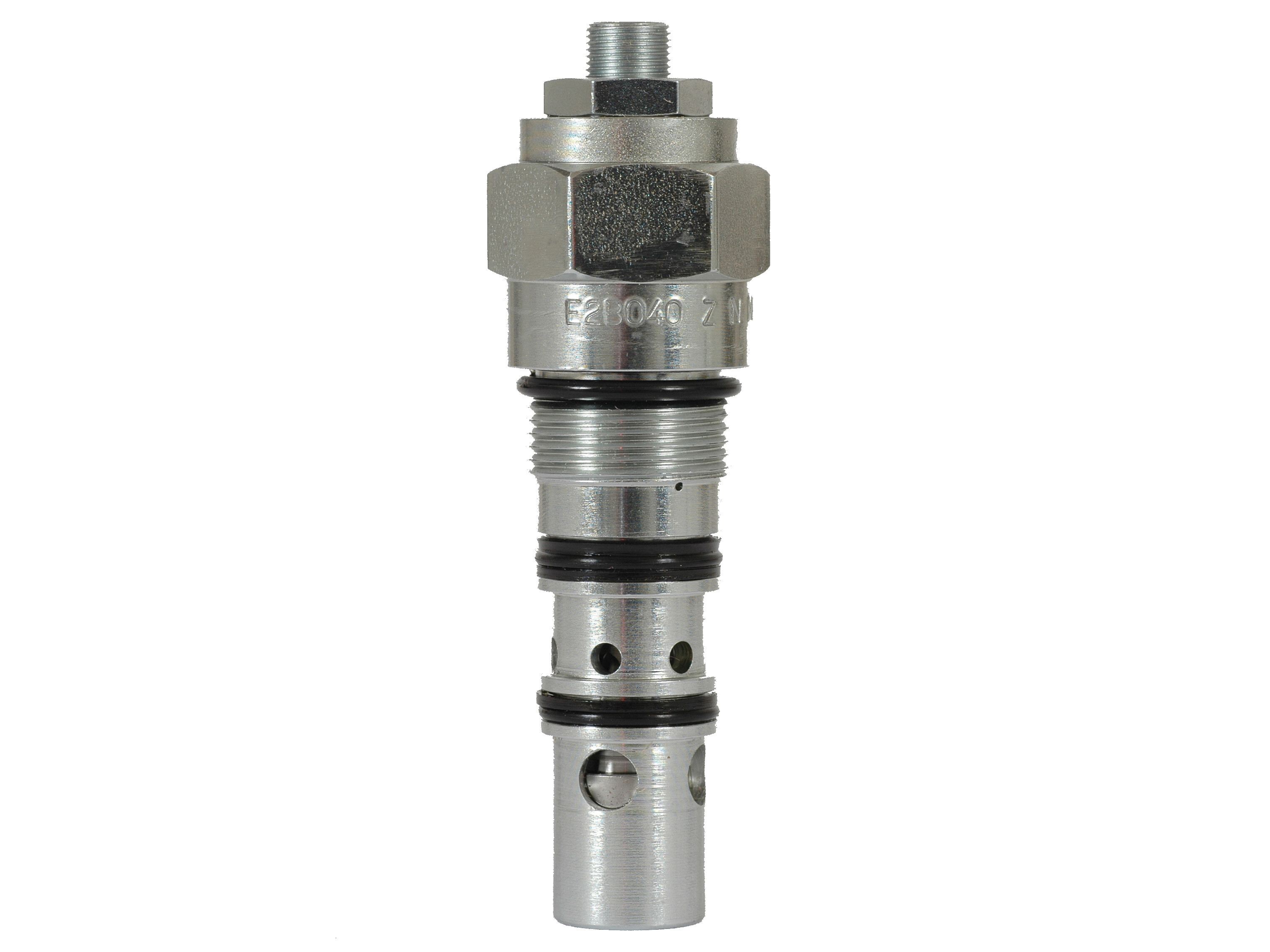

Cartridge Style Counterbalance Valve. Pilot assisted, designed for motion control applications. Features • Poppet construction for minimal leakage. • Incorporates direct acting relief valve for overload protection. • Includes reverse check valve within body, saving space and minimizing installation cost. • Excellent control and very good stability. • Hardened working parts for maximum durability. • All external parts zinc plated.

Partnumber:
E2B40ZN

Package size:
0 pcs

Min. order quantity is:
1 pcs
Valve block, Sterling (68-1)
Partnumber: 1-0251A
Valve block, Sterling (68-1)
Partnumber: 1-0251S
Valve block, Sterling (2x68-1) With brake release
Partnumber: 1-0259A
Valve block, Sterling (2x68-1) Steel
Partnumber: 1-0259S
Brand Name
Hydraspecma

Cavity
68-1

Flow rate nominal LMin
60 lpm

Oil viscocity recommended
15 - 50 cSt

Pilot ratio
3:1

Pressure max.
350 bar

Pressure setting max.
350 bar

Pressure setting min.
50 bar

Sealing material
NBR

Torque tightening
54 Nm
Package size
0 pcs

Barcode
5704334215240

Gross weight
0,26 Kg

Net weight
0,26 Kg

Country of origin
gbr

Intrastat code
84812010

Cartridge Style Counterbalance Valve. Pilot assisted, designed for motion control applications. Features • Poppet construction for minimal leakage. • Incorporates direct acting relief valve for overload protection. • Includes reverse check valve within body, saving space and minimizing installation cost. • Excellent control and very good stability. • Hardened working parts for maximum durability. • All external parts zinc plated.
