3-way valve-female 3/8 B BK3 G3/8 10 1123 1 la

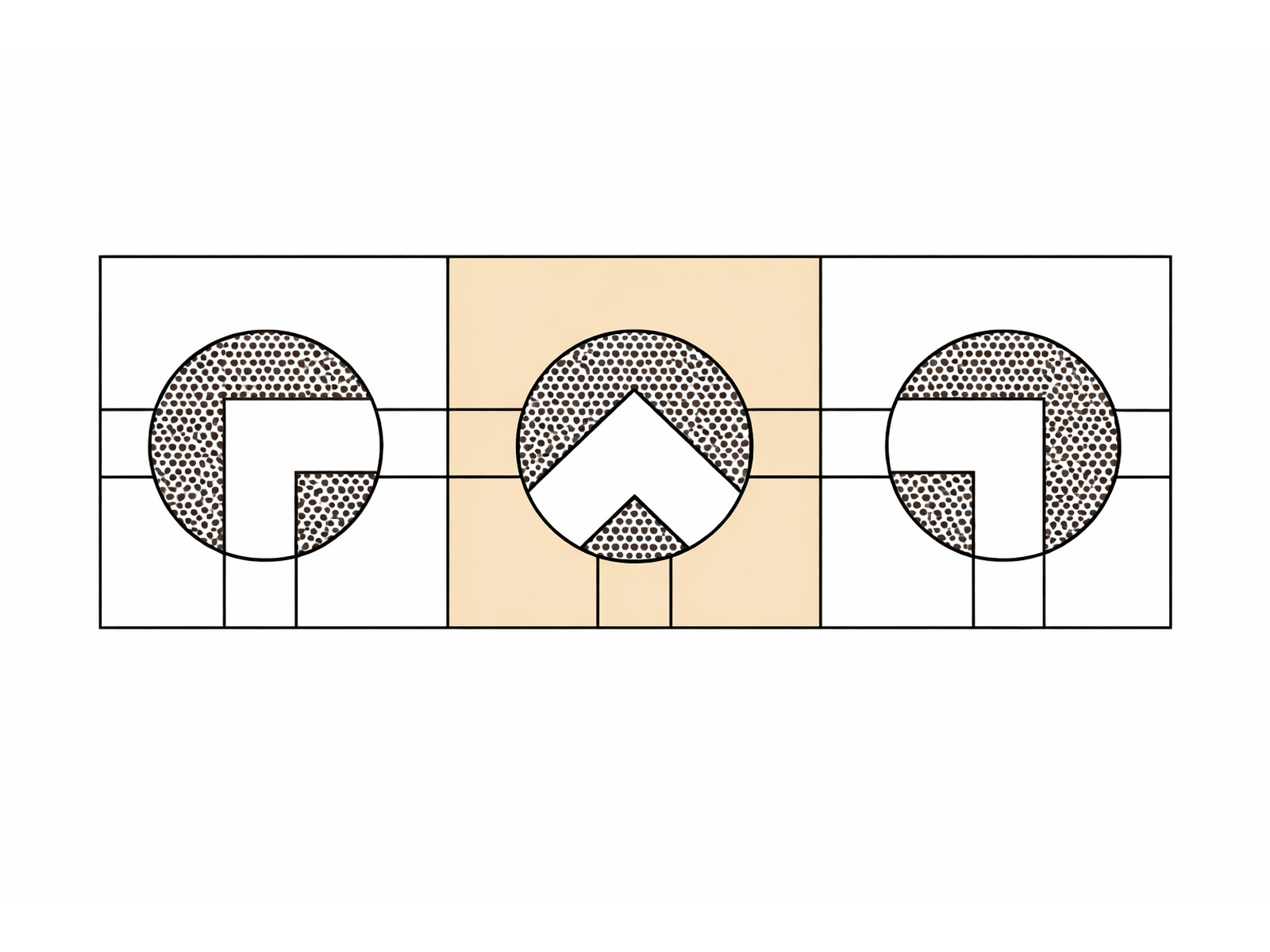

3-way, standard series ball valve with L-bore.
"LA" = 100% tight. Open during changeover.
Artikelnummer:
BK3-3/8LA
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
B
32 mm
Brand Name
Pister Kugelhähne
Diameter inner
9 mm
H1
38 mm
L
72 mm
L1
44 mm
Number of ways/positions
3/2
Pressure max.
400 bar
Temperature max.
+60 °C
Temperature min.
-20 °C
Thread
G 3/8 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704295021669
Bruttovikt
0,57 Kg
Nettovikt
0,57 Kg
Ursprungsland
DEU
Intrastat artikelkod
84812010
3-way, standard series ball valve with L-bore.
"LA" = 100% tight. Open during changeover.
