3-way valve-male -M18x1,5/L BK3 12l 10 1123 1 l

3-way valve-male -M18x1,5/L BK3 12l 10 1123 1 l

3-way, standard series ball valve with L-bore.

"L" = Not 100% tight. Open during changeover.

Partnumber:

BK3-12L

Package size:

0 pcs

Min. order quantity is:

1 pcs

Reservedele (4)

Tætningssæt for kuglehane BK3 DN10 1123

Partnumber: BK3ALW10

Låseplade DN04-13 kuglehane

Partnumber: LSW09

Forkrøblet håndtag DN04-13

Partnumber: SWF09-106

Topskrue DN04-13 kuglehane M4x08

Partnumber: TSW09

Specifications
Dimensions and shipping

Antal veje/positioner

3/2

Diameter indvendig

10 mm

Diameter rør

12 mm

Dimension B

32 mm

Dimension H1

38 mm

Dimension L

74 mm

Dimension L1

42 mm

Mærke navn

Pister Kugelhähne

Serie

Temperatur maks.

+60 °C

Temperatur min.

-20 °C

Tryk maks.

400 bar

Package size

0 pcs

Barcode

5704295021812

Gross weight

0,51 Kg

Net weight

0,51 Kg

Country of origin

DEU

Intrastat code

84812010

Product information

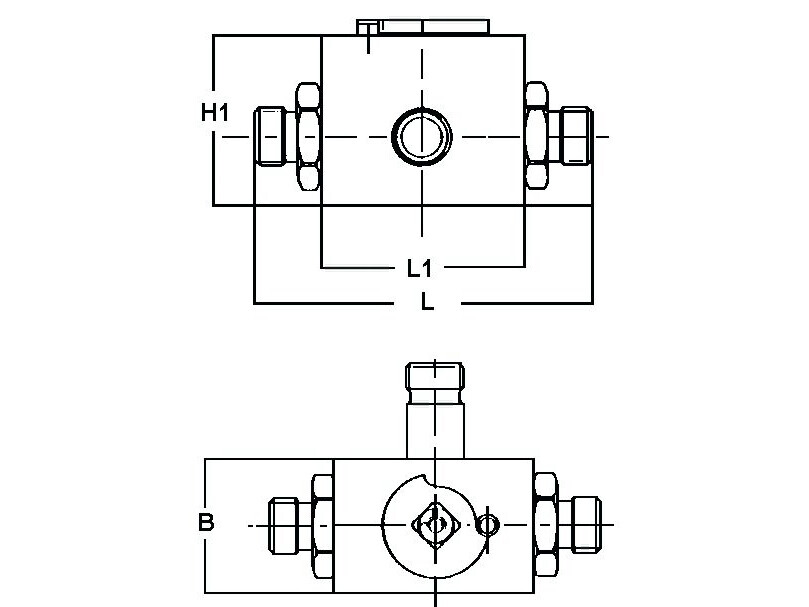

Measure sketch

3-way, standard series ball valve with L-bore.

"L" = Not 100% tight. Open during changeover.
