3-way valve-female 1/2 B BK3 G1/2 13 1123 1 PA

3-way, standard series ball valve with L-bore.

"PA" = 100% tight. Closed during changeover.

Partnumber:

BK3-1/2PA

Package size:

0 pcs

Min. order quantity is:

1 pcs

Spare parts (3)

Locking plate DN04-13 ball valve

Partnumber: LSW09

Bended grip DN04-13

Partnumber: SWF09-106

Top screw DN04-13 ball valve M4x08

Partnumber: TSW09

Specifications
Dimensions and shipping

Brand Name

Pister Kugelhähne

Diameter inner

13 mm

Dimension B

35 mm

Dimension H1

40 mm

Dimension L

85 mm

Dimension L1

49 mm

Number of ways/positions

3/2

Pressure max.

350 bar

Temperature max.

+60 °C

Temperature min.

-20 °C

Thread

G 1/2 BSP

Package size

0 pcs

Barcode

5704295021706

Gross weight

0,69 Kg

Net weight

0,69 Kg

Country of origin

DEU

Intrastat code

84812010

Product information
Measure sketch

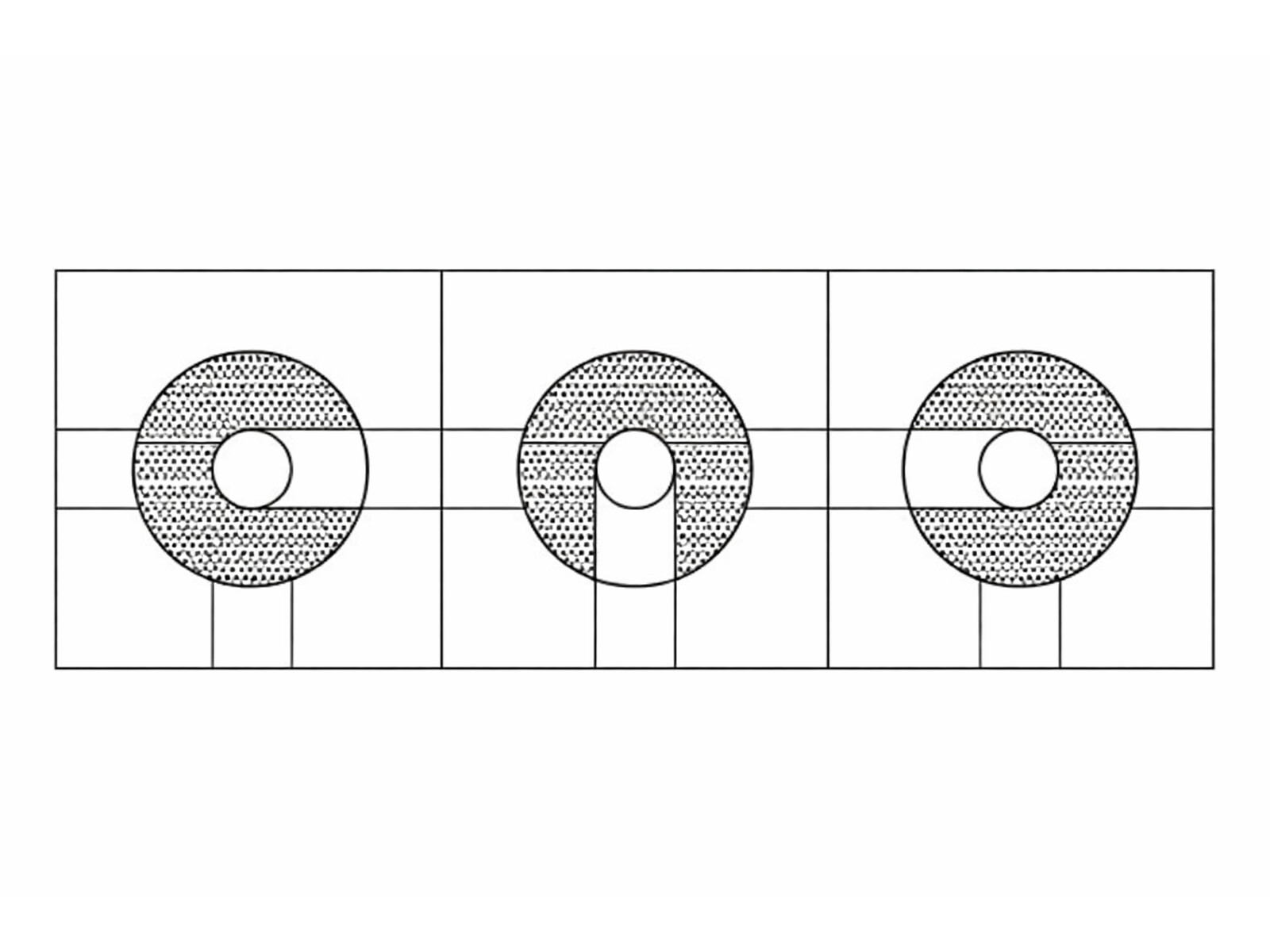

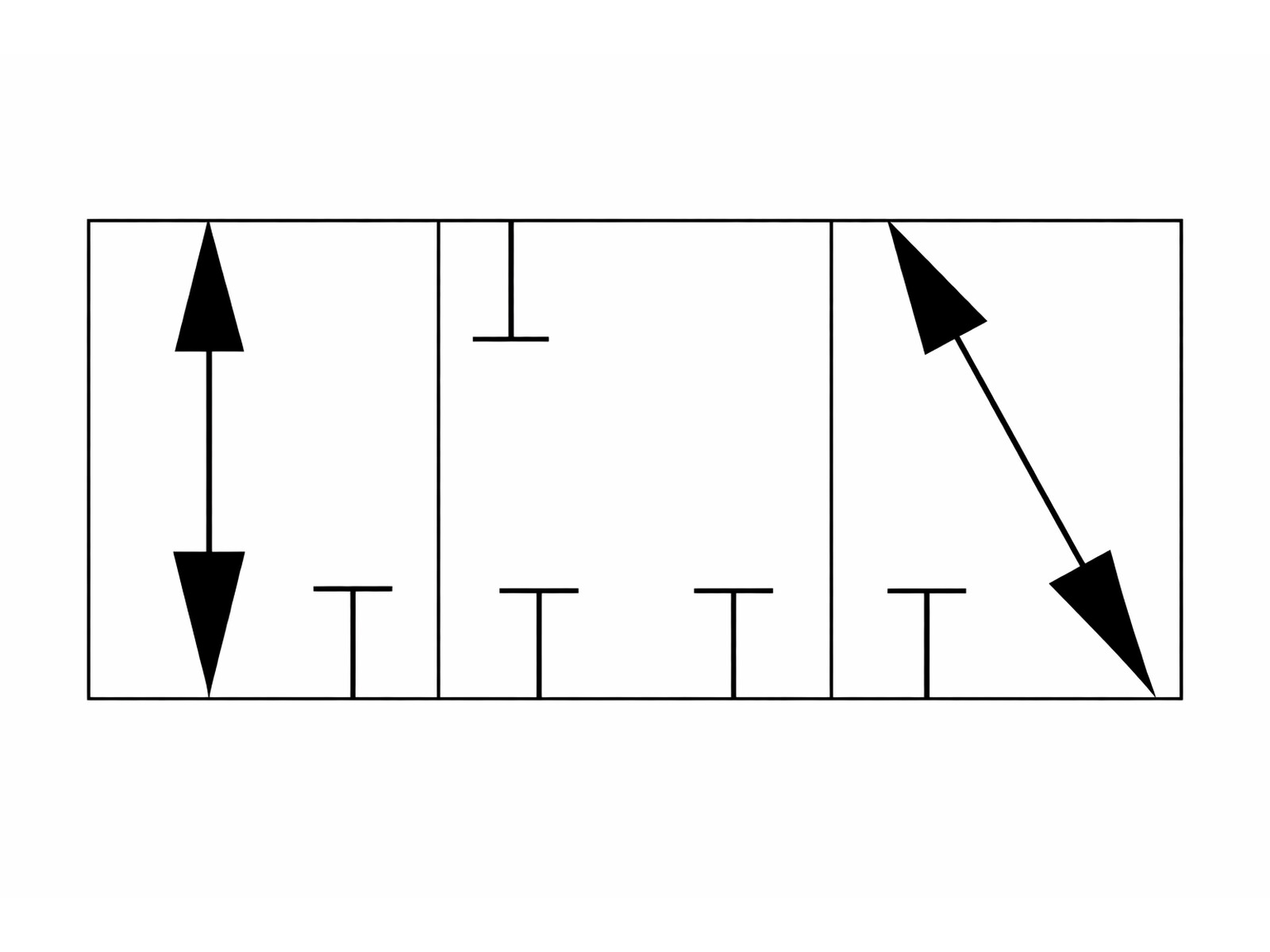

3-way, standard series ball valve with L-bore.

"PA" = 100% tight. Closed during changeover.
