CROSSOVER.V S-H 10-2 10-350BAR

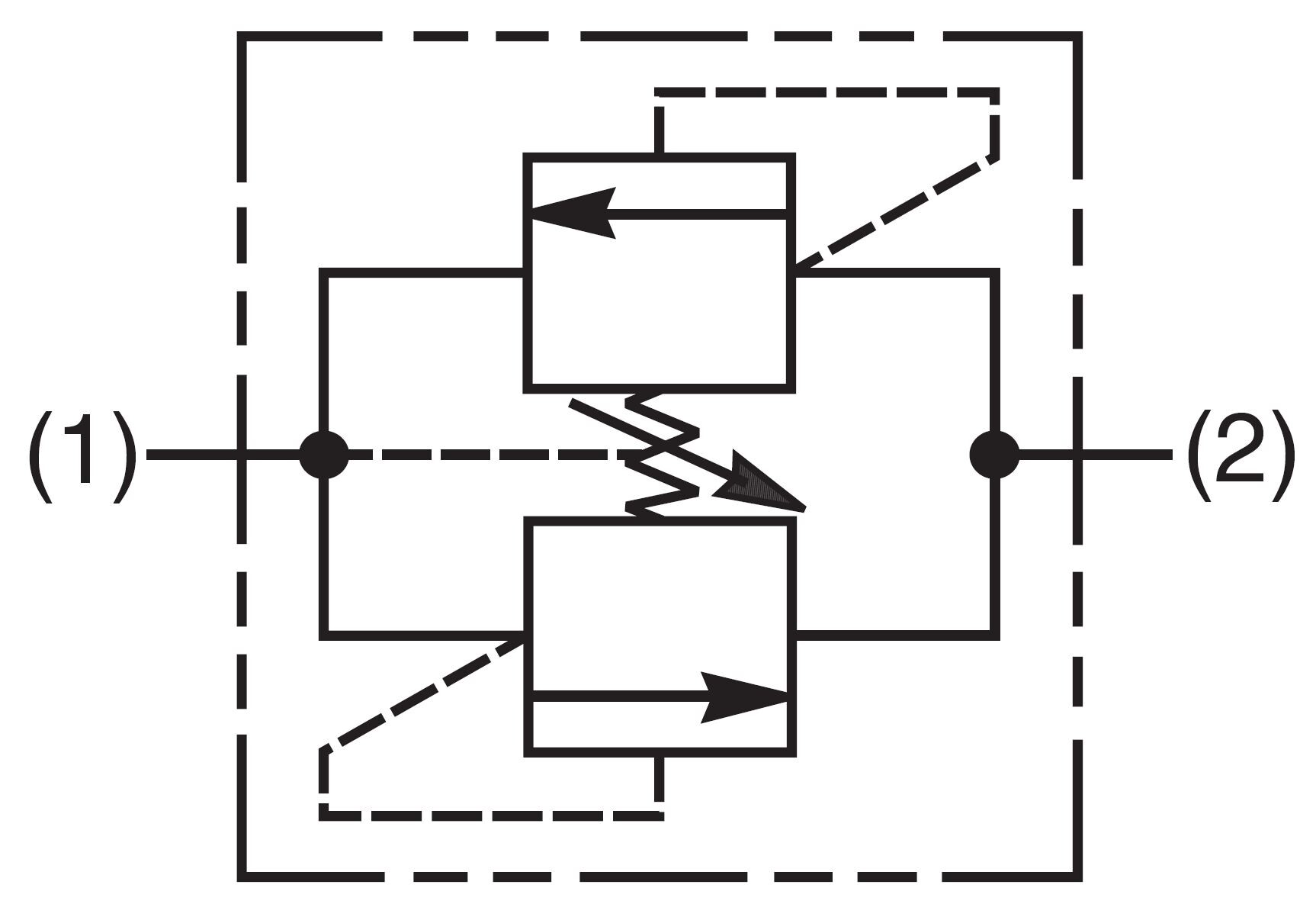

Direct Acting, Dual Poppet-Type, Cross-over Relief Valve

Features

  • Compact space saving design
  • Cost effective – only requires one cavity
  • Poppet-type construction for lower leakage
  • Full 150 bar pressure capability
  • High flow capability for the size of valve
  • Minimal pressure variation with flow change
  • Hardened working parts for maximum durability
  • All external parts zinc plated

Partnumber:
A04J2MZN

Package size:
0 pcs

Min. order quantity is:
1 pcs
Valve Block alu. 1/2 (CAV04-
Partnumber: 707A
Brand Name
Hydraspecma

Cavity
CAV04-2

Contamination level max.
18/16/13 - ISO 4406

Flow rate nominal LMin
120 lpm

Oil viscocity recommended
15 - 50 cSt

Pressure T max.
420 bar

Pressure max.
420 bar

Pressure setting max.
350 bar

Pressure setting min.
10 bar

Sealing material
NBR

Torque tightening
50 Nm
Package size
0 pcs

Barcode
5704295401782

Gross weight
0,28 Kg

Net weight
0,28 Kg

Country of origin
gbr

Intrastat code
84812010

Direct Acting, Dual Poppet-Type, Cross-over Relief Valve

Features

  • Compact space saving design
  • Cost effective – only requires one cavity
  • Poppet-type construction for lower leakage
  • Full 150 bar pressure capability
  • High flow capability for the size of valve
  • Minimal pressure variation with flow change
  • Hardened working parts for maximum durability
  • All external parts zinc plated
