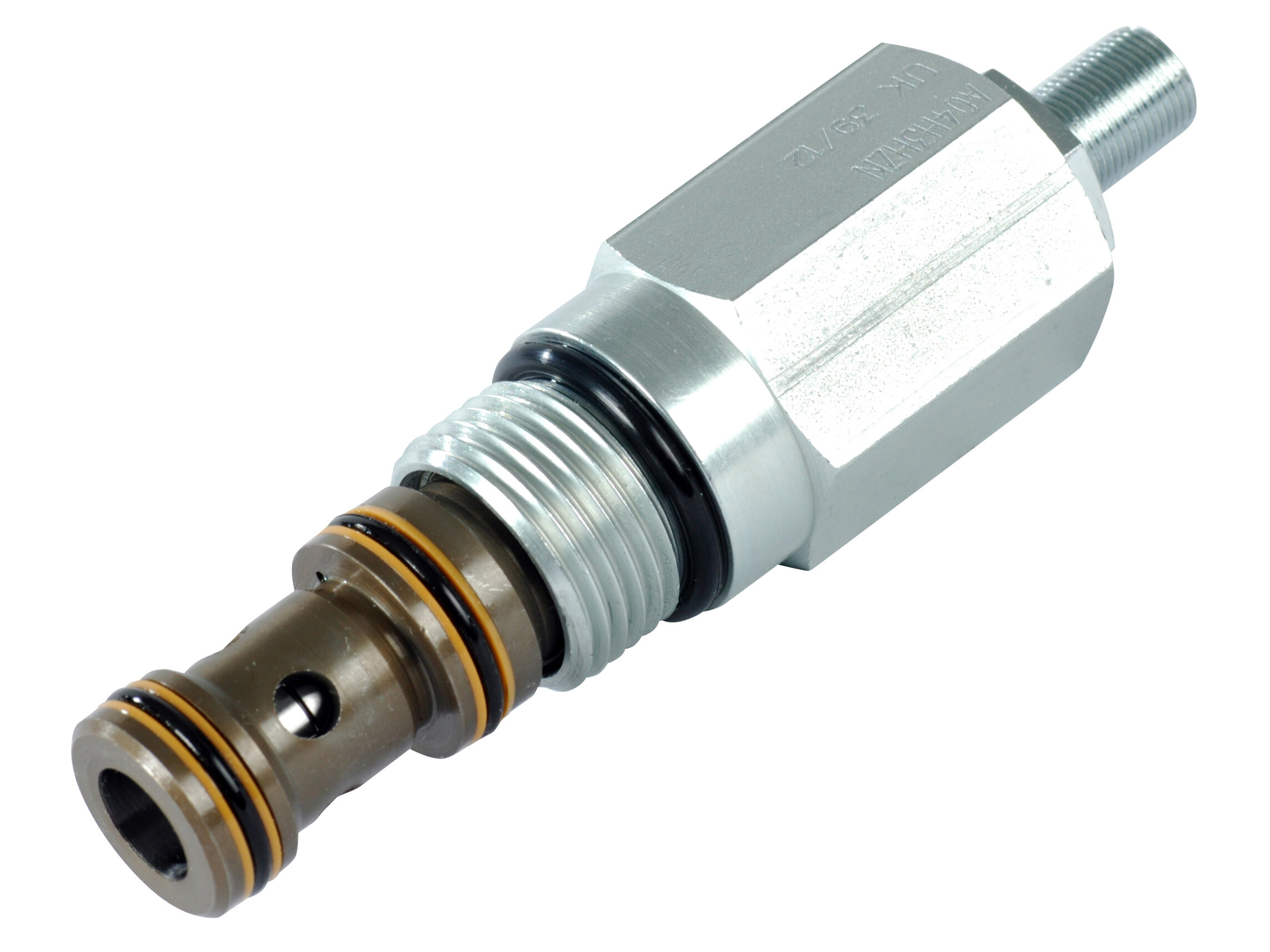

Pressure relief valve, Sterlin

Pilot Operated, Spool-Type, Ventable Relief Valve.

Features

  • High flow capacity
  • Full tank line back pressure capability
  • Excellent flow pressure characteristics for consistent pressure setting
  • Ideal for pump relief and remote control or unloading via vent (port 3)
  • Integral 250 micron pilot flow filter
  • Hardened working parts for maximum durability
  • All external parts zinc plated

Artikelnummer:
A04H3HZN

Förpackningsstorlek:
0 pcs

Minsta beställningskvantitet:
1 pcs
Valve Block steel 3/4 (CAV04-
Artikelnummer: 711S
Lock cap Sterling
Artikelnummer: TC1130
Brand Name
Hydraspecma

Cavity
CAV04-S3

Contamination level max.
18/16/13 - ISO 4406

Flow rate nominal LMin
190 lpm

Oil viscocity recommended
15 - 50 cSt

Pressure T max.
420 bar

Pressure max.
420 bar

Pressure setting max.
210 bar

Pressure setting min.
10 bar

Sealing material
NBR

Torque tightening
50 Nm
Förpackningsstorlek
0 pcs

Streckkod
5704295487847

Bruttovikt
0,25 Kg

Nettovikt
0,25 Kg

Ursprungsland
GBR

Intrastat artikelkod
84812010

Pilot Operated, Spool-Type, Ventable Relief Valve.

Features

  • High flow capacity
  • Full tank line back pressure capability
  • Excellent flow pressure characteristics for consistent pressure setting
  • Ideal for pump relief and remote control or unloading via vent (port 3)
  • Integral 250 micron pilot flow filter
  • Hardened working parts for maximum durability
  • All external parts zinc plated
