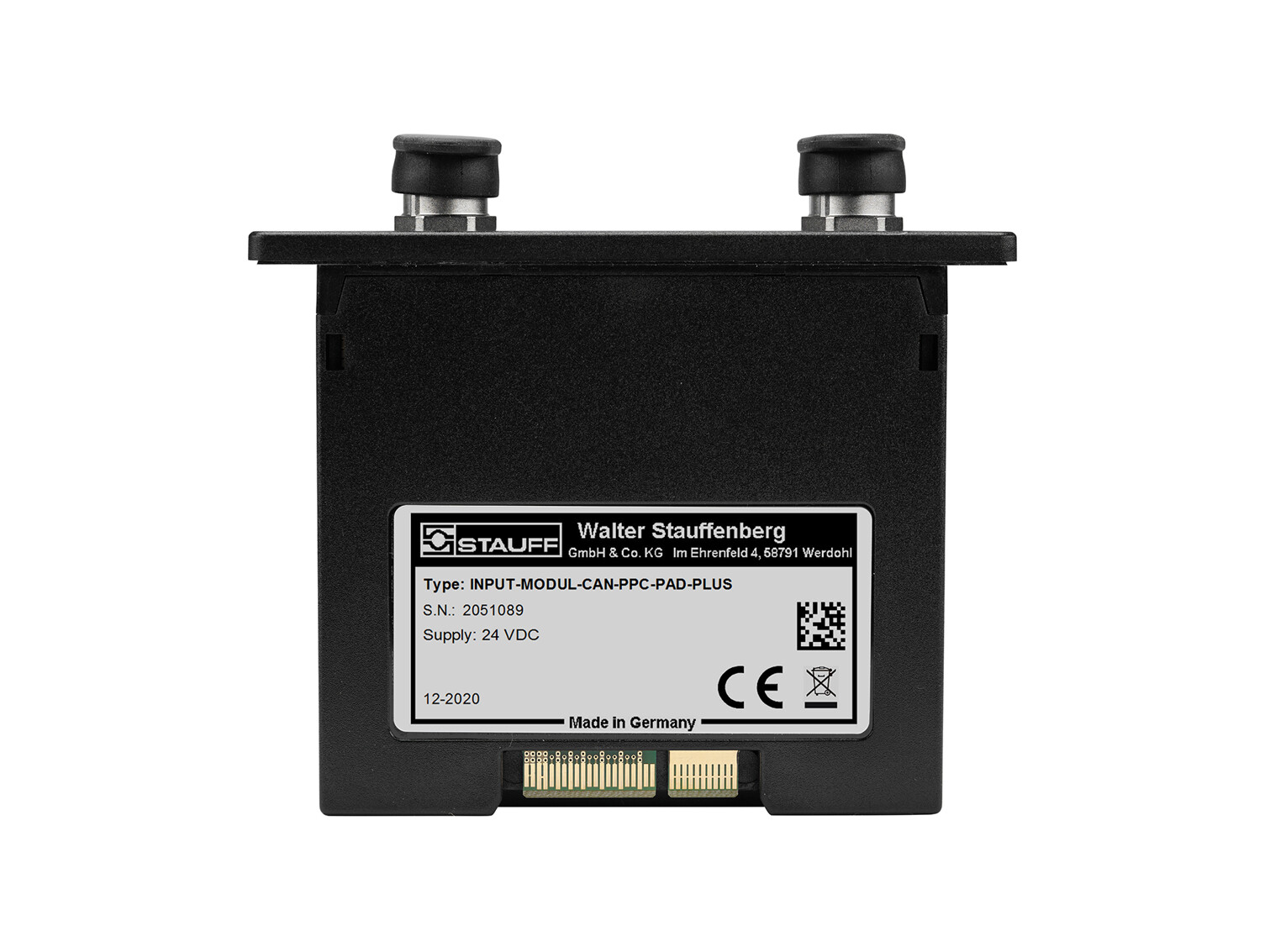

Input Module for PPC-PAD-PLUS Connection of 2 CAN Channels

The CAN Input Module is equipped with two passive CAN bus connections for third-party sensors without automatic sensor detection (third-party CAN).
In addition, this slot offers the option of connecting the PPC-PAD-PLUS unit to an existing CAN BUS network using the SAE J1939 protocol for the purpose of reading messages from other CAN bus nodes. This can be the bus of a vehicle or machine, for example. The CAN module is passive and cannot be detected by other CAN masters.
Both connections are galvanically isolated from each other and from the device.

Partnumber:
6100194735

Package size:
0 pcs

Min. order quantity is:
1 pcs
Brand Name
Stauff

Sensor type
CAN

Temperature max.
+50 °C

Temperature min.
-10 °C
Package size
0 pcs

Barcode
5704334847533

Gross weight
Kg

Net weight
0,181 Kg

Country of origin
deu

Intrastat code
90262040

The CAN Input Module is equipped with two passive CAN bus connections for third-party sensors without automatic sensor detection (third-party CAN).
In addition, this slot offers the option of connecting the PPC-PAD-PLUS unit to an existing CAN BUS network using the SAE J1939 protocol for the purpose of reading messages from other CAN bus nodes. This can be the bus of a vehicle or machine, for example. The CAN module is passive and cannot be detected by other CAN masters.
Both connections are galvanically isolated from each other and from the device.
