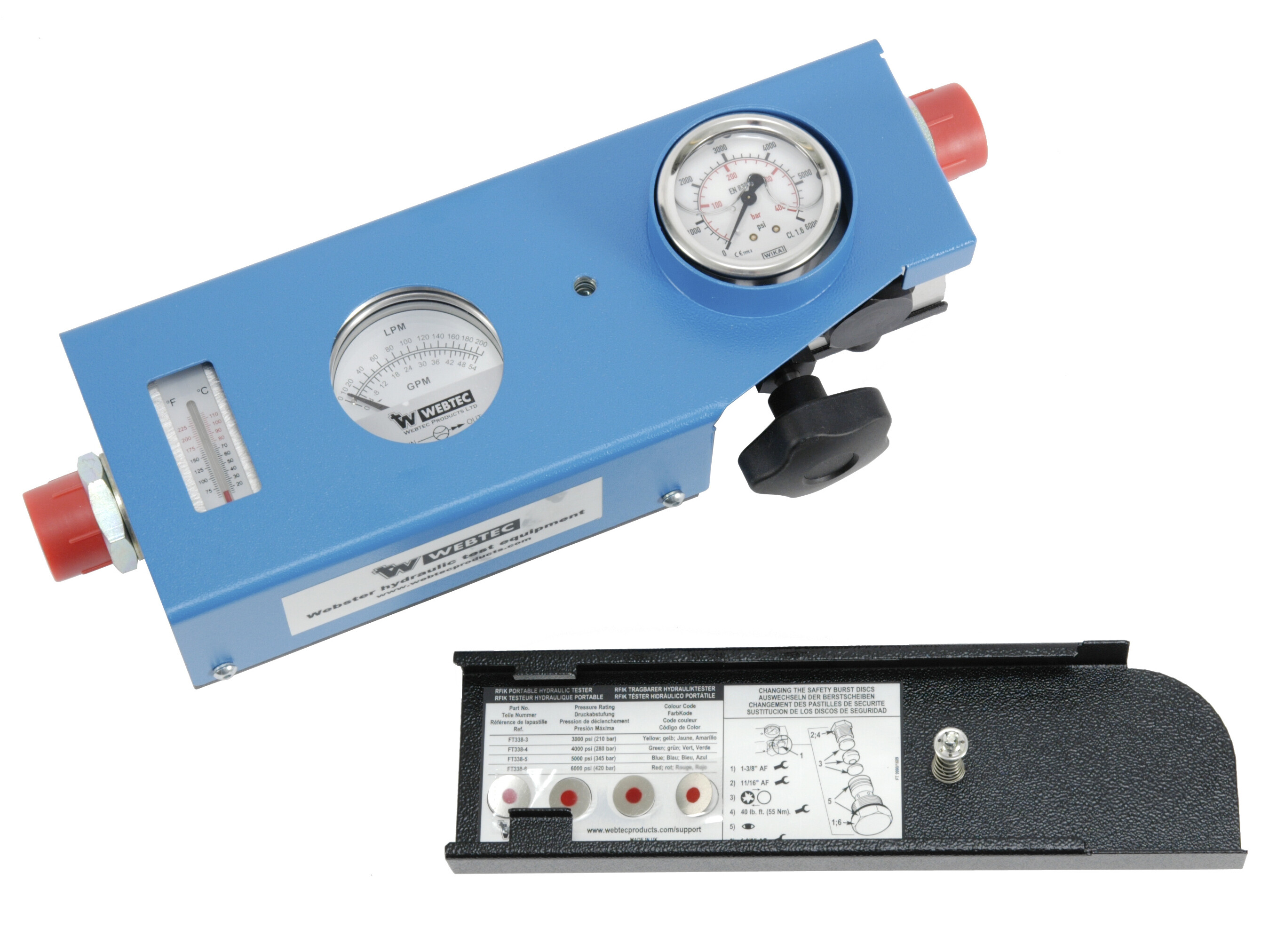

Flow test indicator kit,200lpm

The RFI series provides the ideal solution for continuous monitoring or intermittent use commissioning and servicing hydraulic systems for pressures up to 420 bar (6000 psi).
They can be used on mobile and industrial hydraulic circuits and also on lub rication and coolant systems using oil or water-oil emulsions.

The direct acting FI series can be installed in hazardous areas or on applications where no electrical power is available. The flow indicator design ensures good reliability and minimises the effects of viscosity changes. The large clear 63 mm diameter dial ensures that quick checks can be made to determine pump performance and setting of flow control valves.

The thermometer is an gled deep into the block to sense the temperature changes in the fluid passage. Allows flow in the reverse direction.

For external protection the readout scales of both thermometer and flow indicator are recessed and shielded behind impact resistant windows. The whole unit is fully sealed and extremely rugged.

Partnumber:
RFIK200

Package size:
0 pcs

Min. order quantity is:
1 pcs
If you order this item, then will be ordered instead.
Safety disc, max. 400 ltrs. Ø16
Partnumber: FT0338-6
Brand Name
Webtec

Flow measurement accuracy
±4% FS (20 ~ 40 ºC)

Flow measurement max.
200 lpm

Flow measurement min.
10 lpm

Flow rate nominal LMin
200 lpm

Loading valve
Yes

Outlet
G 1 BSP

Pressure max.
420 bar

Pressure measurement accuracy
±1,6% FS

Temperature measurement accuracy
±2,5 %

Thread
G 1 BSP
Package size
0 pcs

Barcode
5704295999869

Gross weight
7,50 Kg

Net weight
7,50 Kg

Country of origin

Intrastat code
90261021
