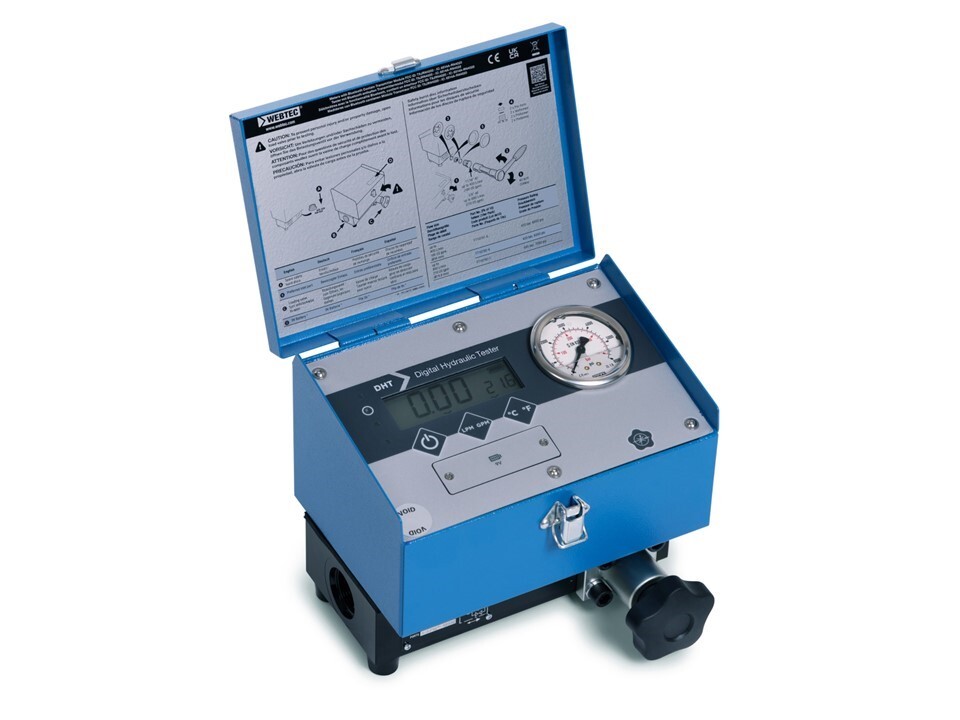

Digital Hydraulic Tester - 300 lpm

Webtec Instruments testunit DHT is designed to assist reactive, proactive and preventive maintenance. It offers analog and digital read-out for measuring flow, pressure and temperature, and has a built-in loading valve to simulate load.

Partnumber:
DHT03

Package size:
0 pcs

Min. order quantity is:
1 pcs
Safety disc, max. 400 ltrs. Ø16
Partnumber: FT0338-6
Brand Name
Webtec

Flow max.
300 lpm

Flow measurement accuracy
±1 % FS

Flow measurement max.
400 lpm

Flow measurement min.
10 lpm

Flow rate min.
8 lpm

Height
227 mm

Length
235 mm

Loading valve
Yes

Model code
DHT03-B

Outlet
G 1 BSP

Pressure max.
420 bar

Pressure measurement accuracy
±1,6% FS

Temperature max.
+120 °C

Temperature measurement accuracy
±1 °C

Temperature min.
0 °C

Thread
G 1 BSP

Width
208 mm
Package size
0 pcs

Barcode
5715803525951

Gross weight
Kg

Net weight
7,72 Kg

Country of origin
gbr

Intrastat code
90261021

Webtec Instruments testunit DHT is designed to assist reactive, proactive and preventive maintenance. It offers analog and digital read-out for measuring flow, pressure and temperature, and has a built-in loading valve to simulate load.
