230/400VAC Powerpack - 200 bar - 2.90 l/min - 2.3kW

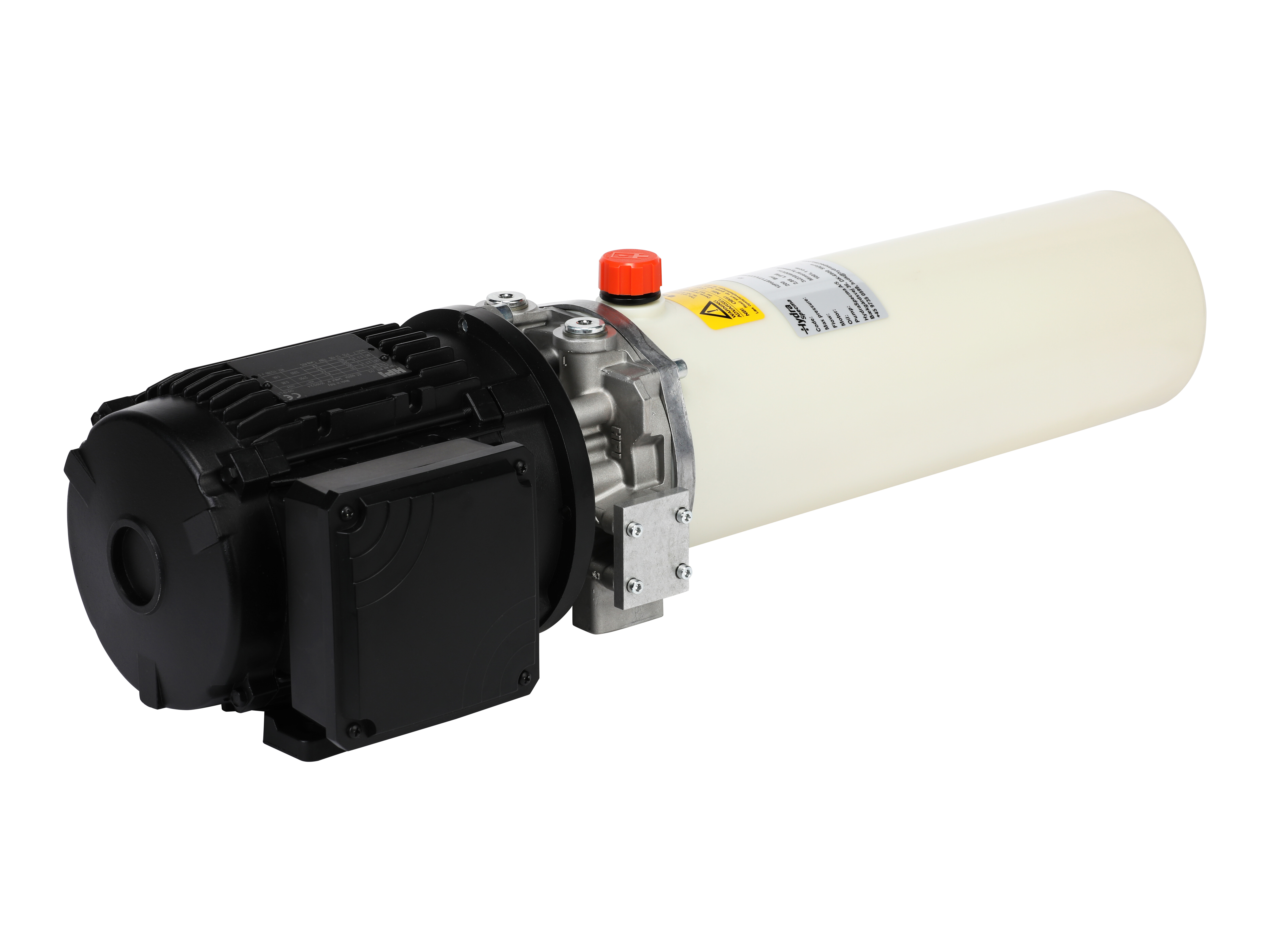

Complete HPI MINI 2 generations power pack - CE Marked
Our MINI 2G power packs are built around a middle flange where the pump and motor are mounted. The counter flange has a built-in non-return and pressure relief valve. Manometer, maneuvering and auxiliary valves can be mounted directly in the flange.
The pump station is for horizontal mounting. If vertical mounting is required, angle studs and straws can be ordered as accessories.
All HydraSpecma power packs are tested and the valves are function tested. The documentation is archived under the consecutive serial number.
Max. Working pressure: 200 bar
Power: 2.90 L / min
Power: 2.3 kW
Voltage: 230 / 400VAC
HPI Model code: 12PH6T1TXXXS100X2N200
Artikelnummer:
400V-1CC-4L
Förpackningsstorlek:
1 pcs
Minsta beställningskvantitet:
1 pcs
Current type
AC
Flow rate nominal LMin
2.9 lpm
Model code
12PH6T1TXXXS100X2N200
Power
2.3 kW
Pressure max.
200 bar
Tank capacity
4 ltr
Voltage
230, 400 V
Förpackningsstorlek
1 pcs
Streckkod
5704334765868
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
DNK
Intrastat artikelkod
84136020
Complete HPI MINI 2 generations power pack - CE Marked
Our MINI 2G power packs are built around a middle flange where the pump and motor are mounted. The counter flange has a built-in non-return and pressure relief valve. Manometer, maneuvering and auxiliary valves can be mounted directly in the flange.
The pump station is for horizontal mounting. If vertical mounting is required, angle studs and straws can be ordered as accessories.
All HydraSpecma power packs are tested and the valves are function tested. The documentation is archived under the consecutive serial number.
Max. Working pressure: 200 bar
Power: 2.90 L / min
Power: 2.3 kW
Voltage: 230 / 400VAC
HPI Model code: 12PH6T1TXXXS100X2N200
