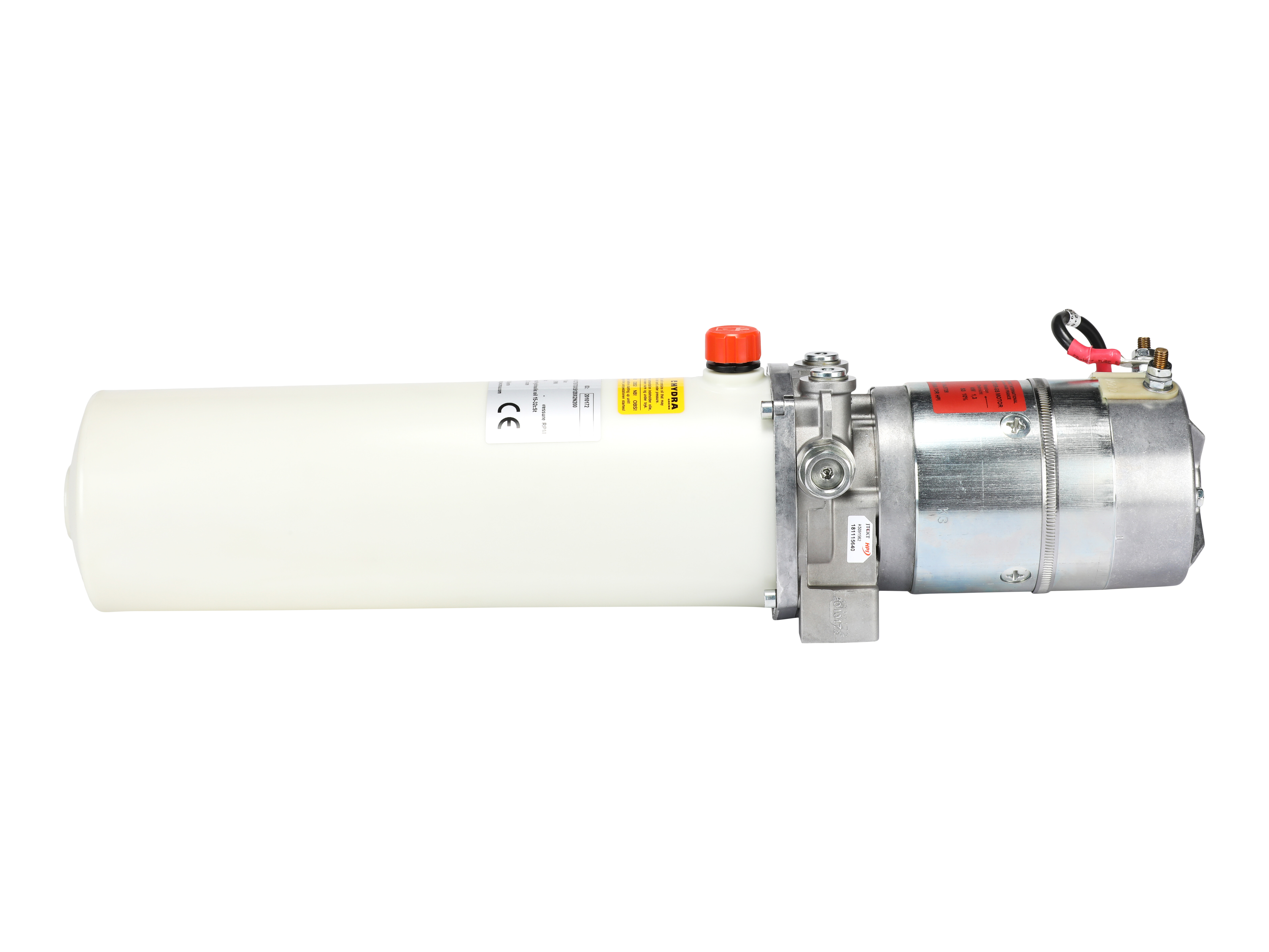

12VDC Powerpack - 200 bar - 4.80 l/min - 1.3kW

Complete HPI MINI 2 generations power pack - CE Marked

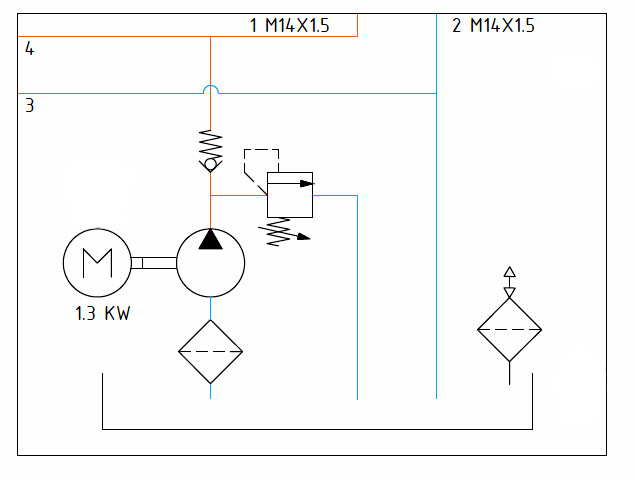

Our MINI 2G power packs are built around a middle flange where the pump and motor are mounted. The intermediate flange has a built-in non-return and pressure relief valve.
Manometer, control and auxiliary valves can be mounted directly in the flange.
The pump station is for horizontal mounting. If vertical mounting is required, angle studs and straws can be ordered as accessories.
All HydraSpecma power packs are tested and the valves are function tested. The documentation is archived under the consecutive serial number.

Max. Working pressure: 200 bar
Power: 4.80 L / min
Power: 1.3 kW
Voltage: 12VDC
HPI Model code: 12DS1C2TSTXXS120X2N200

Varenummer:
12V-2CC-4L

Pakke str.:
1 pcs

Min. bestillingsenhed er:
1 pcs
Adaptor 1/4 BSP x M14x1,5
Partnumber: 01BM0414
Adaptor 3/8 BSP x M14x1,5
Partnumber: 01BM0614
Cetop 3 manual valve spring centered
Partnumber: DH0114
Cetop 3 valve without coil DHL-0714/8-X00
Partnumber: DHL0714-X
Directional valve 3/8 BSP
Partnumber: DRV061
Base plate for 1 x cetop3 P-T through-going - A-B side
Partnumber: NG061S
1/4" pressure gauge. Rear mount. Scale 0-250 bar
Partnumber: SPG063-250RB
DS1 1,3KW 12V DC motor
Partnumber: K5098510
Effekt
13 kW

Flödeshastighet nominell LMin
4.8 lpm

Modell kod
12DS1C2TSTXXS120X2N200

Spänning
12 V

Ström
DC

Tankinnehåll
4 ltr

Tryck max.
200 bar
Package size
1 pcs

Barcode
5704334765820

Gross weight
Kg

Net weight
Kg

Country of origin
DNK

Intrastat code
84136020

Complete HPI MINI 2 generations power pack - CE Marked

Our MINI 2G power packs are built around a middle flange where the pump and motor are mounted. The intermediate flange has a built-in non-return and pressure relief valve.
Manometer, control and auxiliary valves can be mounted directly in the flange.
The pump station is for horizontal mounting. If vertical mounting is required, angle studs and straws can be ordered as accessories.
All HydraSpecma power packs are tested and the valves are function tested. The documentation is archived under the consecutive serial number.

Max. Working pressure: 200 bar
Power: 4.80 L / min
Power: 1.3 kW
Voltage: 12VDC
HPI Model code: 12DS1C2TSTXXS120X2N200
