24VDC Powerpack - 200 bar - 11.40 l/min - 4.0kW

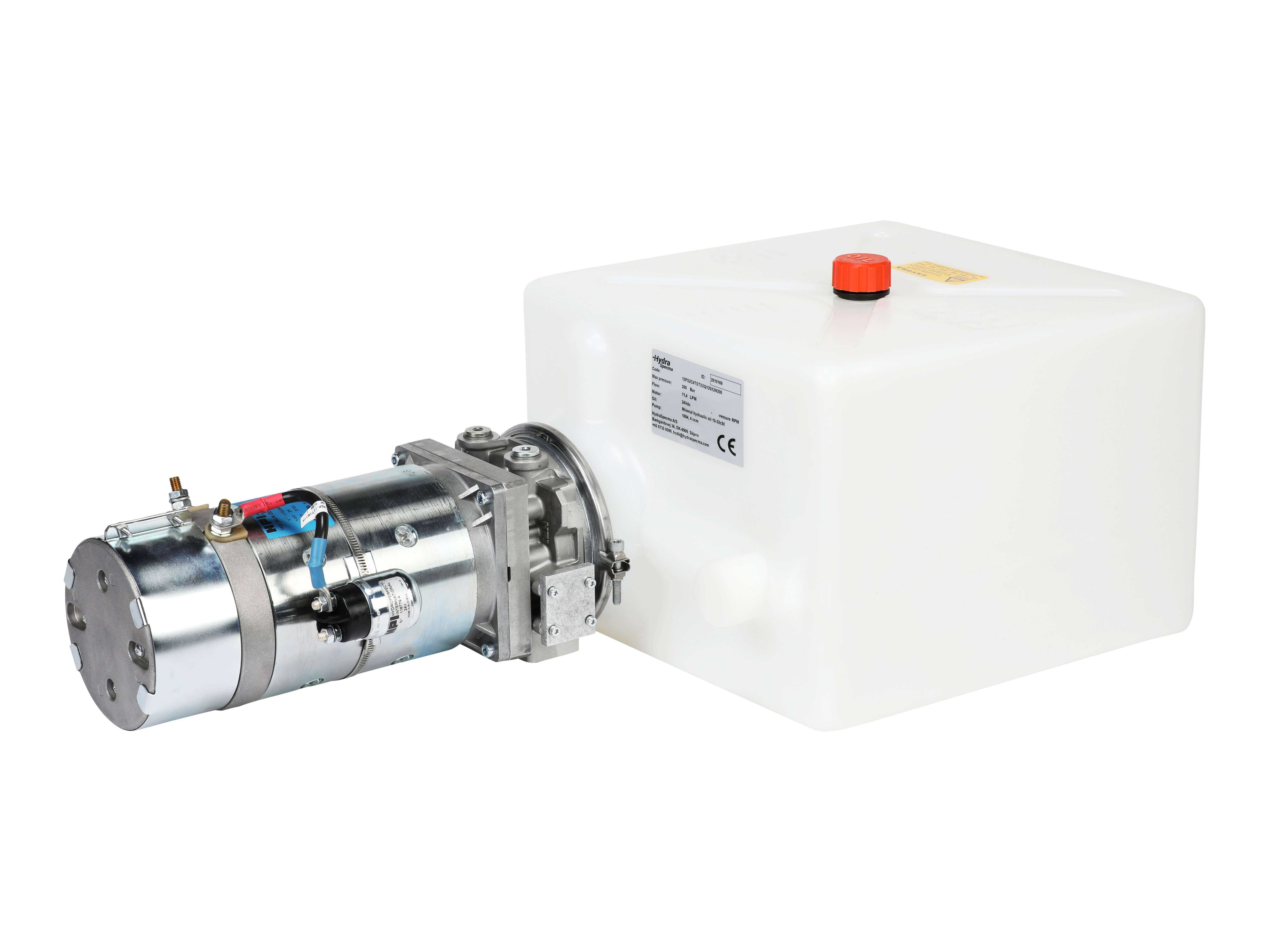

Complete HPI MINI 2 generations power pack - CE Marked

Our MINI 2G power packs are built around a middle flange where the pump and motor are mounted. The counter flange has a built-in non-return and pressure relief valve. Manometer, maneuvering and auxiliary valves can be mounted directly in the flange.
The pump station is for horizontal mounting. If vertical mounting is required, angle studs and straws can be ordered as accessories.
All HydraSpecma power packs are tested and the valves are function tested. The documentation is archived under the consecutive serial number.

Max. Working pressure: 200 bar
Power: 11.40 L / min
Power: 4.0 kW
Voltage: 24VDC
HPI Model code: 12FS2C4TSTXXQ120X2N200

Varenummer:
24V-4CC-25L

Pakke str.:
1 pcs

Min. bestillingsenhed er:
1 pcs
Adaptor 1/4 BSP x M14x1,5
Artikelnummer: 01BM0414
Directional valve 3/8 BSP
Artikelnummer: DRV061
Base plate for 1 x cetop3 P-T through-going - A-B side
Artikelnummer: NG061S
FS2 4,0KW 24V DC motor
Artikelnummer: K5097773
Current type
DC

Flow rate nominal LMin
11.4 lpm

Model code
12FS2C4TSTXXQ120X2N200

Power
4 kW

Pressure max.
200 bar

Tank capacity
25 ltr

Voltage
24 V
Förpackningsstorlek
1 pcs

Streckkod
5704334765851

Bruttovikt
Kg

Nettovikt
Kg

Ursprungsland
DNK

Intrastat artikelkod
84136020

Complete HPI MINI 2 generations power pack - CE Marked

Our MINI 2G power packs are built around a middle flange where the pump and motor are mounted. The counter flange has a built-in non-return and pressure relief valve. Manometer, maneuvering and auxiliary valves can be mounted directly in the flange.
The pump station is for horizontal mounting. If vertical mounting is required, angle studs and straws can be ordered as accessories.
All HydraSpecma power packs are tested and the valves are function tested. The documentation is archived under the consecutive serial number.

Max. Working pressure: 200 bar
Power: 11.40 L / min
Power: 4.0 kW
Voltage: 24VDC
HPI Model code: 12FS2C4TSTXXQ120X2N200
