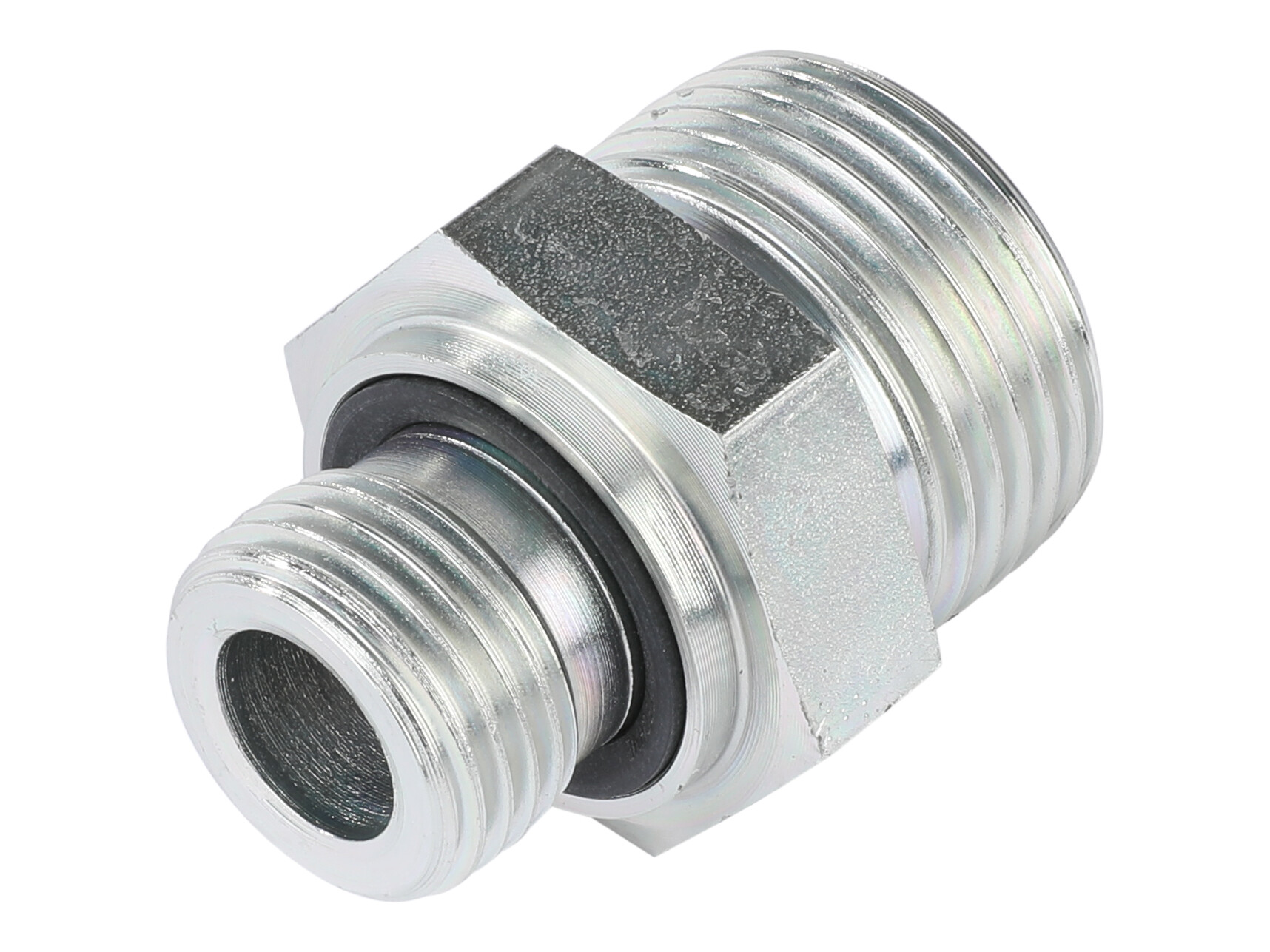

Adaptor 1/2 BSP x 1.3/16" ORFS
\ufeff
-
ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Partnumber:
103FB0812
Package size:
0 pcs
Min. order quantity is:
1 pcs
A
44 mm
B
17 mm
CH
32 mm
D
14 mm
F
1.3/16-12 ORFS
F1
G 1/2 BSP
Gänga utv.
1.3/16-12 ORFS
Gänga utv.
G 1/2 BSP
Modell kod
A502146/2021
Märke namn
FOR
Packningsmaterial
NBR
Rostbeständighet
1400 hours salt spray DIN EN ISO 9227
Standard ISO
ISO 1179
T
18-20 mm
Temperatur max.
+100 °C
Temperatur min.
-35 °C
Tillverkningsmaterial
Steel
Tryck max.
350 bar
Vinkel
0 °
Ytskiktbehandling
Electro zinc plated
Package size
0 pcs
Barcode
5704334619789
Gross weight
0,15 Kg
Net weight
0,15 Kg
Country of origin
ITA
Intrastat code
73079910
\ufeff
-
ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
