Adaptor 1.11/16ORFS x 1.5/8 SA
\ufeff
-

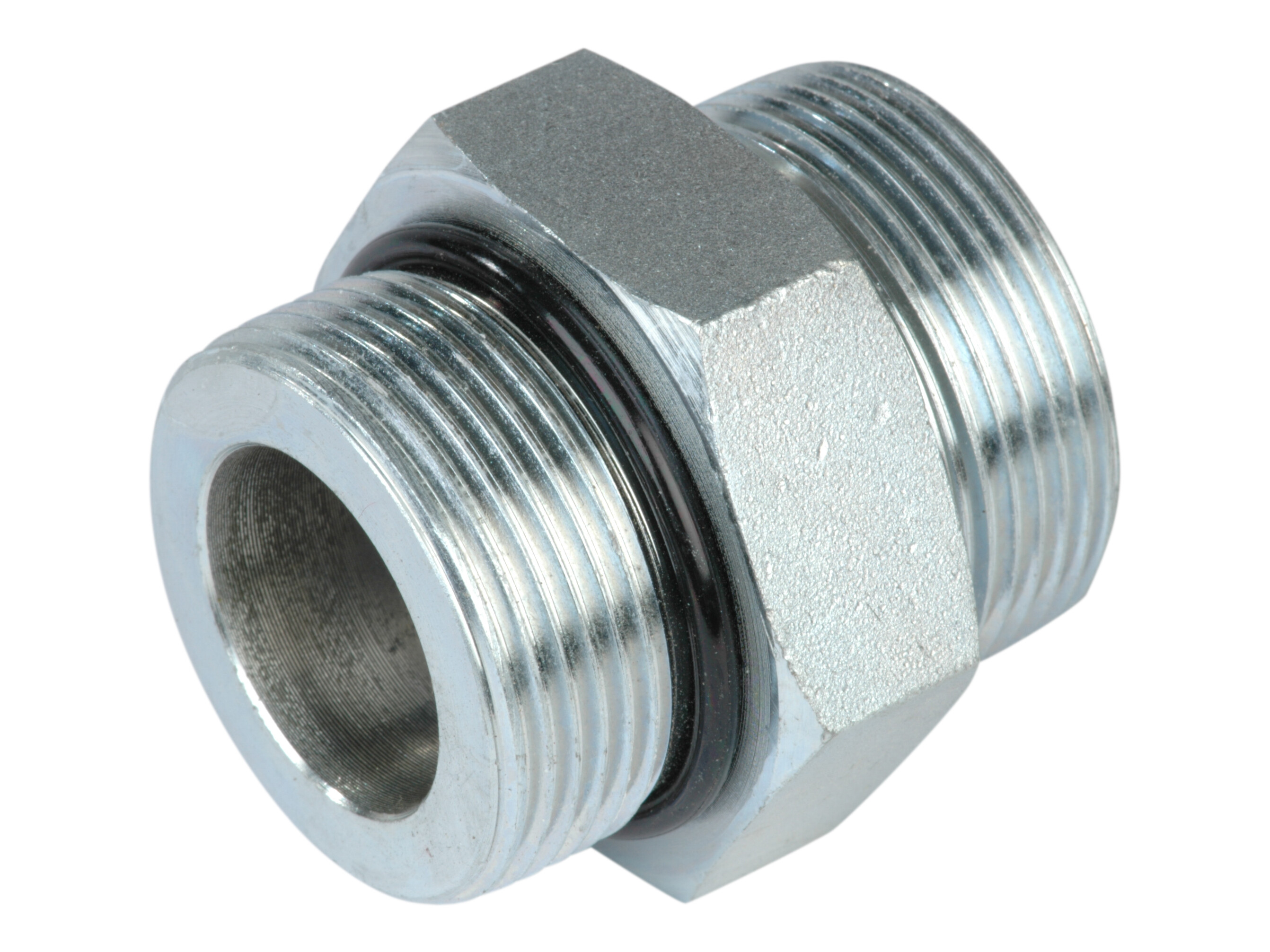

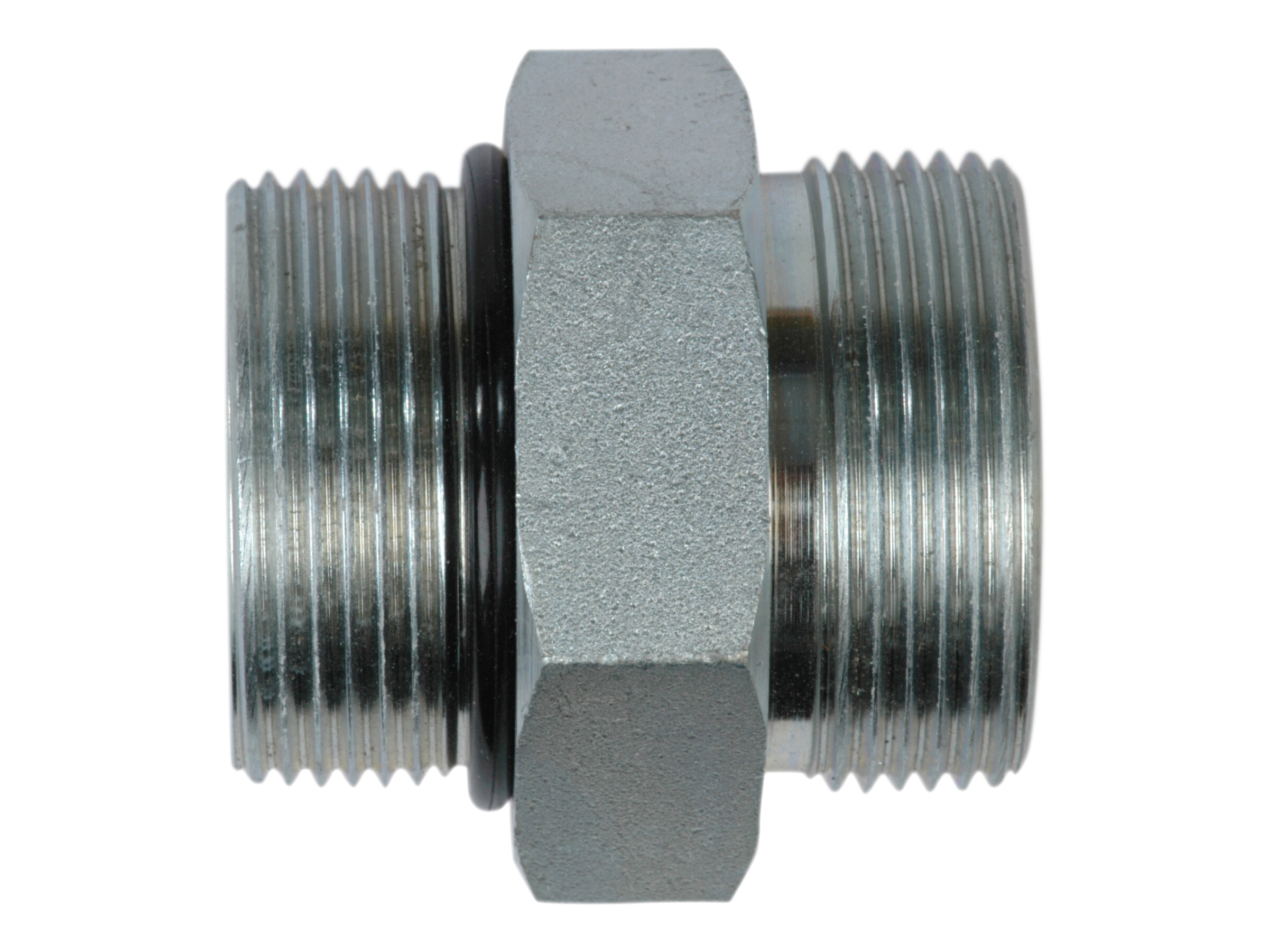

ORFS male straight basic connector
- Male thread SAE UNF-UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
Varenummer:
103FR2020
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
A
52,3 mm
B
17,5 mm
B1
17,5 mm
CH
48 mm
D
18,5 mm
F
1.11/16-12 ORFS
F1
1.5/8-12 UNF
Gevind udvendig
1.11/16-12 ORFS
Gevind udvendig
1.5/8-12 UNF
Korrosions resistens
1400 hours salt spray DIN EN ISO 9227
Materiale
Steel
Model kode
A502014/3241
Mærke navn
FOR
Overfladebehandling
Electro-galvanized / White chromatized
Pakningsmateriale
NBR
Standard ISO
ISO 11926
T
28-30-32 mm
Temperatur maks.
+100 °C
Temperatur min.
-35 °C
Tryk maks.
280 bar
Vinkel
0 °
Package size
0 pcs
Barcode
5704295796451
Gross weight
0,39 Kg
Net weight
0,39 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
ORFS male straight basic connector
- Male thread SAE UNF-UN
- O-ring, NBR Shore 85 +5/0
- ISO 11926 - for threaded ports
- Operating temperature -20° to +120°
