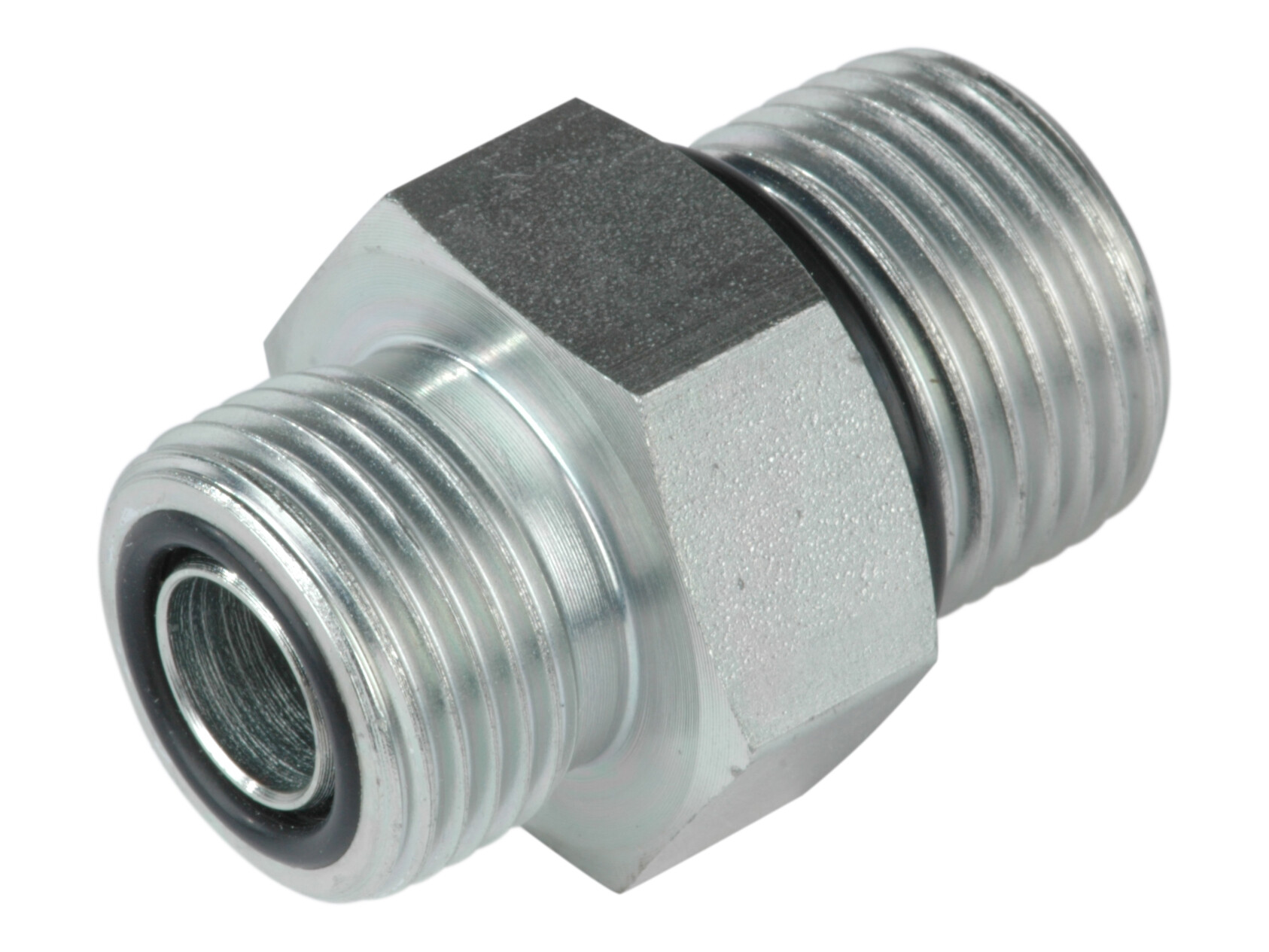

Adaptor 13/16 ORFS x 7/8 SAE

Varenummer:

103FR0810

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Dimension A

40.5 mm

Dimension B1

13 mm

Dimension CH

27 mm

Dimension D

16 mm

Material

Steel

Pressure max.

420 bar

Sealing material

NBR

Surface treatment

Electro-galvanized / White chromatized

Temperature max.

+100 °C

Temperature min.

-35 °C

Thread outer

13/16-16 ORFS

Thread outer

7/8-14 UNF

Package size

0 pcs

Barcode

5704295801803

Gross weight

0,10 Kg

Net weight

0,10 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Adaptor 13/16 ORFS x 7/8 SAE

Note: Opening 3D files requires a program that supports the file format
