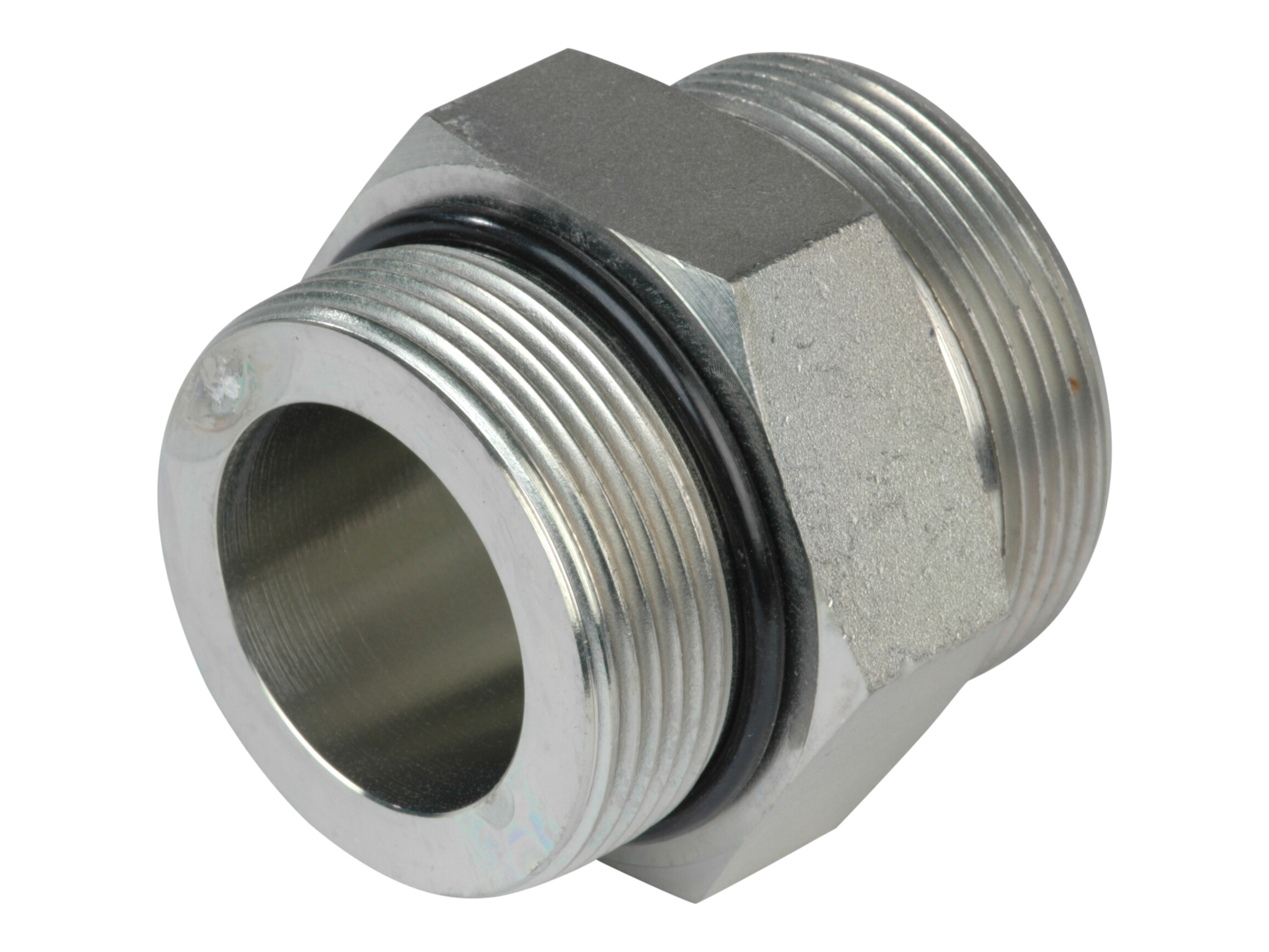

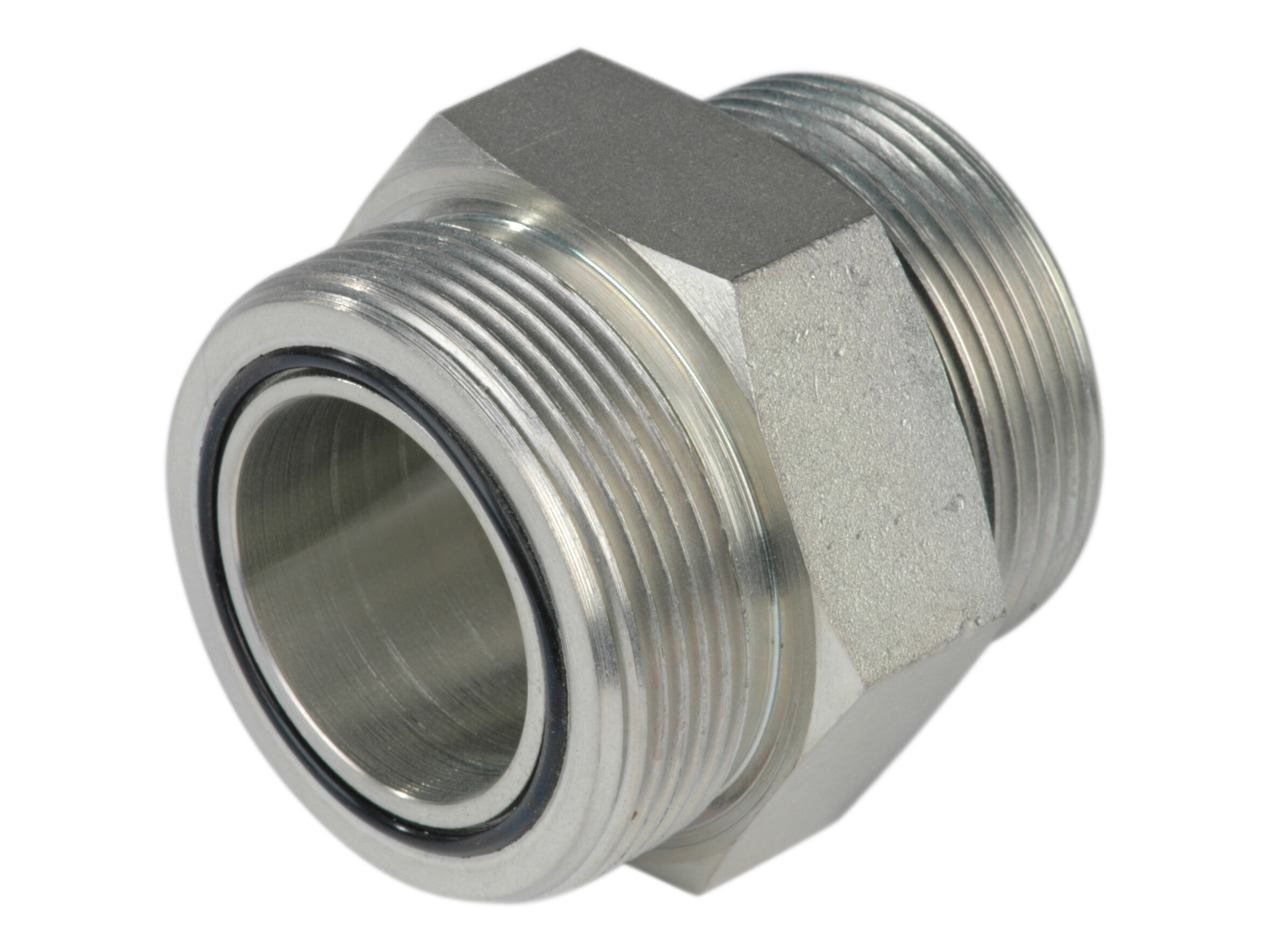

Adaptor 2 ORFS x 1.7/8 SAE

Adaptor 2 ORFS x 1.7/8 SAE

Partnumber:
103FR2424

Package size:
0 pcs

Min. order quantity is:
1 pcs
Angle
0 °

Brand Name
FOR

Corrosion resistance
1400 hours salt spray DIN EN ISO 9227

Dimension A
54 mm

Dimension B1
17.5 mm

Dimension CH
55 mm

Dimension D
18.5 mm

Material
Steel

Pressure max.
280 bar

Sealing material
NBR

Surface treatment
Electro-galvanized / White chromatized

Temperature max.
+100 °C

Temperature min.
-35 °C

Thread outer
2-12 ORFS

Thread outer
1.7/8-12 UNF
Package size
0 pcs

Barcode
5704295803500

Gross weight
0,53 Kg

Net weight
0,53 Kg

Country of origin
ITA

Intrastat code
73071110

Adaptor 2 ORFS x 1.7/8 SAE

Note: Opening 3D files requires a program that supports the file format
