FT2257/2-12 - Nåleventil-AISI316 Tognella 1/2

FT2257/2-12 - Nåleventil-AISI316 Tognella 1/2

Mængdereguleringsventil med reguleret mængde i begge flowretninger. Aluminiumsreguleringshåndtag og indstillingsskala.

Partnumber:

FT2257/2-12

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

G 1/2 BSP

15,5 mm

68 mm

30 mm

97 mm

Dimension F

38 mm

107 mm

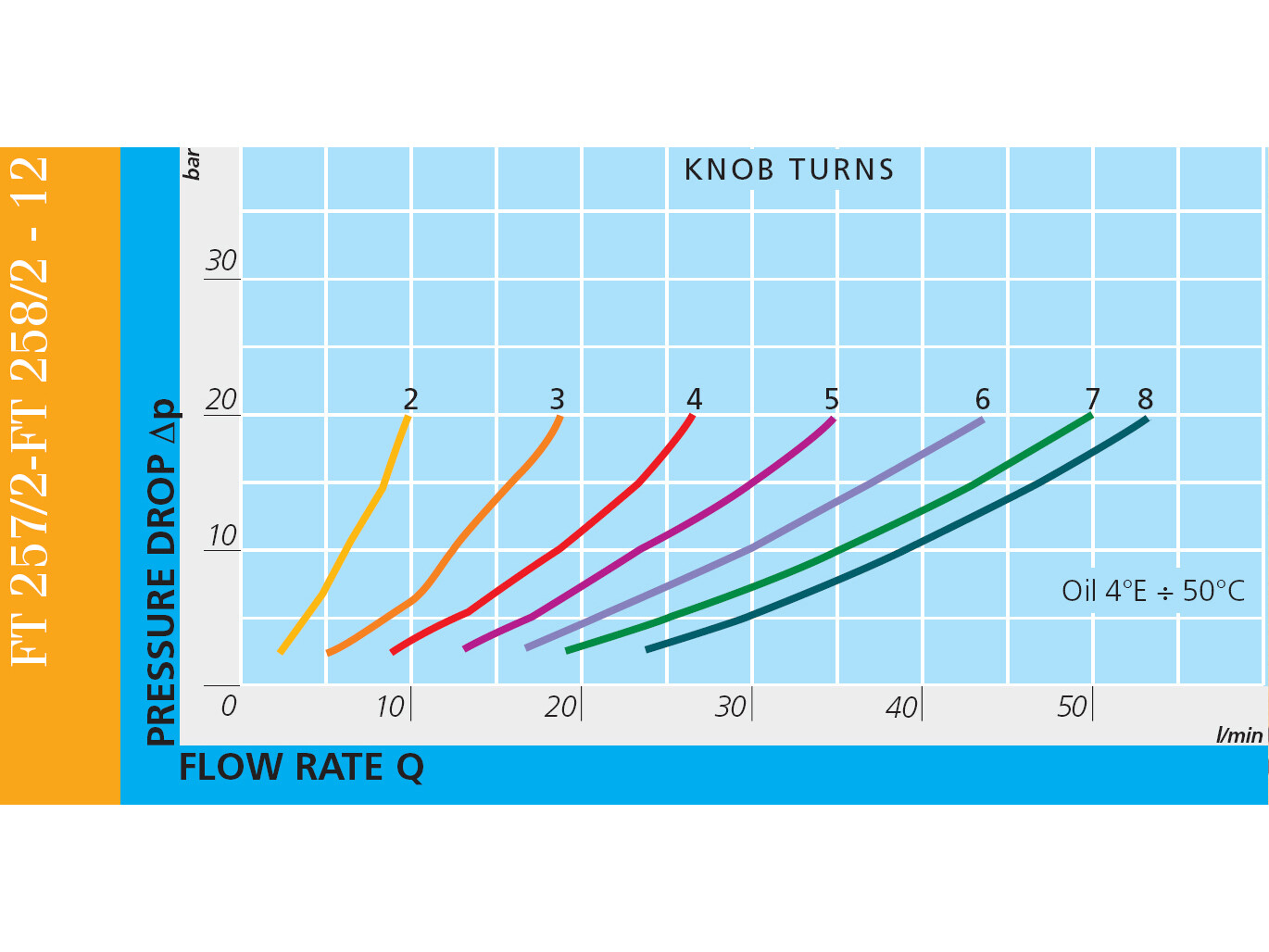

Flow Nominel

50 lpm

21 mm

Gevind

G 1/2 BSP

M30x1,5

Materiale

Rustfrit stål

Materialekvalitet

1.4571 / AISI316Ti

Mærke navn

Tognella

Temperatur maks.

+130 °C

Temperatur min.

-20 °C

Tryk maks.

400 bar

Trykkompenseret

Nej

Package size

0 pcs

Barcode

5704295473475

Gross weight

0,62 Kg

Net weight

0,62 Kg

Country of origin

ITA

Intrastat code

84812010

Product information

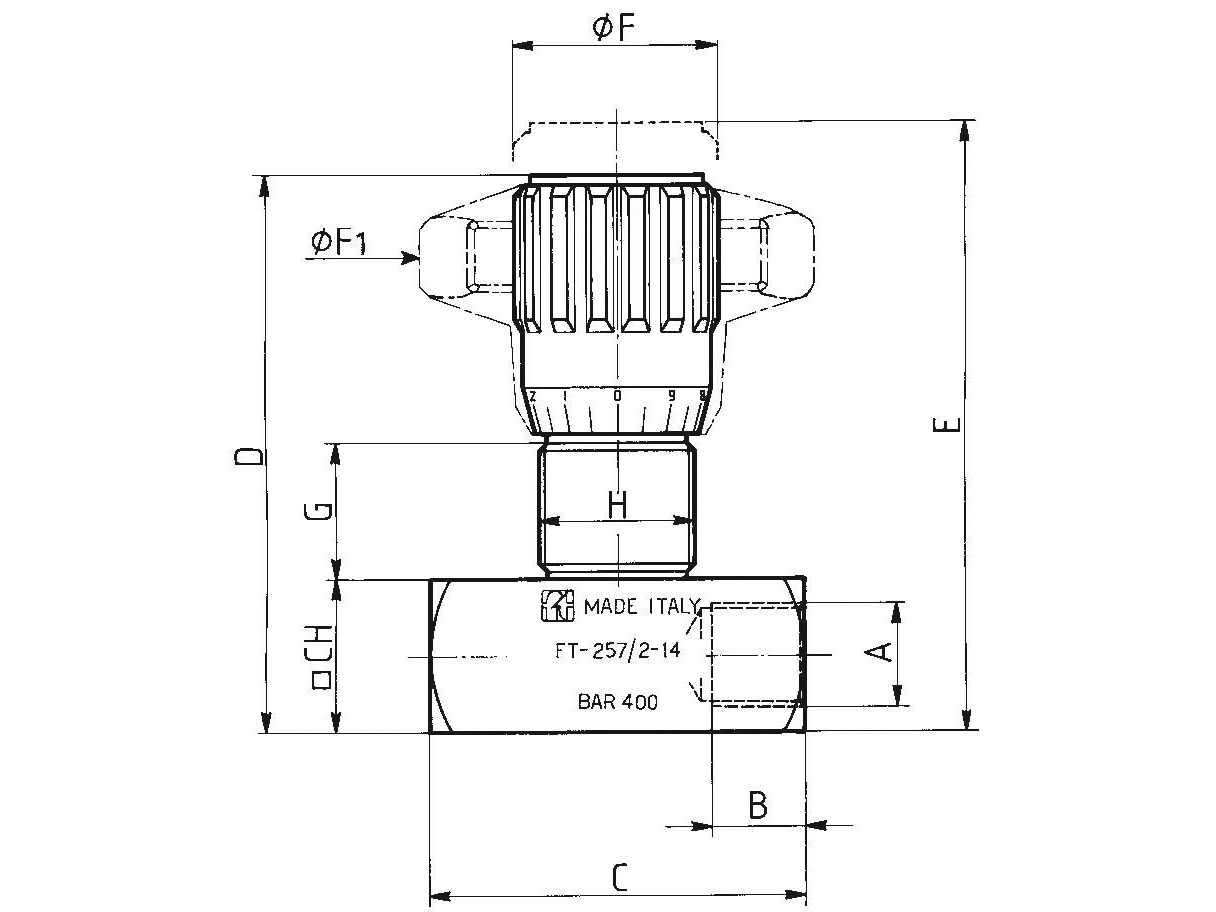

Measure sketch

Mængdereguleringsventil med reguleret mængde i begge flowretninger. Aluminiumsreguleringshåndtag og indstillingsskala.

Produkt datablad
