Drøvle/kontraventil 1/2 BSP indv, Tognella maks. 210 bar

Drøvle/kontraventil 1/2 BSP indv, Tognella maks. 210 bar

Flowreguleringsventil med flowregulering i den ene retning og frit flow i den anden retning.

Justeringsknap med skala

Varenummer:

FT1251/5-12

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Dimension A

G 1/2 BSP

Dimension B

16 mm

Dimension C

87 mm

Dimension CH

27 mm

Dimension D

82 mm

Dimension E

10 mm

Dimension F

33 mm

Dimension G

13 mm

Dimension H metrisk

M25x1,5 mm

Dimension L

19 mm

Flow Nominel

60 lpm

Gevind

G 1/2 BSP

Materiale

Messing

Model kode

FT1251/5-01-12

Mærke navn

Tognella

Overfladebehandling

Forniklet

Pakningsmateriale

NBR

Temperatur maks.

+100 °C

Temperatur min.

-20 °C

Tryk maks.

210 bar

Trykkompenseret

Nej

Ventiltype

Drøvle-/kontraventil

Package size

0 pcs

Barcode

5704334819615

Gross weight

Net weight

Country of origin

ita

Intrastat code

84812010

Product information

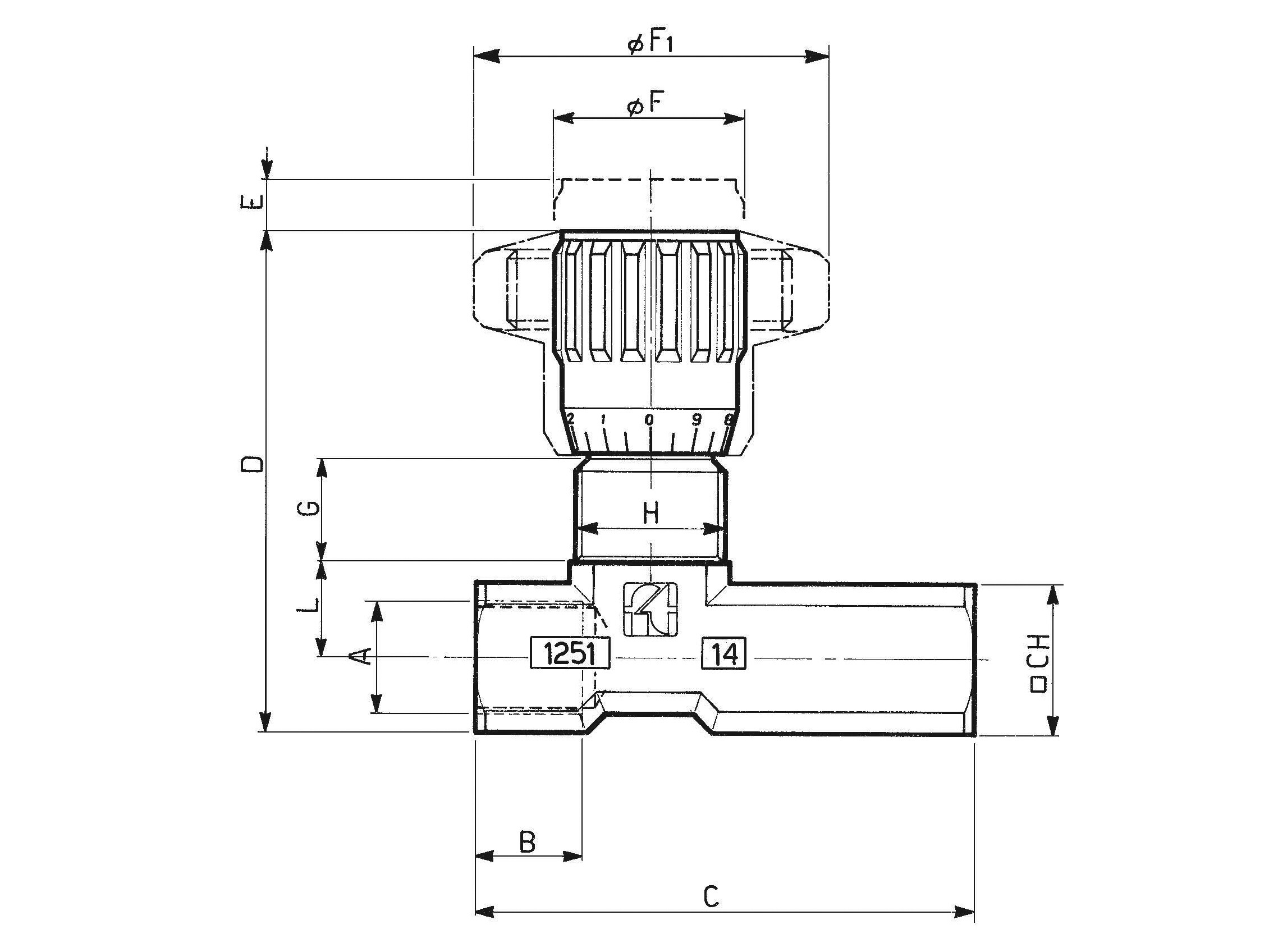

Measure sketch

Flowreguleringsventil med flowregulering i den ene retning og frit flow i den anden retning.

Justeringsknap med skala

Produkt datablad
