Komplet børdeldel - 08S
Temperatur/trykreduktion:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Partnumber:
FIAB08S
Package size:
0 pcs
Min. order quantity is:
1 pcs
Diameter rör
8 mm

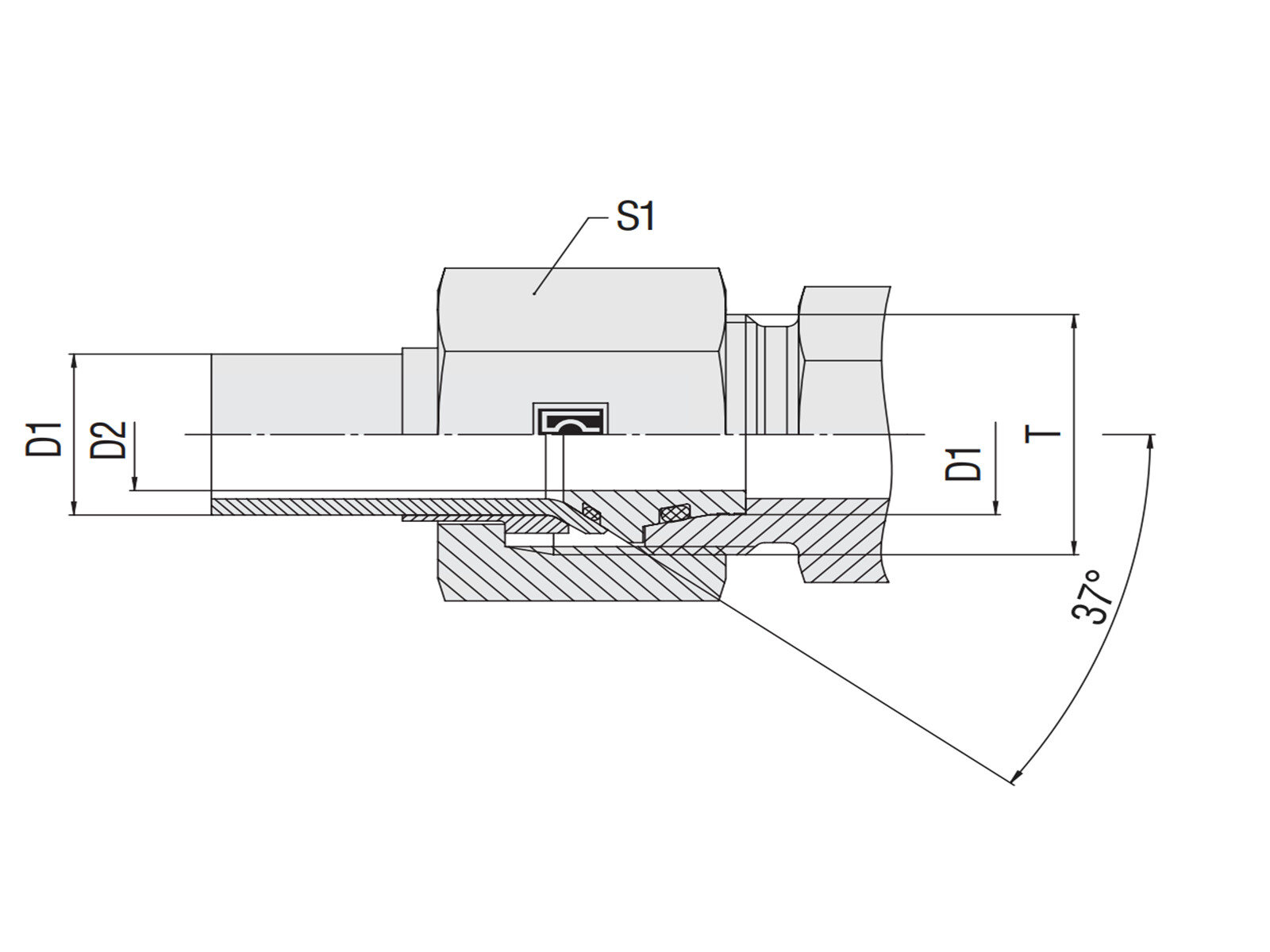

Dimension D1
8 mm
Dimension D2
5 mm
Dimension S1
19 mm
Gevind T
M16x1,5
Gänga inv. metrisk
M16x1,5
Modell kod
FI-AB-08S-V-W3
Märke namn
Stauff
Packningsmaterial
FKM/FPM (Viton®)
REACH compliant
Ja
RoHs compliant
Ja
Rostbeständighet
1200 hours salt spray DIN EN ISO 9227
Serie
S
Säkerhetsfaktor
4
Temperatur max.
+200 °C
Temperatur min.
-25 °C
Tillverkningsmaterial
Stål
Tryck max.
800 bar
Ytskiktbehandling
Zink-Nikkel belagt
Package size
0 pcs
Barcode
5704334703884
Gross weight
Kg
Net weight
Kg
Country of origin
DEU
Intrastat code
73071110
Temperatur/trykreduktion:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Note: Opening 3D files requires a program that supports the file format
