L forskruning stilbar - ø28L - o-ringstætning

Temperatur/trykreduktion:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%

Partnumber:

FXELD28L

Package size:

1 pcs

Min. order quantity is:

1 pcs

Accessories (4)

Dobbelt skærering - ø28L

Partnumber: FIDS28L

Nut - ø28L - M36x2

Partnumber: FIM28L

Double cutting ring WDDS - ø28L - packing

Partnumber: FIWDDS28L

M28L nut ø28 M36x2

Partnumber: M28L

Specifications
Dimensions and shipping

Diameter rør

28 mm

Dimension D1

28 mm

Dimension D2

24 mm

Dimension L

38 mm

Dimension L1

47 mm

Dimension L2

30.5 mm

Dimension L3

41.5 mm

Dimension S1

36 mm

Dimension S2

41 mm

Dimension S3

41 mm

Gevind indvendig metrisk

M36x2

Gevind udvendig metrisk

M36x2

Korrosions resistens

1200 hours salt spray DIN EN ISO 9227

Materiale

Stål

Model kode

FI-ELD-28L-V-W3-DKO

Mærke navn

Stauff

Overfladebehandling

Zink-Nikkel belagt

Pakningsmateriale

FKM/FPM (Viton®)

REACH compliant

RoHs compliant

Serie

Sikkerhedsfaktor

Temperatur maks.

+200 °C

Temperatur min.

-25 °C

Tryk maks.

250 bar

Package size

1 pcs

Barcode

5704334722465

Gross weight

Net weight

Country of origin

DEU

Intrastat code

73071110

Product information

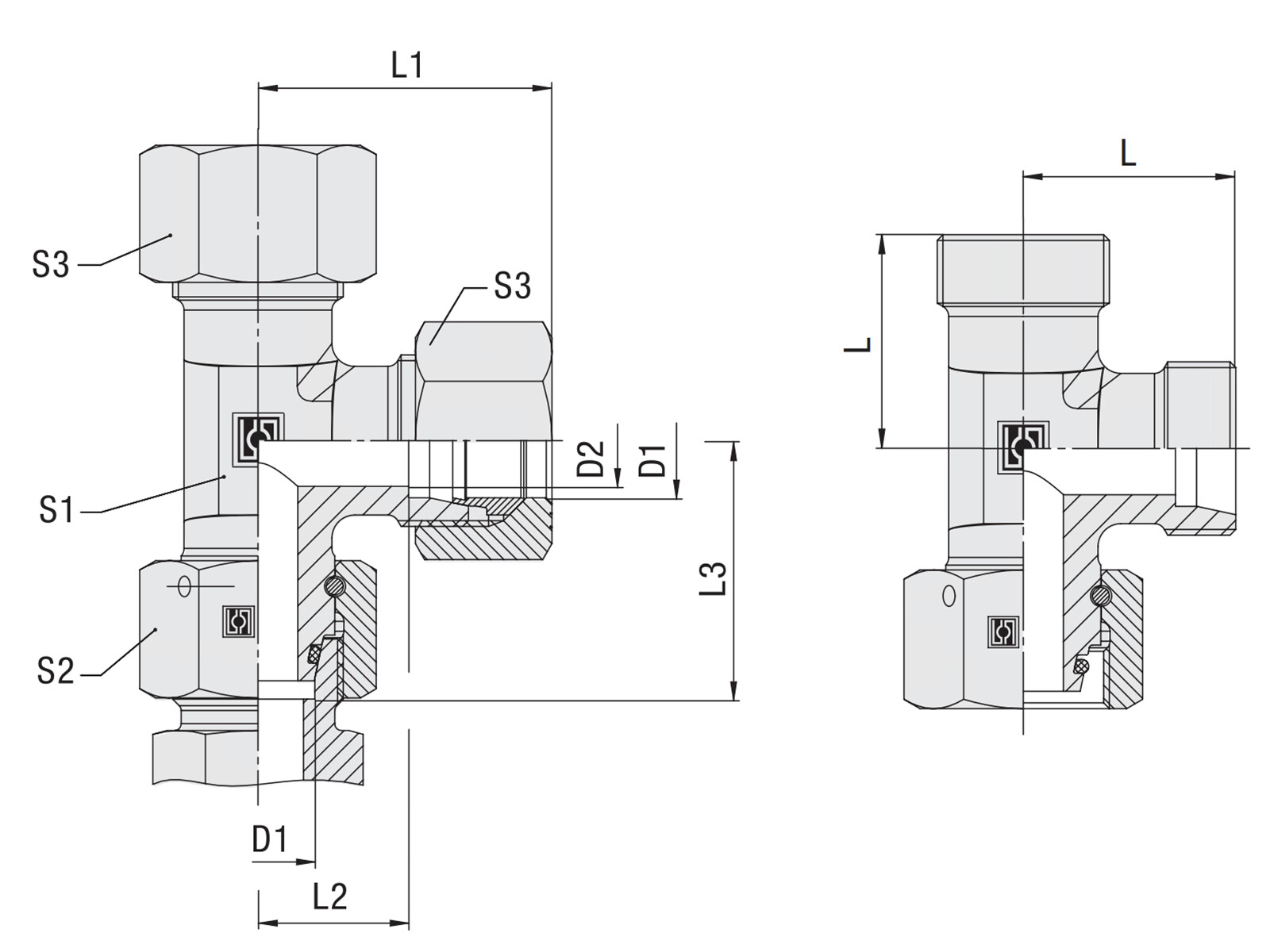

Measure sketch

Temperatur/trykreduktion:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%

Note: Opening 3D files requires a program that supports the file format
