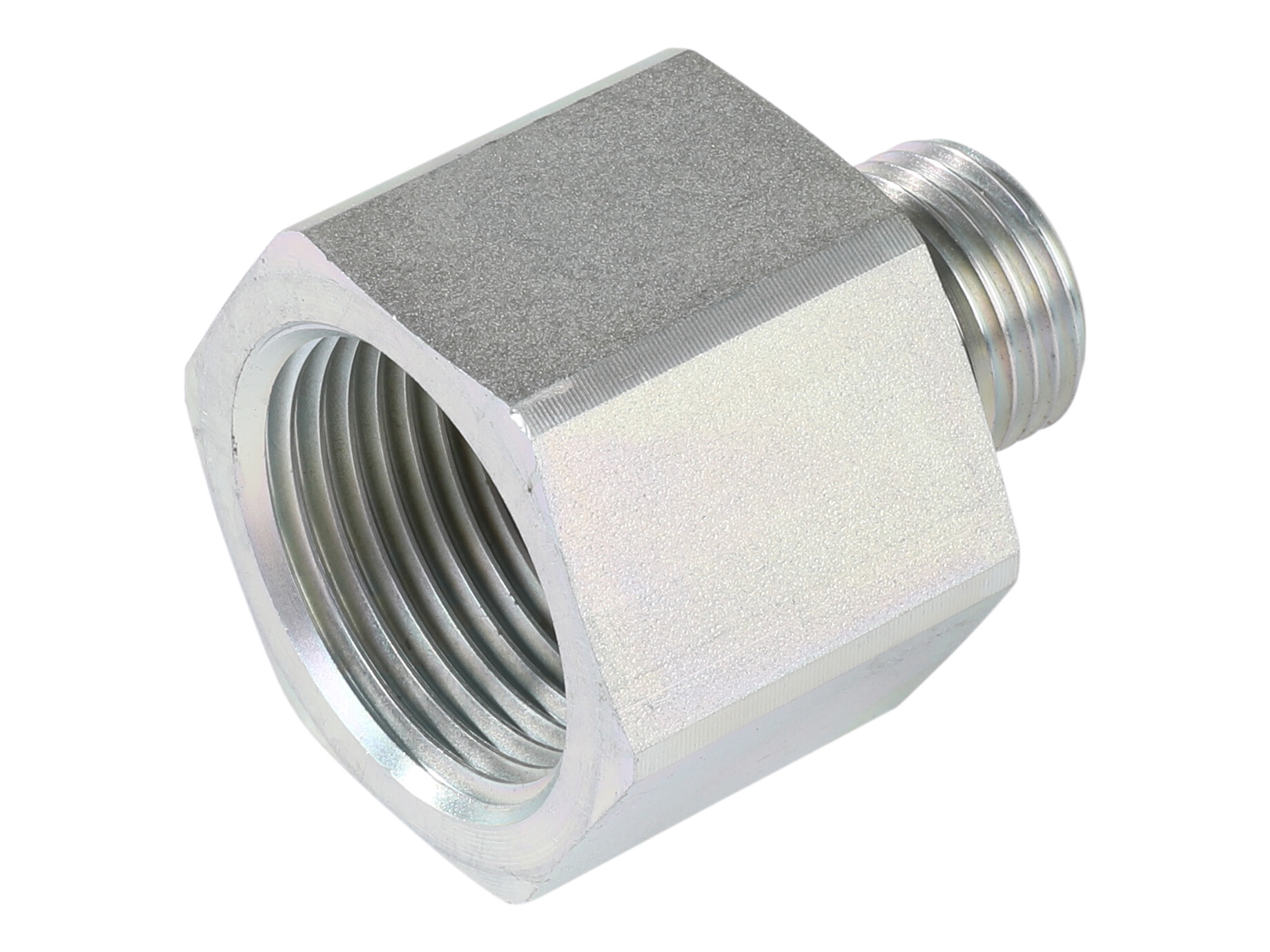

Reduktion - 1/2" BSP x 1.1/4" BSP indv - WD pakning
Reduktion - 1/2" BSP x 1.1/4" BSP indv - WD pakning
Partnumber:
RI1/2WD11/4
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Dimension D2
10 mm
Dimension L1
53 mm
Dimension L2
26.5 mm
Dimension S1
55 mm
Dimension i
14 mm
Hexagon
55 mm
Length
53 mm
Material
Stål
Model code
FI-RED-R1/2-WD-R1-1/4-B-W3
Pressure max.
400 bar
REACH compliant
Ja
RoHs compliant
Ja
Safety factor
4
Sealing material
NBR
Surface treatment
Zink-Nikkel belagt
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T1
G 1/2 BSP
Thread T2
G 1.1/4 BSP
Thread inner
G 1.1/4 BSP
Thread outer
G 1/2 BSP
Total length
53 mm
Type
Lang
Package size
0 pcs
Barcode
5704295276908
Gross weight
0,47 Kg
Net weight
0,47 Kg
Country of origin
DEU
Intrastat code
73071110
Reduktion - 1/2" BSP x 1.1/4" BSP indv - WD pakning
