Indskruning - ø12S x 1/2" - WD pakning
Temperatur/trykreduktion:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
Partnumber:
FXGE12SR12WD
Package size:
1 pcs
Min. order quantity is:
1 pcs
Diameter rør
12 mm

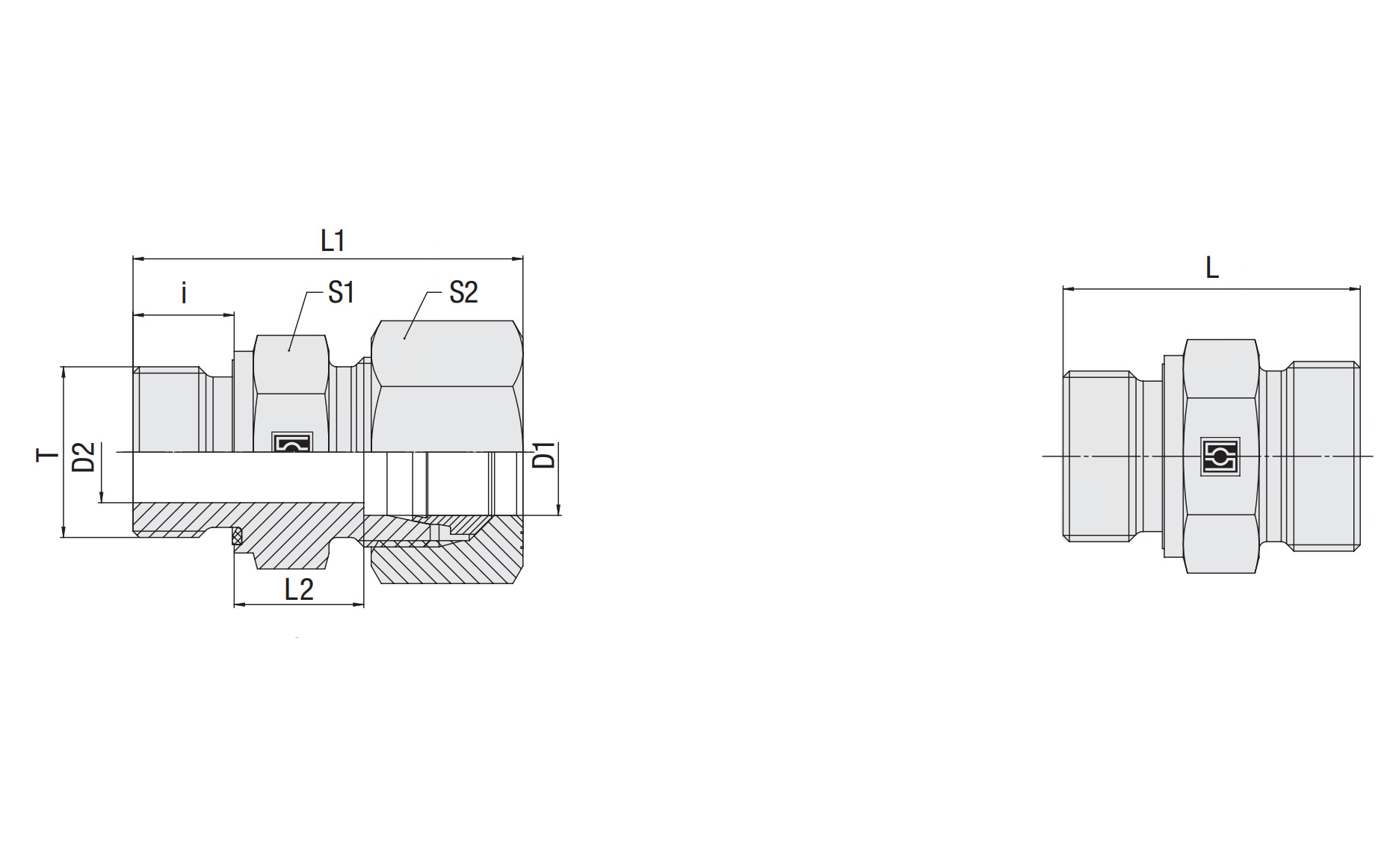

Dimension D1
12 mm
Dimension D2
8 mm
Dimension L
39 mm
Dimension L1
48 mm
Dimension L2
17.5 mm
Dimension S1
27 mm
Dimension S2
24 mm
Dimension i
14 mm
Gevind udvendig
G 1/2 BSP
Gevind udvendig metrisk
M20x1,5
Materiale
Stål
Model kode
FI-GE-12SR1/2-WD-B-W3
Mærke navn
Stauff
Overfladebehandling
Zink-Nikkel belagt
REACH compliant
Ja
RoHs compliant
Ja
Serie
S
Sikkerhedsfaktor
4
Temperatur maks.
+100 °C
Temperatur min.
-35 °C
Thread T
G 1/2 BSP
Tilspændingsmoment
115 Nm
Tryk maks.
630 bar
Vinkel
0 °
Package size
1 pcs
Barcode
5704334835523
Gross weight
Kg
Net weight
0,095 Kg
Country of origin
deu
Intrastat code
73071110
Temperatur/trykreduktion:
-40°C - +120°C = 0%.
+120°C - +150°C = 11%.
+150°C - +175°C = 15%.
+175°C - +200°C = 19%.
+200°C - +250°C = 28%
