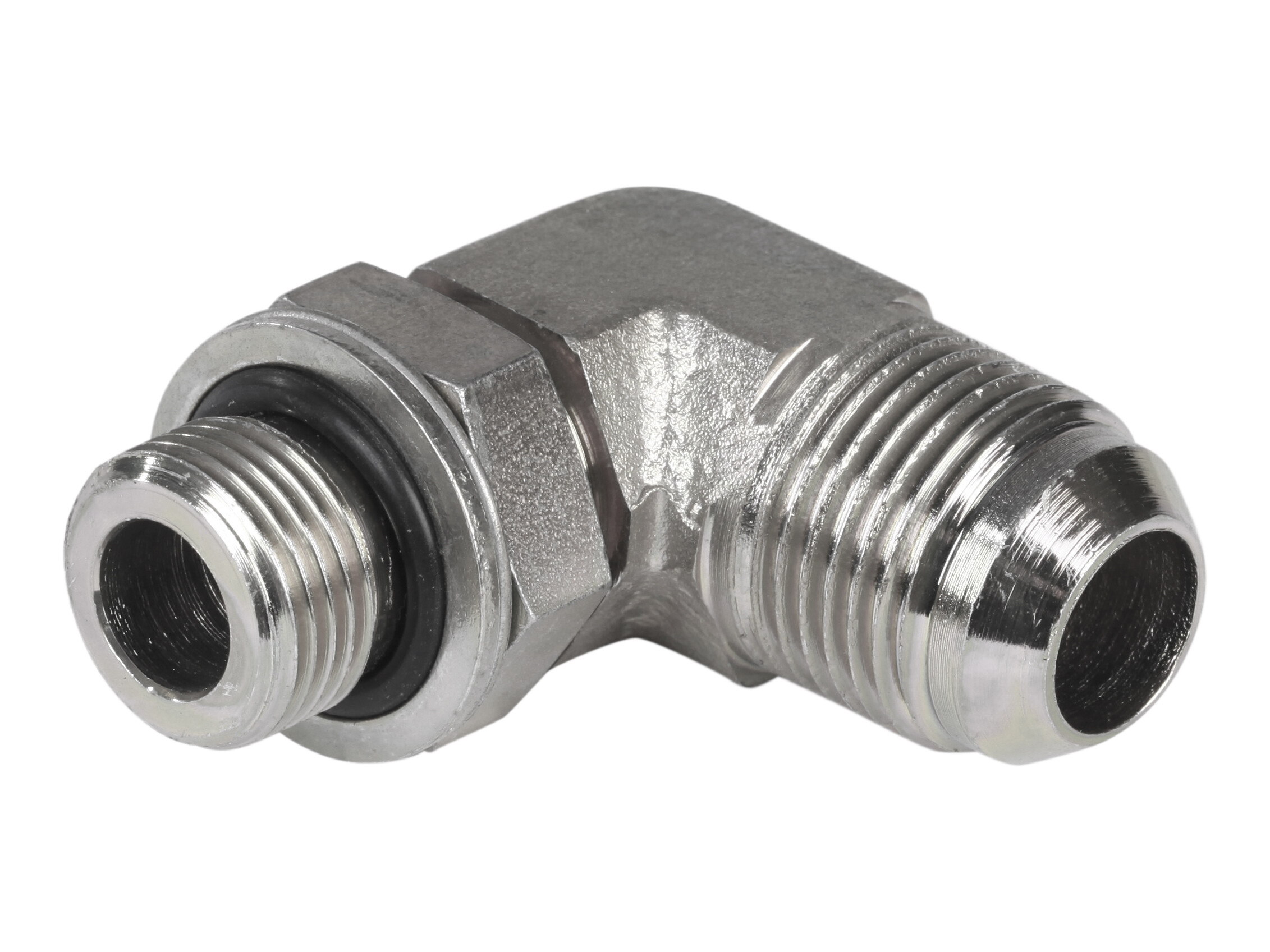

CO-16-18 - Vinkelindskruning 90 gr 7/8-14 JIC udv x M18x1.5 udv

CO-16-18 - Vinkelindskruning 90 gr 7/8-14 JIC udv x M18x1.5 udv

Vinkelindskruning 90 gr 7/8-14 JIC udv x M18x1.5 udv

Varenummer:

CO-16-18

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Tilbehør (2)

B-16 - Støttering Ø16

Partnumber: B-16

J-14/16 - Omløber 7/8-14 JIC Nøglevidde 27mm

Partnumber: J-14/16

Specifications
Dimensions and shipping

36,5 mm

41,5 mm

24 mm

Diameter rør

14-15-16 mm

Dimension F metrisk

M18x1,5

Gevind udvendig

7/8-14 JIC

Gevind udvendig metrisk

M18x1,5

7/8-14 JIC

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Stål

Model kode

A107040/1618

Mærke navn

FOR

Overfladebehandling

El-forzinket / hvidkromatiseret

Standard ISO

ISO 9974

16 mm

Tryk maks.

250 bar

Vinkel

90 °

Package size

0 pcs

Barcode

5704334274001

Gross weight

0,15 Kg

Net weight

0,15 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Vinkelindskruning 90 gr 7/8-14 JIC udv x M18x1.5 udv

Note: Opening 3D files requires a program that supports the file format
