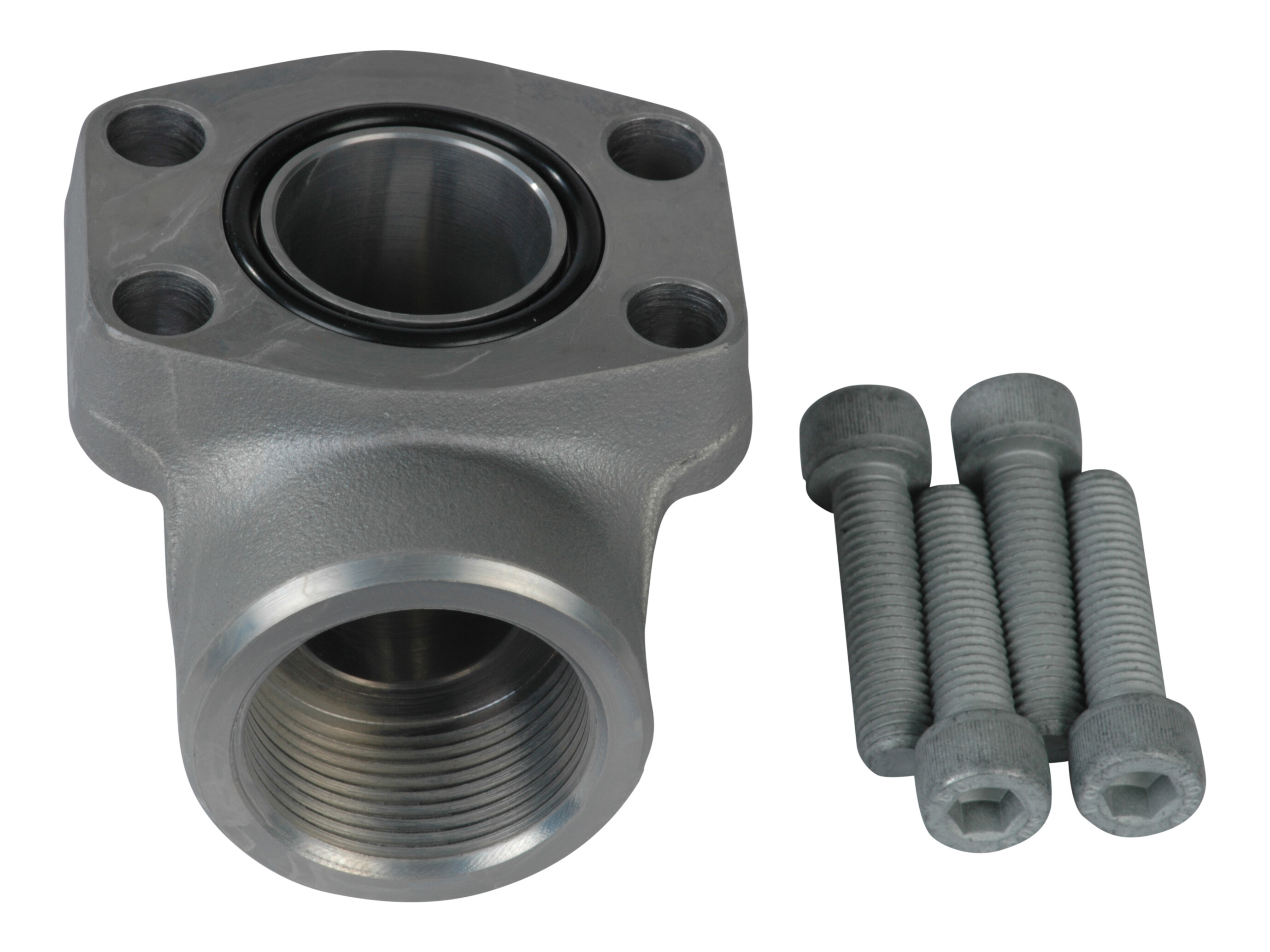

Vinkelflange 1.1/4" SAE3000 x 1.1/4" BSP - komplet
Vinkelflange 1.1/4" SAE3000 x 1.1/4" BSP - komplet
Varenummer:
AFS104/90GM
Pakke str.:
0 stk
Min. bestillingsenhed er:
1 stk
A
G 1.1/4 BSP
Angle
90 °
B
32 mm
Bolt dimension
M10x40 mm
Brand Name
Havit
C
58,7 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
D
79 mm
Diameter flange
50.8 mm
E
30,2 mm
F1
85 mm
F2
73 mm
Flange
1.1/4 "
Flange SAE/DIN
3000 PSI
H
21 mm
I
22 mm
L
11,5 mm
M
M10x40
Material
Stål
Number of bolts
4
O-ring
37,69X3,53 mm
Pressure max.
280 bar
S1
34 mm
S2
51 mm
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zink-Nikkel belagt
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
0 stk
Barcode
5704295921112
Gross weight
0,89 Kg
Net weight
0,89 Kg
Country of origin
DEU
Intrastat code
73079100
