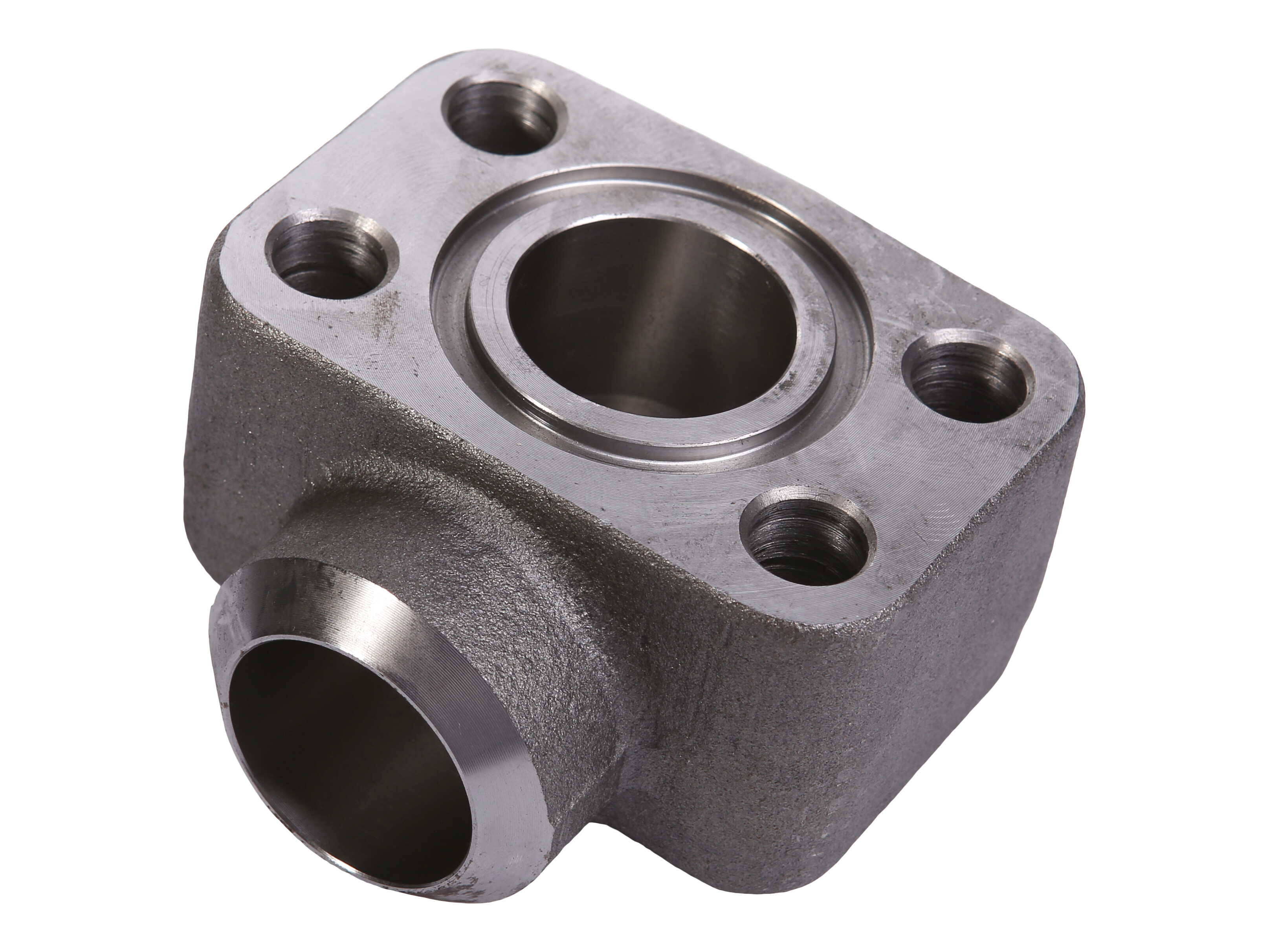

Vinkel stuksvejseflange 1.1/4" SAE3000

Artikelnummer:

AFS104/90ST

Förpackningsstorlek:

0 pcs

Minsta beställningskvantitet:

1 pcs

Tilbehør (1)

O-ring 90S

Partnumber: 37.69X3.53S

Specifications
Dimensions and shipping

Bolt dimension

M10x45 mm

58,7 mm

Diameter flange

50.8 mm

30,2 mm

Flange

1.1/4 "

Flange SAE/DIN

3000 PSI

Materiale

Stål

Mærke navn

Havit

O-ring

37,69X3,53 mm

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperatur maks.

+90 °C

Temperatur min.

-40 °C

Tryk maks.

280 bar

Package size

0 pcs

Barcode

5704295723921

Gross weight

1,15 Kg

Net weight

1,15 Kg

Country of origin

DEU

Intrastat code

73079100

Product information

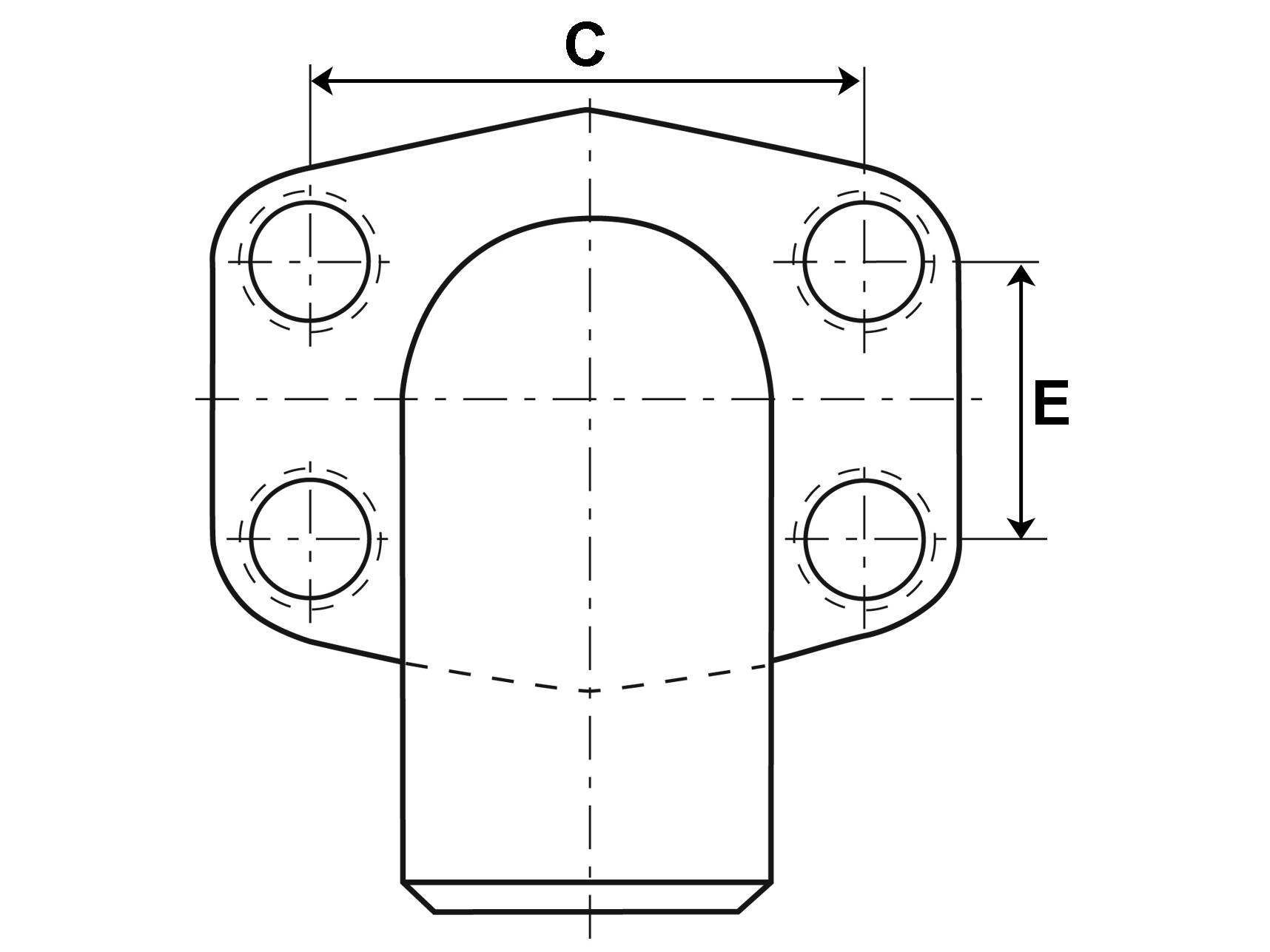

Measure sketch

Vinkel stuksvejseflange 1.1/4" SAE3000
