Split flange 1.1/4" SAE6000 - komplet
Split flange 1.1/4" SAE6000 - komplet
Varenummer:
AFS604M
Pakke str.:
0 Set
Min. bestillingsenhed er:
1 Set
Bolt dimension
M14x50 mm
Brand Name
Havit
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
54 mm

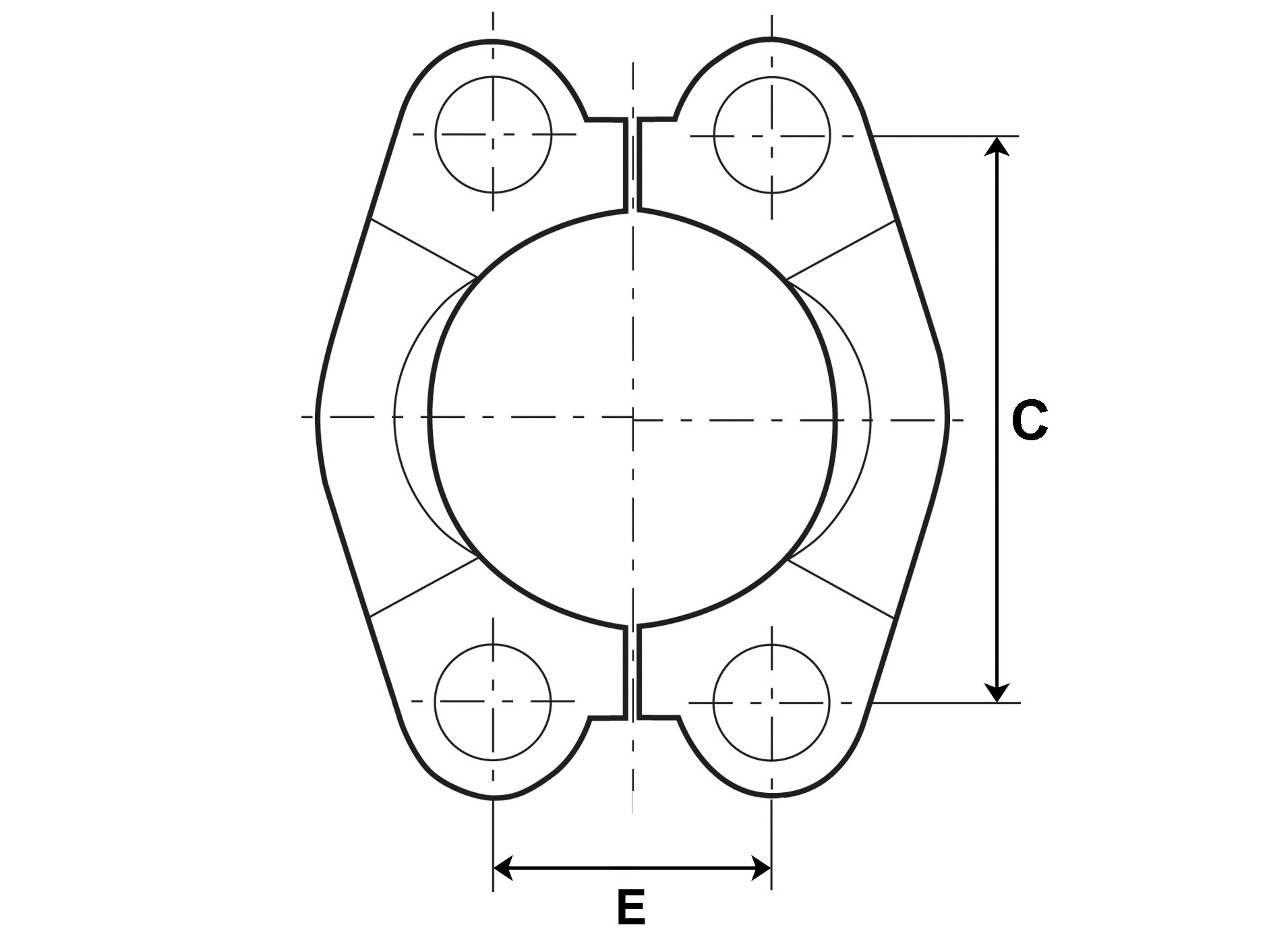

Dimension C
66.6 mm
Dimension E
31.8 mm
Flange
1.1/4 "
Flange SAE/DIN
6000 PSI
Material
Stål
Number of bolts
4
O-ring
37.69X3.53 mm
Pressure max.
420 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Temperature max.
+90 °C
Temperature min.
-40 °C
Package size
0 Set
Barcode
5704295921624
Gross weight
Kg
Net weight
Kg
Country of origin
DEU
Intrastat code
73079100
