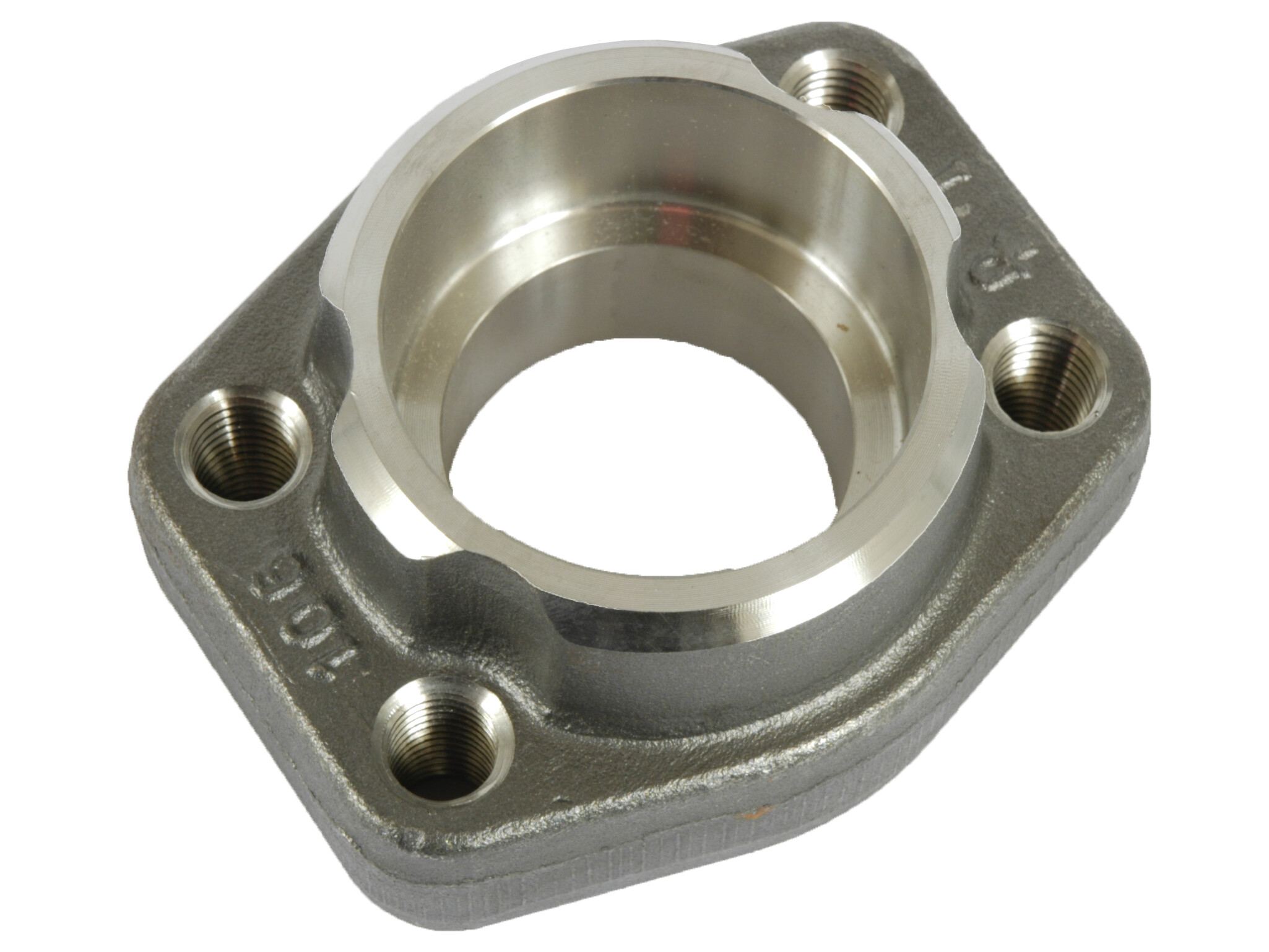

GFX106S - Svejseflange 1.1/2" SAE3000 - Rustfri AISI316L

Svejseflange 1.1/2" SAE3000 - Rustfri AISI316L

Artikelnummer:

GFX106S

Förpackningsstorlek:

0 pcs

Minsta beställningskvantitet:

1 pcs

Specifications
Dimensions and shipping

Bultgänga metrisk

M12

Diameter fläns

60.3 mm

Diameter svetsfläns

48.6 mm

Dimension C

69.9 mm

Dimension E

35.7 mm

Fläns

1.1/2 "

Fläns SAE/DIN

3000 PSI

Materialkvalitet

1.4404 / AISI316L

Märke namn

Havit

O-ring

47.22X3.53 mm

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Temperatur max.

+90 °C

Temperatur min.

-40 °C

Tillverkningsmaterial

Rustfrit stål

Tryck max.

210 bar

Package size

0 pcs

Barcode

5704295705309

Gross weight

1,05 Kg

Net weight

1,05 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Svejseflange 1.1/2" SAE3000 - Rustfri AISI316L
