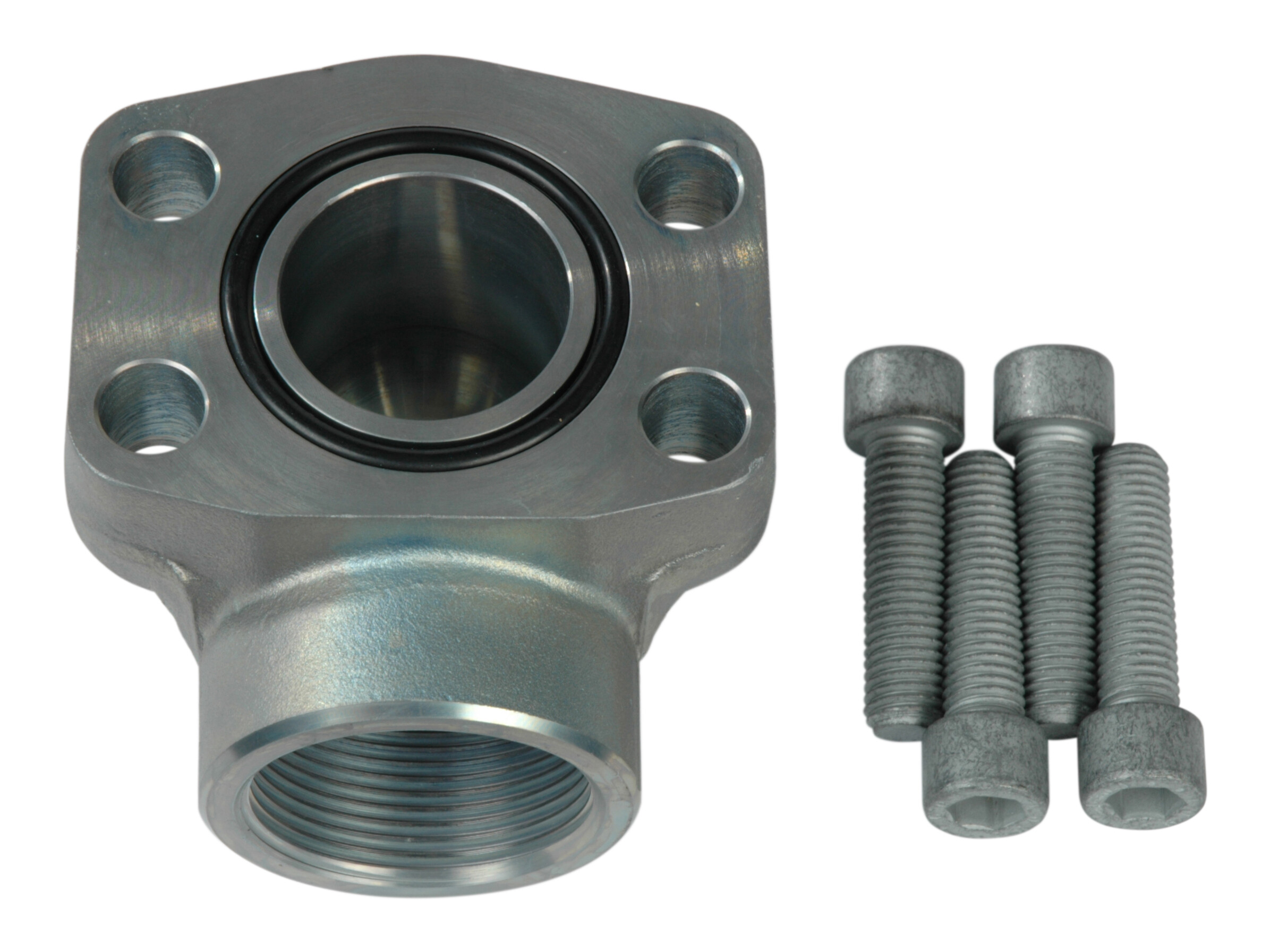

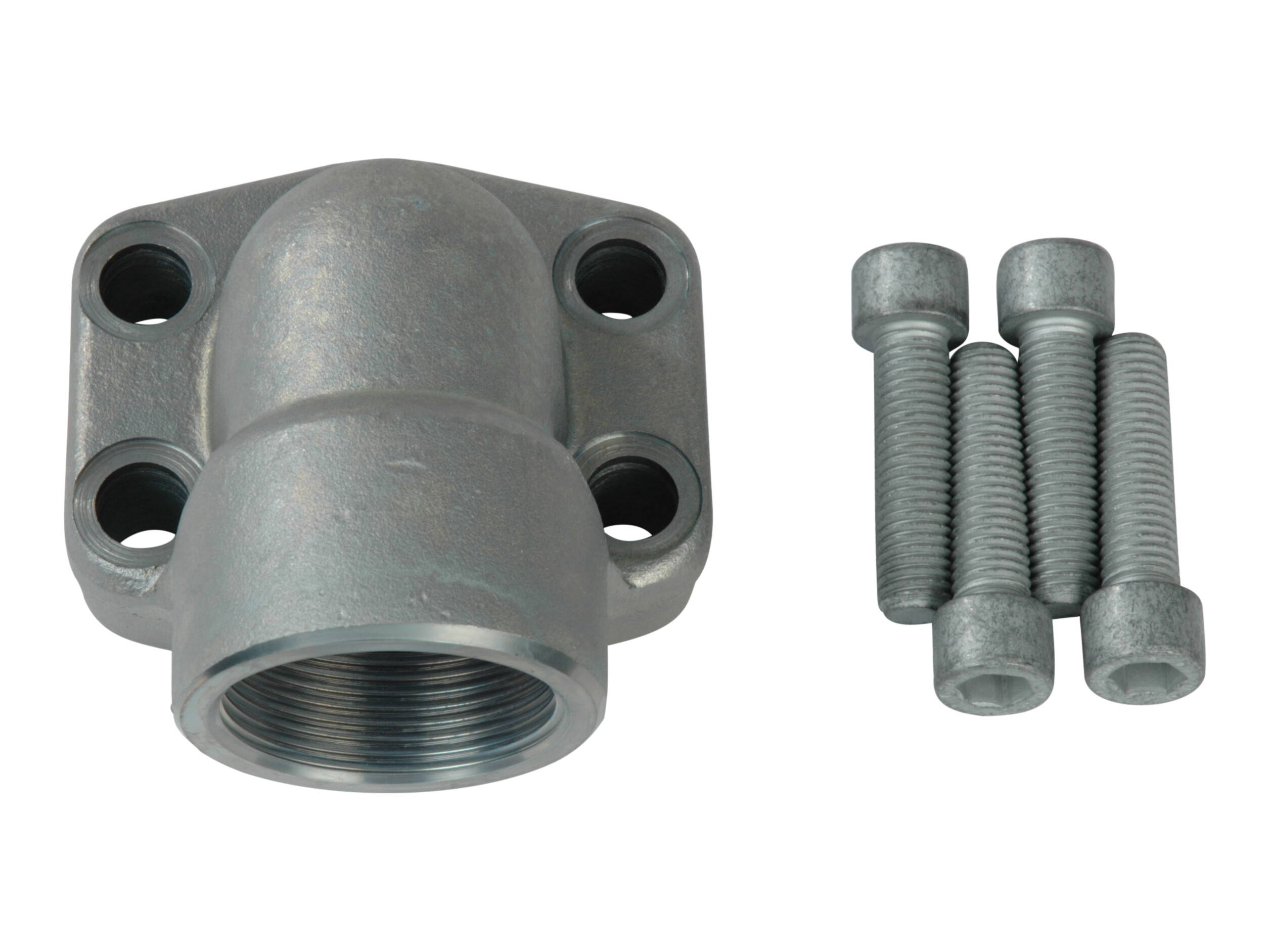

Vinkelflange 1.1/2" SAE3000 x 1.1/2" BSP - komplet
Vinkelflange 1.1/2" SAE3000 x 1.1/2" BSP - komplet
Varenummer:
AFS106/90GM
Pakke str.:
0 stk
Min. bestillingsenhed er:
1 stk
Angle
90 °
Bolt dimension
M12x45 mm
Brand Name
Havit
C
69,9 mm
Corrosion resistance
480 hours salt spray DIN EN 9227
Diameter flange
60.3 mm
E
35,7 mm
Flange
1.1/2 "
Flange SAE/DIN
3000 PSI
Material
Stål
Number of bolts
4
O-ring
47,22X3,53 mm
Pressure max.
210 bar
Sealing material
NBR
Shore
90
Standard ISO
ISO 6162-1
Standard SAE
SAE J518 Code 61
Surface treatment
Zink-Nikkel belagt
Temperature max.
+90 °C
Temperature min.
-40 °C
Thread inner
G 1.1/2 BSP
Pakke str.
0 stk
Stregkode
5704295921143
Brutto vægt
1,60 Kg
Netto vægt
1,60 Kg
Oprindelsesland
DEU
Intrastat varekode
73079100
Vinkelflange 1.1/2" SAE3000 x 1.1/2" BSP - komplet
