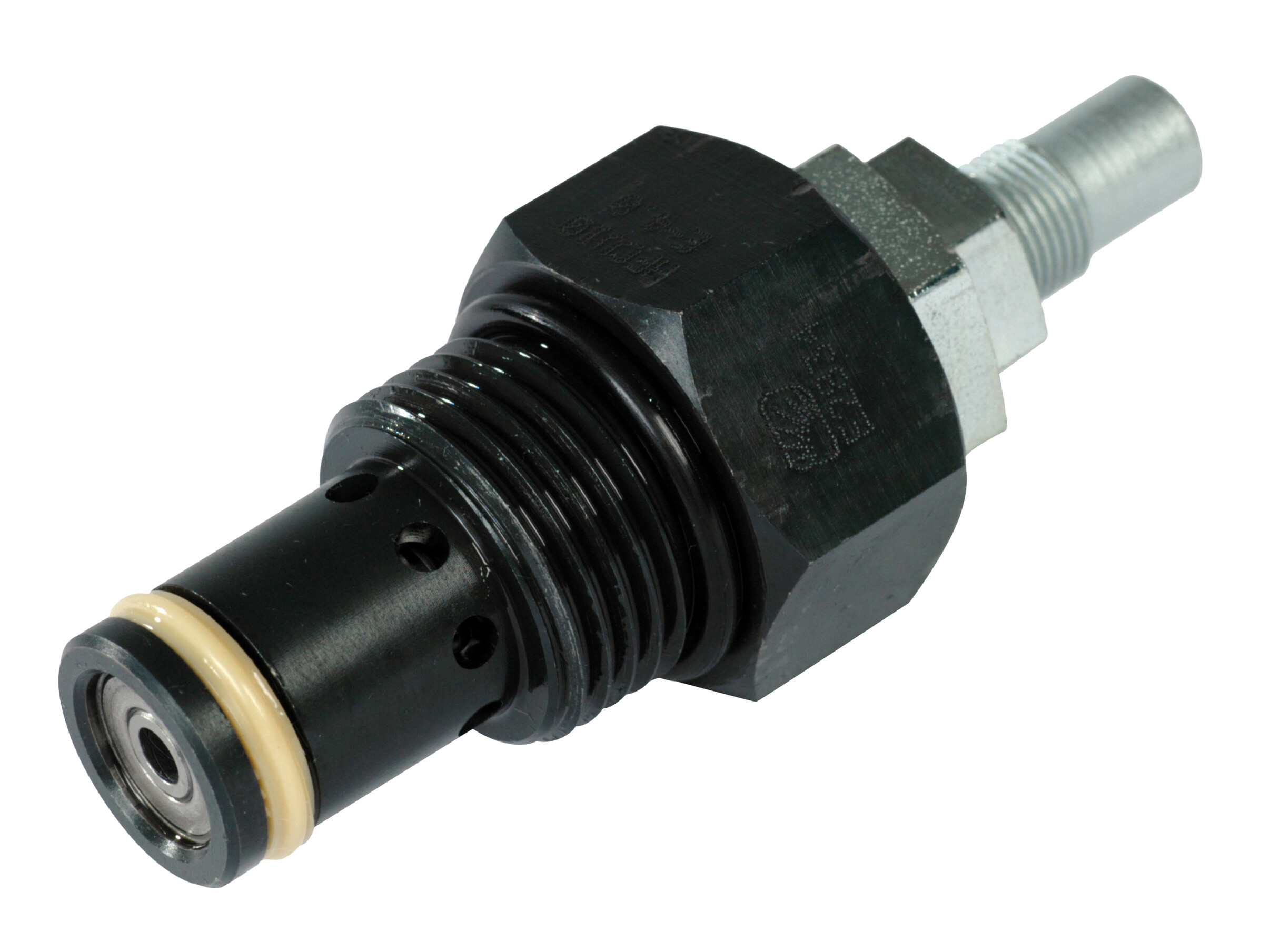

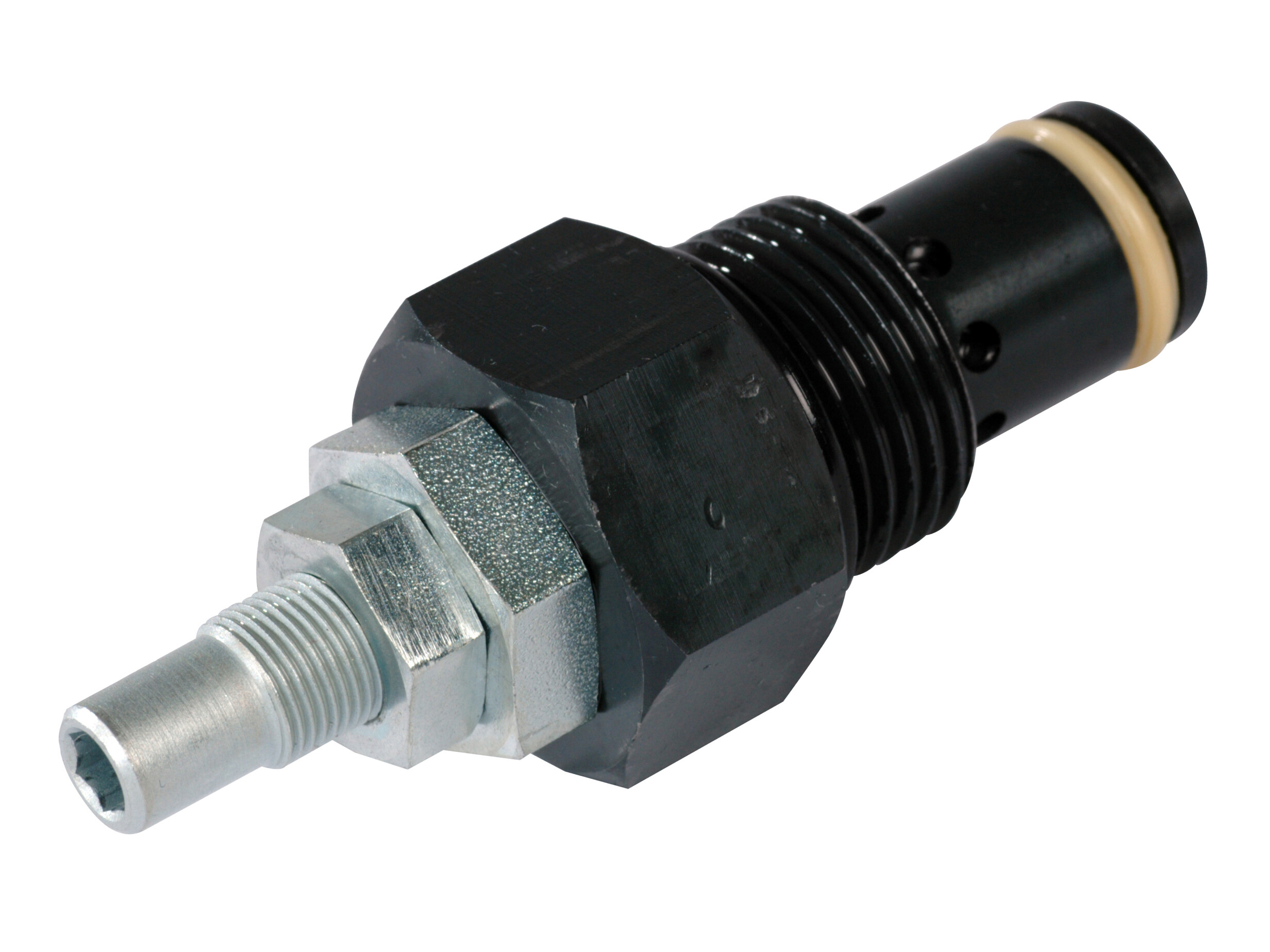

Flow Cont. valve 11,4l/m (0.4-11l/m) HFCV10-RT-P-E-4.0-00
This is a fully adjustable, restrictive type, pressure compensated flow control valve from port 1 to 2 with a reverse free flow check from port 2 to 1. The flow from port 2 will remain constant regardless of the pressure difference across the valve.
Flow enters at port 1 and passes across an adjustable orifice in the spool, which creates a pressure drop. This causes the spool to move back against the spring, which then restricts the outlet flow. Flow from port 2 to 1 passes freely across an integral check valve.
Varenummer:
83027758
Pakke str.:
1 st
Min. bestillingsenhed er:
1 st
Brand Name
Danfoss
Cavity
SDC10-2
Contamination level max.
20/18/14 - ISO 4406
Flow max. regulated
11 lpm
Flow min. regulated
0.4 lpm
Flow rate nominal LMin
12 lpm
Model code
HFCV10-RT-P-E-4.0-00
Oil viscocity recommended
12 - 54 cSt
Pressure compensated
Yes
Pressure max.
350 bar
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
68 - 75 Nm
Pakke str.
1 st
Stregkode
374681
Brutto vægt
0,17 Kg
Netto vægt
0,17 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010
This is a fully adjustable, restrictive type, pressure compensated flow control valve from port 1 to 2 with a reverse free flow check from port 2 to 1. The flow from port 2 will remain constant regardless of the pressure difference across the valve.
Flow enters at port 1 and passes across an adjustable orifice in the spool, which creates a pressure drop. This causes the spool to move back against the spring, which then restricts the outlet flow. Flow from port 2 to 1 passes freely across an integral check valve.
