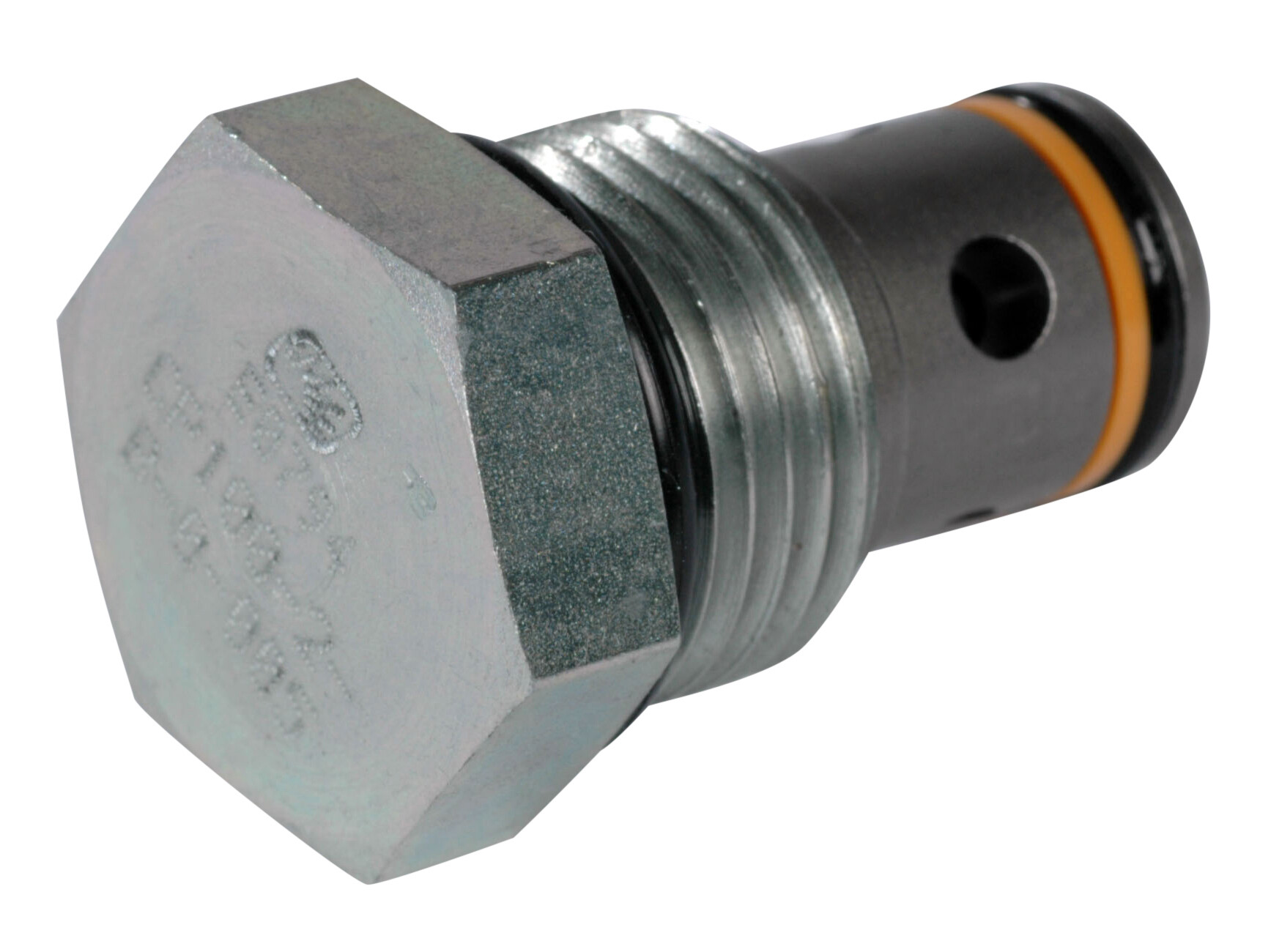

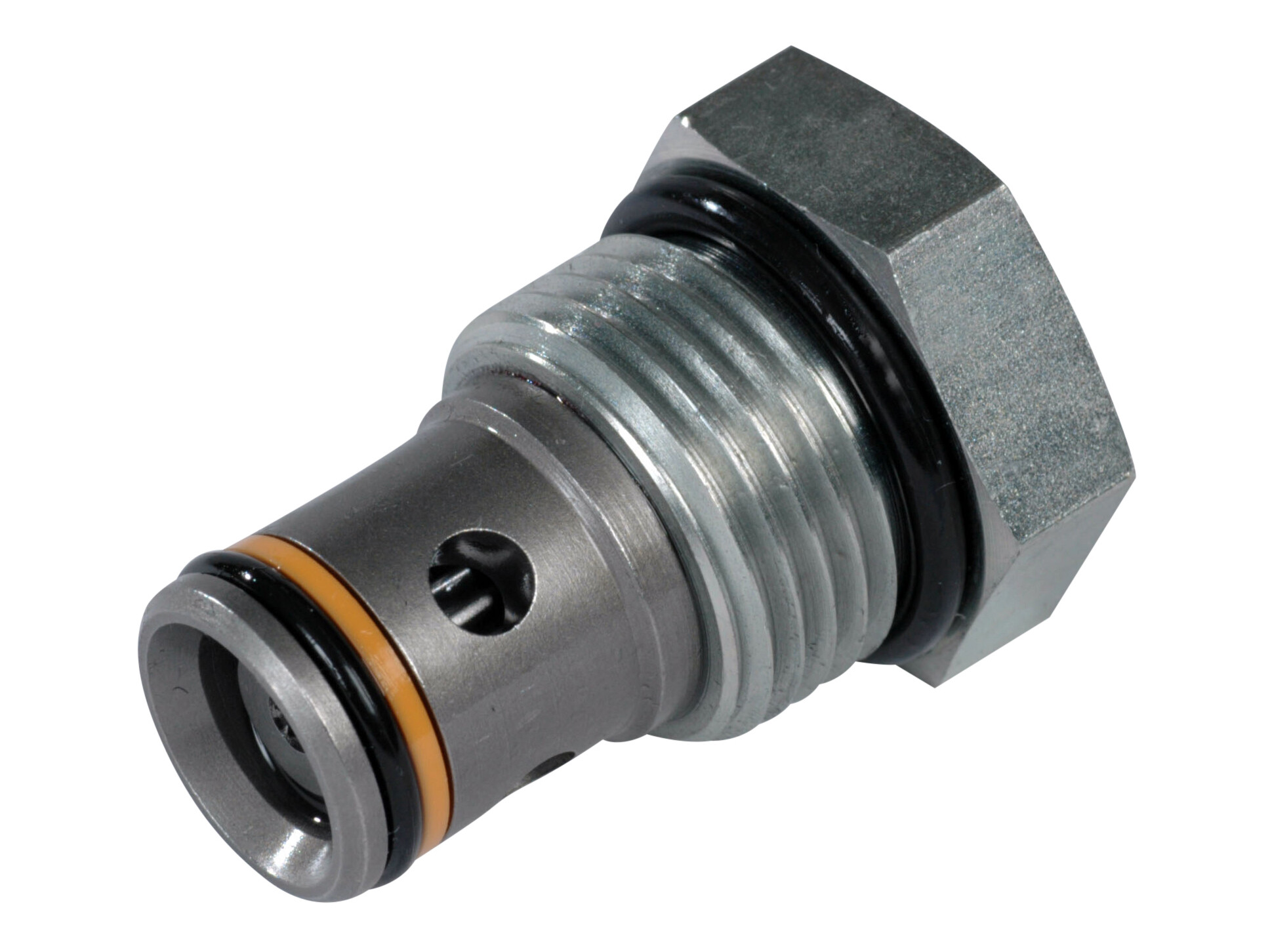

CHECK VALVE CP100-2-B-0-005
This is a check valve where free flow takes place from port 2 to 1 and is blocked from port 1 to 2.
Artikelnummer:
131265
Förpackningsstorlek:
1 st
Minsta beställningskvantitet:
1 st
Brand Name
Danfoss
Cavity
SDC10-2
Contamination level max.
20/19/14 - ISO 4406
Flow rate nominal LMin
50 lpm
Model code
CP100-2-B-0-005
Oil viscocity recommended
12 - 54 cSt
Pressure max.
350 bar
Pressure opening
0.34 bar
Temperature max.
+110 °C
Temperature min.
-30 °C
Torque tightening
41 - 47 Nm
Förpackningsstorlek
1 st
Streckkod
374751
Bruttovikt
0,03 Kg
Nettovikt
0,03 Kg
Ursprungsland
Intrastat artikelkod
84812010
This is a check valve where free flow takes place from port 2 to 1 and is blocked from port 1 to 2.
