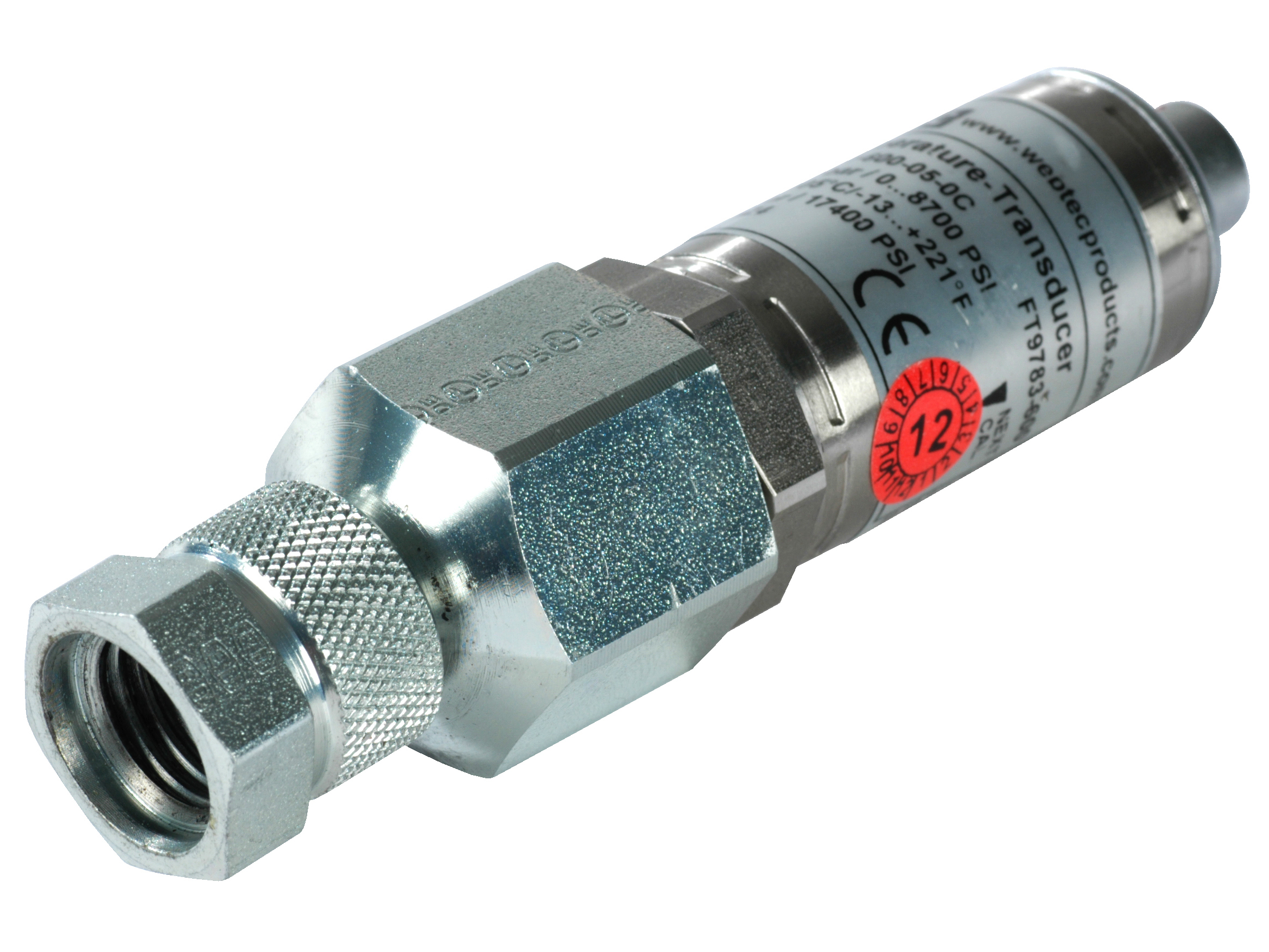

Analog Pressure & Temperature Sensors

SELECT VARIANT

Partnumber	Description	Sensor type	Pressure max.
1810000063	Analogue pressure/temperature sensor 0 > 400 bar	Analog	800 bar

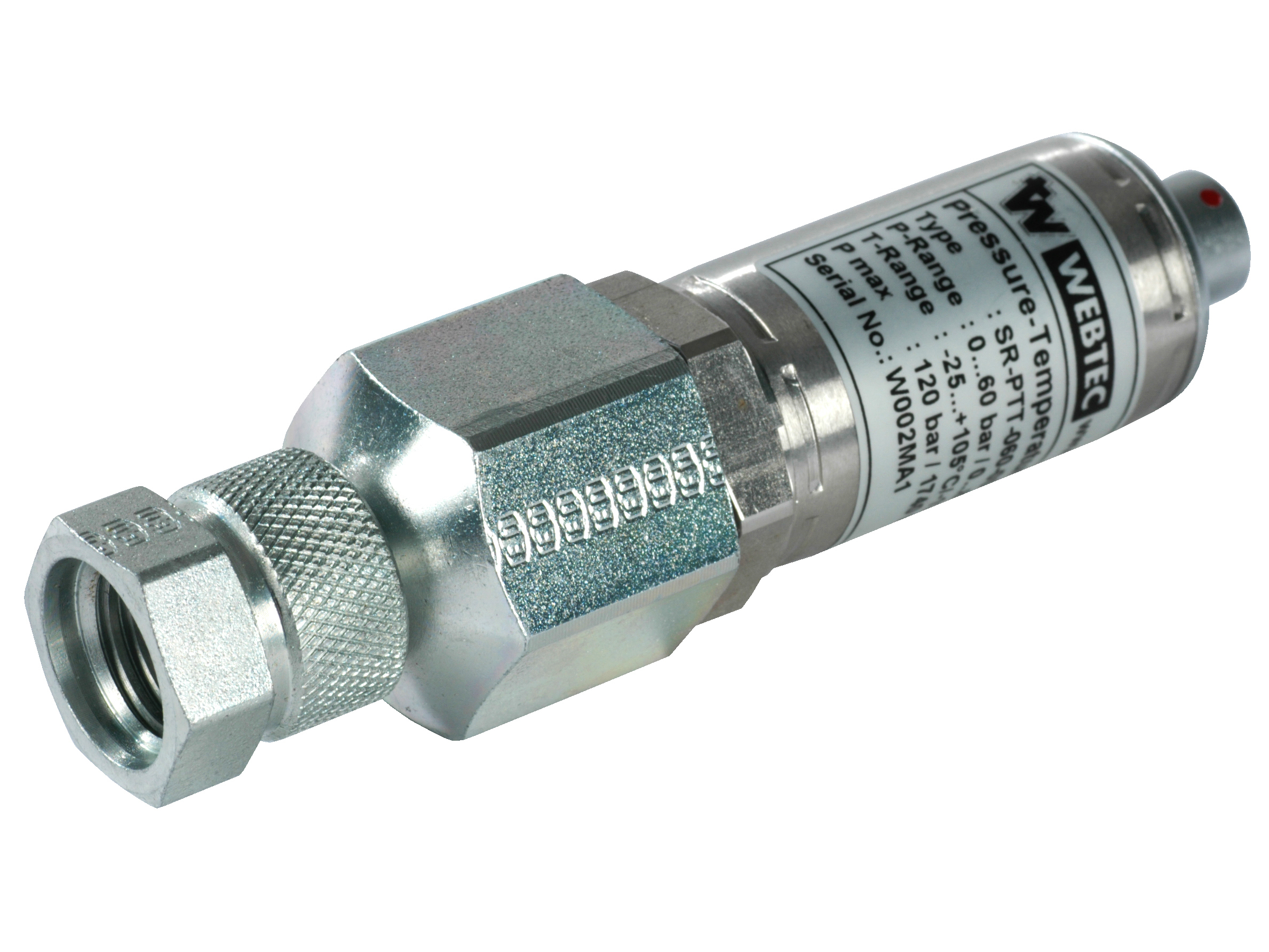

FT9783-060	Pressure/temp.sensor 0-60 bar SR-PTT-060-05-0C	Analog	120 bar

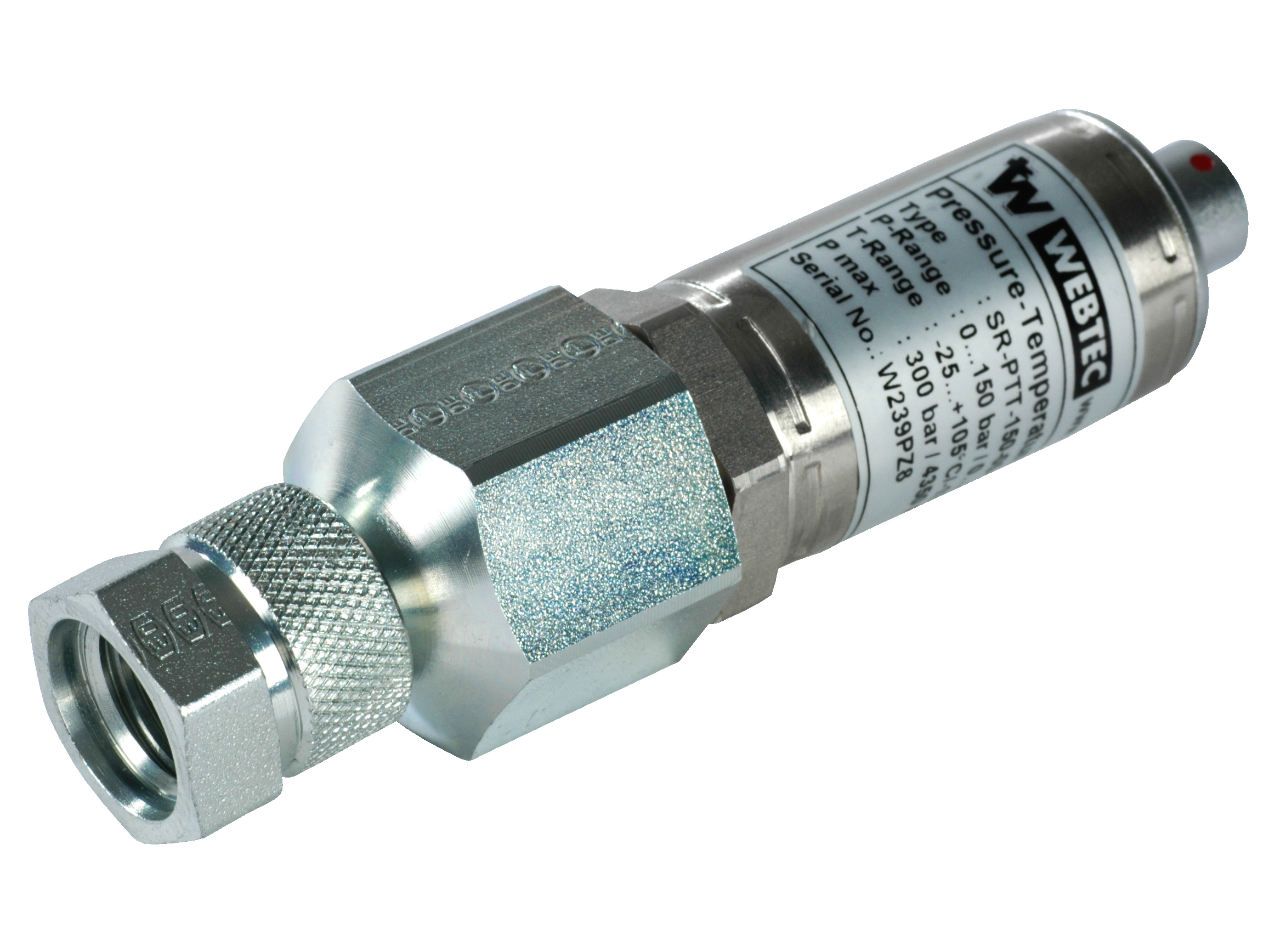

FT9783-150	Pressure/temp.sensor 0-150 bar SR-PTT-150-05-0C	Analog	320 bar
FT9783-600	Pressure/temp.sensor 0-600 bar SR-PTT-600-05-0C	Analog	1000 bar

Material

Stainless steel

Output signal max.

Output signal min.

Protection class

IP 54

Sensor type

Analog

Supply voltage min.

Temperature ambient max.

+85

Temperature ambient min.

-25

Temperature max.

+105

Temperature min.

-25
