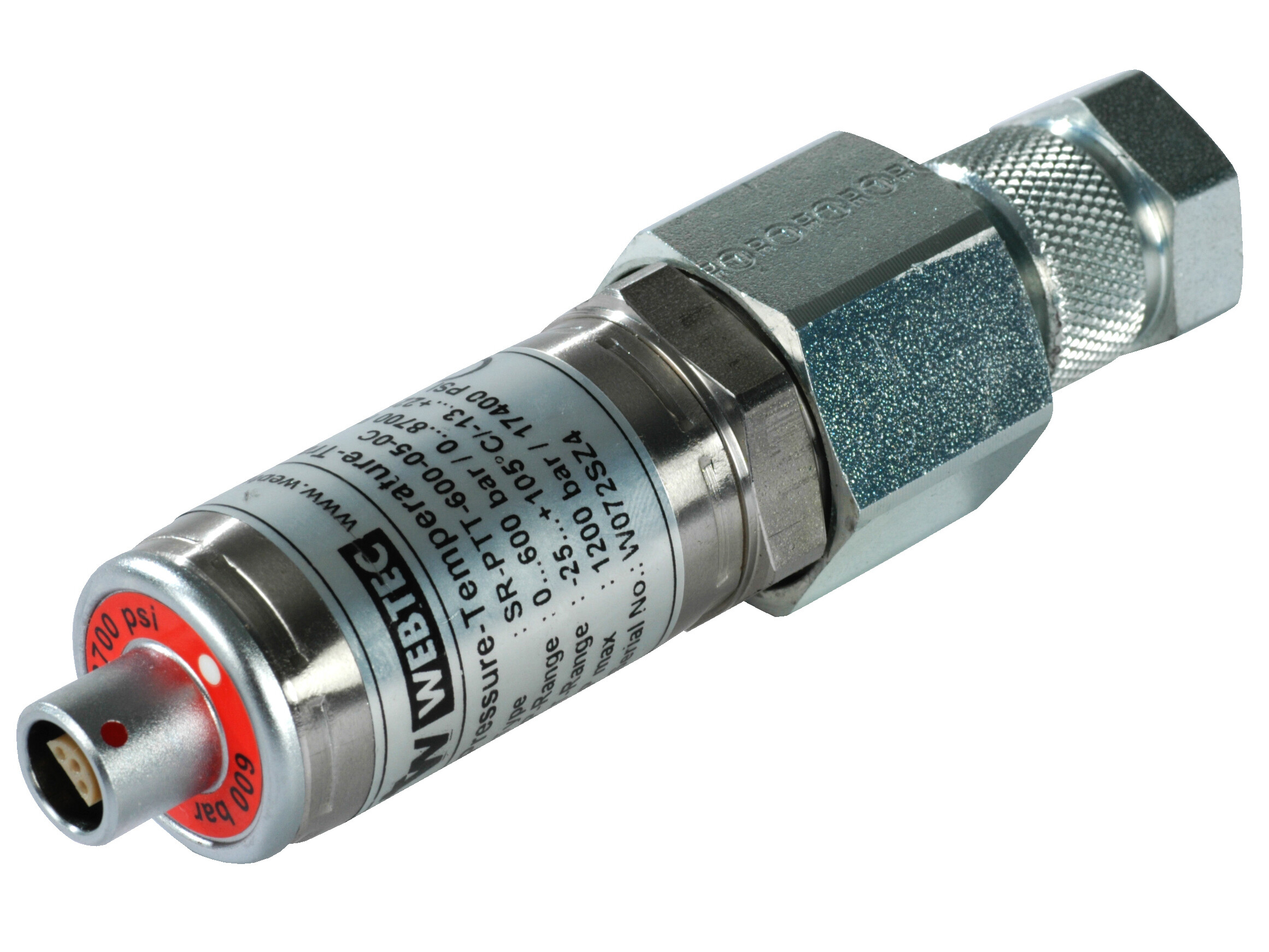

Pressure/temp.sensor 0-600 bar SR-PTT-600-05-0C
The PT /2 pressure transmitters can be used with all hydraulic testers of the HPM series, due to their 5-pin connection. The pressure transmitters are a reliable and flexible solution for the HPM series because of their sturdy stainless-steel design, the quick response times (< 1 ms) and the high accuracy (± 0,25% FS* typ.) with automatic sensor recognition. *FS: Full scale.
Artikelnummer:
FT9783-600
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Webtec
Material
Stainless steel
Output signal max.
3 V
Output signal min.
0 V
Pressure Measurement Bar
0-600 Bar
Pressure burst min.
1800 bar
Pressure max.
1000 bar
Pressure peak max.
1200 bar
Sensor type
Analog
Supply voltage max.
15 V
Supply voltage min.
7 V
Temperature ambient max.
+85 °C
Temperature ambient min.
-25 °C
Temperature max.
+105 °C
Temperature min.
-25 °C
Package size
0 pcs
Barcode
5704334270126
Gross weight
0,31 Kg
Net weight
0,31 Kg
Country of origin
Intrastat code
90261021
The PT /2 pressure transmitters can be used with all hydraulic testers of the HPM series, due to their 5-pin connection. The pressure transmitters are a reliable and flexible solution for the HPM series because of their sturdy stainless-steel design, the quick response times (< 1 ms) and the high accuracy (± 0,25% FS* typ.) with automatic sensor recognition. *FS: Full scale.
