Grp. 1,5

Grp. 1,5

Select variant
SELECT VARIANT
SELECT VARIANT
Partnumber Description Motor size Diameter mountinghole Recess towards engine Depth

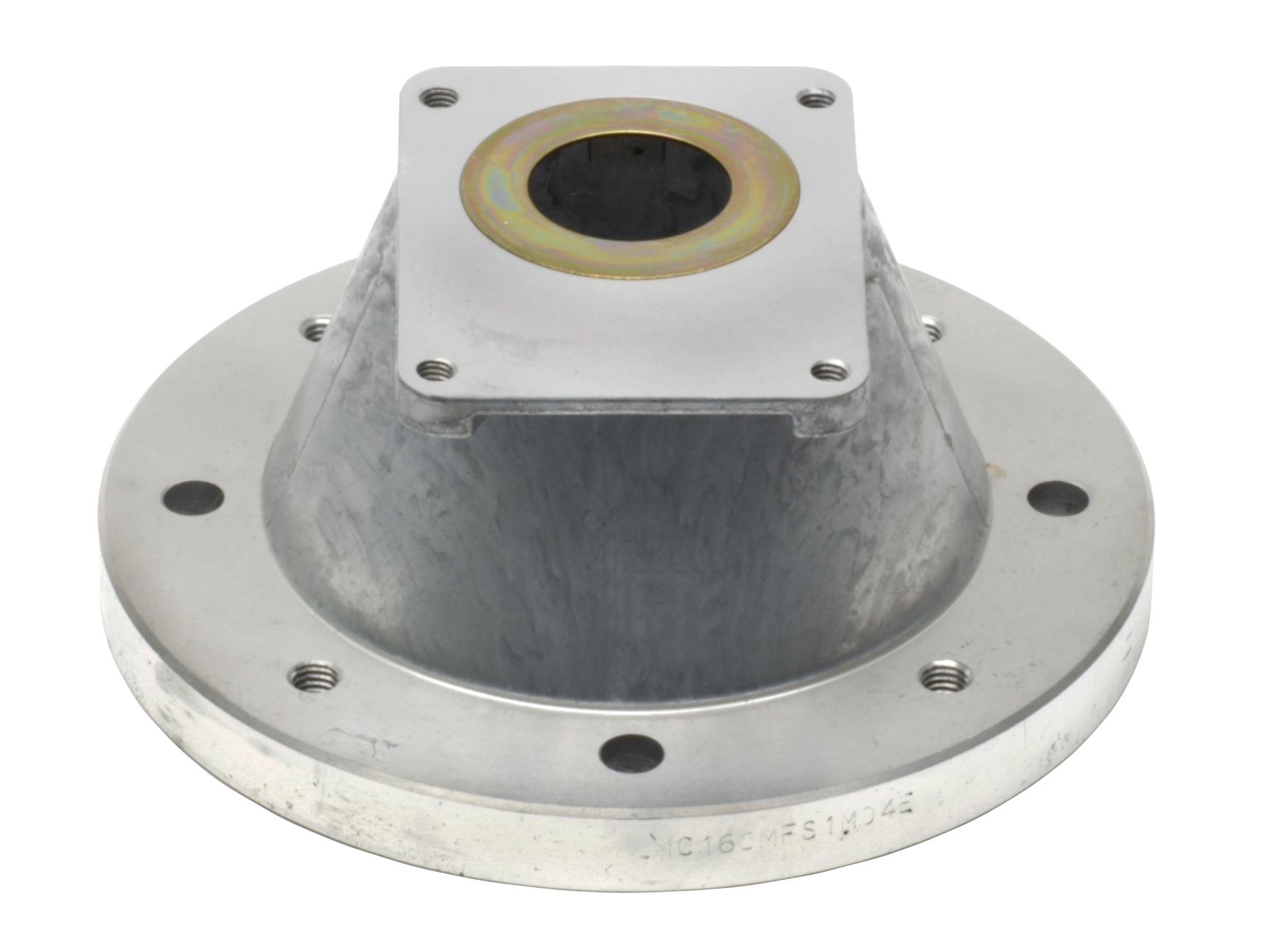

LMC160S1M04E Bell housing gr. 1,5 x B5/71 LMG160MFS1M04E 71 IEC 110 mm 110 mm 70 mm

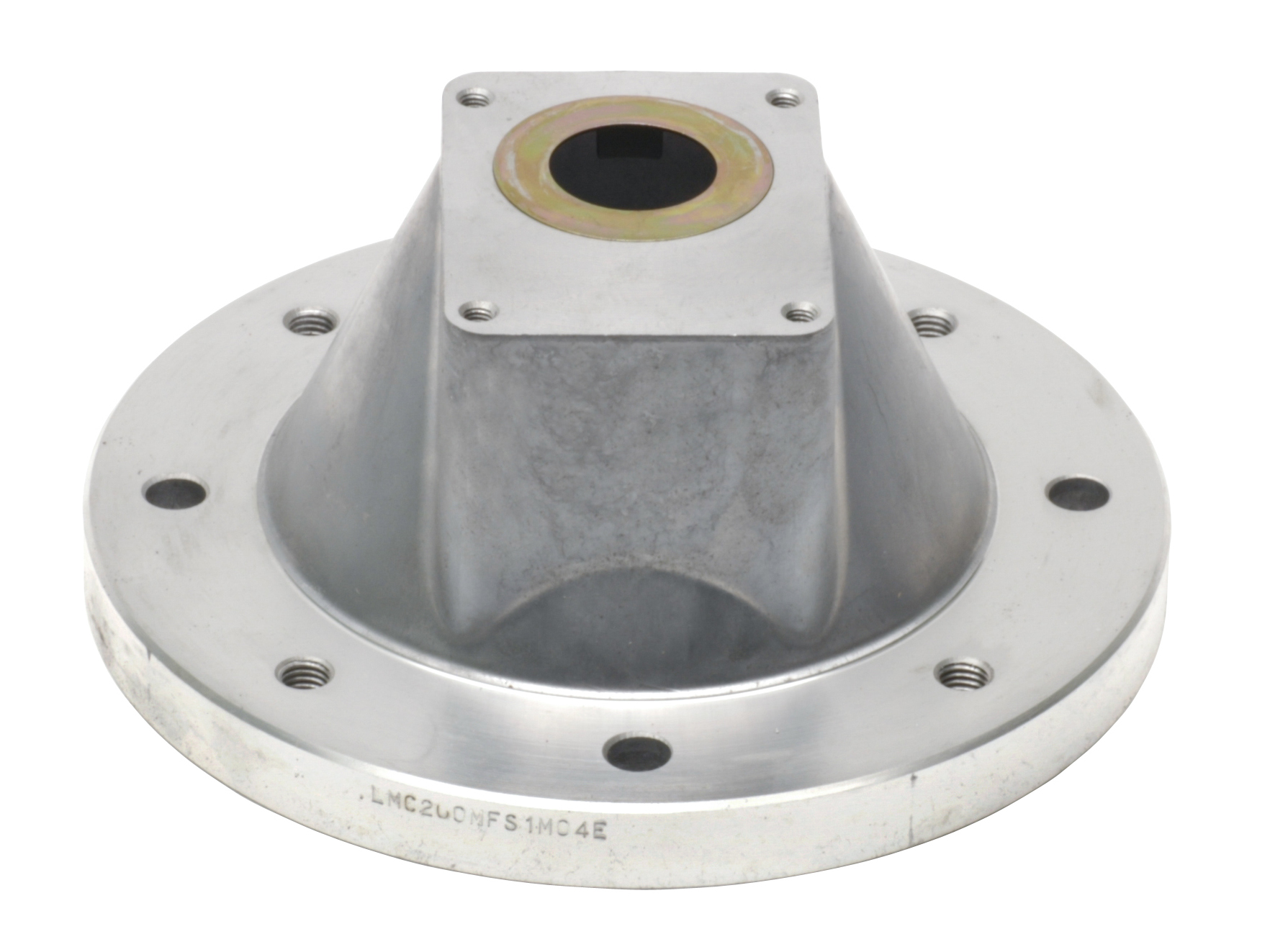

LMC200M1M04E Bell housing gr.1,5 x B5/80-90 LMG200MFS1M04E 80, 90 IEC 135 mm 130 mm 87 mm
LMC250M1M04S Bell hous. gr.1,5 x B5/100-112 LMG250MFS1M04S 100, 112 IEC 185 mm 180 mm 105 mm
Brand Name
MP Filtri
Material
Aluminium
Mountingtype
B5
Pump group
1,5
Temperature max.
+80
Temperature min.
-30
